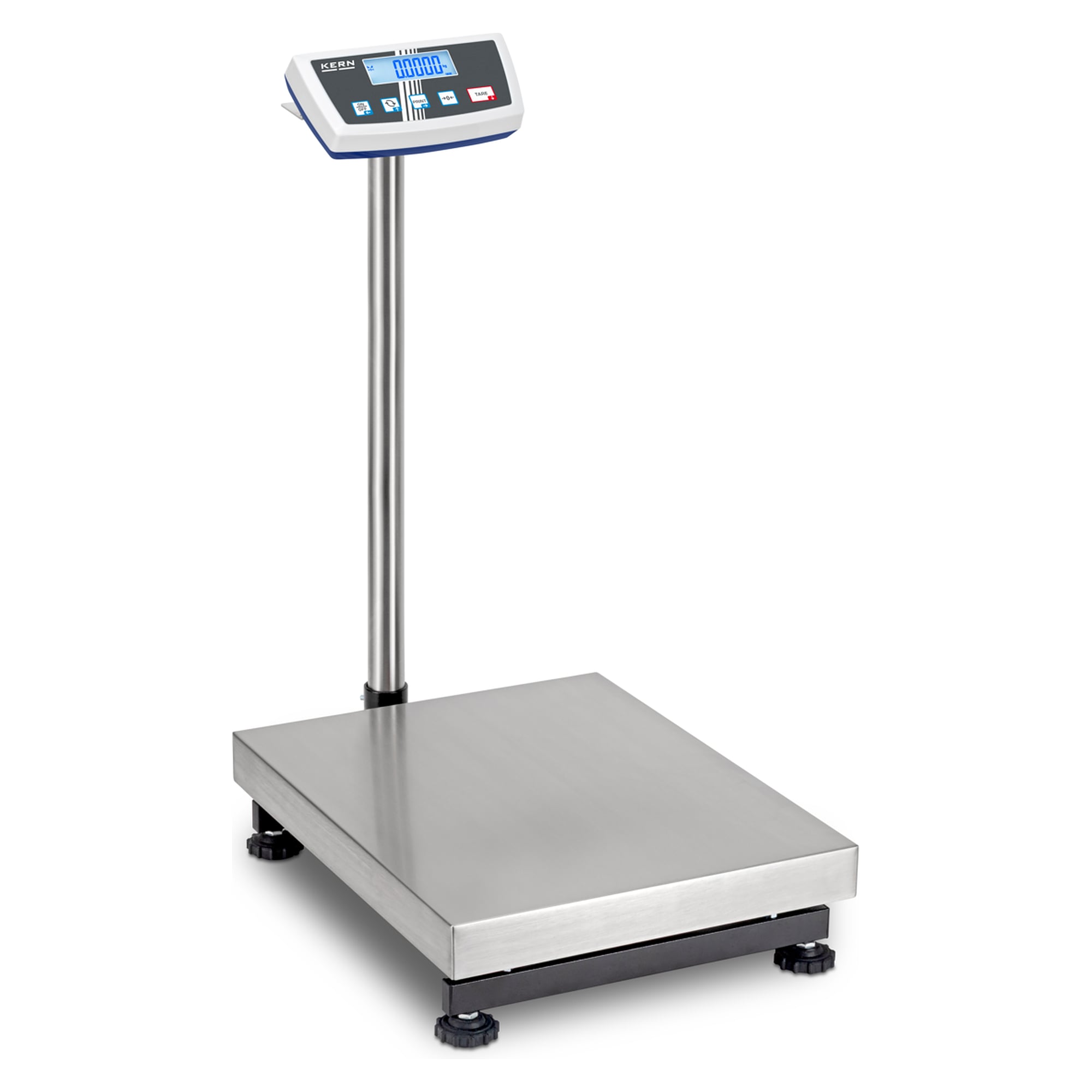

IoT-Line Platform Scale 65 kg Readability 0,0005 kg - KERN DS 65K0.5
The KERN DS 65K0.5 brings laboratory-grade accuracy to the industrial floor with a 65 kg weighing range and 0,0005 kg readability. The KERN Universal Port (KUP) lets you add RS-232, USB, Bluetooth, WLAN or Ethernet and tie the scale into digital processes.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
In quality assurance and test-equipment monitoring, even large or heavy samples have to be captured precisely. The KERN DS 65K0.5 pairs a 65 kg weighing range with 0,0005 kg readability and a 500×400 mm weighing surface.
Benefits
- Lab accuracy under load: 0,0005 kg readability at a linearity of ± 0,0015 kg
- KERN Universal Port (KUP): add RS-232, USB, Bluetooth, WLAN or Ethernet with no installation effort
- KERN Communication Protocol (KCP): query and remotely control the scale from a PC or controller
- Accurate counting: automatic reference optimisation gradually refines the average piece weight
- Mains-independent: optional internal battery (charge time 8 h, up to 48 h of operation)
- Freely programmable unit: readout directly in g/m or g/m², dust cover included
Applications
The KERN DS 65K0.5 supports quality assurance, test-equipment monitoring and digital processes in production.
Compliance and origin
EAN 4045761487918, customs tariff code 84238220, country of origin DE (Made in Germany).
Technical data
| Weighing range (max) | 65 kg |
|---|---|
| Readability (d) | 0,0005 kg |
| Repeatability | 0,0005 kg |
| Linearity | ± 0,0015 kg |
| Smallest part weight for counting (lab conditions) | 500 mg |
| Smallest part weight for counting (normal conditions) | 5 g |
| Weighing system | Strain gauge |
| Weighing surface (W×D) | 500×400 mm |
| Housing dimensions (W×D×H) | 225×115×60 mm |
| Display | LCD, digit height 21 mm |
| Interfaces | RS-232 (optional),Ethernet (optional),Bluetooth BLE (v4.0) (optional),USB-Device (optional),KUP,WLAN (optional) |
| Operating temperature | -10 °C to 40 °C |
| Net weight approx. | 19 kg |
| Weight | 22 kg |
| Manufacturer | Kern |
| EAN | 4045761487918 |
| HS-Code | 84238220 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Material | Plastic |
| Wägebereich max (g) | 65000 |
| Ablesbarkeit (g) | 0.5 |
| Display type | LCD |
| Interface | Bluetooth, Ethernet, KUP, RS-232, USB device, WLAN |
