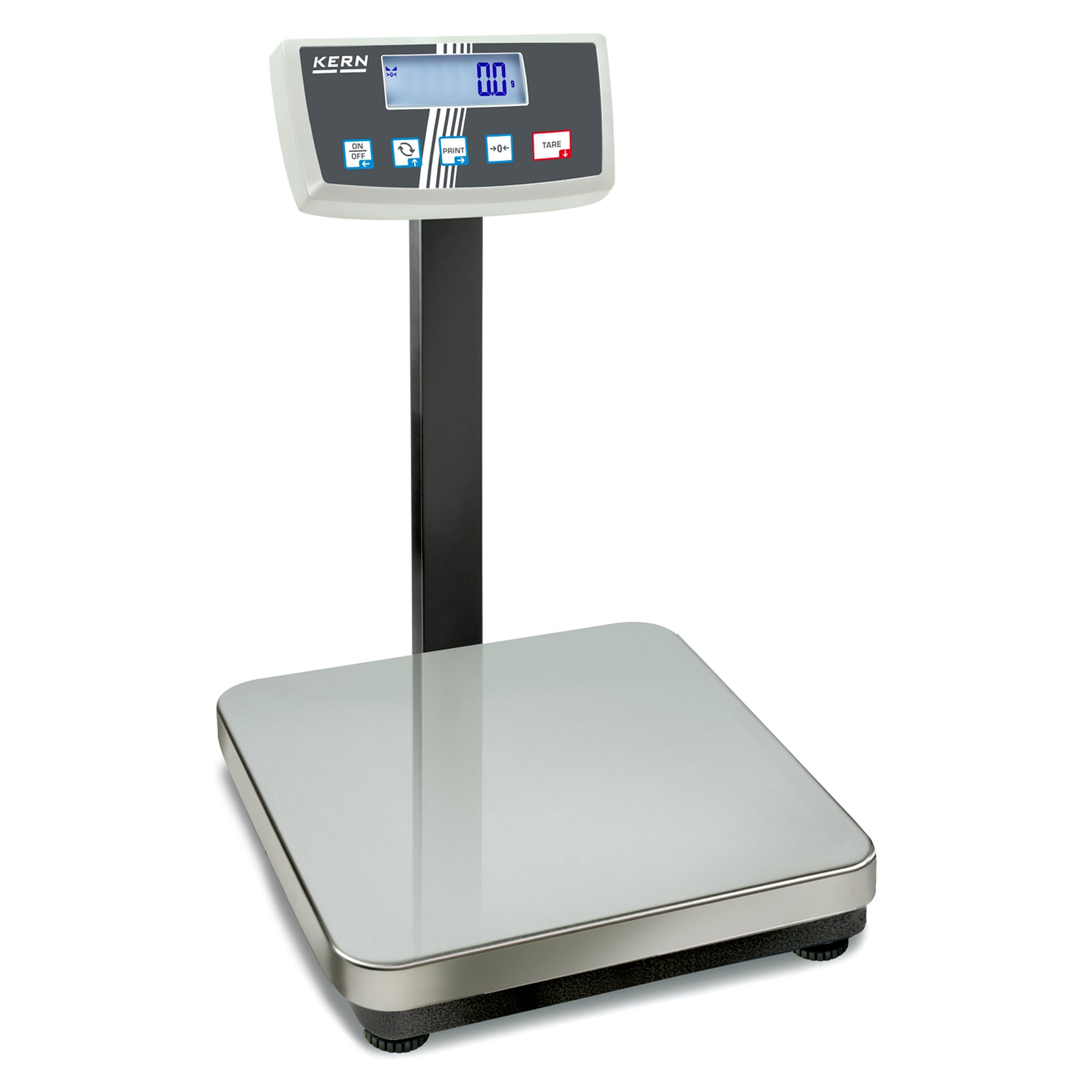

IoT-Line Platform Scale 8000 g Readability 0,05 g - KERN DS 8K0.05

In quality assurance and test-equipment monitoring, even large or heavy samples have to be captured precisely. The KERN DS 8K0.05 pairs a 8000 g weighing range with 0,05 g readability and a 308×318 mm weighing surface.

Benefits

• Lab accuracy under load: 0,05 g readability at a linearity of ± 0,15 g
• KERN Universal Port (KUP): add RS-232, USB, Bluetooth, WLAN or Ethernet with no installation effort
• KERN Communication Protocol (KCP): query and remotely control the scale from a PC or controller
• Accurate counting: automatic reference optimisation gradually refines the average piece weight
• Mains-independent: optional internal battery (charge time 8 h, up to 48 h of operation)
• Freely programmable unit: readout directly in g/m or g/m², dust cover included

Technical data

• Weighing range (max): 8000 g
• Readability (d): 0,05 g
• Repeatability: 0,05 g
• Linearity: ± 0,15 g
• Smallest part weight for counting (lab conditions): 50 mg
• Smallest part weight for counting (normal conditions): 500 mg
• Weighing system: Strain gauge
• Stabilization time: 3 s
• Weighing surface (W×D): 308×318 mm
• Housing dimensions (W×D×H): 225×115×60 mm
• Display: LCD, digit height 21 mm
• Interfaces: RS-232 (optional),Ethernet (optional),Bluetooth BLE (v4.0) (optional),USB-Device (optional),KUP,WLAN (optional)
• Operating temperature: -10 °C to 40 °C
• Net weight approx.: 8 kg

Applications

The KERN DS 8K0.05 supports quality assurance, test-equipment monitoring and digital processes in production. It is compatible with the KERN EasyTouch software for capturing and evaluating your weighing data.

Compliance and origin

EAN 4045761357235, customs tariff code 90160010, country of origin DE (Made in Germany).
