Industrial Platform Scale 15 kg / 35 kg Readability 0,0005 kg / 0,001 kg - KERN EOC 30K-4

For goods-in, order picking or production floors that need dependable weighing, the KERN EOC 30K-4 is a platform scale for loads up to 35 kg. As a multi-range scale it switches on its own from 15 kg to 35 kg and resolves the lower range to a fine 0,0005 kg.

Benefits

• Two ranges in one scale: it switches automatically from 15 kg to 35 kg and reads down to 0,0005 kg in the lower range.
• IP65 load cell: the silicone-coated aluminium load cell is protected against dust and splashing water for daily industrial use.

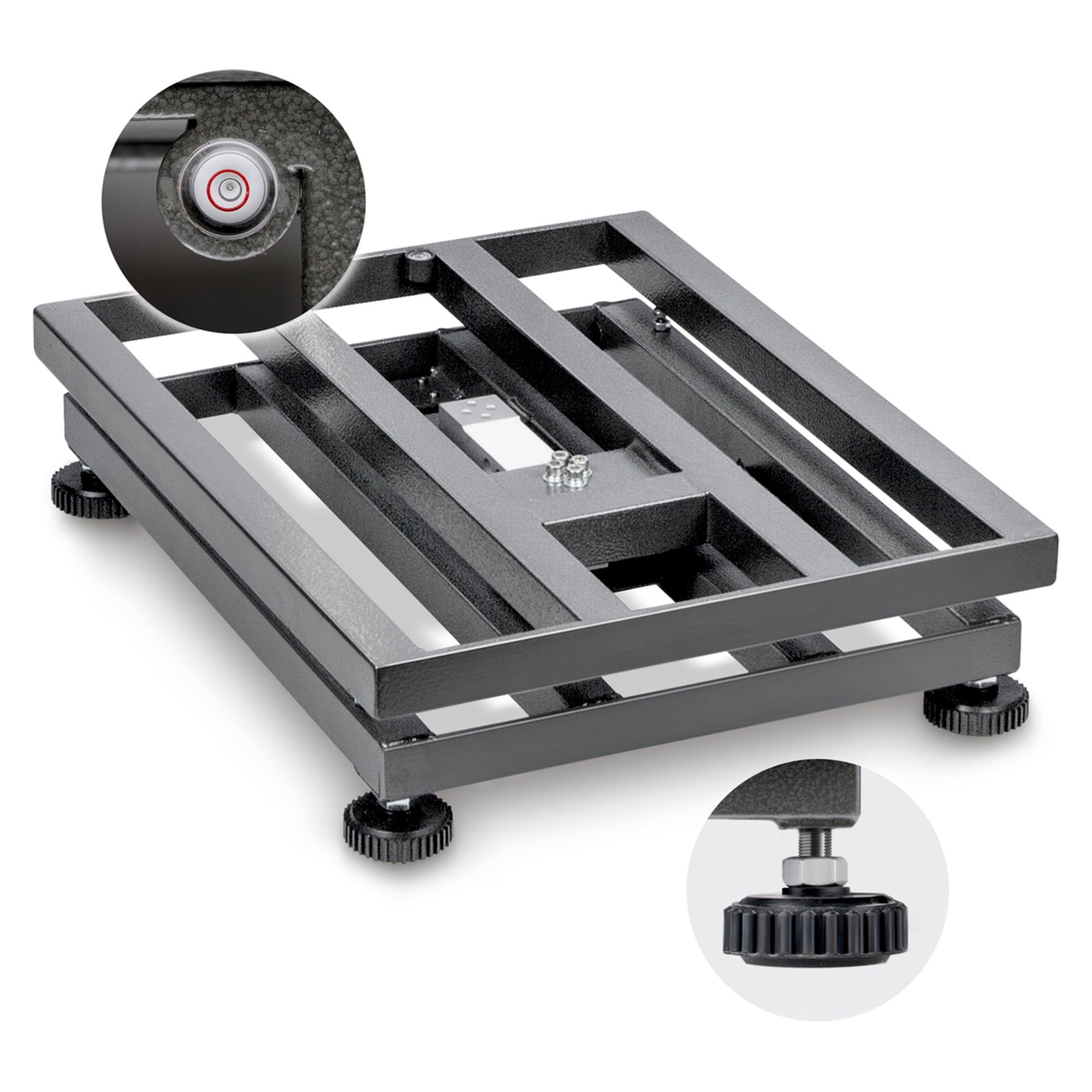

• Levelling as standard: a spirit level and adjustable feet keep results repeatable (0,0005 kg; 0,001 kg).
• Check weighing: an optical and audible tolerance signal supports portioning, dosing and sorting.
• Connects to your systems: an RS-232 interface as standard and the KCP protocol allow remote control and data transfer to PCs and controllers.
• Mains or battery power: mains adapter included, optional internal battery for mobile use with up to 43 h runtime.

Technical data

• Weighing range (Max): 15 kg; 35 kg
• Readability (d): 0,0005 kg; 0,001 kg
• Repeatability: 0,0005 kg; 0,001 kg
• Linearity: ± 0,0015 kg; 0,003 kg
• Smallest piece weight (counting): 10 g
• Weighing system: Strain gauge
• Stabilisation time: 2 s
• Load cell protection: IP65
• Interface: RS-232
• Weighing surface (W×D): 500×400 mm
• Display: LCD, 25 mm digit height
• Units: kg; g; lb; oz; PCS
• Power supply: Mains adapter, optional internal battery
• Operating temperature: -10 °C to 40 °C
• Net weight: 9 kg

Applications

Typical uses include agriculture and agribusiness, food processing, order picking and shipping, and the chemical, plastics and paint industries.

Compliance and origin

EAN 4045761192423, customs tariff number 84238220, country of origin China.
