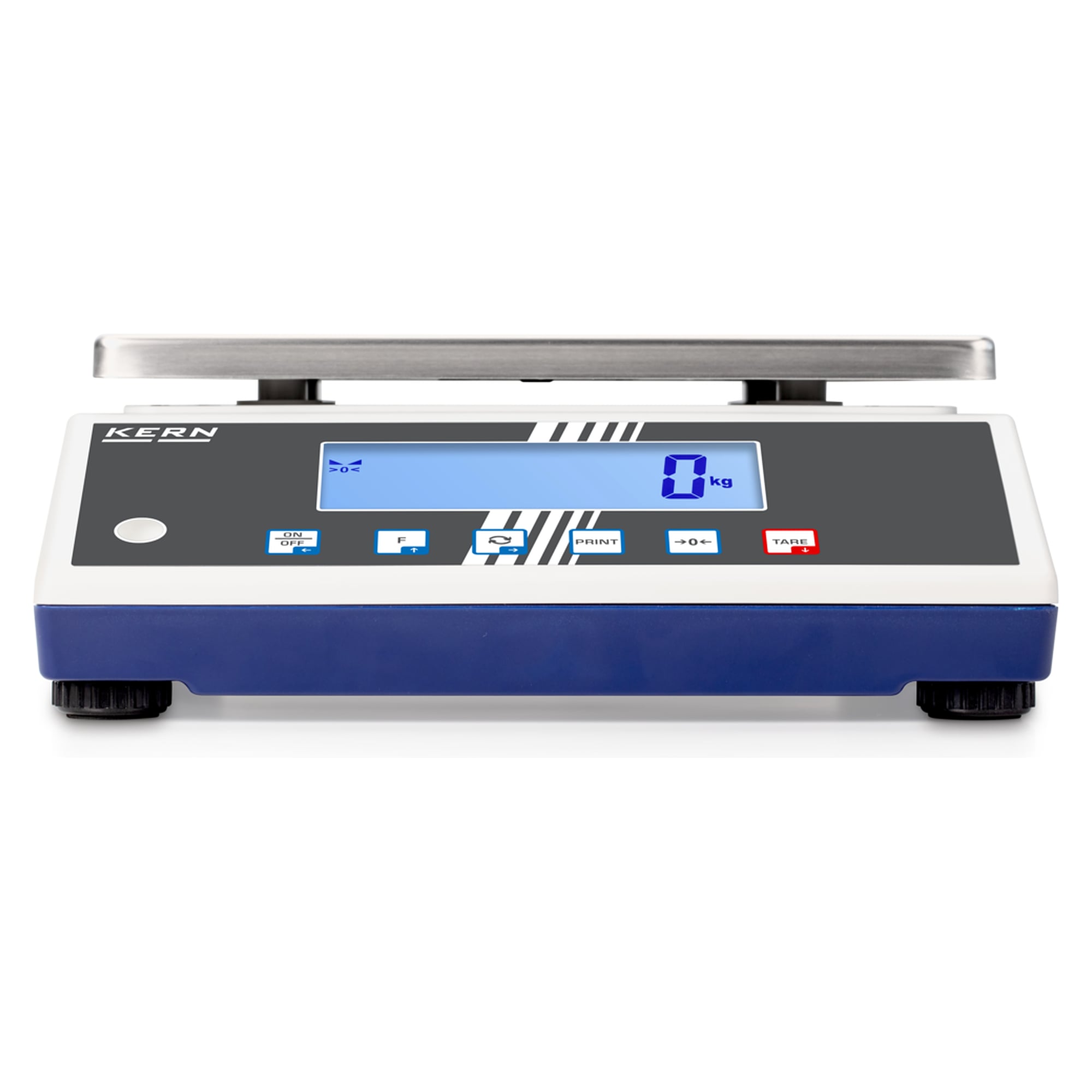

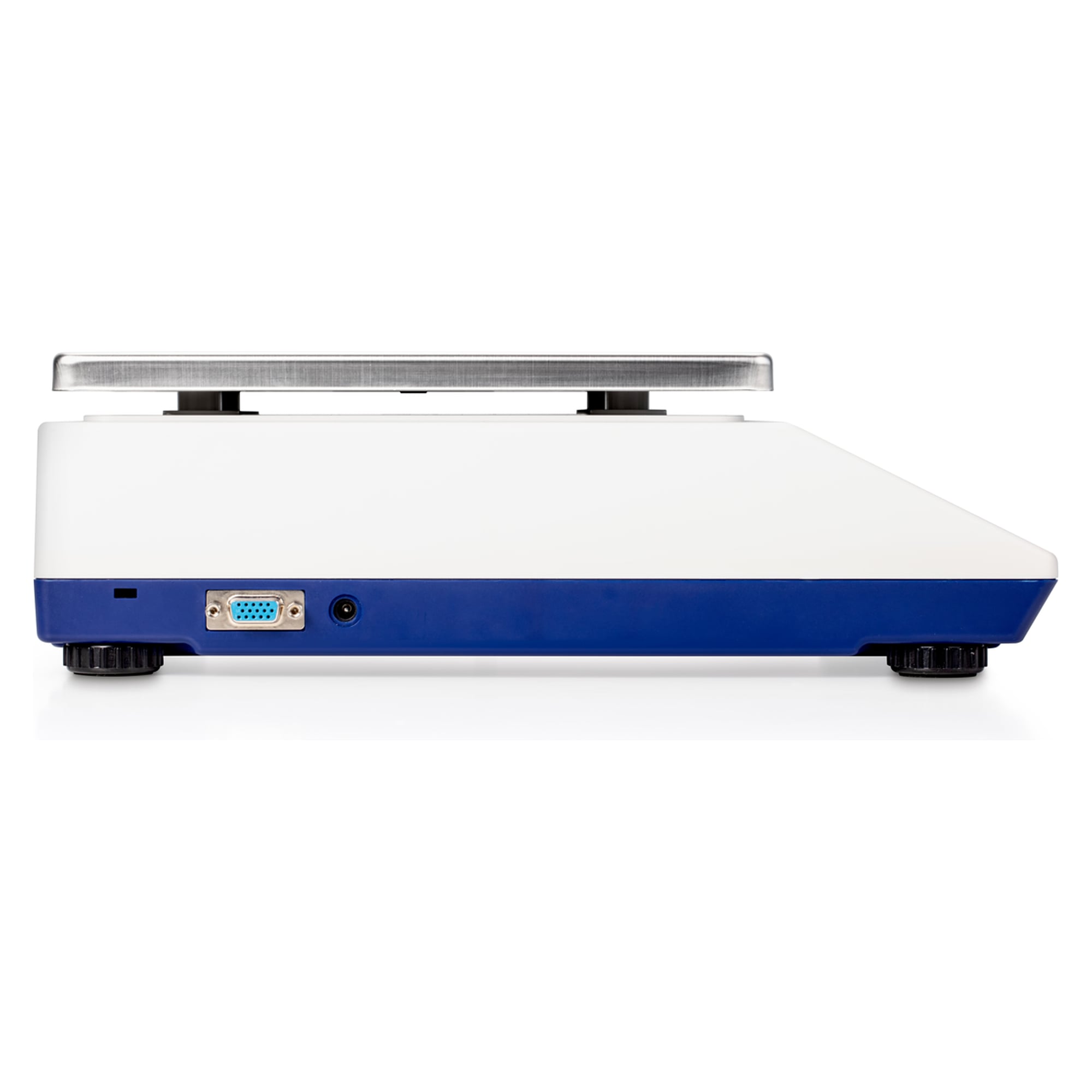

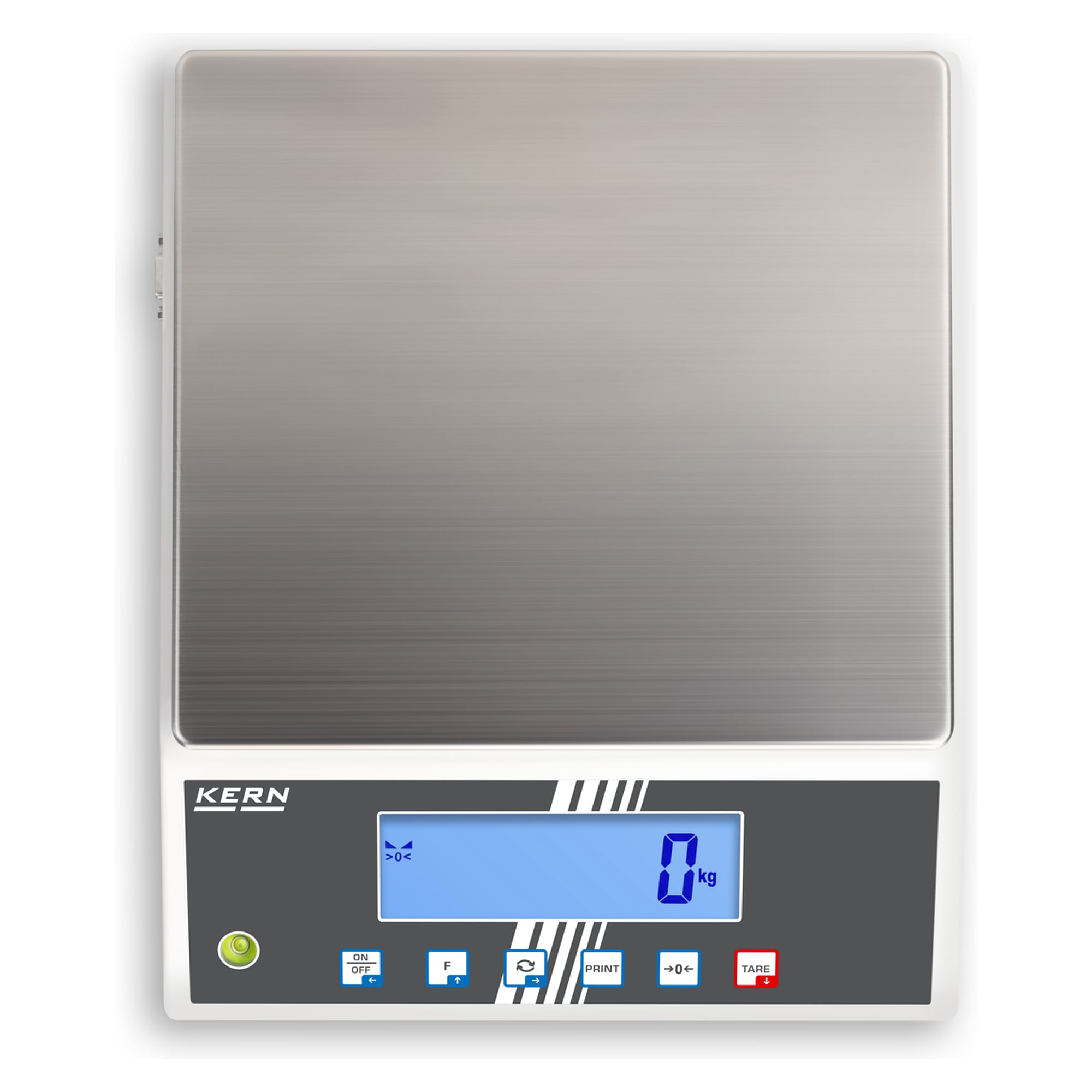

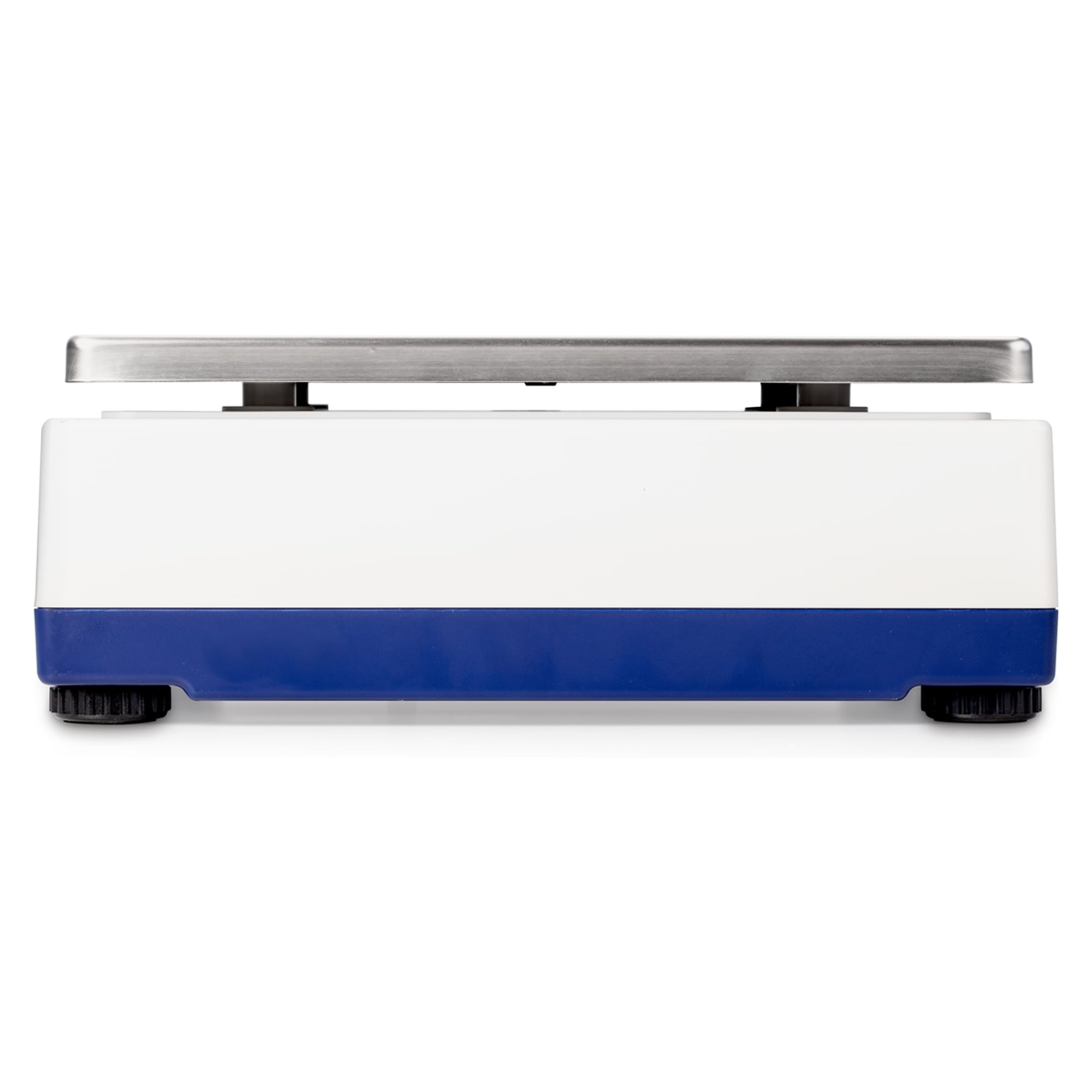

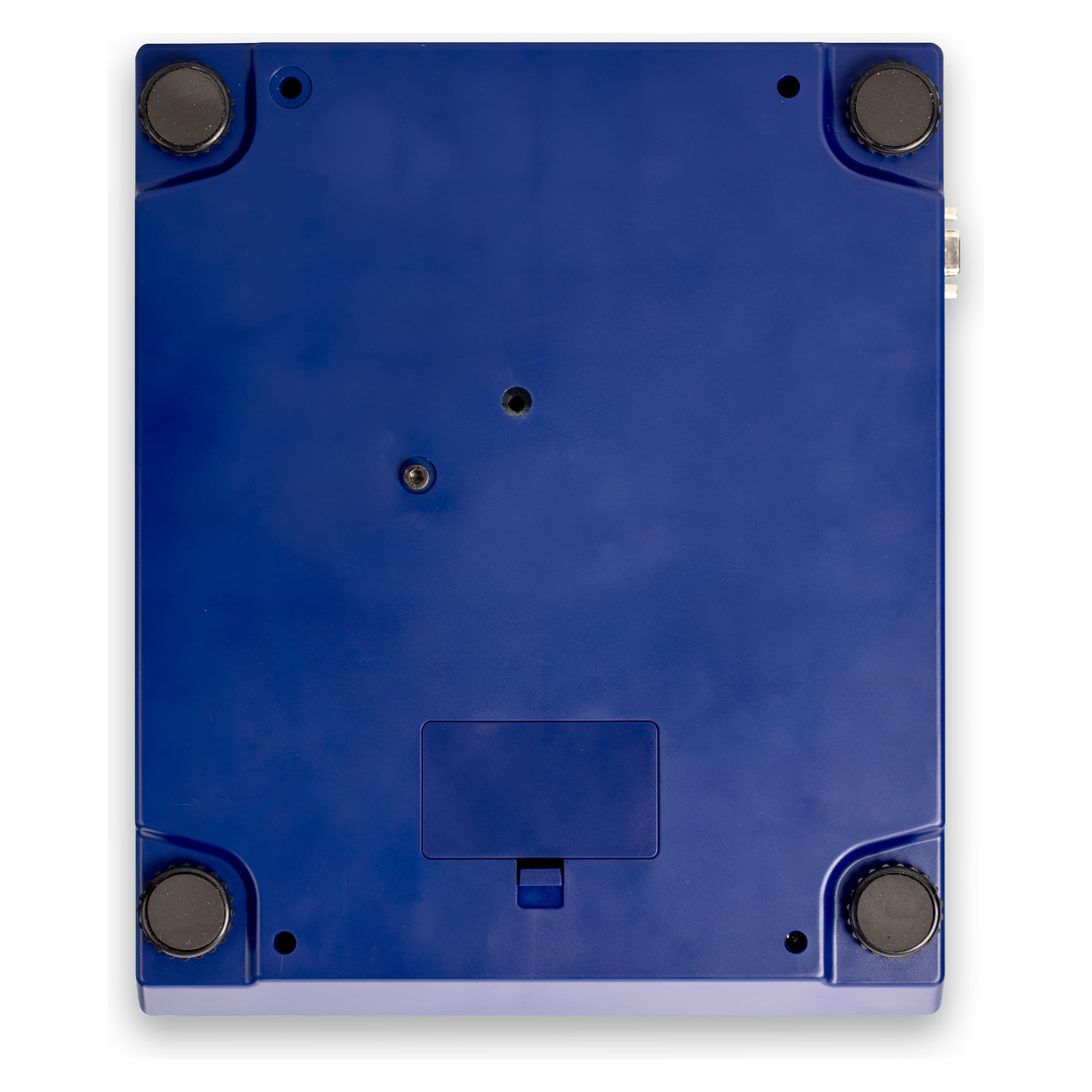

IoT-Line Bench Scale 3000 g / 6000 g Readability 1 g / 2 g - KERN FCB 6K-3DM

For anyone integrating control and portion weighing into a digital process chain, the KERN FCB 6K-3DM is an IoT bench scale that captures 3000 g / 6000 g at 1 g / 2 g readability and shares its data over up to three interfaces in parallel.

Benefits

• 3000 g / 6000 g range at 1 g / 2 g readability: fine resolution for check, portion and counting tasks
• KERN Universal Port (KUP): up to three interfaces in parallel: RS-232, USB, Ethernet, WLAN, Bluetooth
• Checkweighing with tolerance range: optical and acoustic signal supports portioning, dosing and sorting
• Verifiable, accuracy class III: multi-interval scale with automatic range switching, available legally verified
• Compact plastic housing 322 × 267 mm: space-saving, with in-use cover and optional battery operation

Technical data

• Weighing range (max.): 3000 g; 6000 g
• Readability (d): 1 g; 2 g
• Verification value (e): 1 g; 2 g
• Accuracy class: III
• Minimum load (Min): 20 g
• Repeatability: 1 g; 2 g
• Linearity: ± 1 g; 2 g
• Weighing system: Strain gauge
• Stabilization time: 2 s
• Weighing surface (W×D): 252×225 mm
• Display digit height: 25 mm
• Housing: Plastic
• Interfaces: RS-232 (optional),Ethernet (optional),Alibi Speicher,Bluetooth BLE (v4.0) (optional),USB-Device (optional),KUP,WLAN (optional)
• Net weight: 3,8 kg

Applications

For industrial applications, pharmacies and workshops, warehouse logistics and digital processes. Compatible with KERN EasyTouch software.

Compliance and origin

As a verifiable scale of accuracy class III, it can be supplied factory-calibrated and legally verified. EAN 4045761475533, customs tariff code 84238129, country of origin China.
