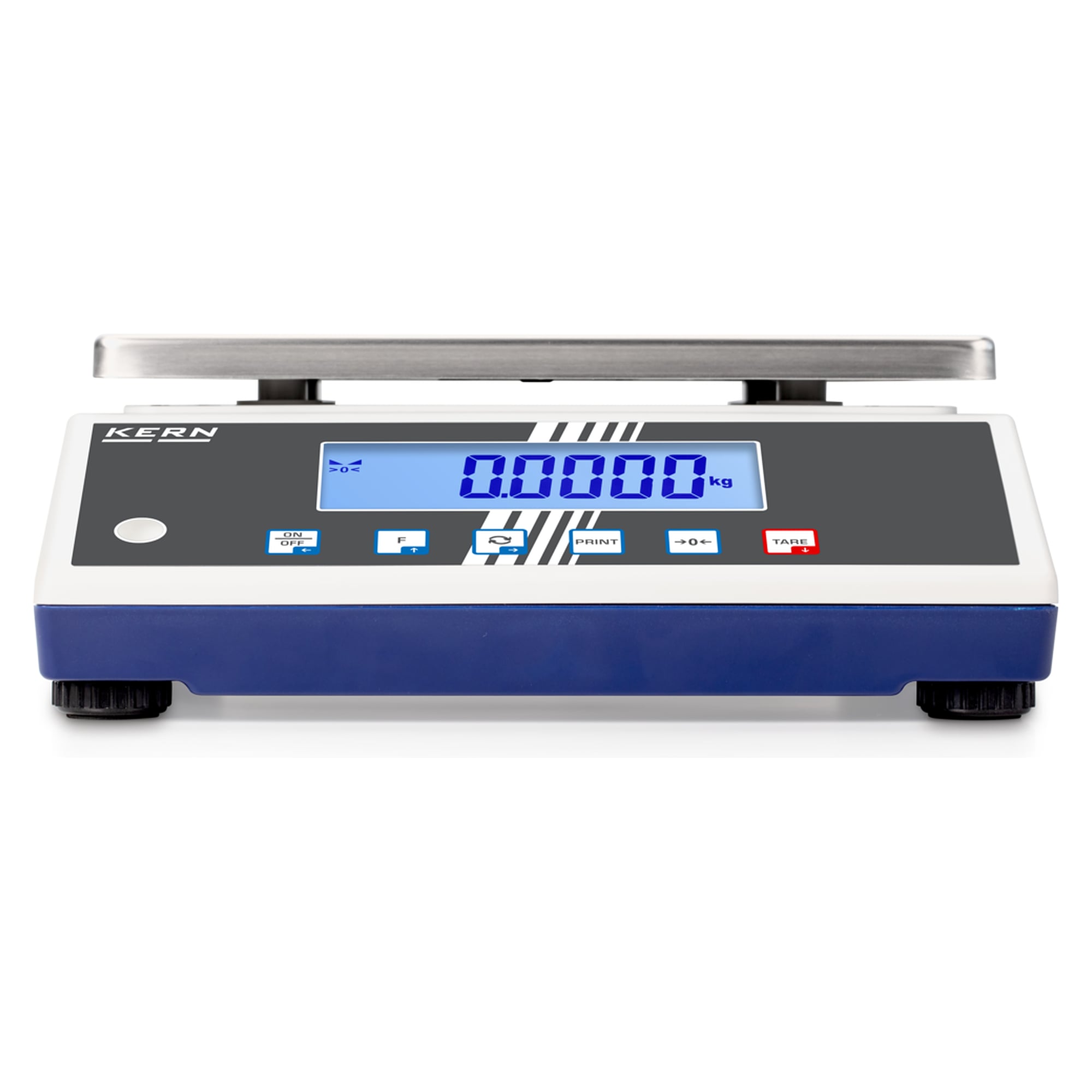

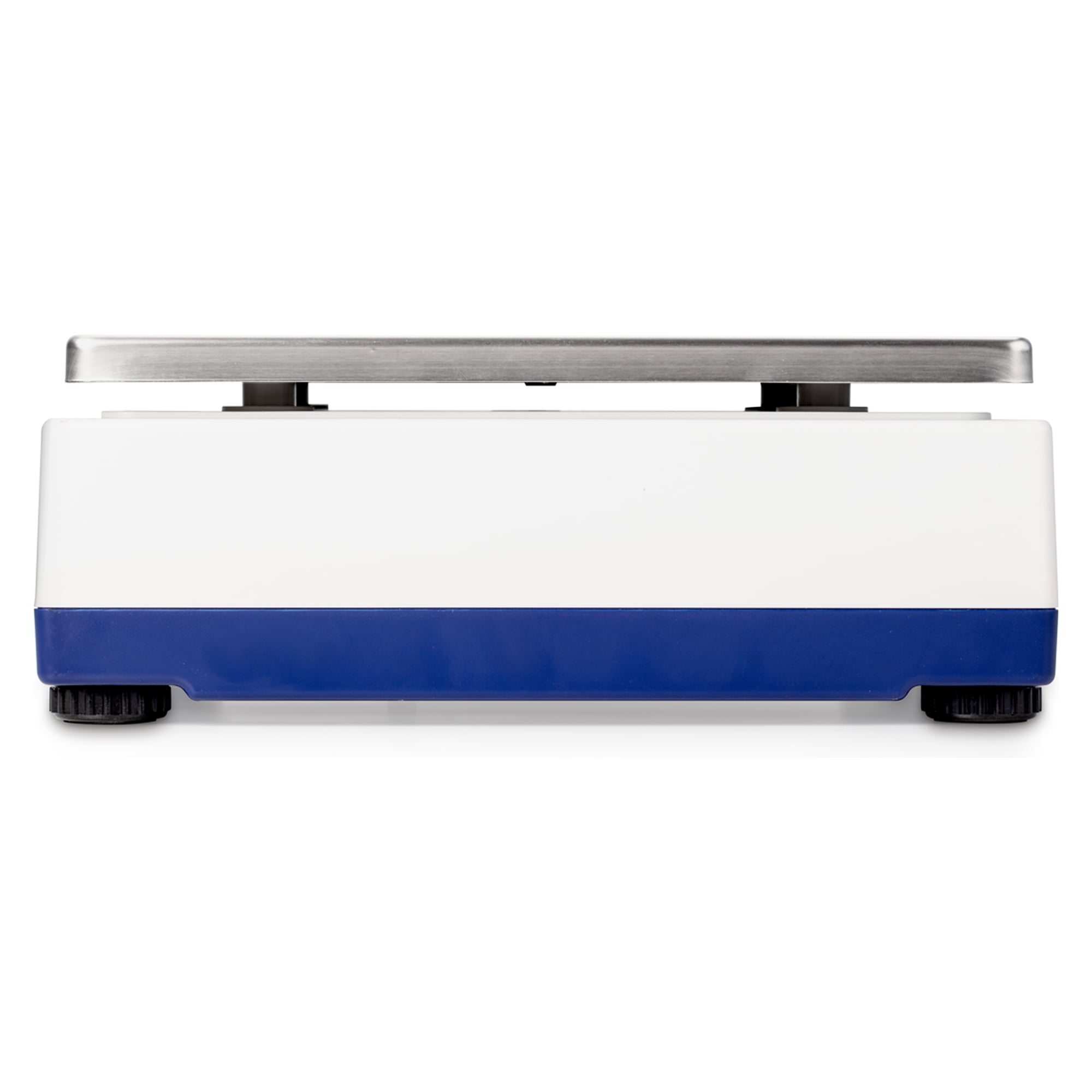

IoT-Line Bench Scale 12 kg Readability 0,0001 kg - KERN FCB 12K-4
The KERN FCB 12K-4 is a compact IoT bench scale with a 12 kg weighing range and 0.0001 kg readability. Through the KERN Universal Port (KUP) up to three interfaces can be used in parallel, from RS-232 and USB to Ethernet, WLAN and Bluetooth. The checkweighing function with optical and acoustic signal supports portioning, dosing and sorting.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For anyone integrating control and portion weighing into a digital process chain, the KERN FCB 12K-4 is an IoT bench scale that captures 12 kg at 0.0001 kg readability and shares its data over up to three interfaces in parallel.
Benefits
- 12 kg range at 0.0001 kg readability: fine resolution for check, portion and counting tasks
- KERN Universal Port (KUP): up to three interfaces in parallel: RS-232, USB, Ethernet, WLAN, Bluetooth
- Checkweighing with tolerance range: optical and acoustic signal supports portioning, dosing and sorting
- Counting function: piece counting with reference sampling for portioning and sorting tasks
- Compact plastic housing 322 × 267 mm: space-saving, with in-use cover and optional battery operation
Applications
For industrial applications, pharmacies and workshops, warehouse logistics and digital processes. Compatible with KERN EasyTouch software.
Compliance and origin
EAN 4045761243477, customs tariff code 84238129, country of origin China.
Technical data
| Weighing range (max.) | 12 kg |
|---|---|
| Readability (d) | 0,0001 kg |
| Repeatability | 0,0001 kg |
| Linearity | ± 0,0003 kg |
| Weighing system | Strain gauge |
| Stabilization time | 2 s |
| Weighing surface (W×D) | 252×225 mm |
| Display digit height | 25 mm |
| Housing | Plastic |
| Interfaces | RS-232 (optional),Ethernet (optional),Bluetooth BLE (v4.0) (optional),USB-Device (optional),KUP,WLAN (optional) |
| Net weight | 3,8 kg |
| Weight | 4.200000 |
| Manufacturer | Kern |
| EAN | 4045761243477 |
| HS-Code | 84238129 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
| Material | Plastic |
| Wägebereich max (g) | 12000.000000 |
| Ablesbarkeit (g) | 0.100000 |
| Display type | LCD |
| Interface | Bluetooth, Ethernet, KUP, RS-232, USB device, WLAN |
