Industrial Platform Scale 15 kg / 30 kg Readability 0,0005 kg / 0,001 kg - KERN IOC 30K-4
The KERN IOC 30K-4 offers 0,0005 kg readability at 30 kg capacity and switches automatically between 15 kg and 30 kg as a multi-range scale. Stainless steel platform, IP65 load cell and RS-232 with KCP suit it to precise check and counting weighing.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The KERN IOC 30K-4 brings high resolution to the industrial platform: up to 30 kg capacity at 0,0005 kg readability. Multi-range operation delivers the finest division in the lower range while still covering the full weighing range for check and counting weighing.
Benefits
- Two ranges in one scale: automatic switching from 15 kg to 30 kg, with the finest 0,0005 kg readability in the lower range.
- High resolution: 0,0005 kg / 0,001 kg readability at 30 kg capacity for precise check and counting weighing.
- Industrial platform: stainless steel weighing plate, painted steel base, load cell with dust and splash protection to IP65.
- Data connectivity: RS-232 as standard with the KERN Communication Protocol (KCP), compatible with KERN EasyTouch; Ethernet, USB and WLAN optional.
- Mobile use: compact build, spirit level and levelling feet as standard, battery operation optional.
Applications
The IOC 30K-4 is designed for warehouse logistics, goods dispatch and parts counting, capturing containers, pallets and bulk goods reliably right at the workstation.
Compliance and origin
EAN 4045761252844, customs tariff code 84238129, country of origin China.
Technical data
| Weighing range (Max) | 15 kg / 30 kg |
|---|---|
| Readability (d) | 0,0005 kg / 0,001 kg |
| Minimum load (Min) | 0,1 kg / 0,2 kg |
| Repeatability | 0,0005 kg / 0,001 kg |
| Linearity | ± 0,0015 kg; 0,003 kg |
| Weighing platform (W x D) | 400 x 300 mm |
| Weighing system | strain gauge |
| Stabilization time | 2 s |

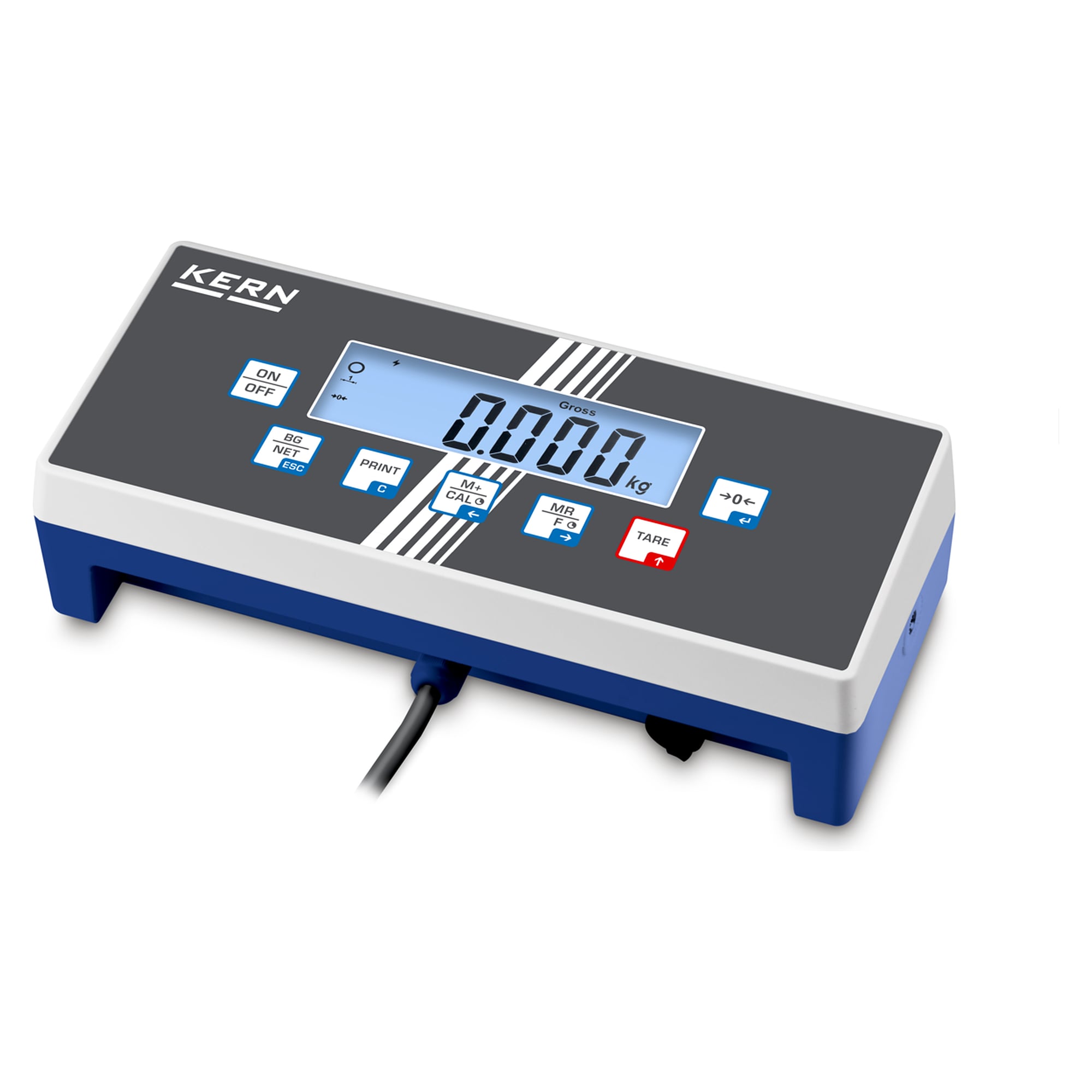

| Display | LCD, 25 mm digit height |
| Interfaces | RS-232 fitted as standard; Ethernet, USB, WLAN and alibi memory optional |
| Net weight | 8 kg |
| Protection rating | load cell IP65 |
| Weight | 9 kg |
| Manufacturer | Kern |
| EAN | 4045761252844 |
| HS-Code | 84238129 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
| Wägebereich max (g) | 30000 |
| Ablesbarkeit (g) | 0.5 |
| Display type | LCD |
| Interface | Alibi memory, Ethernet, RS-232, USB, USB host, WLAN |
