Industrial Platform Scale 6 kg / 15 kg Readability 0,002 kg / 0,005 kg - KERN IOC 10K-3M

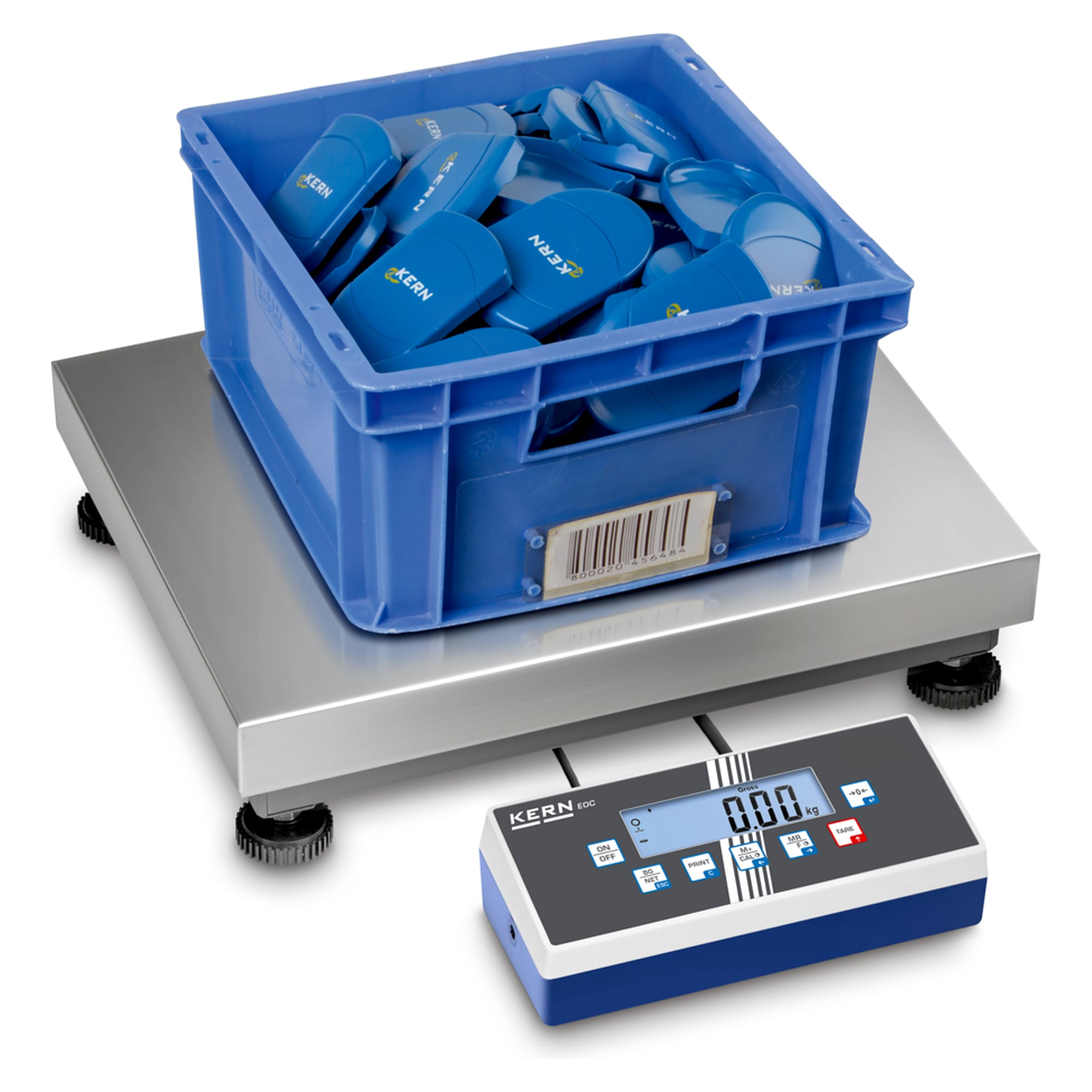

The KERN IOC 10K-3M is a verifiable platform scale with two weighing ranges (6 kg / 15 kg) and readability from 0,002 kg. A stainless steel weighing plate and IP65 load cell make it industry-ready, with RS-232 as standard plus optional Ethernet, USB and WLAN for connecting to a PC and network.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The KERN IOC 10K-3M is a hard-wearing platform scale for goods receipt, dispatch and piece counting, with a weighing range up to 15 kg. Via the KERN Communication Protocol (KCP) and optional data interfaces you connect it directly to a PC, network or printer.
Benefits
- Verifiable, class III (e = 0,002 kg; 0,005 kg): legally compliant weighing in trade.
- Two weighing ranges: 6 kg at 0,002 kg and 15 kg at 0,005 kg, switching automatically as the load increases.
- Industry 4.0: RS-232 as standard, optional Ethernet, USB and WLAN, control via the KERN Communication Protocol (KCP).
- Hard-wearing platform: stainless steel weighing plate and a silicone-coated aluminium load cell with IP65 dust and splash protection.
- Ready to use and mobile: spirit level and levelling feet as standard, optional battery operation, compatible with KERN EasyTouch software.
Applications
Designed for warehouse logistics, goods dispatch and piece counting in production and shipping.
Compliance and origin
EAN 4045761207257, customs code 84238129, country of origin China.
Technical data
| Weighing range (Max) | 6 kg; 15 kg |
|---|---|
| Readability (d) | 0,002 kg; 0,005 kg |
| Verification interval (e) | 0,002 kg; 0,005 kg |
| Accuracy class | III |
| Minimum load (Min) | 0,04 kg; 0,1 kg |
| Repeatability | 0,002 kg; 0,005 kg |
| Linearity | ± 0,002 kg; 0,005 kg |
| Smallest part weight (normal conditions) | 5 g |
| Weighing surface (W×D) | 300×240 mm |
| Display digit height | 25 mm |
| Load cell protection | IP65 |
| Interfaces | RS-232 as standard; Ethernet, USB, WLAN, Alibi memory and USB host optional (factory) |
| Operating temperature | -10 °C to 40 °C |
| Net weight | 6 kg |
| Weight | 7 kg |
| Manufacturer | Kern |
| EAN | 4045761207257 |
| HS-Code | 84238129 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
| Wägebereich max (g) | 15000 |
| Ablesbarkeit (g) | 2 |
| Display type | LCD |
| Weighing system | Strain gauge |
| Verification class | III |
| Interface | Alibi memory, Ethernet, RS-232, USB, USB host, WLAN |
Accessories
