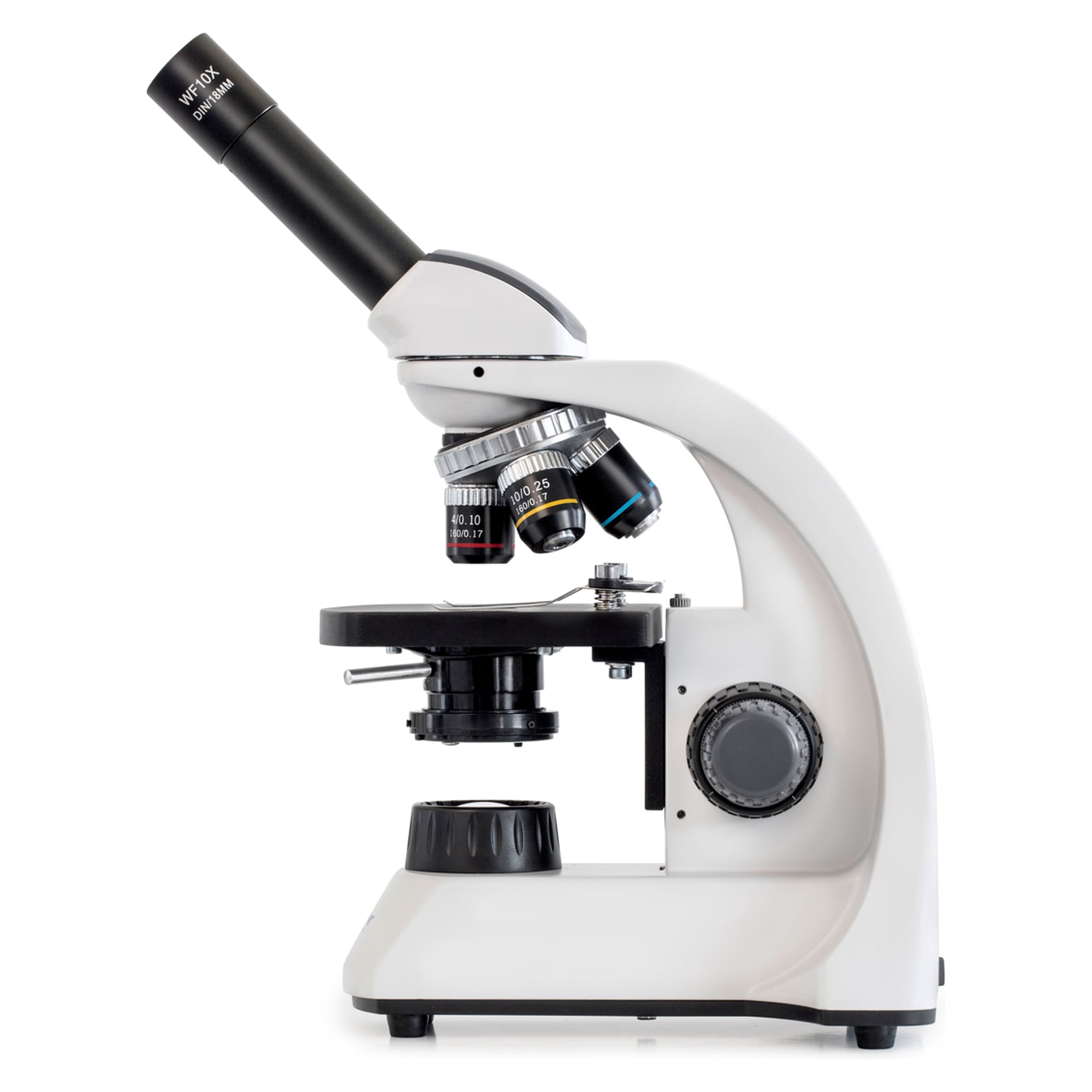

Transmitted Light Microscope 4x - KERN OBT 105
The KERN OBT 105 is a monocular school microscope with 4x / 10x / 40x / 100x objectives and a continuously dimmable 1 W LED transmitted-light source. Its sturdy, modern design and clear controls suit classroom and training use, and optional battery operation allows mobile work.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For classroom teaching and training, the KERN OBT 105 is built as a sturdy school microscope with clear, uncluttered controls. The continuously dimmable 1 W LED provides even specimen lighting with a long service life, and a height-adjustable 1.25 Abbe condenser with aperture diaphragm ensures optimal light focusing.
Benefits
- Dimmable 1 W LED: even lighting with a long service life, optional battery operation for mobile use
- Monocular head: 4x / 10x / 40x / 100x objectives in achromatic quality
- Optimal light focusing: a height-adjustable 1.25 Abbe condenser with aperture diaphragm ensures optimal light focusing
- Precise focusing: coarse and fine focus on both sides plus a mechanical stage for quickly moving the specimen
- Ready to use: dust cover and manual included, wide choice of eyepieces and objectives available
Applications
Suited to primary and secondary schools, training and hobby use.
Compliance and origin
- EAN: 4045761235069
- Customs tariff code: 90118000
- Origin: China
Technical data
| Optical system | Finite optics |
|---|---|
| Head | Monocular, 45° inclination |
| Objectives | 4x / 10x / 40x / 100x |
| Objective class | Achromatic |
| Eyepiece | 10x, field of view 18 mm |
| Transmitted-light illumination | 1 W LED |
| Power supply | 100 - 240 V |
| Net weight | approx. 2,8 kg |
| Weight | 3.4 kg |
| Manufacturer | Kern |
| EAN | 4045761235069 |
| HS-Code | 90118000 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
