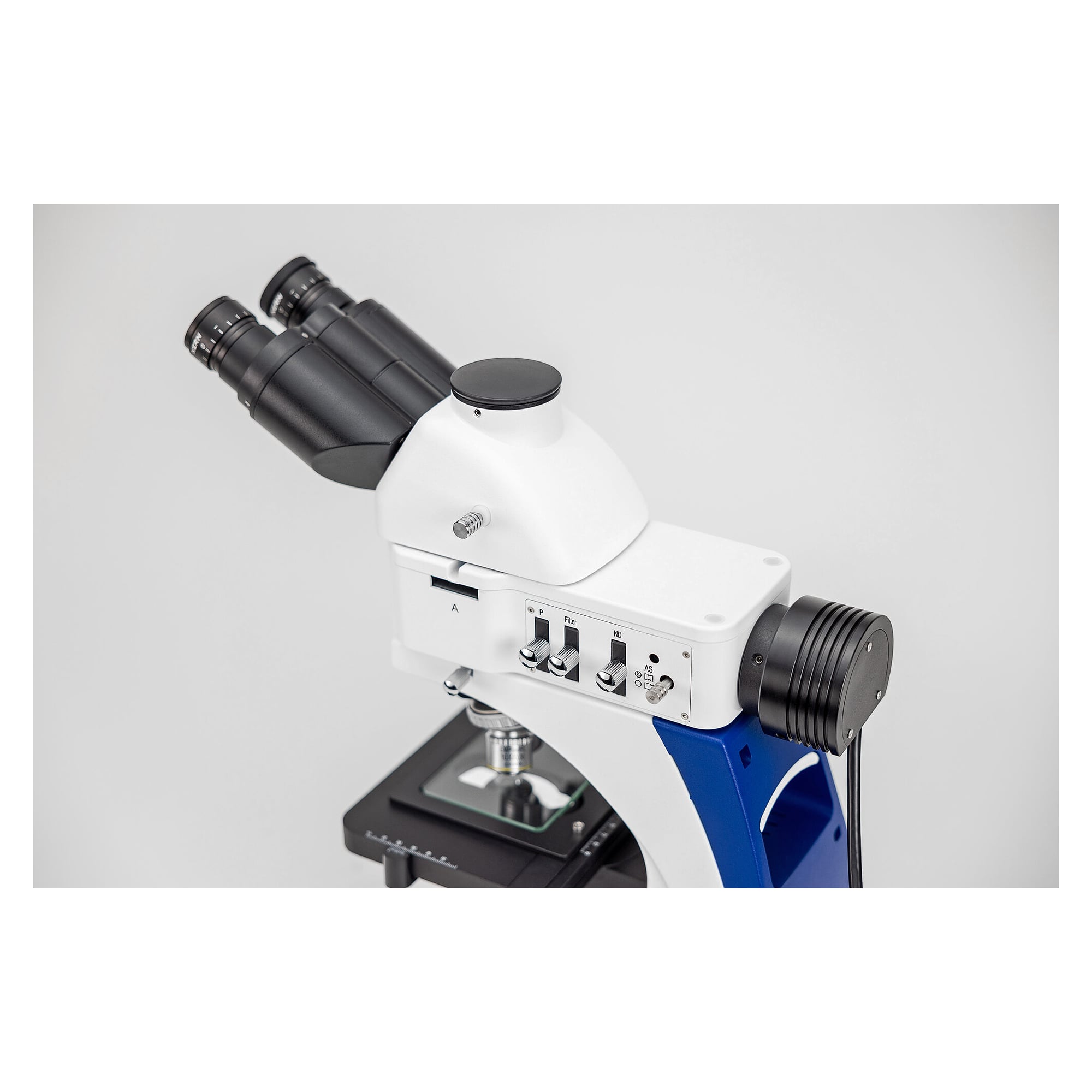

Metallurgical Microscope 5x - KERN OKO 178
The KERN OKO 178 is a fully equipped metallurgical microscope with combined LED reflected and transmitted light. A centrable 1,25 Abbe condenser with field diaphragm enables full Koehler illumination, and the trinocular tube allows camera connection. Semi-apochromatic objectives from 5x to 50x deliver high-contrast images for metal inspection and surface analysis.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For metal inspection and surface analysis, the KERN OKO 178 is a professional metallurgical microscope with combined LED reflected and transmitted light, full Koehler illumination and semi-apochromatic optics from 5x to 50x.
Benefits
- Combined reflected and transmitted light: 5W LED each for flexible lighting of opaque and transparent samples.
- Full Koehler illumination: centrable, height-adjustable 1,25 Abbe condenser with field diaphragm.
- Semi-apochromatic optics: infinity objectives 5x to 50x for high-contrast, true-colour images.
- Trinocular tube: camera connection for documentation and analysis.
- Polarisation unit included: analyser and polariser plus a mechanical cross stage are part of the equipment.
Applications
Metallurgy, materials testing and quality control on opaque and thick specimens such as surfaces, fracture edges and coatings.
Compliance and origin
EAN 4045761490031, customs tariff code 90118000, country of origin China.
Technical data
| Optical system | infinity |
|---|---|
| Objective quality | infinity semi-apochromatic |
| Tube | trinocular, 30° inclination |
| Objective magnification | 5x / 10x / 20x / 50x |
| Nosepiece | 5 threaded positions |
| Eyepiece | HWF 10x, 22 mm field of view |
| Interpupillary distance | 50 mm - 75 mm |
| Reflected illumination | LED, 5W |
| Transmitted illumination | LED, 5W |
| Power supply | mains adapter 100 V - 240 V, 50 / 60 Hz |
| Net weight | 11 kg |
| Weight | 13 kg |
| Manufacturer | Kern |
| EAN | 4045761490031 |
| HS-Code | 90118000 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
