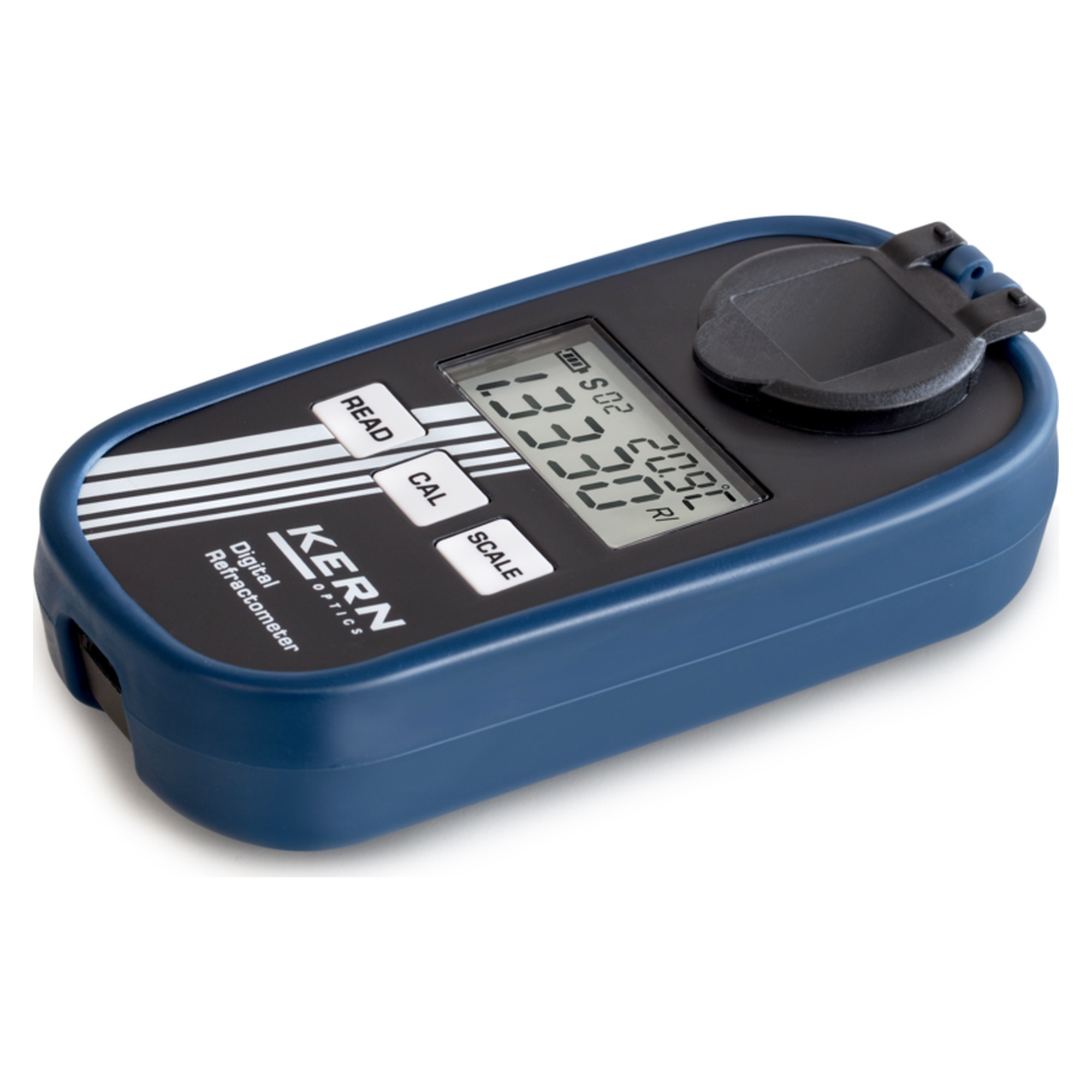

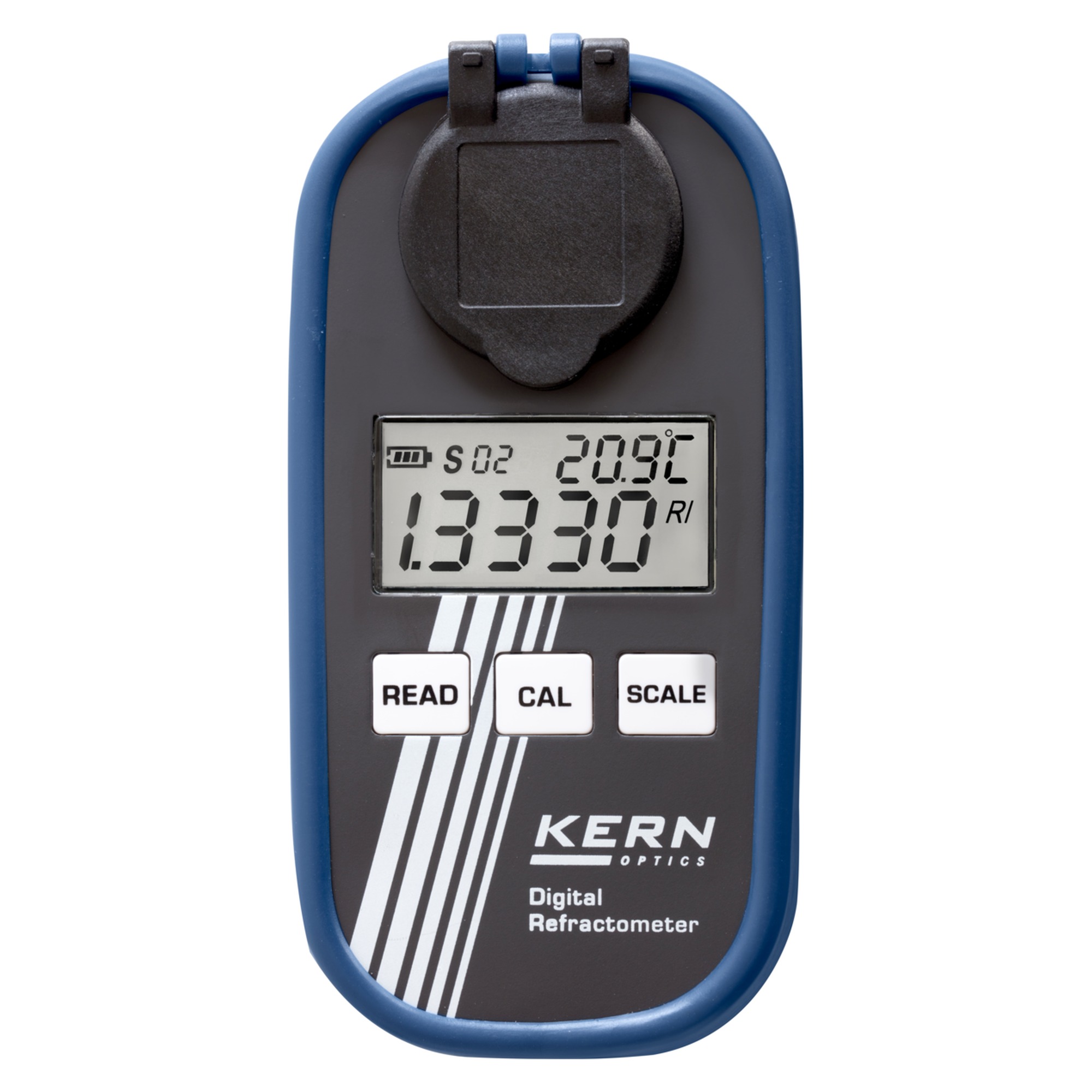

Digital Refractometer - KERN ORM 1UN

Clinicians who need urine specific gravity without manual conversion get a four-scale meter with automatic temperature compensation in the KERN ORM 1UN. Specific gravity is read from 1,000 to 1,050, alongside serum protein up to 12 g/100 ml.

Benefits

• Four medical scales: urine specific gravity 1,000 - 1,050 and serum protein up to 12 g/100 ml in one instrument
• ATC: readings shown directly, no manual conversion
• Integrated temperature display: reliable readout on the large display
• IP65 rating: rinse the prism under running water after each sample
• Compact: net weight 0,15 kg, calibration with distilled water

Technical data

• Automatic temperature compensation (ATC): yes
• Scales: Refractive index, Brix, urine (specific gravity), serum protein
• Refractive index: 1,3330 nD - 1,4200 nD (division 0,0001 nD, tolerance ±0,0003 nD)
• Brix: 0 % - 50 % (division 0,1 %, accuracy ±0,2 %)
• Urine, specific gravity: 1,000 - 1,050 (division 0,001, tolerance ±0,002)
• Serum protein: 0 g/100 ml - 12 g/100 ml (division 0,1 g/100 ml, tolerance ±0,2 g/100 ml)
• Protection rating: IP65 (dust and splash protected)
• Power supply: 1x AAA battery (alkaline)
• Auto power-off: 60 s
• Net weight: 0,15 kg
• Gross weight: 0,35 kg

Applications

For determining urine specific gravity and serum protein content in human medicine. Typical settings include hospitals, medical practices, teaching institutions, care homes as well as sports medicine and doping control.

Compliance and origin

EAN 4045761335561. Customs tariff number 90275000. Origin China.
