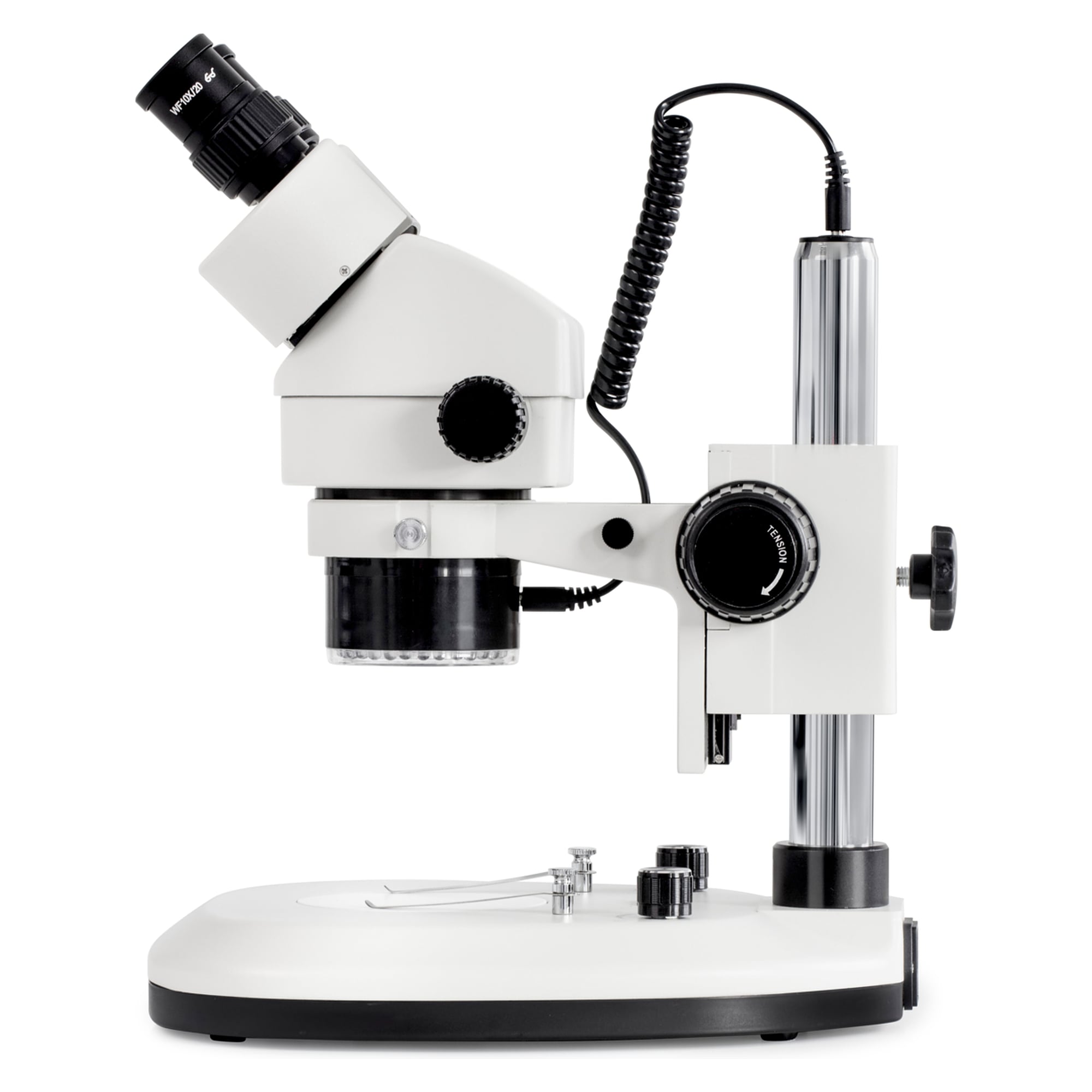

Stereo Zoom Microscope 7x-4 - KERN OZL 465

For assembly, repair and inspection benches that need a plastic image, the KERN OZL 465 is a binocular stereo zoom microscope with continuous total magnification from 7x to 45x. The Greenough optics render the depth and surface of the specimen with high contrast, while LED incident and transmitted light of 3 W each light it evenly.

Benefits

• Plastic image with Greenough optics: two separate light paths give a true 3D impression of the specimen
• Continuous zoom 7x - 45x: overview and detail without changing objectives, 6.4:1 zoom ratio

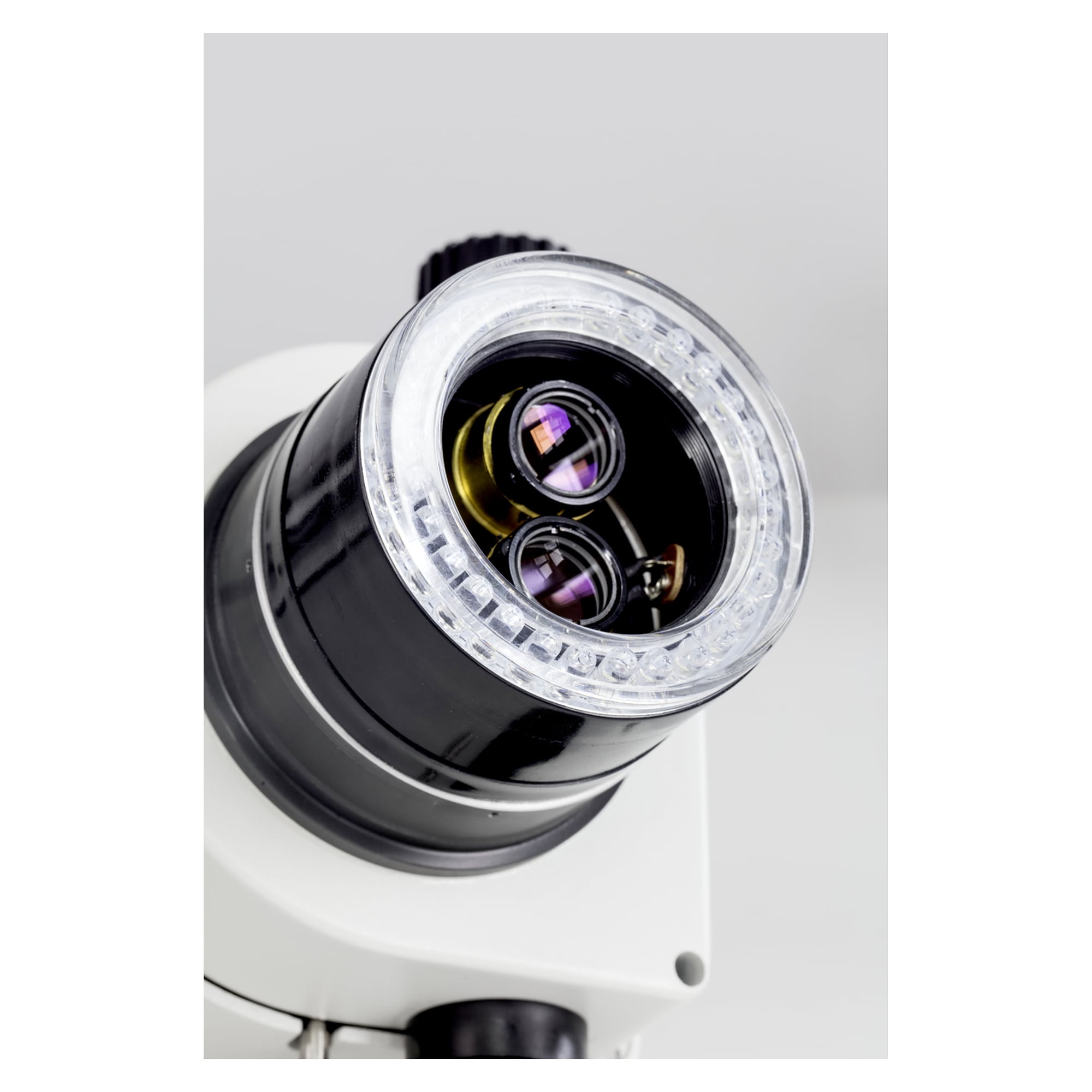

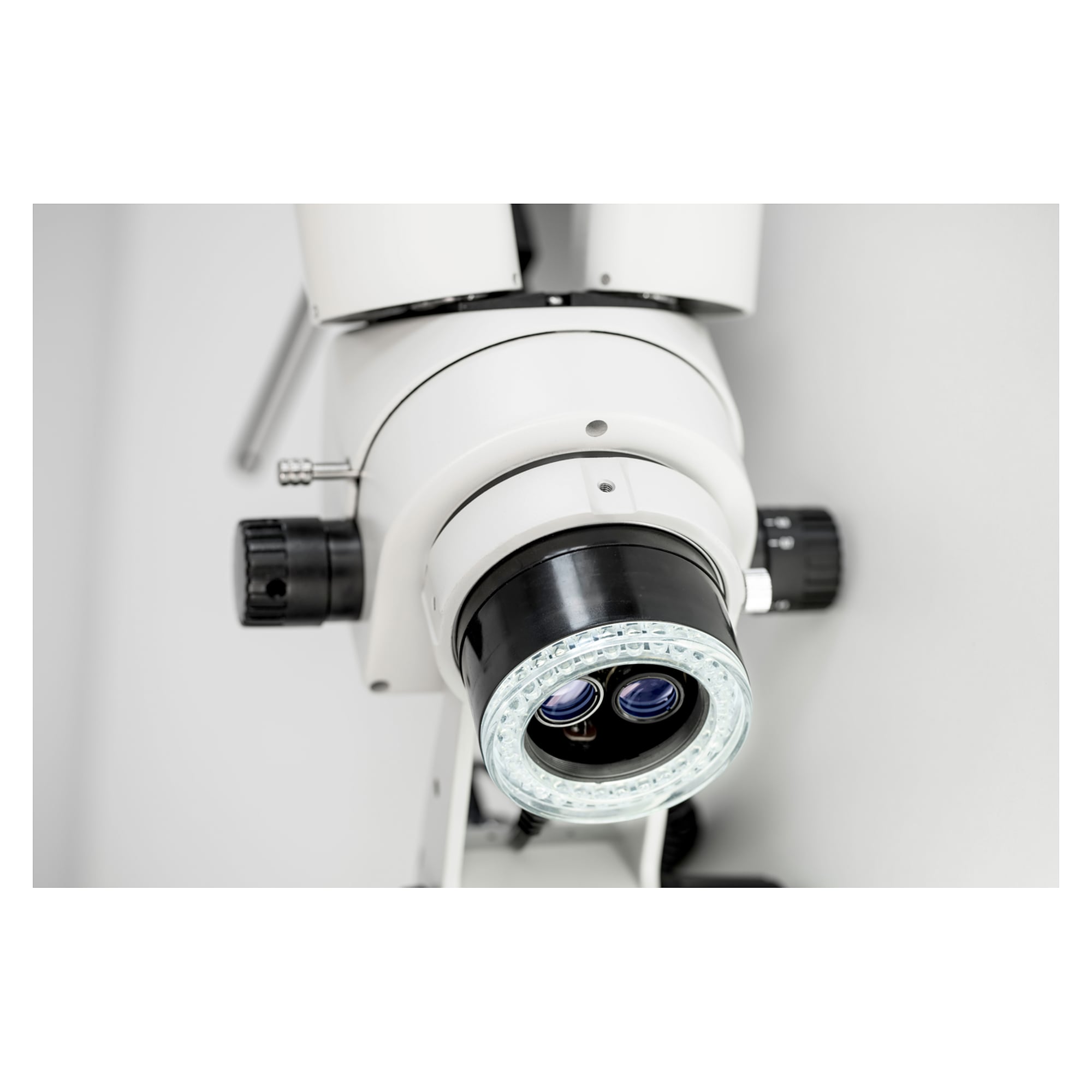

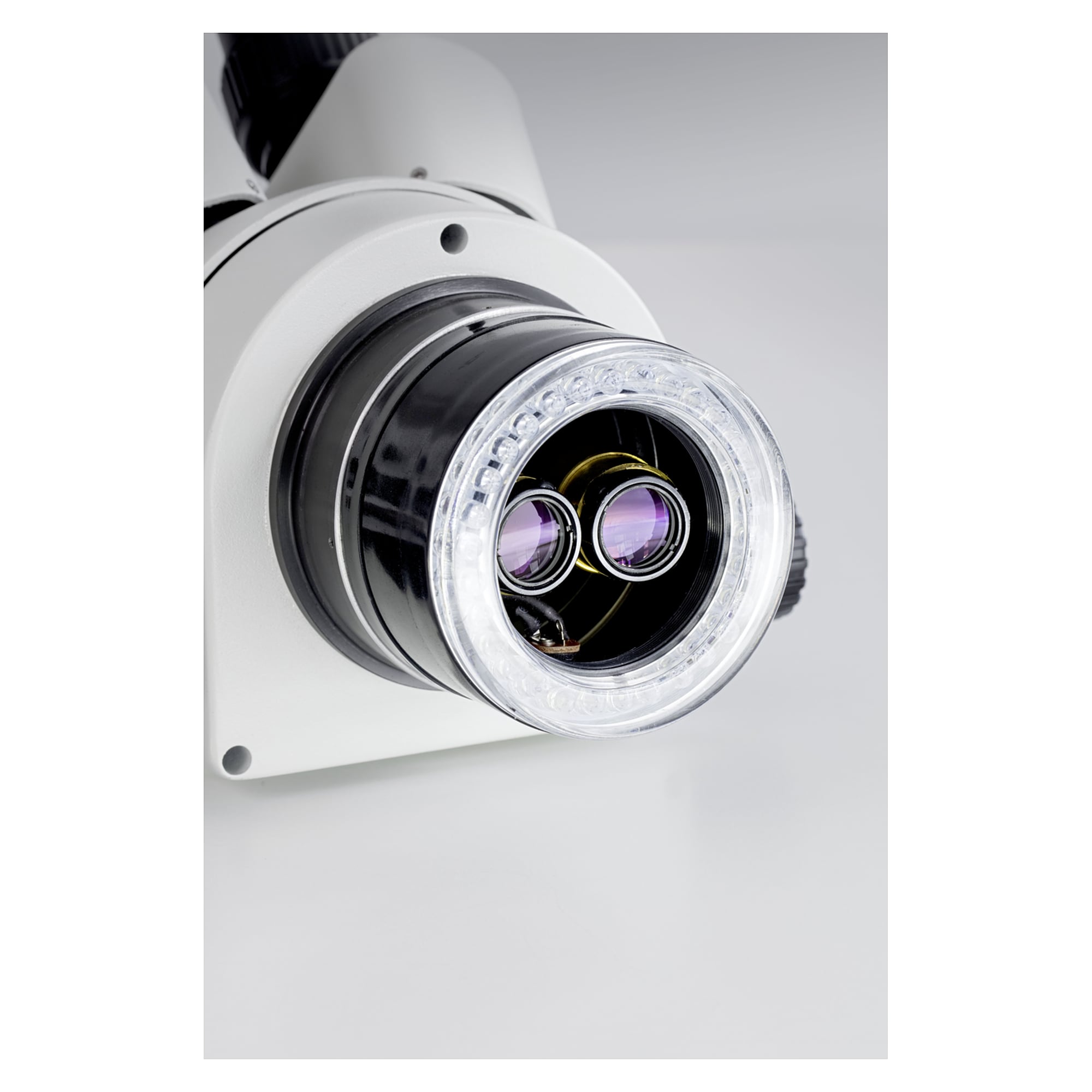

• LED incident and transmitted light (3 W each): even lighting from above and below for opaque and translucent samples
• Large working area on the column stand: room for assembly, repair and inspection tasks
• Detachable microscope head: integrates into other KERN building systems such as universal stands

Technical data

• Optical system: Greenough
• Tube: binocular, 45° inclination
• Objective zoom: 0,7x - 4,5x
• Zoom ratio: 6,4:1
• Total magnification: 7x - 45x
• Eyepiece: HWF 10x / Ø 20 mm, 20 mm field of view
• Interpupillary distance: 55 - 75 mm
• Incident light: LED, 3 W
• Transmitted light: LED, 3 W
• Stand design: column stand
• Power supply: Wide-range power supply 100 - 240 V
• Weight: 4,6 kg

Applications

Typical fields of use are in-vitro fertilisation, detection of parasites, zoology and botany, tissue preparation, dissection and quality control. The stereo microscope suits specimens where depth and thickness matter, such as insects, seeds, PCBs and components.

Compliance and origin

EAN 4045761207516, customs tariff code 90111000, country of origin China.
