Digital Microscope Set 7x-4 - KERN OZM 544C825
The KERN OZM 544C825 is a digital microscope set combining the trinocular OZM-5 stereo zoom microscope (7x-45x) with the ODC 825 C-mount camera featuring a 5,1 MP CMOS sensor and USB 2.0. The camera is powered over the USB cable and the Microscope VIS software is included.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The KERN OZM 544C825 pairs the proven OZM-5 optics with digital documentation: the trinocular stereo zoom head with continuous 7x-45x magnification is combined with the ODC 825 C-mount camera, C-mount adapter included. The 5,1 MP CMOS camera transmits fast, clear live images over USB 2.0 and draws its power directly from the USB cable.
Benefits
- Digital documentation: ODC 825 C-mount camera, 5,1 MP CMOS, fast live transmission over USB 2.0
- No extra power supply: the camera is powered directly through the USB cable
- Software included: multilingual Microscope VIS software with a stage micrometer for calibration
- Strong OZM-5 optics: trinocular stereo zoom head, 23 mm field of view, dimmable 3 W LED incident and transmitted light
- Continuous zoom: 0,7x-4,5x objective, 7x-45x total magnification, 6,4:1 ratio
Applications
Beyond stereo observation, the camera also suits more demanding applications such as darkfield, phase contrast and fluorescence. Fit for the laboratory, quality control as well as assembly and repair.
Compliance and origin
EAN 4045761228726, customs tariff number 90118000, country of origin China.
Technical data
| Total magnification | 7x-45x |
|---|---|
| Objective (zoom) | 0,7x-4,5x |
| Zoom ratio | 6,4:1 |
| Optical system | Greenough |
| Tube | trinocular, 45° inclination |
| Beam split | 0:100 |
| Eyepiece | 10x, 23 mm field of view |
| Interpupillary distance | 52 - 76 mm |
| Camera | ODC 825, 5,1 MP, CMOS, 1/2,5" sensor |
| Interface | USB 2.0 |
| Illumination | LED incident and transmitted light, 3 W each, continuously dimmable |
| Stand | column |
| Net weight | 6 kg |
| Weight | 8 kg |
| Manufacturer | Kern |
| EAN | 4045761228726 |
| HS-Code | 90118000 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
Accessories
Show 1 more items

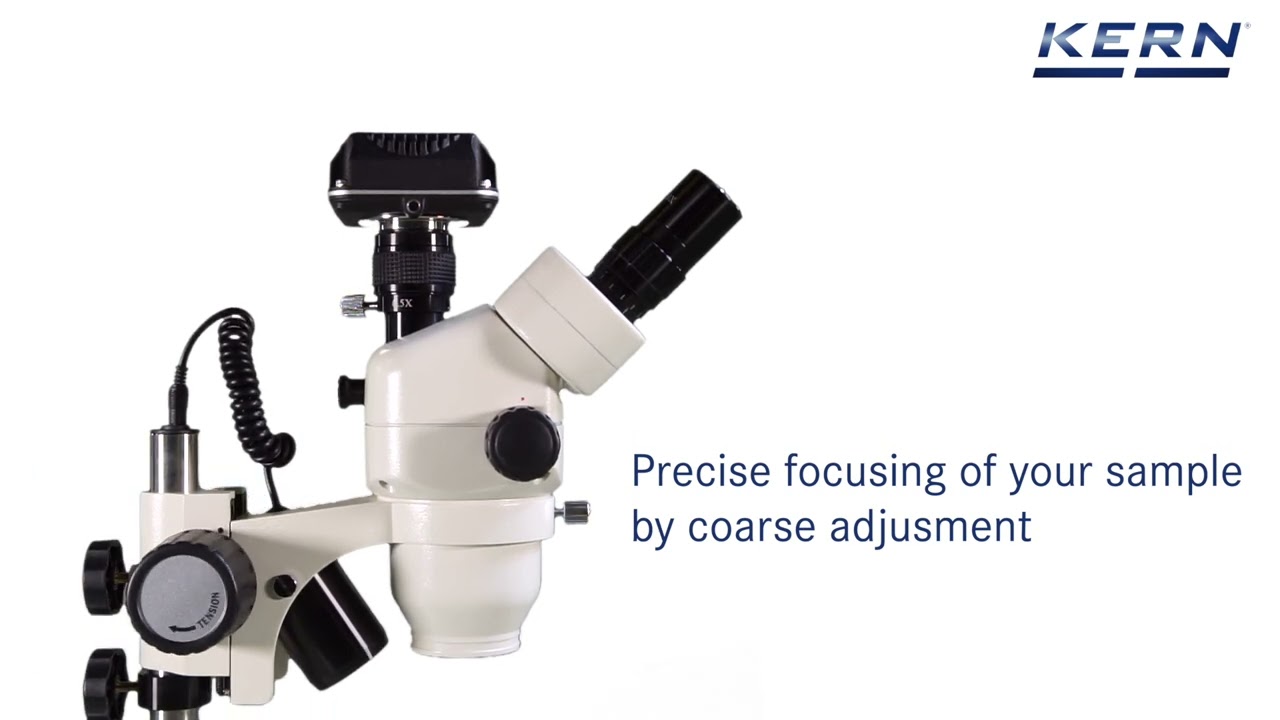

Videos
