Phase Contrast Microscope 4x - KERN OBN 158

For low-contrast, translucent specimens such as live mammalian cells or bacteria, the KERN OBN 158 is built as a fully equipped phase-contrast microscope. The 5-position condenser turret, the phase-contrast condenser and the Infinity Plan phase-contrast objectives form a matched system that ships ready to use.

Benefits

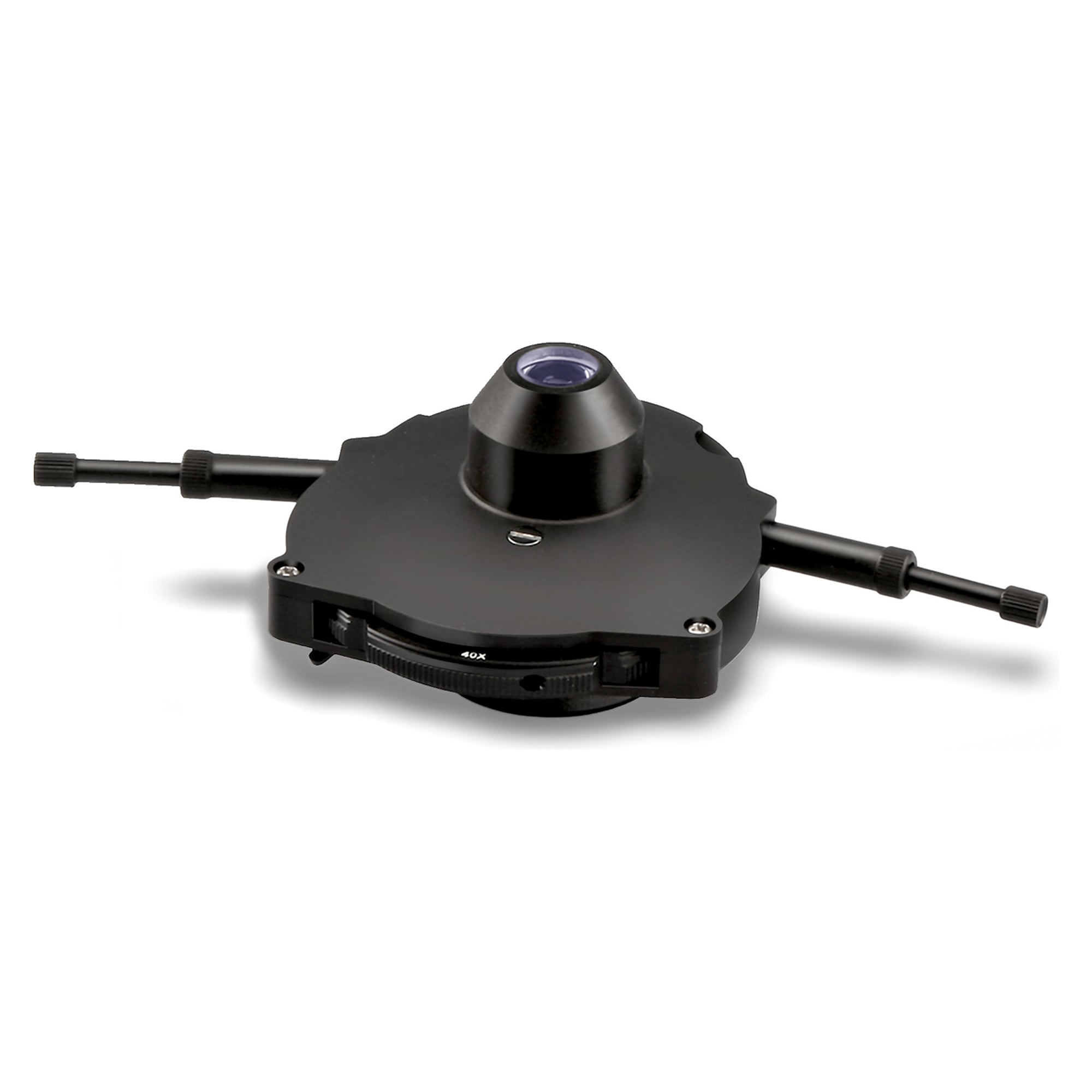

• Preconfigured phase contrast: 5-position condenser turret with phase-contrast condenser and PH objectives 10x/20x/40x/100x
• 20 W halogen illumination (Philips): even lighting of low-contrast specimens

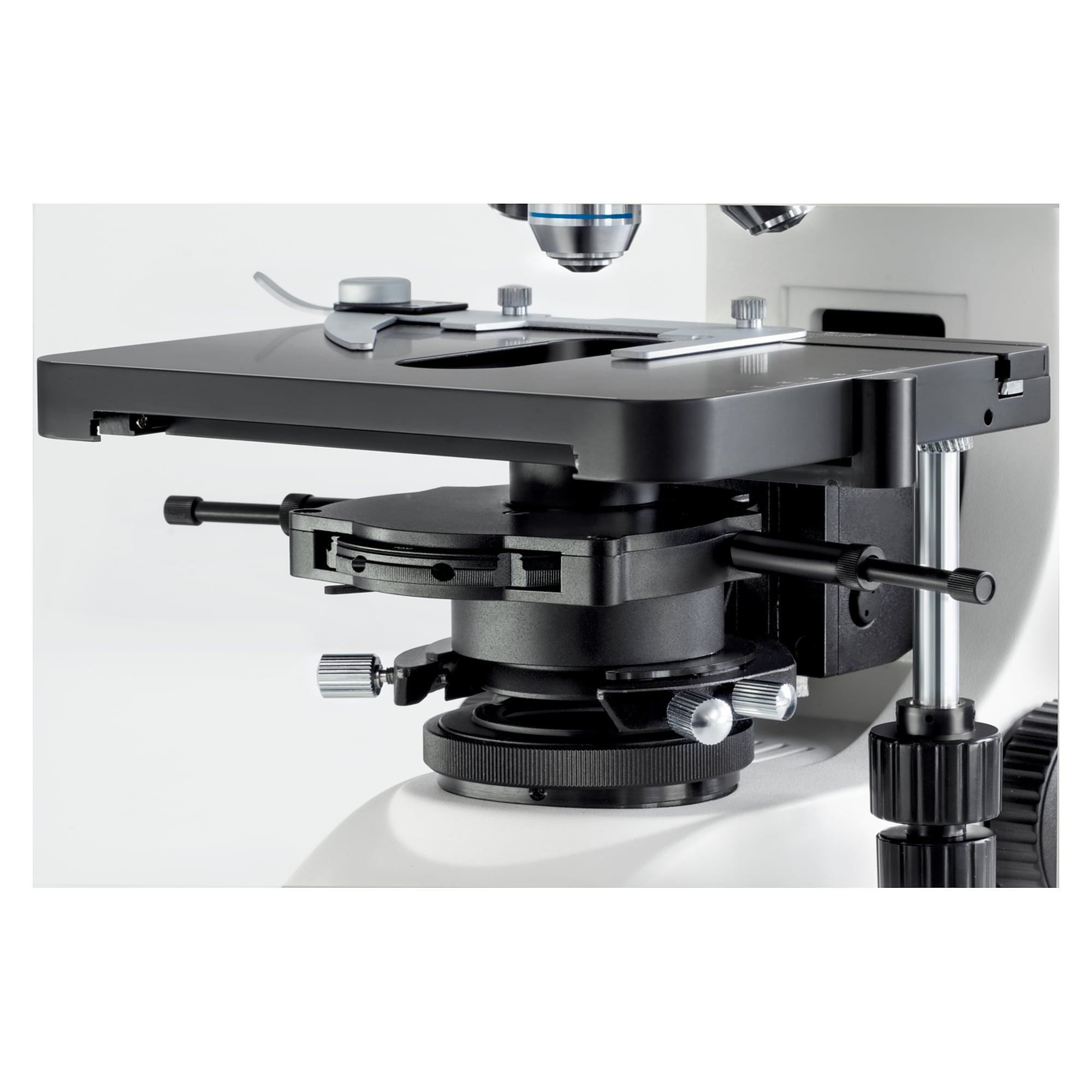

• Koehler illumination: adjustable field diaphragm with centrable, height-adjustable 1.25 Abbe condenser
• Ergonomic mechanical stage: coaxial coarse and fine focus on both sides for fast, precise focusing

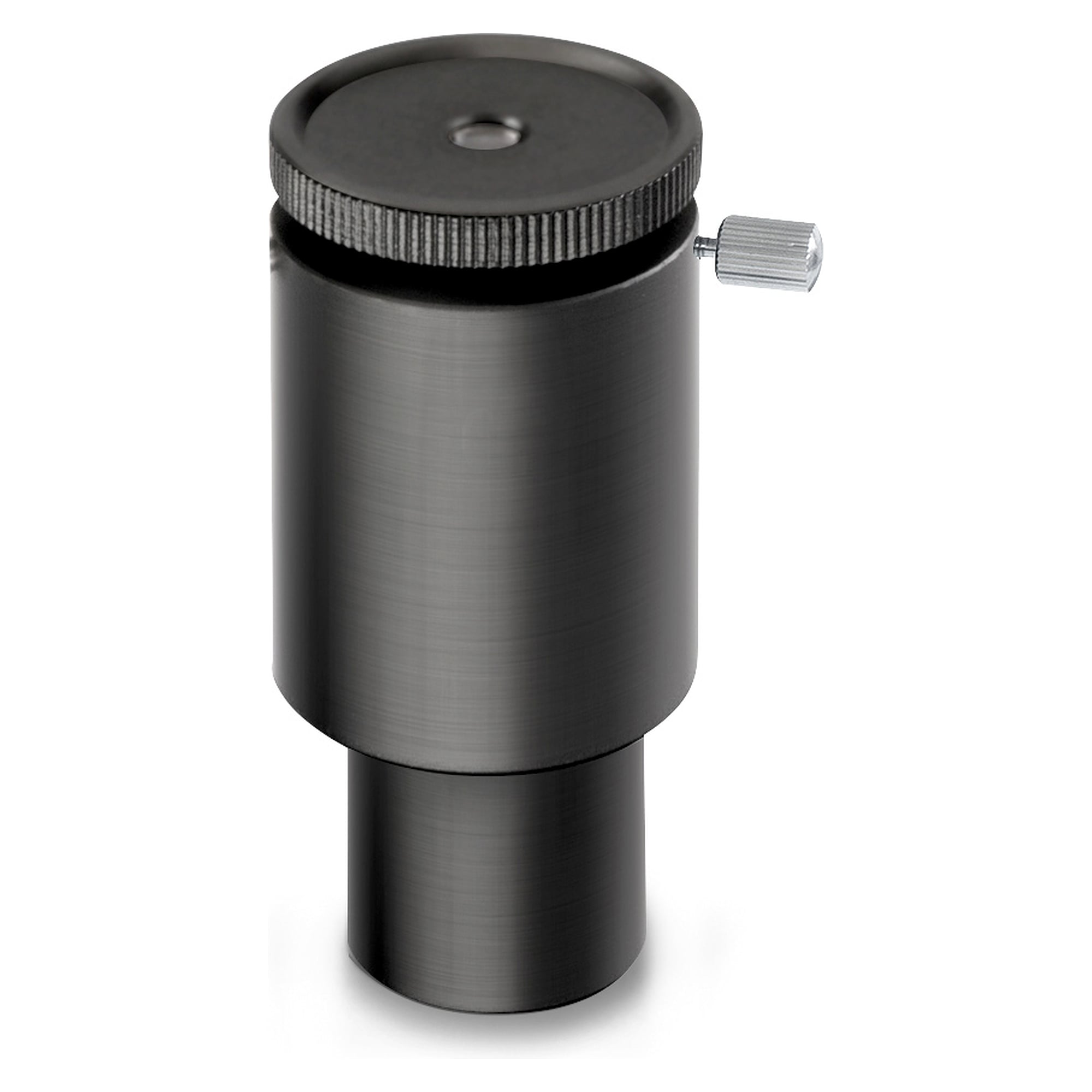

• Modular and expandable: trinocular head for camera attachment (C-mount adapter required); dark-field, polarisation and fluorescence units available as accessories

Technical data

• Optical system: Infinity-corrected

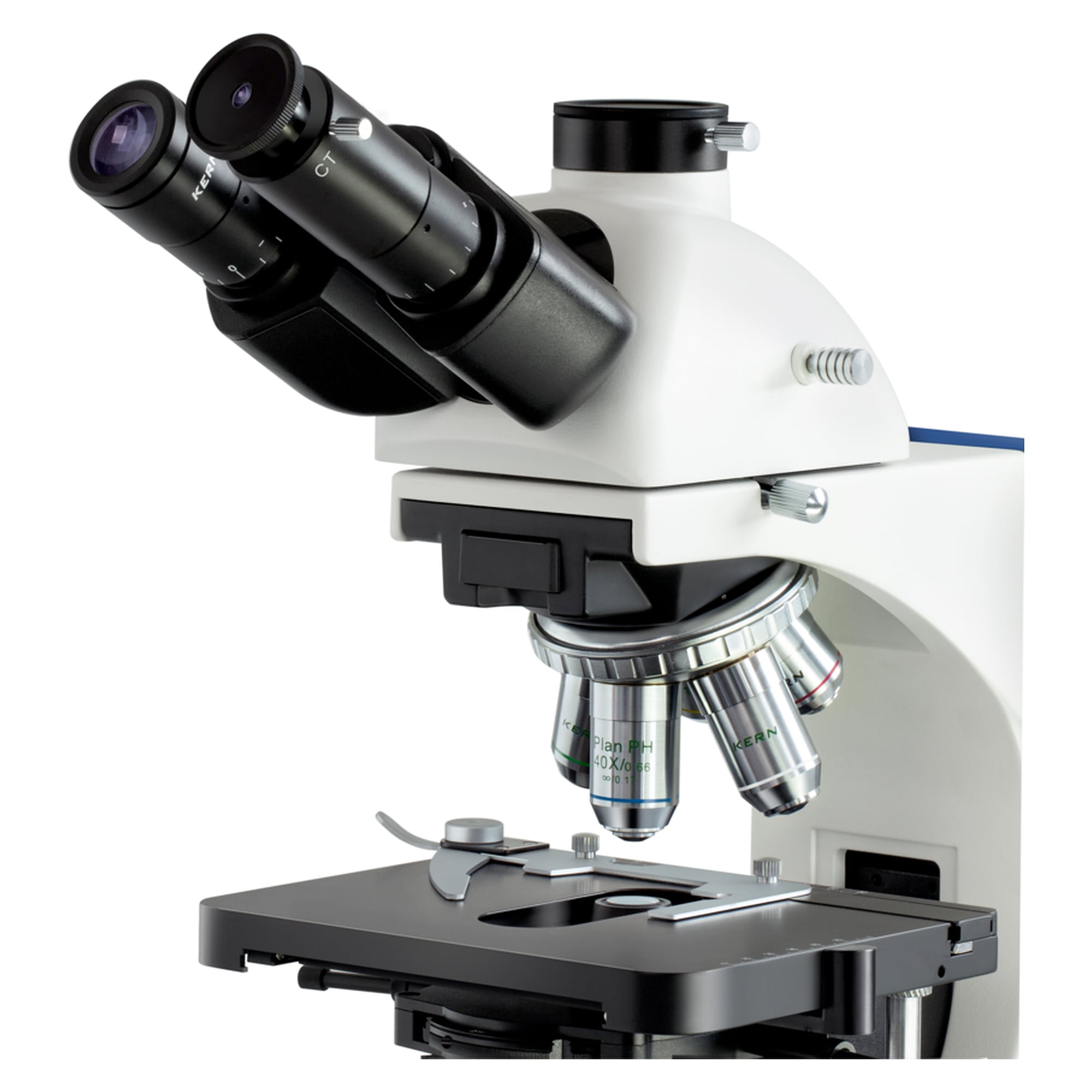

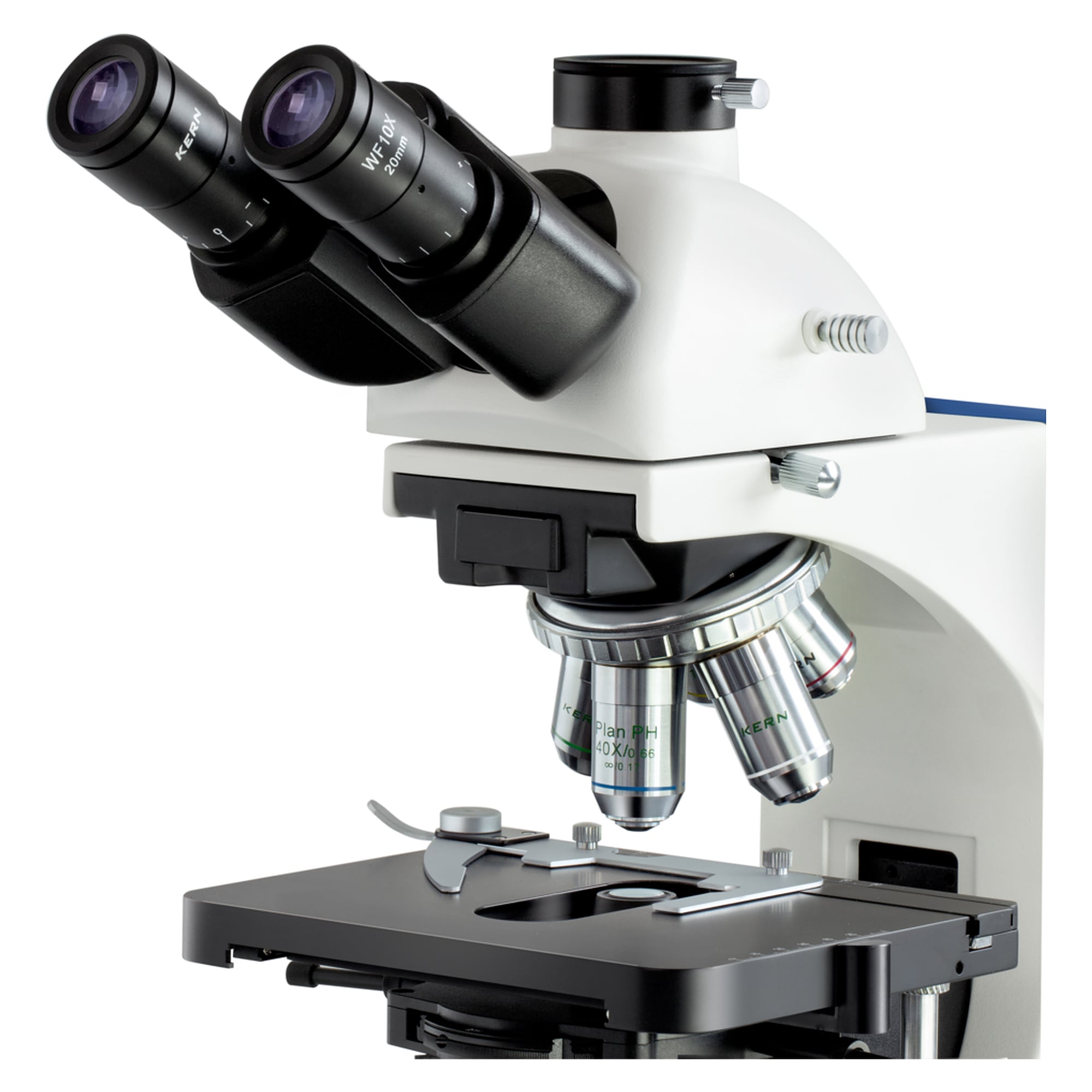

• Head: Trinocular, 30° inclination

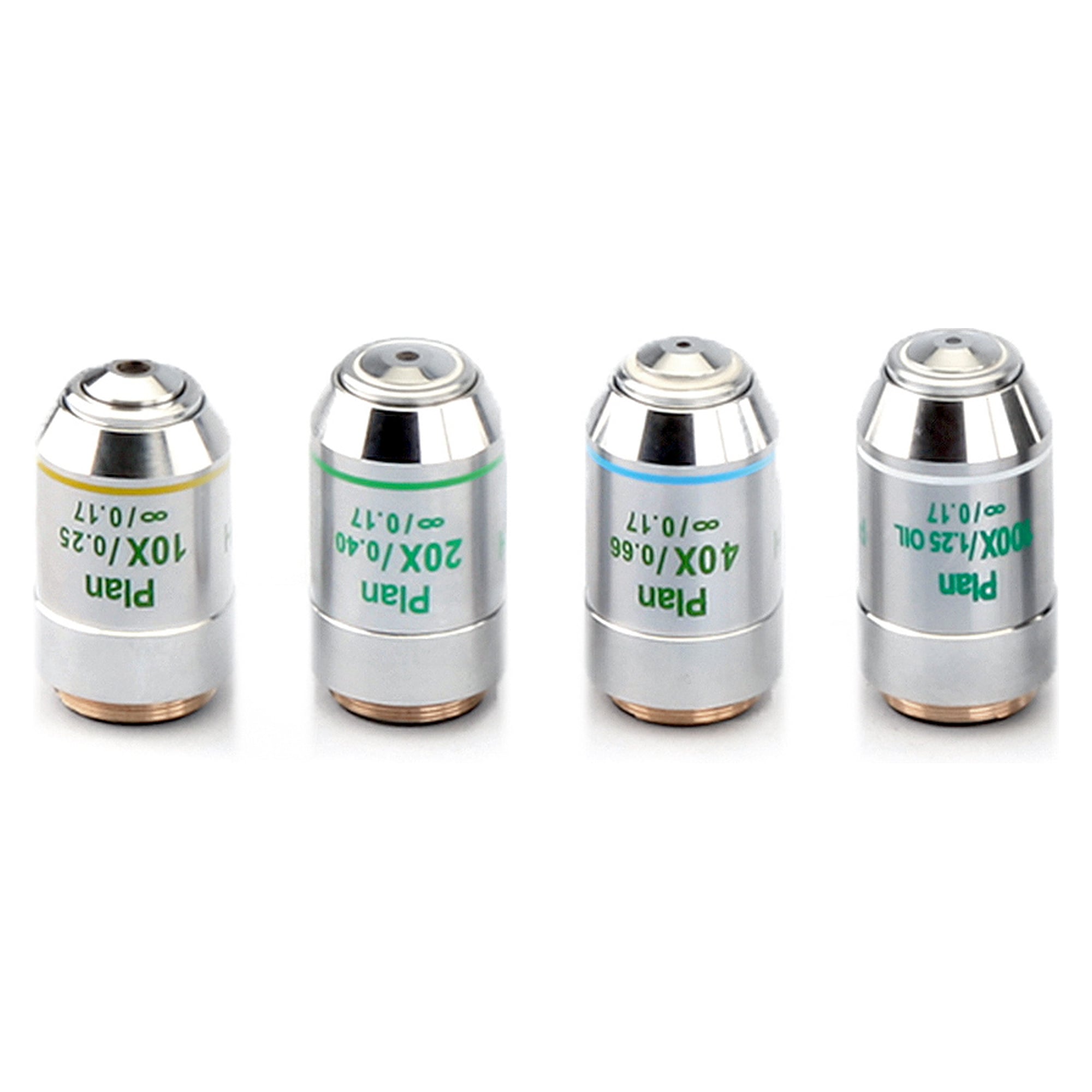

• Objectives: 4x / PH 10x / PH 20x / PH 40x / PH 100x
• Objective class: Infinity Plan
• Eyepiece: 10x, field of view 20 mm
• Transmitted-light illumination: 20 W halogen
• Interpupillary distance: 50 mm - 75 mm
• Power supply: 100 - 240 V
• Net weight: approx. 10 kg

Applications

Used in haematology, urology, gynaecology, dermatology, pathology, microbiology and parasitology, immunology, oncology, entomology, water analysis and wastewater treatment, as well as in veterinary practices, public health offices, universities and training facilities.

Compliance and origin

• EAN: 4045761502734
• Customs tariff code: 90118000
• Origin: China
