IoT-Line Pallet Scale 600 kg Readability 0,2 kg - KERN UXC 600K-1M
The KERN UXC 600K-1M is a stainless steel IoT-Line pallet scale weighing up to 600 kg with 0,2 kg readability. Load receptor (IP67) and terminal (IP68) are fully stainless steel, and the class III version (e = 0,2 kg) allows legal-for-trade weighing.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For food and hygiene areas, the KERN UXC 600K-1M pairs a stainless steel load receptor with a stainless steel terminal and weighs pallets up to 600 kg with 0,2 kg readability. As a networkable IoT-Line scale it exchanges data and control commands over up to four optional interfaces.
Benefits
- Verifiable ex works (class III, e = 0,2 kg): legal-for-trade weighing in 0,2 kg steps.
- Stainless throughout: IP67 load receptor and IP68 terminal, suited to hygienic requirements and HACCP-compliant processes.
- Industry 4.0: up to four optional interfaces, two wired and two wireless, with alibi memory for paperless archiving.
- Practical functions: hold function for unsteady conditions, checkweighing with visual and audible signal, totalising of weight values.
- Mobile and wall-mountable: moved on castors and handle, wall bracket for the terminal as standard.
Applications
Suited to industry, digital processes, warehouse logistics and metalworking.
Compliance and origin
Verifiable version to class III (e = 0,2 kg). EAN 4045761481572, customs tariff number 84238220, country of origin CN.
Technical data
| Weighing range (max) | 600 kg |
|---|---|
| Readability (d) | 0,2 kg |
| Verification value (e) | 0,2 kg |
| Accuracy class | III |
| Minimum load (min) | 4 kg |
| Repeatability | 0,2 kg |
| Linearity | ± 0,2 kg |
| Measuring system | strain gauge |
| Settling time | 3 s |

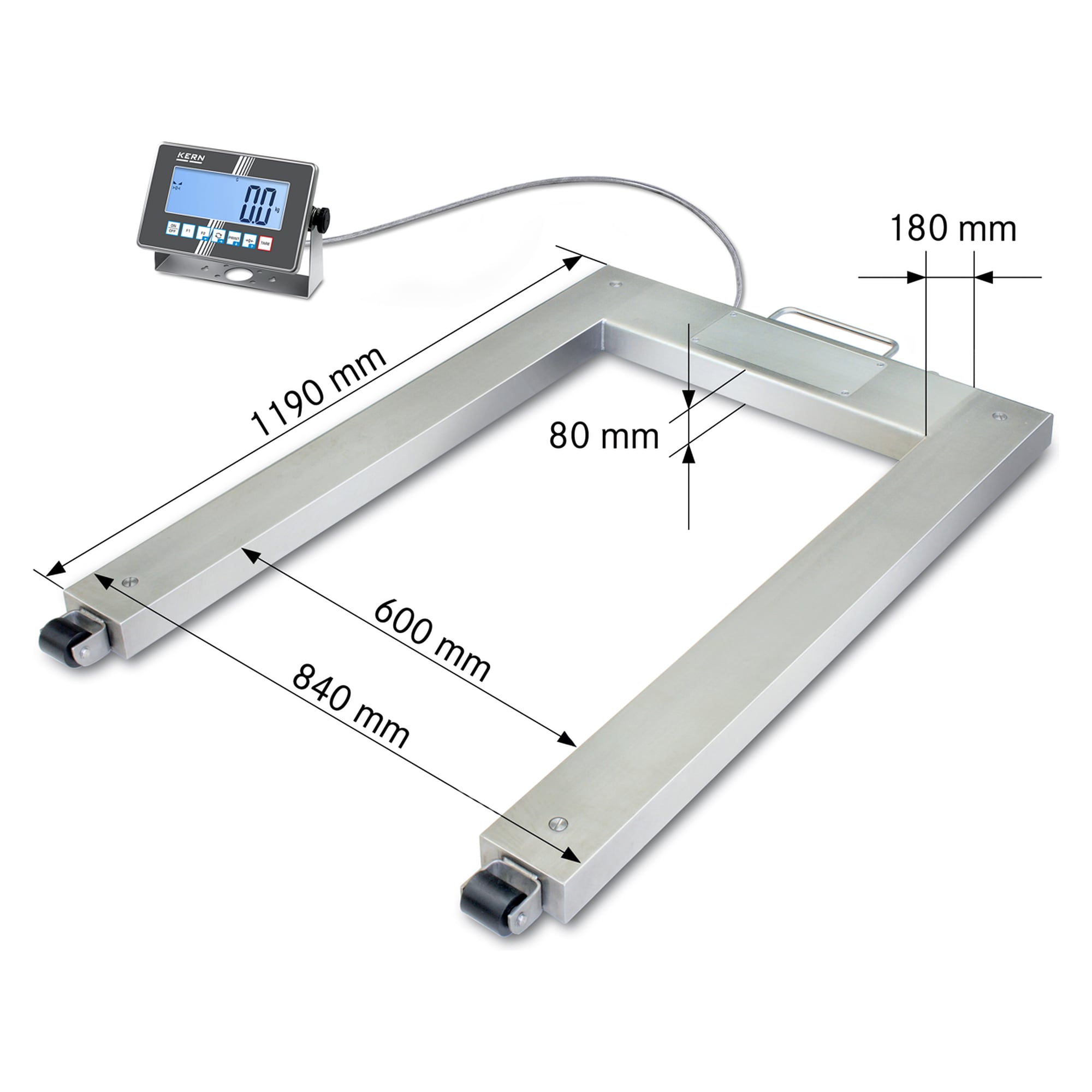

| Weighing area (W x D) | 1190 x 840 mm |
| Display digit height | 48 mm |
| Protection class | IP67 load receptor, IP68 terminal |
| Interfaces | optional RS-232, Ethernet, WLAN, Bluetooth BLE, USB, analogue, alibi memory |
| Net weight | 55 kg |
| Weight | 90 kg |
| Manufacturer | Kern |
| Manufacturer Nr. | UXC 600K-1M |
| EAN | 4045761481572 |
| HS-Code | 84238220 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
| Wägebereich max (g) | 600000 |
| Ablesbarkeit (g) | 200 |
| Display type | LCD |
| Weighing system | Strain gauge |
| Verification class | III |
| Interface | Alibi memory, Analog, Bluetooth, Ethernet, RS-232, USB device, WLAN |
