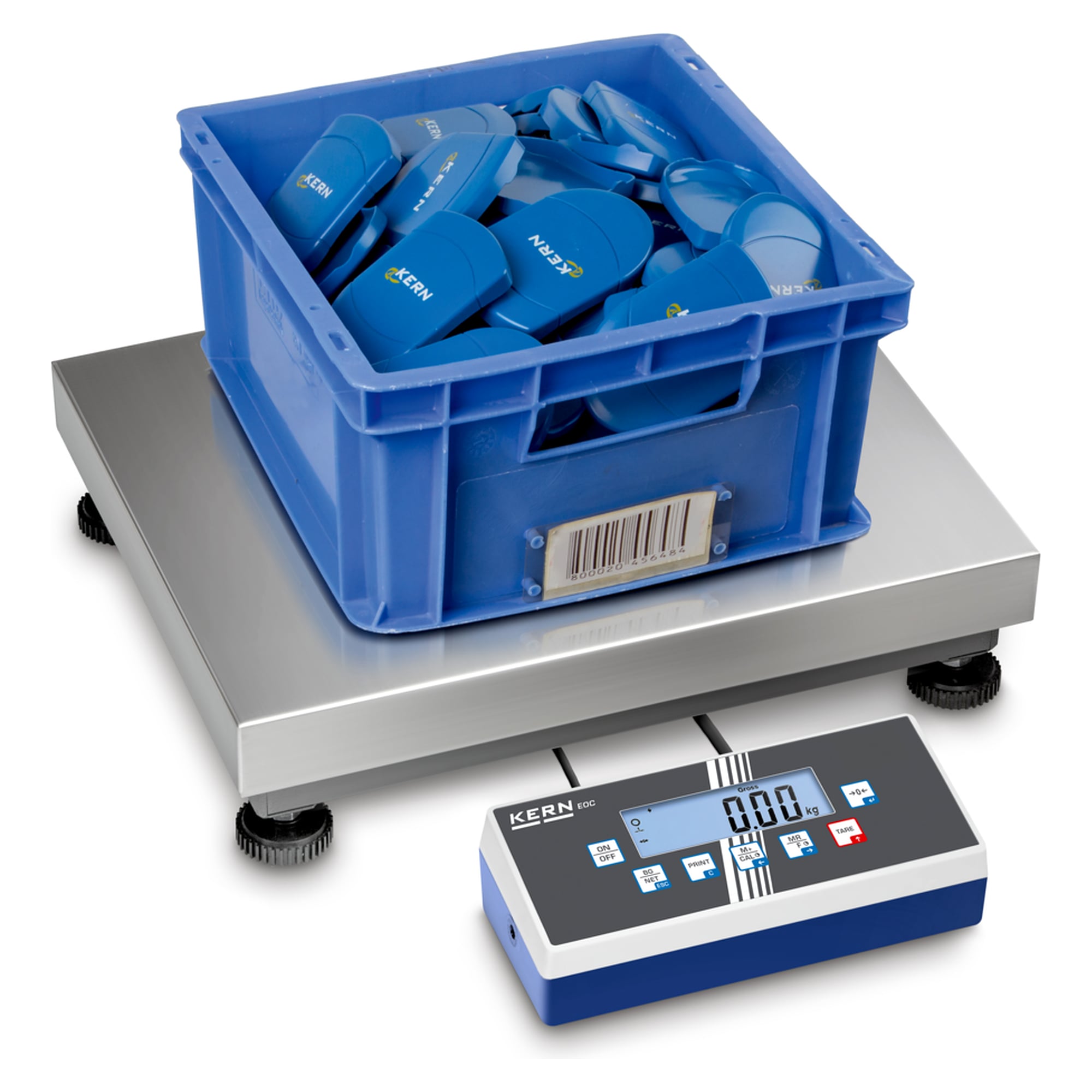

Industrial Platform Scale 15 kg / 35 kg Readability 0,005 kg / 0,01 kg - KERN EOC 30K-3L

For operations that weigh everything from light items to heavy batches on one scale, the KERN EOC 30K-3L covers the range up to 35 kg. Its multi-range function steps from 15 kg to 35 kg and keeps 0,005 kg readability in the lower range.

Benefits

• Two ranges in one scale: it switches automatically from 15 kg to 35 kg and reads down to 0,005 kg in the lower range.
• IP65 load cell: the silicone-coated aluminium load cell is protected against dust and splashing water for daily industrial use.

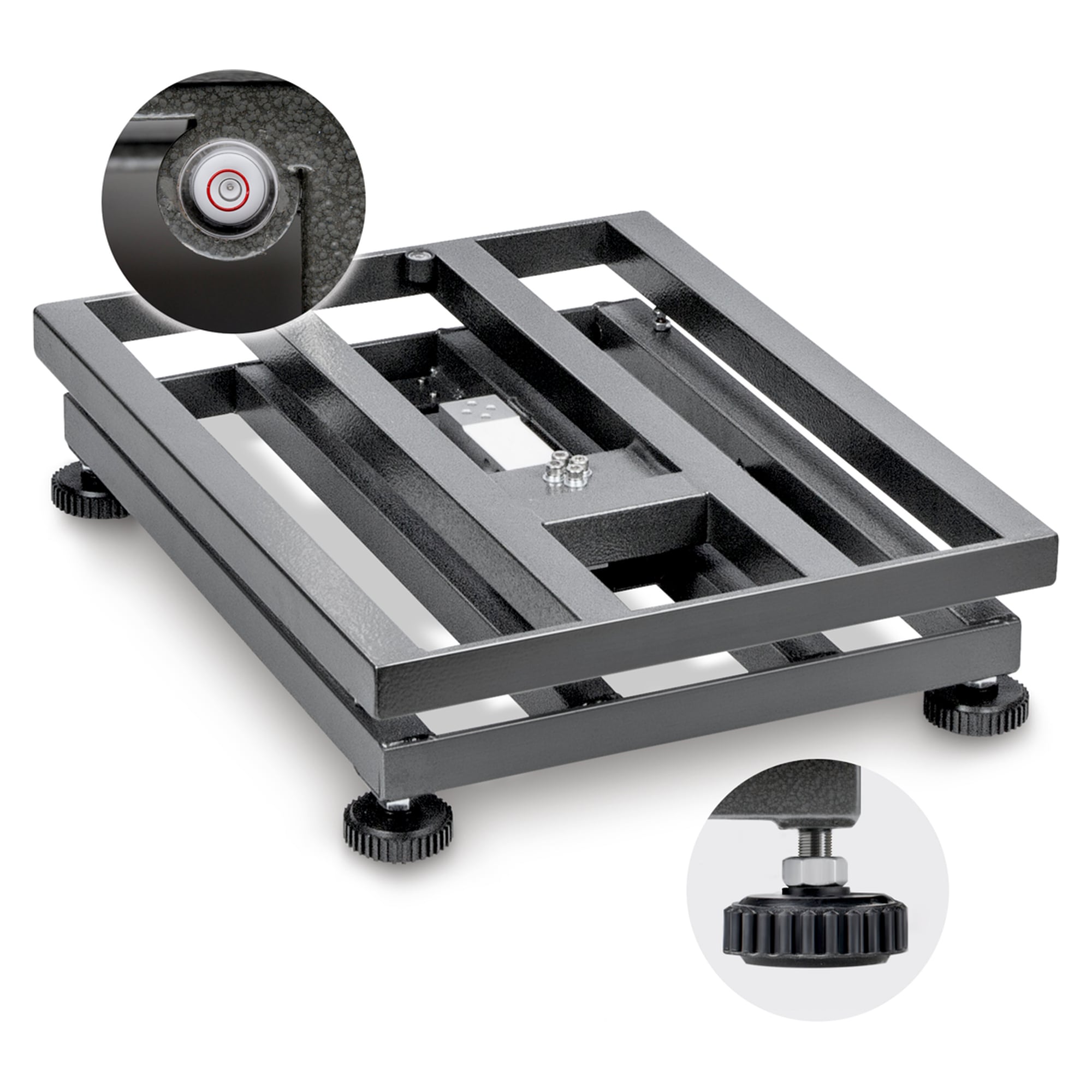

• Levelling as standard: a spirit level and adjustable feet keep results repeatable (0,005 kg; 0,01 kg).
• Check weighing: an optical and audible tolerance signal supports portioning, dosing and sorting.
• Connects to your systems: an RS-232 interface as standard and the KCP protocol allow remote control and data transfer to PCs and controllers.
• Mains or battery power: mains adapter included, optional internal battery for mobile use with up to 43 h runtime.

Technical data

• Weighing range (Max): 15 kg; 35 kg
• Readability (d): 0,005 kg; 0,01 kg
• Repeatability: 0,005 kg; 0,01 kg
• Linearity: ± 0,015 kg; 0,03 kg
• Smallest piece weight (counting): 100 g
• Weighing system: Strain gauge
• Stabilisation time: 2 s
• Load cell protection: IP65
• Interface: RS-232
• Weighing surface (W×D): 500×400 mm
• Display: LCD, 25 mm digit height
• Units: kg; g; lb; oz; PCS
• Power supply: Mains adapter, optional internal battery
• Operating temperature: -10 °C to 40 °C
• Net weight: 9 kg

Applications

Typical uses include agriculture and agribusiness, food processing, order picking and shipping, and the chemical, plastics and paint industries.

Compliance and origin

EAN 4045761192416, customs tariff number 84238220, country of origin China.
