Ball Joint Vice SPANNFIX for Screwing On SET1 with 5 Pairs of Interchangeable Jaws - Bernstein 9-215-K-SET1
This SET1 combines the SPANNFIX ball joint vice for screwing on with five pairs of hook-and-loop 50 mm interchangeable jaws in felt, cork, leather, ribbed and smooth plastic. At 70 mm clamping width it holds with 1470 N, tilt angle +/- 45°.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

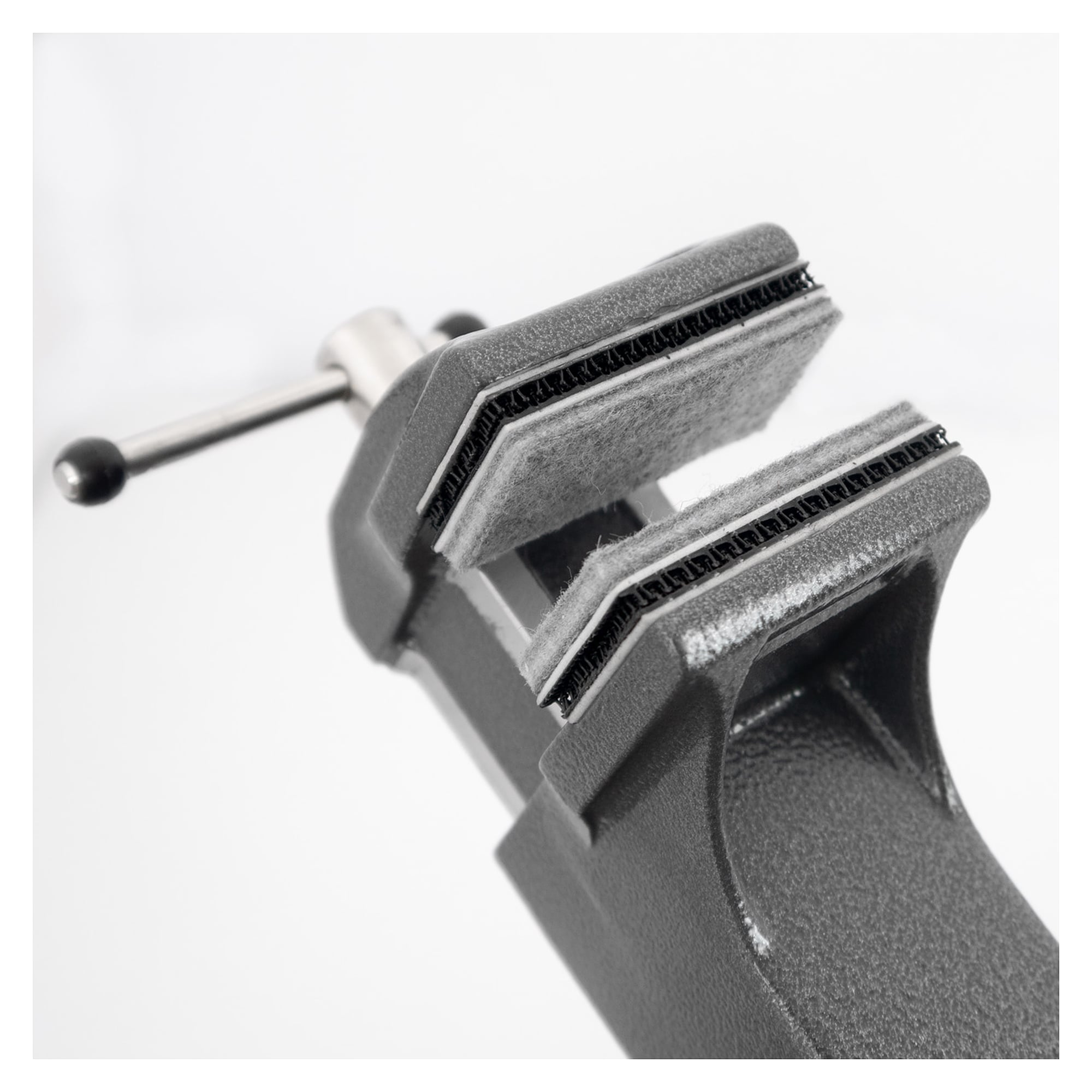

This SET1 extends the SPANNFIX ball joint vice for screwing on with five pairs of hook-and-loop interchangeable jaws in felt, cork, leather, ribbed and smooth plastic, covering nearly every workpiece surface.
Advantages

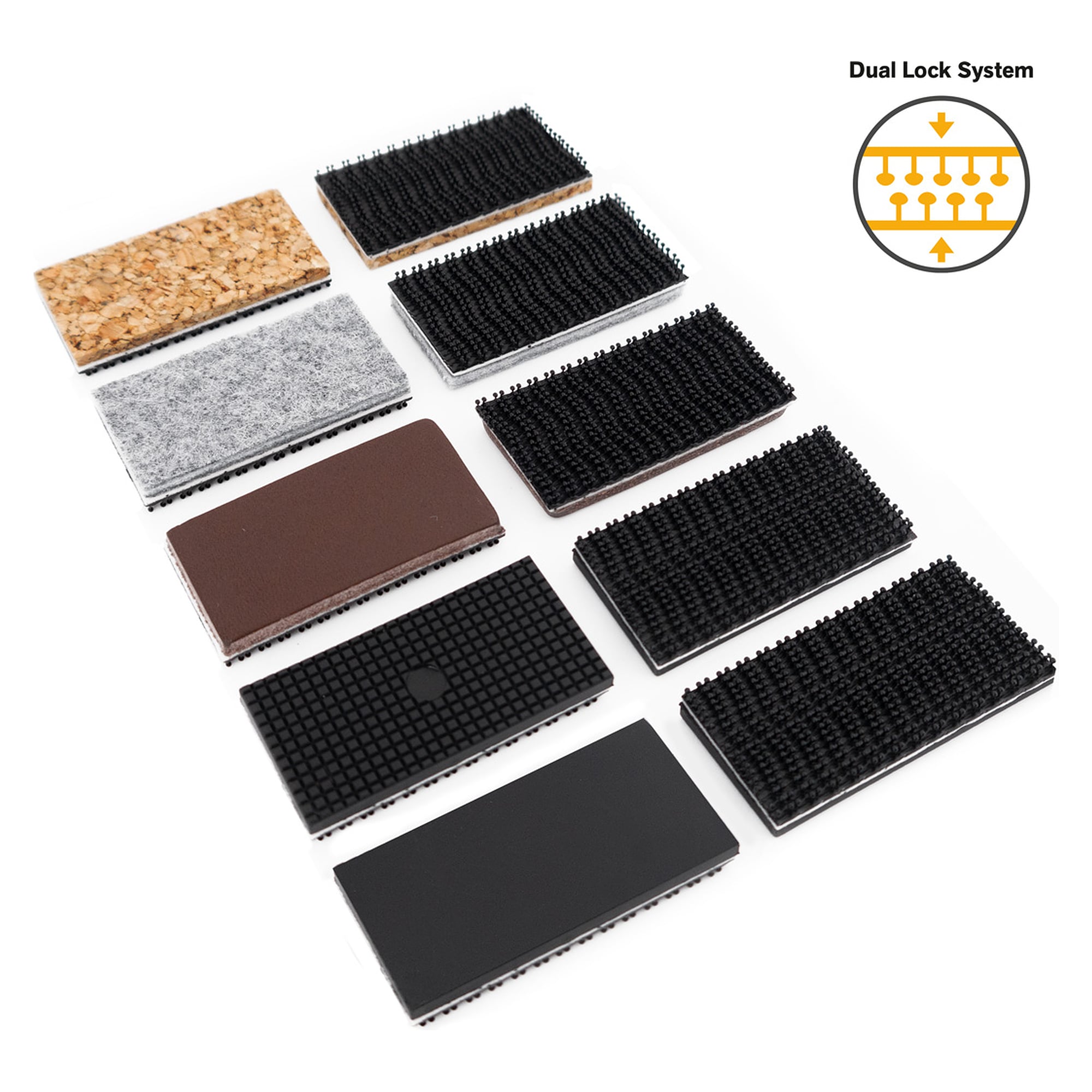

- Five pairs of hook-and-loop 50 mm interchangeable jaws in felt, cork, leather, ribbed plastic and smooth plastic included.

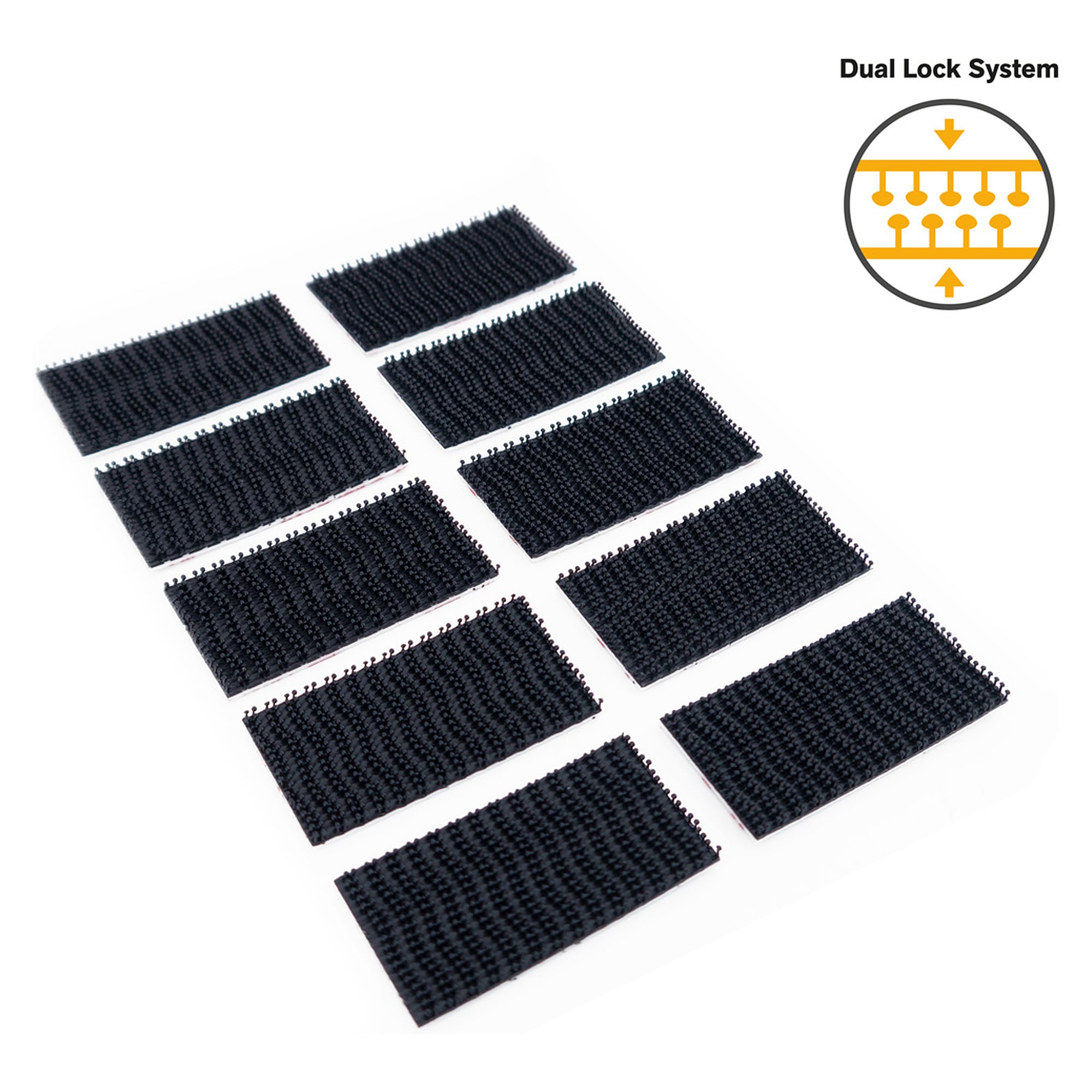

- Dual Lock fastening (3M) for a firm, precise connection that can be released again.

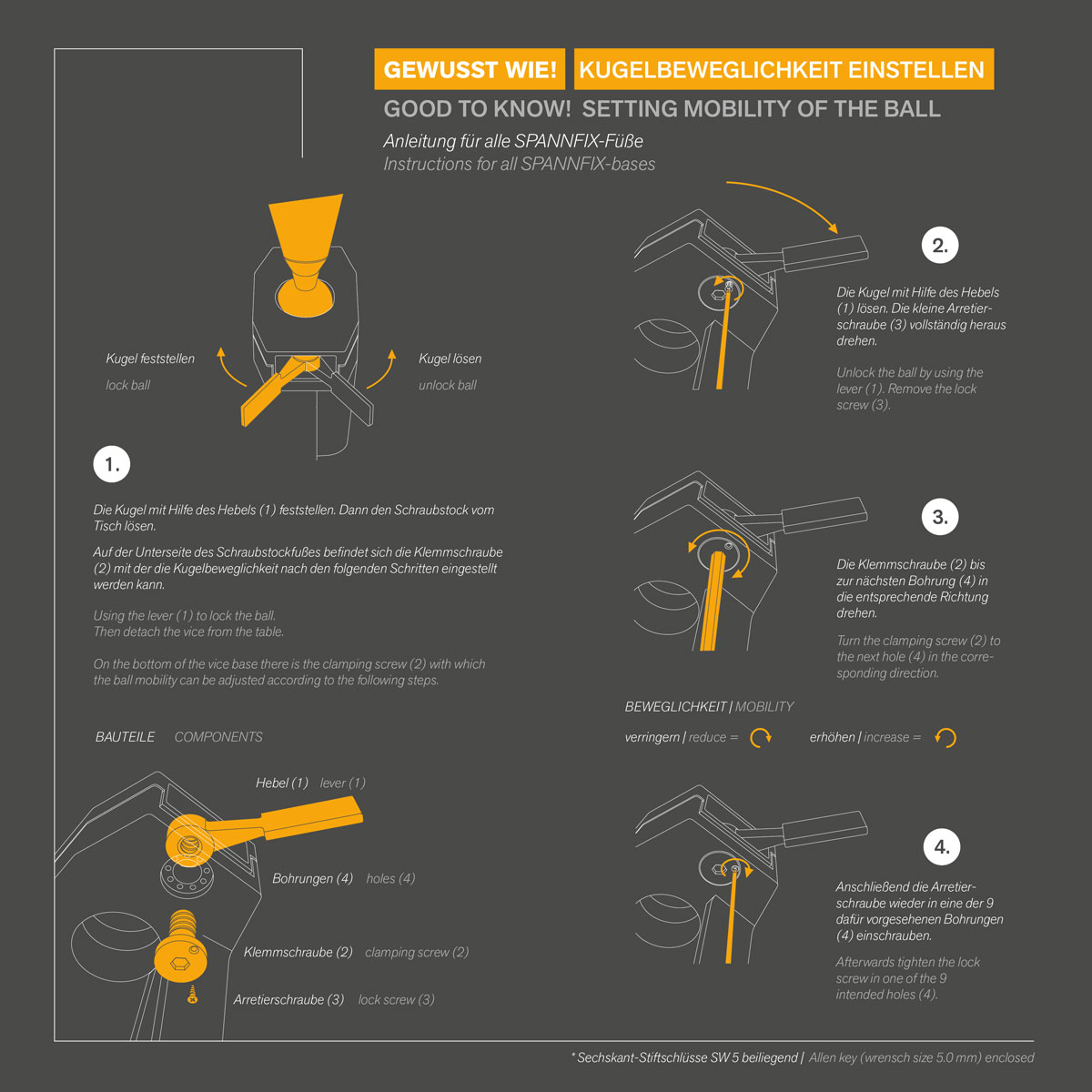

- Precision ball joint rotatable 360° with stepless quick release.
- Clamping width 70 mm at 38 mm depth and 1470 N clamping force.
- Tilt angle +/- 45° for work in front of or above the workbench.
Application
With the five included jaw variants the vice can be reconfigured in seconds: felt and leather for scratch-sensitive surfaces, cork for a non-slip hold, smooth plastic for flat surfaces and ribbed plastic for extra grip.
Standards and Delivery Data
- EAN 4250838534116.
- Customs tariff number 82057000.
- Country of origin Germany.
Technical data
| Feature | Value |
|---|---|
| Ball joint | rotatable 360°, stepless quick release |
| Fastening | screw-on, base size 150 x 106 mm, through holes 4 x 9 mm |
| Jaws | 5 pairs of hook-and-loop 50 mm interchangeable jaws, Dual Lock fastening (3M) |
| Clamping width | 70 mm |
| Clamping depth | 38 mm |
| Clamping force | 1470 N |
| Tilt angle | +/- 45° |
| Material | cast aluminum, powder-coated, dark grey metallic |
| Maximum torque | ball Ø 40 mm approx. 24 Nm, ball Ø 60 mm approx. 100 Nm |
| Dimensions | approx. 220 x 180 x 115 mm |
| Weight | 1310 g |
| Manufacturer | Bernstein |
| Manufacturer Nr. | 9-215-K-SET1 |
| EAN | 4250838534116 |
| HS-Code | 82057000 |
| GPSR manufacturer information | BERNSTEIN Werkzeugfabrik Industriehof Trecknase 1 DE-42897 Remscheid www.bernstein-werkzeuge.de |
| Condition of article | New |
| Article authenticity | Original product |
Scope of delivery
- 9-215-K ball joint vice SPANNFIX for screwing on (hook-and-loop).
- 9-900-K50-FILZ replacement jaws, felt/hook-and-loop, 50 mm (pair).
- 9-900-K50-KORK replacement jaws, cork/hook-and-loop, 50 mm (pair).
- 9-900-K50-LEDER replacement jaws, leather/hook-and-loop, 50 mm (pair).
- 9-900-K50-KST replacement jaws, corrugated plastic/hook-and-loop, 50 mm (pair).
- 9-900-K50-KSTG replacement jaws, smooth plastic/hook-and-loop, 50 mm (pair).
