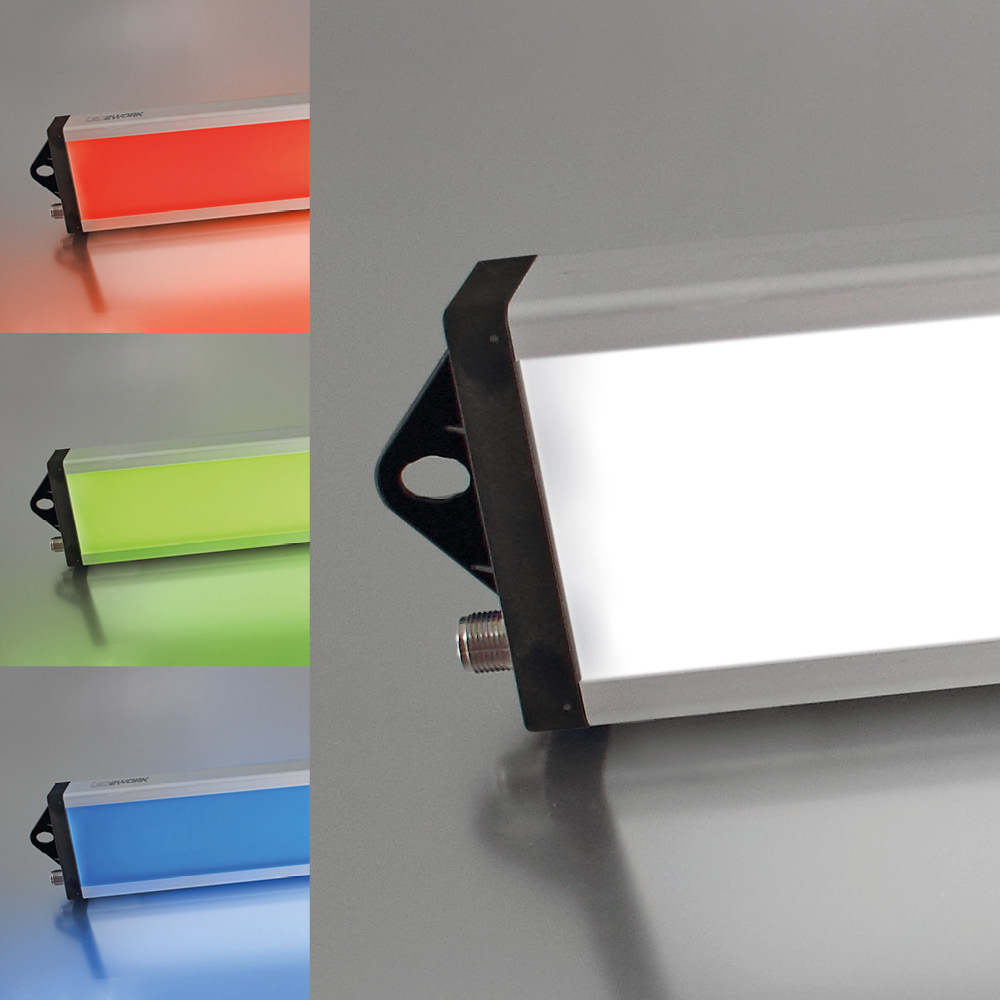

UNILED SL RGB-W LED workplace light with signal function, 1545 mm, 100°, IP50, 24V DC - LED2WORK 110994-14

The UNILED SL RGB-W combines task lighting and a signal function in one luminaire. Daylight-white SMD LEDs provide 7290 lm for illumination, while separate RGB LED chips generate coloured light signals, all in a slim 1545 mm aluminium housing.

Key benefits

• Illuminating and signalling in one light, white illumination at 7290 lm plus coloured RGB light changes
• Slim, sturdy aluminium housing with integrated fixing tabs and plastic end caps
• Wide 100° optic with a matt, opal-white cover for even, glare-controlled light
• Direct connection via M12 sensor connector (A-coded), 24V DC
• ETL Listed (5003529) in addition to CE and UKCA, service life over 100,000 h (L80/B10)
• Note: RGB and white are never switched on at the same time, due to the current load on the conductor tracks

Technical data

• Model: UNILED SL RGB-W
• Type: LED system and workplace light
• Light source: RGB SMD + SMD LED
• Power white: ~57 W, luminous flux 7290 lm (126 lm/W)
• Power red: ~54 W, green: ~15 W, blue: ~54 W
• Light colour white: 5000K 3-step MacAdam
• Colour rendering white (Ra): >80
• Supply voltage: 24 V DC -10 %+7 % (RGB), 24 V DC ±10 % (W)
• Connection: M12 A-coded
• Protection rating: IP50
• Protection class: III
• Beam angle: 100°
• Operating temperature: -10 °C to +50 °C
• Service life: > 100,000 h (L80/B10)
• Housing: aluminium
• Cover: matt plastic
• Dimensions (H x W): 35 mm x 85 mm
• Length: 1545 mm
• Weight: 2850 g
• Risk group (DIN EN 62471): exempt group
• Certifications: CE, UKCA, ETL Listed (5003529)
• Made in: Germany

Applications

Machine and work stations that need both illumination and a visual status signal (e.g. machine state), for example in production, assembly and quality control.
