LEANLED II LED Machine Light 520 mm, opal-white Cover, 13 W, IP54 - LED2WORK 111010-34

Images are examples, some edited with AI. The technical data are authoritative. AI notice

LEANLED II LED Machine Light 520 mm, opal-white Cover, 13 W, IP54 - LED2WORK 111010-34

Name: LEANLED II LED Machine Light 520 mm, opal-white Cover, 13 W, IP54 - LED2WORK 111010-34
Brand: LED2WORK
SKU: L2W-111010-34
Price: 96.27 EUR
Availability: InStock

LED2WORK ✓ Original product Brand new Made in Germany

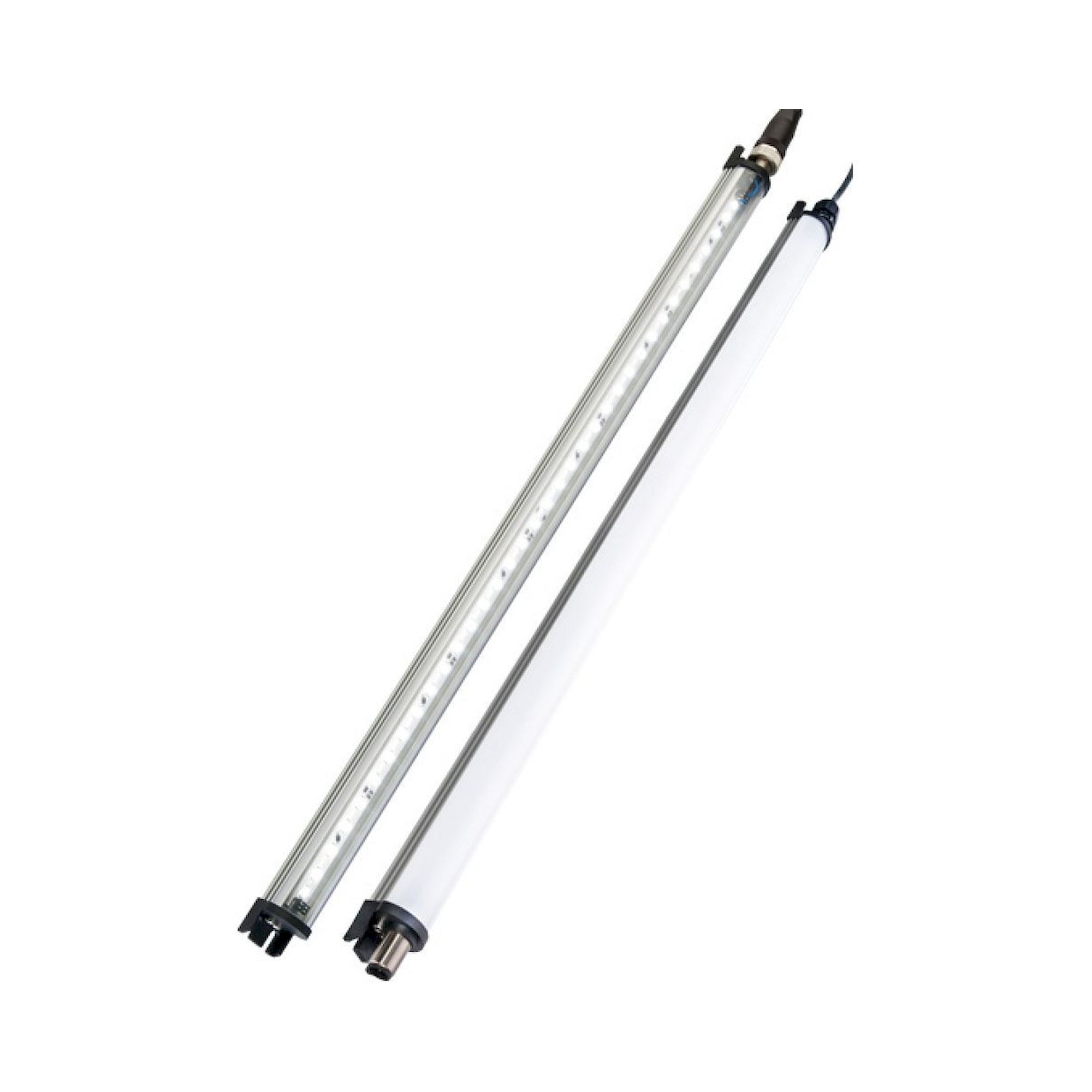

Slim surface-mounted LED light for machines and production lines, 520 mm long and just 31 mm high, delivering 2250 lm at 5700K 3-step MacAdam with >85 colour rendering. The opal-white polycarbonate cover gives even, flicker-free illumination of the work area. Runs on 24V DC ± 10% via M12 A-coded, protection rating IP54.

Net

€96.27

excl. VAT

Item L2W-111010-34

Manufacturer no. 111010-34

Question about this item

Datasheet (PDF) User manual 5 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

The LEANLED II lights machines, plant and workstations over 520 mm of length with 2250 lm, delivering homogeneous, flicker-free light from a design just 31 mm flat.

Key benefits

Even, low-glare light from the opal-white polycarbonate cover, 2250 lm at 5700K 3-step MacAdam
Very flat design at just 31 mm high, fits even where space is tight
Cascadable up to max. 4 A, several lights can be daisy-chained via M12 A-coded
Long service life of > 100.000 h (L80/B10) and IP54 against dust and splash water
Flicker-free light with >85 colour rendering for low-fatigue work

Applications

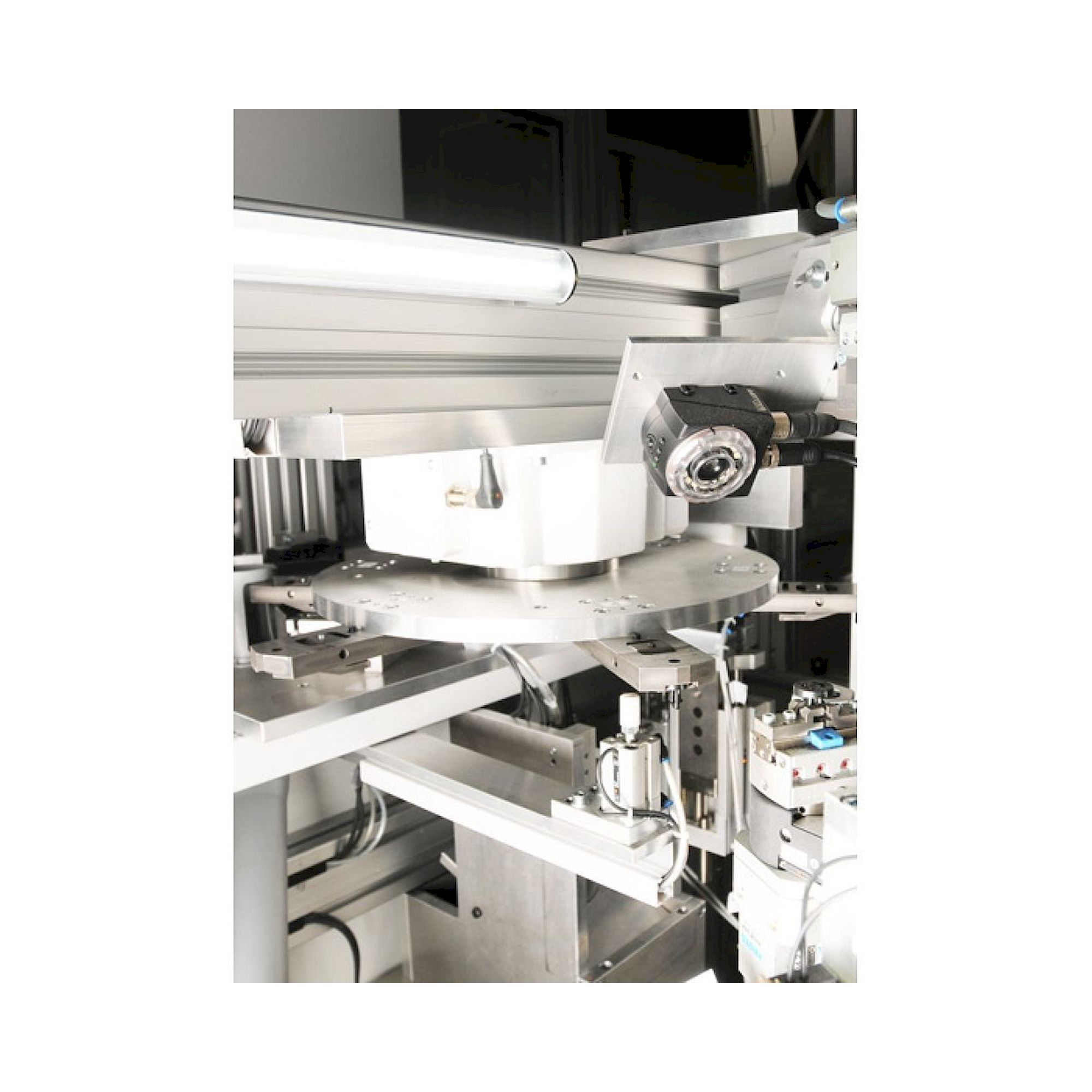

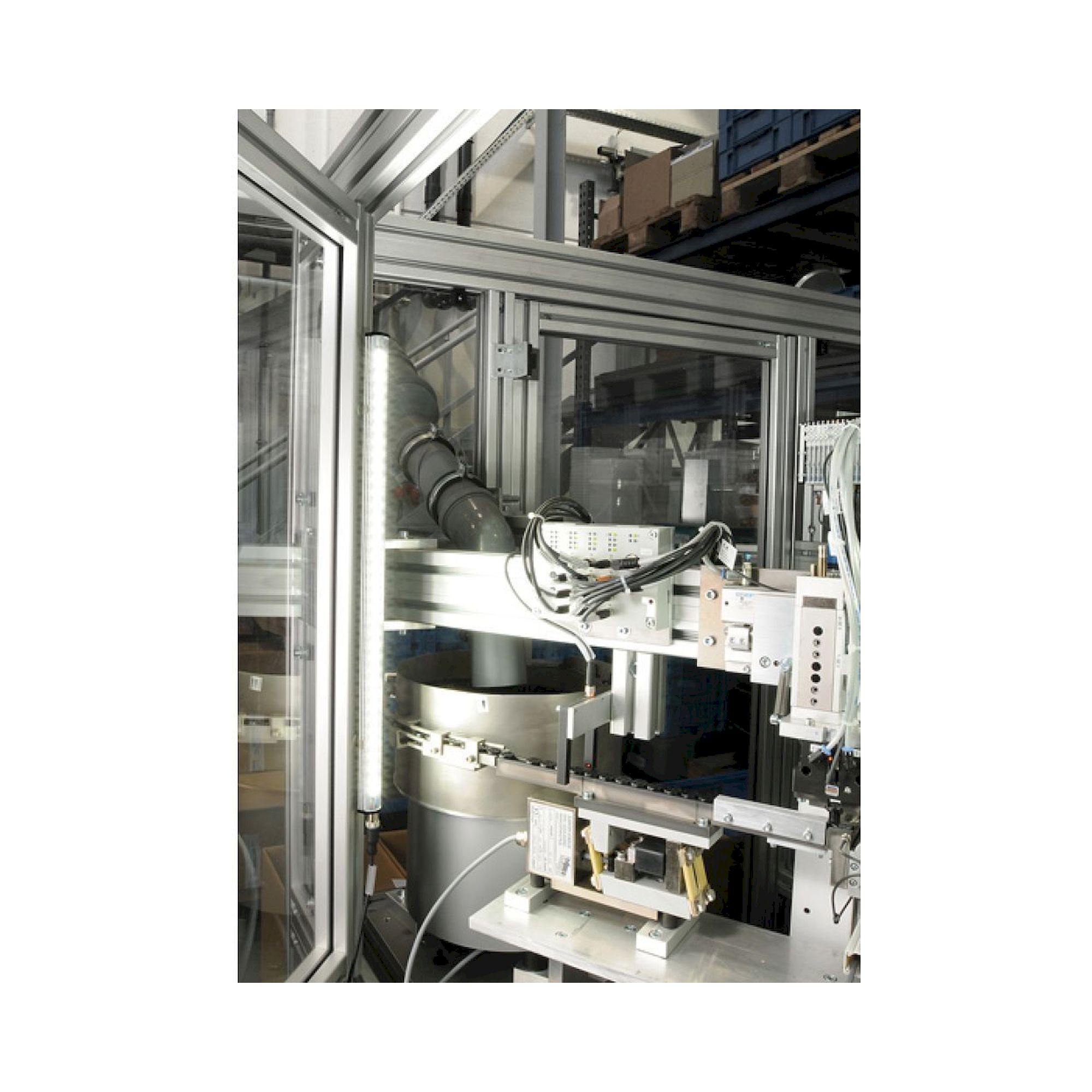

Lighting of machine tools, assembly and inspection stations, plant and conveyor lines free of chips and cutting fluid. Being cascadable, the light suits continuous illumination of longer machine fronts.

Mounting and scope of delivery

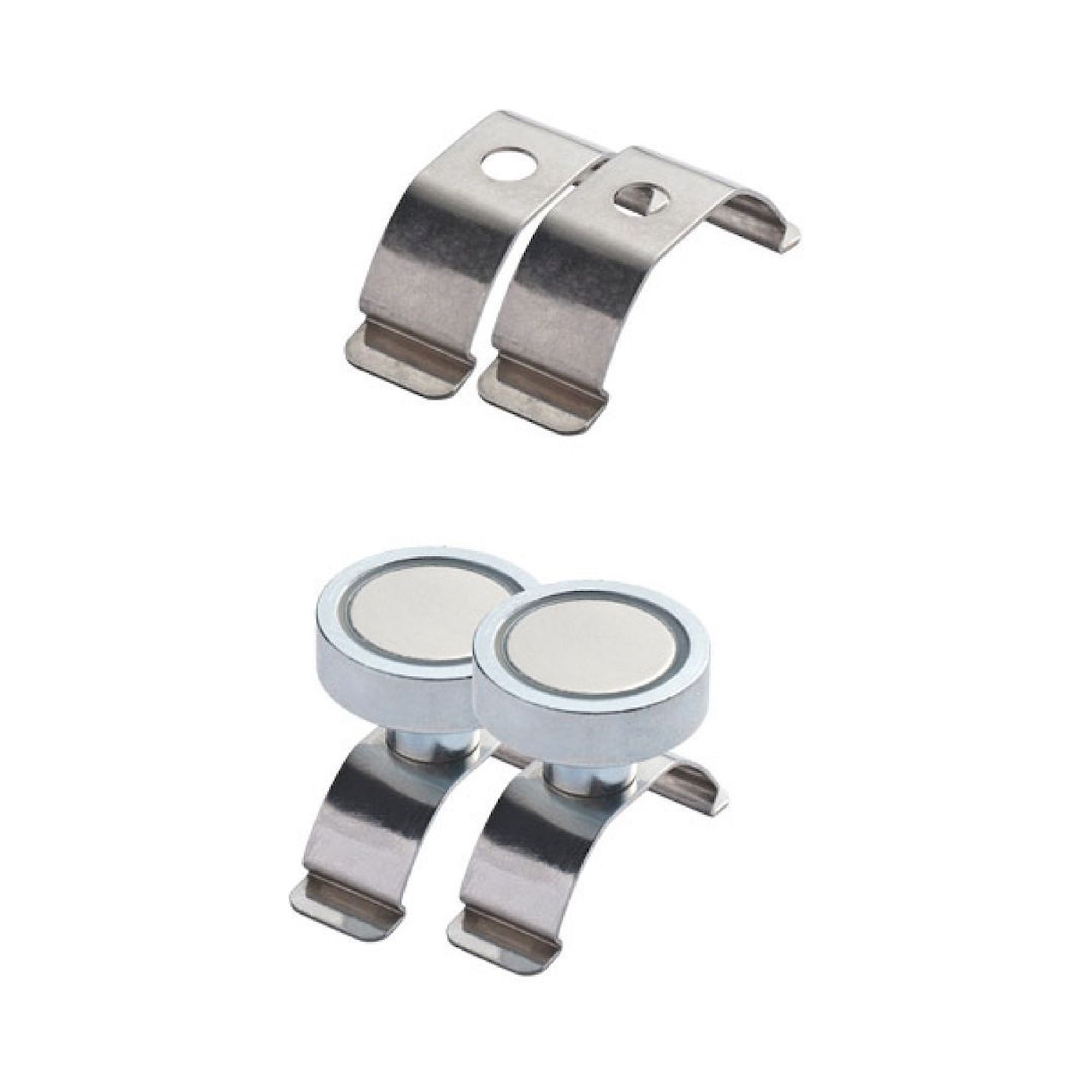

The scope of delivery includes the LED light bar plus two pairs of brackets, one pair for flat mounting and one pair for swivel mounting (360°). Dimming is optionally available via accessories.

Technical data

Model	LEANLED II opalweiß kaskadierbar
Design	surface-mounted LED light
Power	13 W
Luminous flux	2250 lm
Luminous efficacy	173 lm/W
Light colour	5700K 3-step MacAdam
Colour rendering (Ra)	>85
Beam angle	120°
Cascadable	yes, up to max. 4 A
Supply voltage	24V DC ± 10%
Connection	M12 A-coded
Protection rating (IP)	IP54
Protection class	III
Operating temperature	-10 °C - +60 °C
Service life	> 100.000 h (L80/B10)
Housing material	aluminium
Cover material	polycarbonate
Dimensions (W x H x L)	26 mm x 31 mm x 520 mm
Weight	420 g
Risk group (DIN EN 62471)	Exempt group
Certifications	CE, UKCA, ETL Listed (5003529), D-Kennzeichnung
Made in	Germany
Manufacturer	LED2WORK
Manufacturer Nr.	111010-34
HS-Code	94054239
GPSR manufacturer information	LED2WORK GmbH, Stuttgarter Straße 13 A, 75179 Pforzheim www.led2work.com
Condition of article	New
Article authenticity	Original product
Country of Manufacture	Germany
ESD version	TEC
Norm	DIN EN 62471
Luminous flux (lumen)	2250 lm
Power (W)	13 W
Colour temperature	5700K
Mounting type	Surface-mounted
Operating voltage	24 V
Protection class (IP)	IP54
