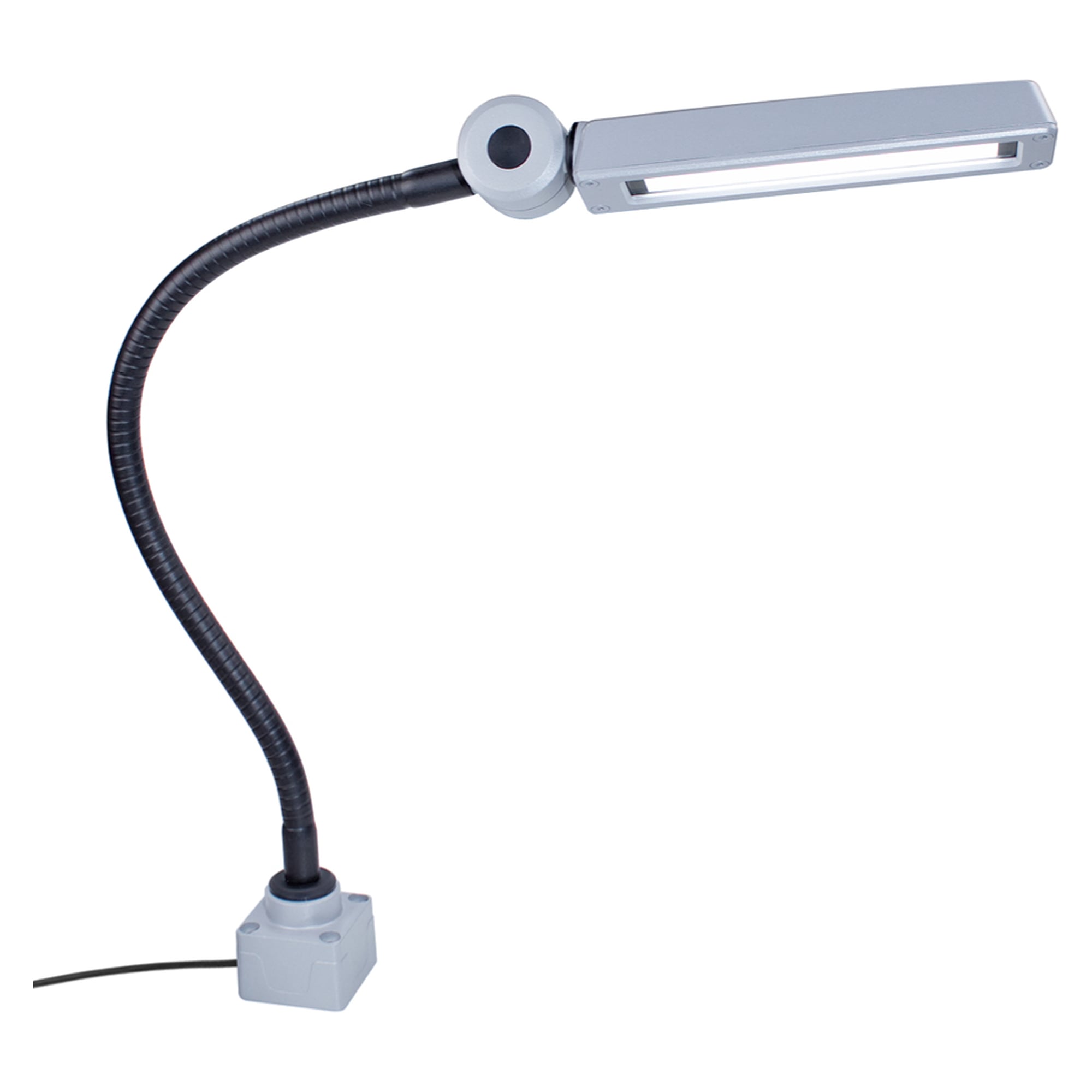

CENALED FLOOD flexible-arm workplace light 500mm 8.4W 118°, IP67 - LED2WORK 121210-01

To light a machine work area widely and evenly, the CENALED FLOOD flexible-arm offers a flexible LED flood light with a 118° beam (half-peak angle) and 1260 lm from only 8.4 W. The 500 mm gooseneck allows individual aiming.

Your benefits

• 118° beam (half-peak angle) for wide, even area illumination
• Repositionable 500 mm gooseneck for free aiming
• IP67 rating and safety glass for harsh machine use
• High luminous efficacy of 150 lm/W at 1260 lm
• Switched and dimmed via a button on the head
• Long service life of more than 100,000 h (L80/B10)

Technical data

• Model: CENALED FLOOD
• Type: LED workplace light with gooseneck
• Light source: SMD LED
• Power: ~8.4 W
• Luminous flux: 1260 lm
• Luminous efficacy: 150 lm/W
• Light colour: 5700K (3-step MacAdam)
• Colour rendering (Ra): >85
• Beam angle: 118° (half-peak angle)
• Supply voltage: 24V DC ± 10%
• Connection: Ölflex cable with open cable ends
• Protection rating (IP): IP67
• Protection class: III
• Operating temperature: -10 °C to +50 °C
• Service life: > 100,000 h (L80/B10)
• Housing: aluminium (powder-coated)
• Cover: safety glass
• Gooseneck length: 500 mm
• Base height: 59 mm
• Mounting: screw-on base
• Weight: 1850 g
• Certifications: CE, UKCA
• Dimmable: yes, via head button (on/off and dimming)
• Made in: Germany

Applications

Wide area lighting at benches, assembly and inspection stations and inside machine work areas where a larger zone should be evenly illuminated.

Mounting and accessories

The light sits on a screw-on base and connects to 24V machine power via a cable. Optional mounting accessories are available. Made in Germany.
