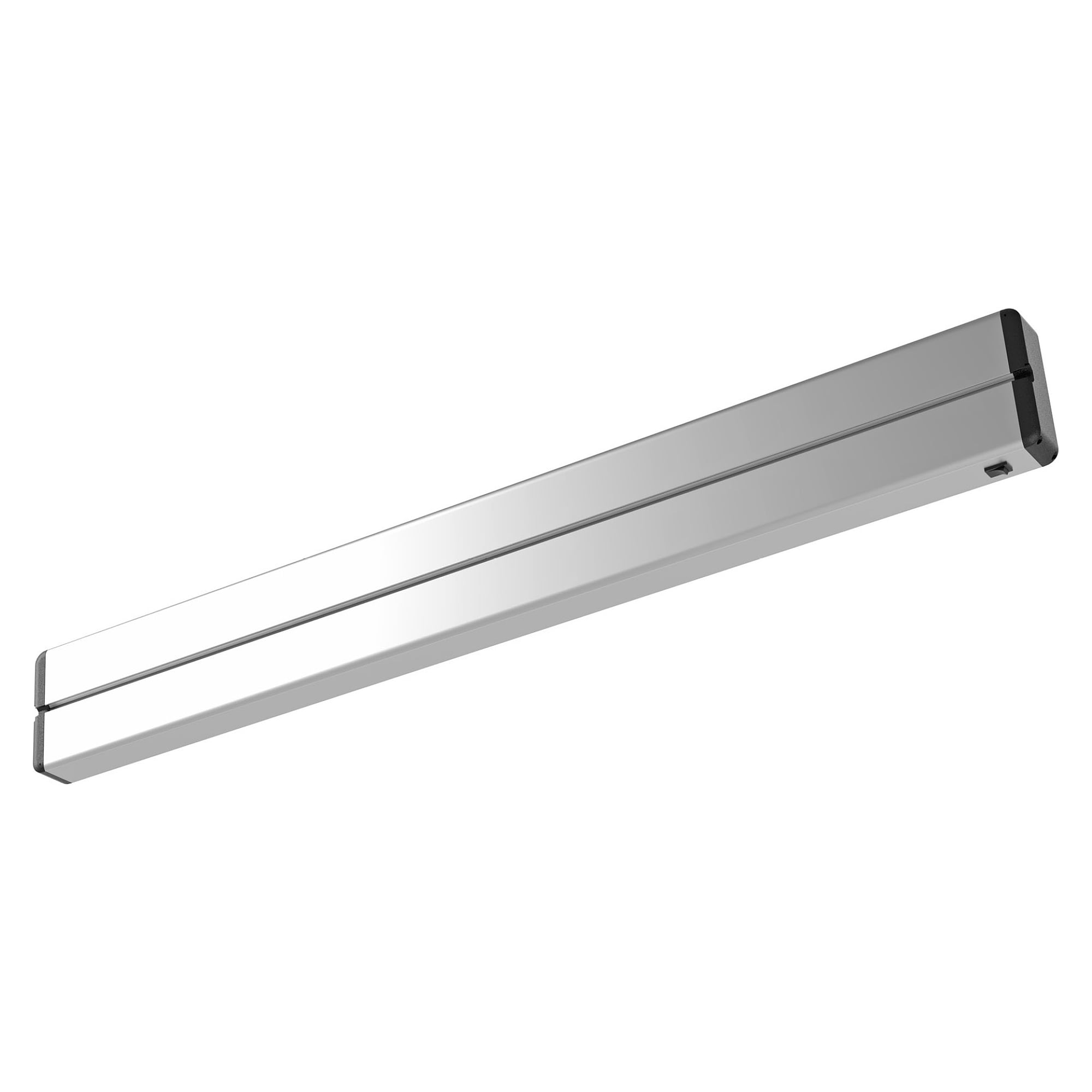

SYSTEMLED EVO PIR ECO system light 1342mm 38W 5700K motion sensor - LED2WORK 155310-04

The SYSTEMLED EVO PIR - ECO combines high efficiency with presence-based control: over 1342 mm it delivers 5970 lm at only around 38 W and switches off automatically after 5, 10, 15 or 30 minutes when the detection zone stays empty. The light reliably comes back on when a person returns.

Key benefits

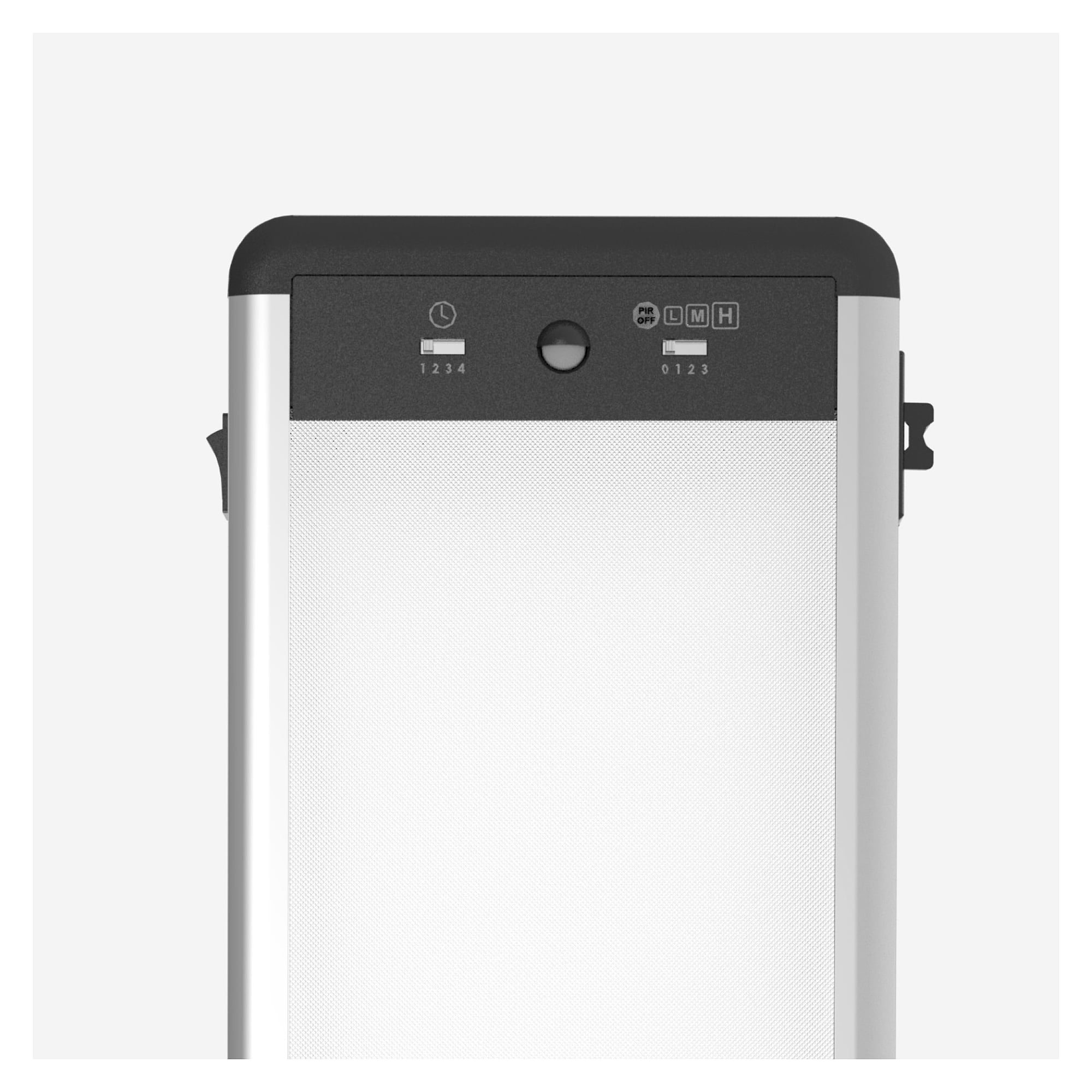

• Presence-based control via integrated PIR sensor, switch-off delay selectable in four steps (5, 10, 15, 30 min).
• Adjustable sensitivity and run-on time for different work areas.
• 5970 lm at around 38 W, high efficacy of 173 lm/W.
• Daylight-white 5700K light with colour rendering Ra >90 (typ. 95).
• Microprism cover for low-glare work at a 90° beam angle.

Technical data

• Model: SYSTEMLED EVO PIR - ECO daylight white
• Design: LED system light, SMD LED
• Total power incl. driver: ~38 W (lamp power ~35 W)
• Luminous flux: 5970 lm, efficacy 173 lm/W
• Light colour: 5700K 3-step MacAdam
• Colour rendering: Ra >90 (typ. 95)
• Supply voltage: 120-277V AC ± 10%, 50-60 Hz, integrated driver
• Connection: Wieland GST18
• Protection rating: IP40, protection class I

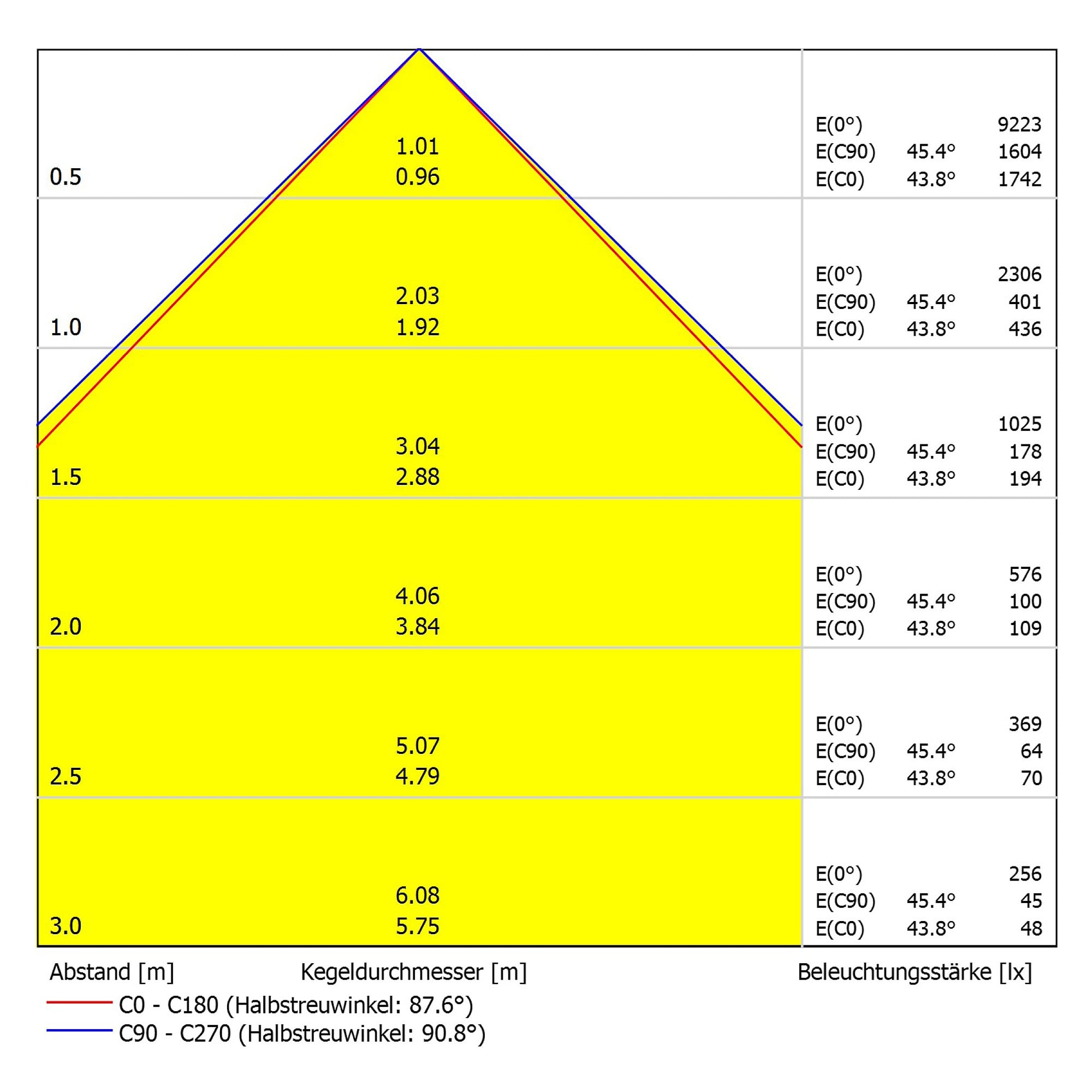

• Beam angle: 90°, glare control via microprisms
• Operating temperature: -10 °C to +50 °C
• Service life: > 100,000 h (L80/B10)
• Material: aluminium and PMMA

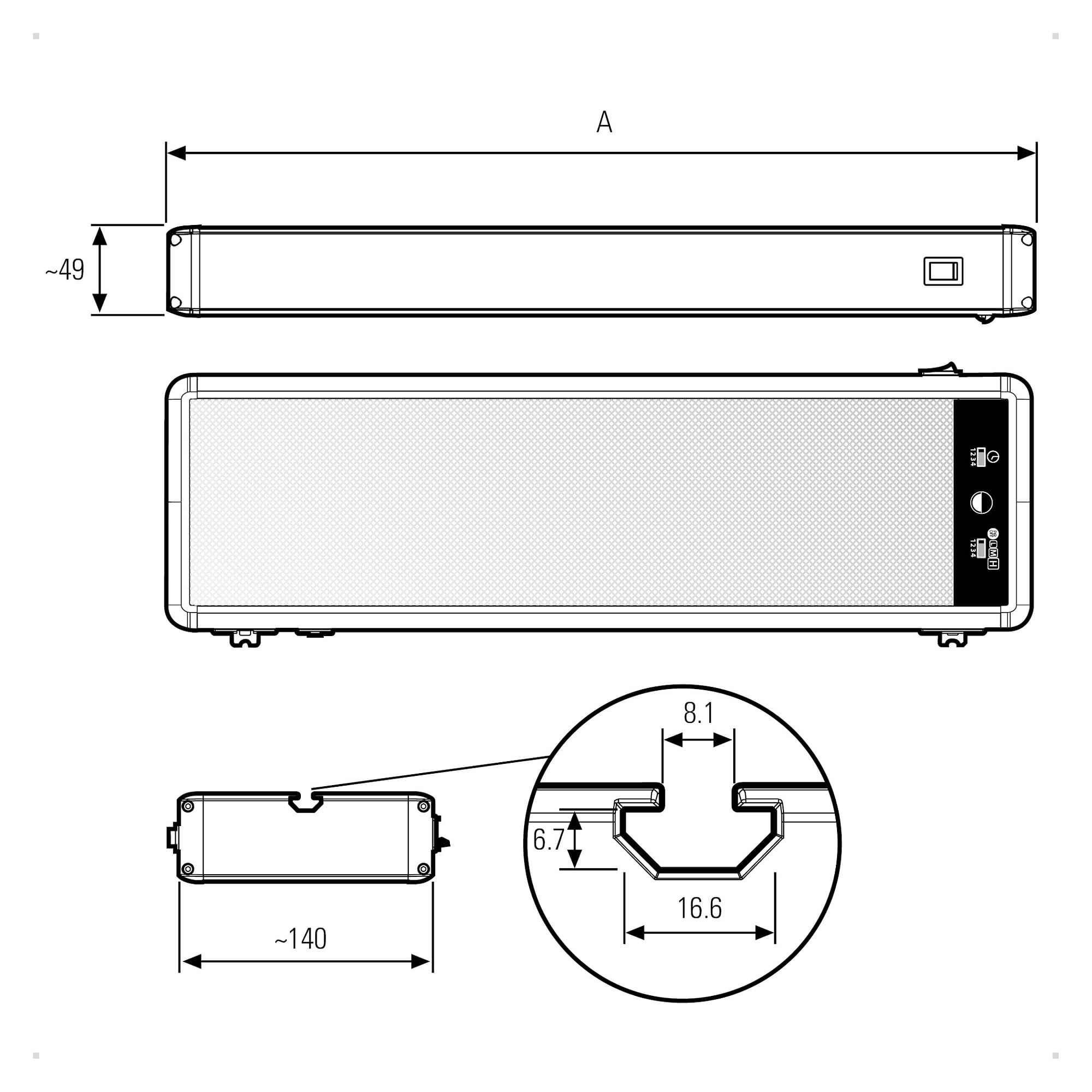

• Dimensions: 1342 mm x 139 mm x 48 mm (L x W x H), weight 3700 g
• Risk group (DIN EN 62471): exempt group
• Certifications: CE, UKCA
• Made in: Germany

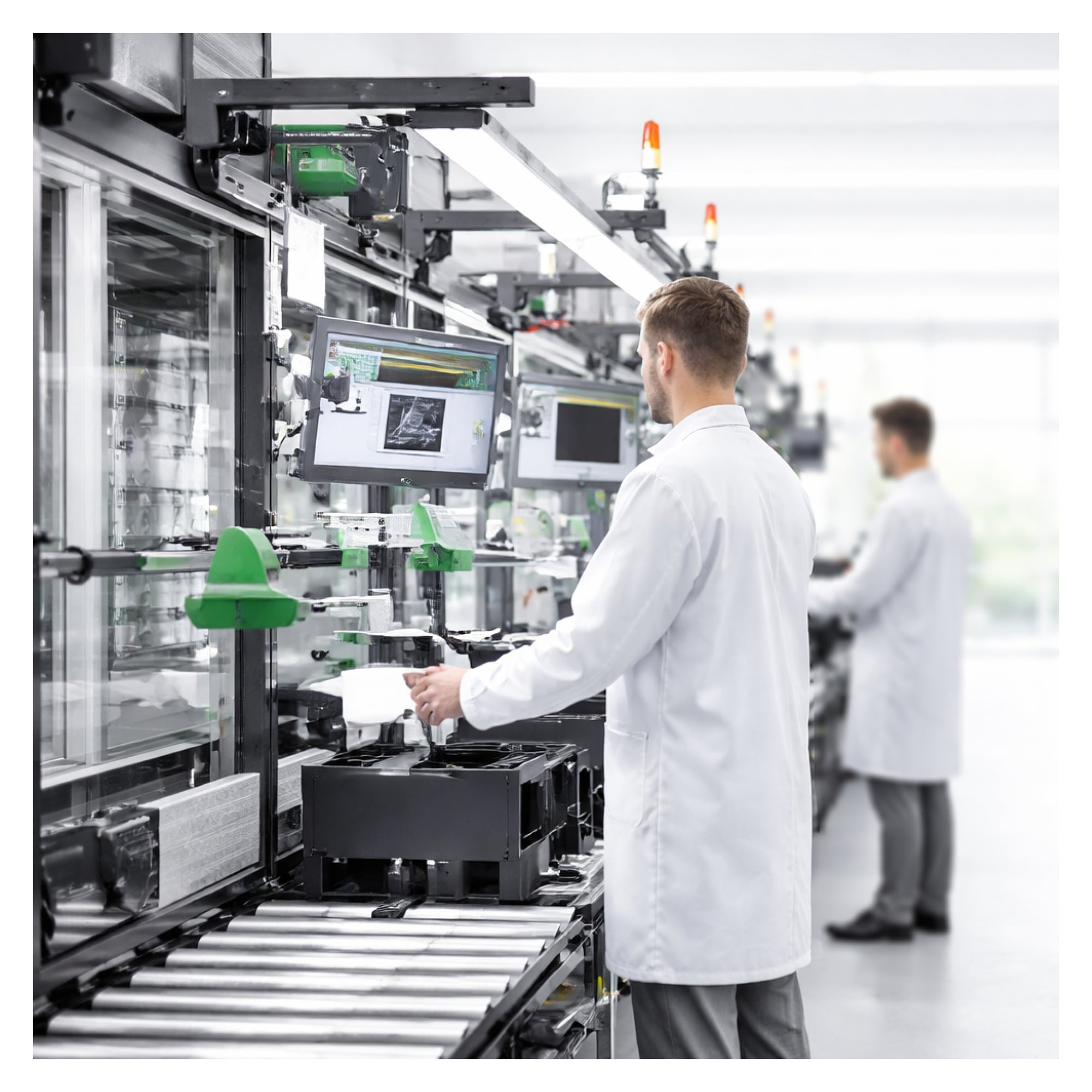

Applications

Suited to production lines, assembly stations and laboratories where light is only required on occupancy. Mounting is via the rear T-slot, with optional fixing accessories available. Dimming is optional via accessories.
