MicroFine Single Sided Chisel Soldering Tip 1.1 mm for TD-100 - PACE 1124-0041
MicroFine chisel tip, 1.1 mm wide, for the PACE TD-100, a slightly stronger counterpart to the 0.9 mm version. More contact area moves more heat into 0603 pads and SOT leads. For fine SMD work with higher heat demand.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Some fine joints connect to a copper plane or a wider pad and need more heat than an ultra-fine tip delivers. The 1124-0041 MicroFine chisel provides a 1.1 mm flat contact face while staying slim enough for dense layouts. Its single sided grind allows close work along component edges. For the TD-100 on all IntelliHeat stations.
Benefits
- 1.1 mm face: more heat transfer in a still fine profile
- Suited to pads connected to copper areas
- Single sided grind: precise work along component edges
- For TD-100 and TD-100A on IntelliHeat stations
Specifications
Applications
- 0603 and 0805 chip components
- SOT-23, SOD and small power parts
- SOIC and TSSOP leads
Compatibility
- PACE TD-100 and TD-100A Tip-Heater Cartridge soldering irons
- IntelliHeat stations: ST 30, ST 50, ST 70, ST 100, WJS 100, MBT 301/350
Technical data
| Manufacturer part number | 1124-0041 |
|---|---|
| Type / shape | MicroFine chisel, single sided |
| Width / diameter | 1.1 mm (0.045 in) |
| Tip series | TD-100 standard (1124) |
| Compatible handpiece | TD-100, TD-100A (IntelliHeat) |
| Sales unit | 1 piece |
| Weight | 0.01 kg |
| Manufacturer | PACE |
| Manufacturer Nr. | 1124-0041 |
| HS-Code | 85159080 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | United States |
| Tip diameter/width [mm] | 1.1 |
| Soldering tip shape | meißelförmig |
| Series | TD-100 |
Downloads
Catalogue
Accessories
PACE
Instant SetBack Tool Stand for TD-200, TD-100A and TD-100 - PACE 6019-0089
Item PC-6019-0089
€136.43
PACE
Tip Tool for TD-100A, TD-200, PS-90 and SX Handpieces - PACE 1100-0206
Item PC-1100-0206
€19.70
PACE

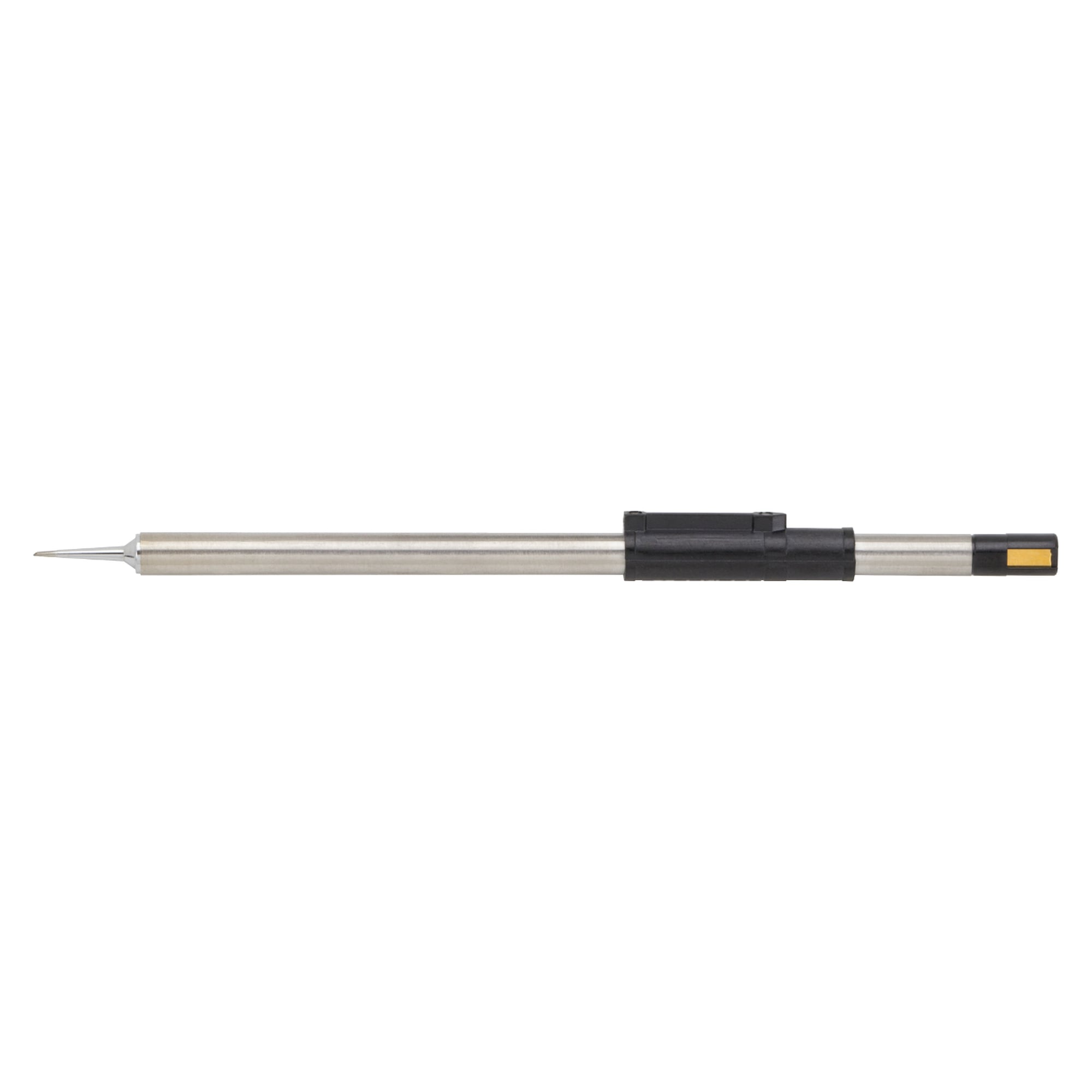

MicroFine Single Sided Chisel Soldering Tip 0.9 mm for TD-100 - PACE 1124-0040
