Conical Soldering Tip 0.99 mm, Long-Life Diamond, for TD-100 - PACE 1126-0602
Long-Life Diamond conical soldering tip with a 0.99 mm (0.039 in) point for the PACE TD-100. It belongs to the Diamond Series that PACE designs for extended tip life. An all-round tip for chip components and SMD leads in continuous use.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
In series production, tip life drives changeover time and consumable cost. The 1126-0602 conical tip belongs to the PACE Long-Life Diamond range (Diamond Series Extended Life) and offers a versatile geometry for daily line work with a point of just under 1 mm. It fits the TD-100 on all IntelliHeat stations.
Benefits
- Diamond Series with extended life: fewer tip changes in shift operation
- 0.99 mm cone: versatile from 0603 parts to SOIC leads
- Rotationally symmetric: same result in any iron orientation
- For TD-100 and TD-100A on IntelliHeat stations
Specifications
Applications
- 0603 to 1206 chip components
- Hand soldering stations in series production
- General SMD and THT rework
Compatibility
- PACE TD-100 and TD-100A Tip-Heater Cartridge soldering irons
- IntelliHeat stations: ST 30, ST 50, ST 70, ST 100, WJS 100, MBT 301/350
Technical data
| Manufacturer part number | 1126-0602 |
|---|---|
| Type / shape | Conical |
| Width / diameter | 0.99 mm (0.039 in) |
| Tip series | Long-Life Diamond (1126) |
| Compatible handpiece | TD-100, TD-100A (IntelliHeat) |
| Sales unit | 1 piece |
| Weight | 0.01 kg |
| Manufacturer | PACE |
| Manufacturer Nr. | 1126-0602 |
| HS-Code | 85159080 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | United States |
| Tip diameter/width [mm] | 0.99 |
| Soldering tip shape | konisch |
| Series | TD-100 |
Downloads
Catalogue
Accessories
PACE
Instant SetBack Tool Stand for TD-200, TD-100A and TD-100 - PACE 6019-0089
Item PC-6019-0089
€136.43
PACE
Tip Tool for TD-100A, TD-200, PS-90 and SX Handpieces - PACE 1100-0206
Item PC-1100-0206
€19.70
PACE
Conical Tapered Soldering Tip 0.99 mm, Long-Life Diamond, for TD-100 - PACE 1126-0609
Item PC-1126-0609
€24.70
PACE
Conical Sharp Extended Soldering Tip 0.8 mm for TD-100 - PACE 1128-0001
Item PC-1128-0001
€20.03
PACE
Soldering Tip Conical Sharp 0.8 mm, Extended, for TD-100 - PACE 1124-0001
Item PC-1124-0001
€18.84
PACE
Soldering Tip Conical Sharp 0.8 mm, Short 4.7 mm, for TD-100 - PACE 1124-0005
Item PC-1124-0005
€22.35
Show 2 more items
PACE
Soldering Tip Conical Sharp Extended 0.8 mm for TD-100 - PACE 1124-0018
Item PC-1124-0018
€22.35
Questions about this item
Any other question?
Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
Customers Who Bought This Item Also Bought
PACE
Soldering Tip Conical Sharp 0.4 mm, Extended, for TD-100 - PACE 1124-0004
Item PC-1124-0004
€18.84
PACE
Bevel Soldering Tip 60°, 1.78 mm, Long-Life Diamond, for TD-100 - PACE 1126-0626
Item PC-1126-0626
€24.70
PACE

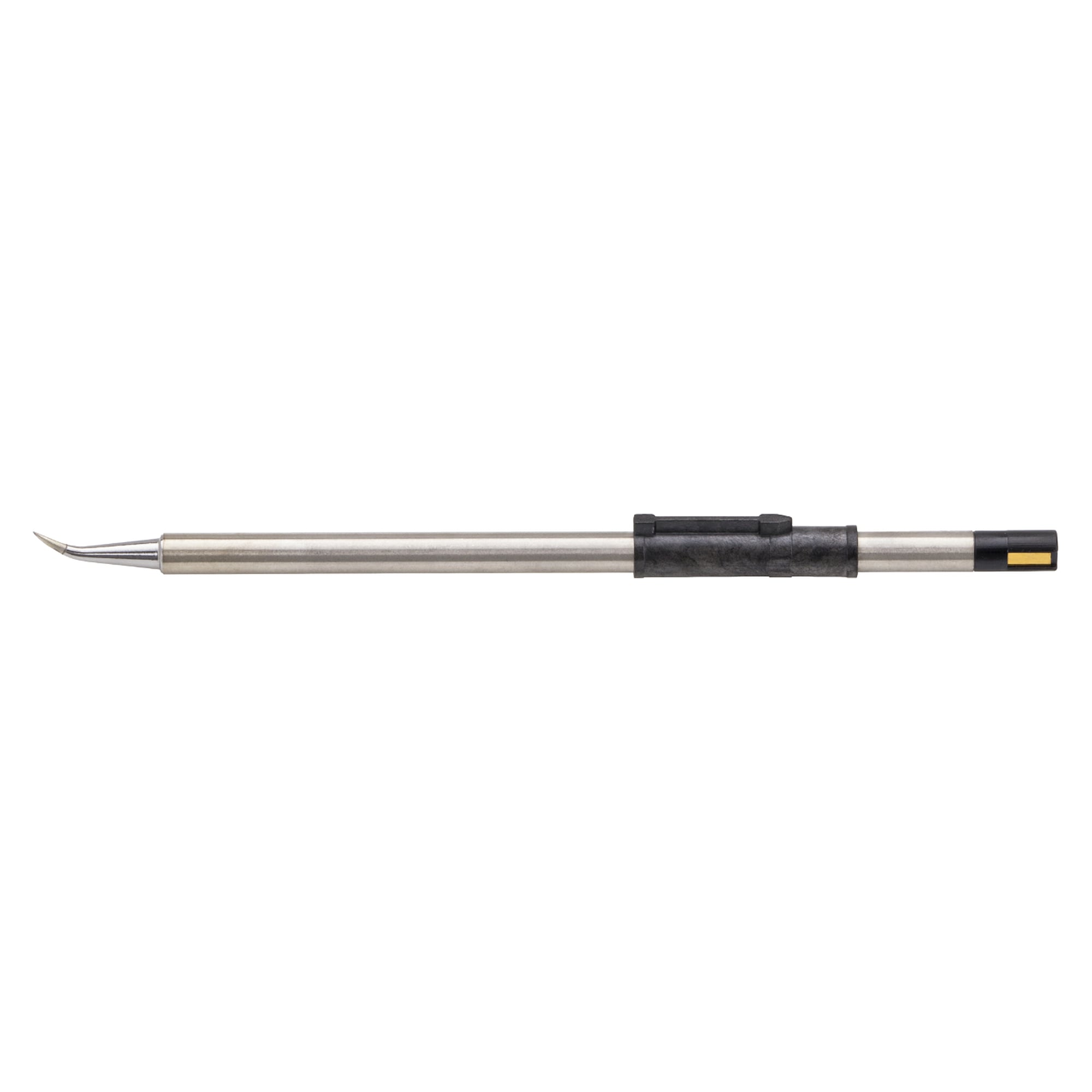

Soldering Tip Conical Sharp 0.58 mm, 30° Bent, for TD-100 - PACE 1124-0021
Item PC-1124-0021
€22.35
PACE
Soldering Tip Conical Sharp 0.58 mm, Long, for TD-100 - PACE 1124-0027
Item PC-1124-0027
€18.84
PACE

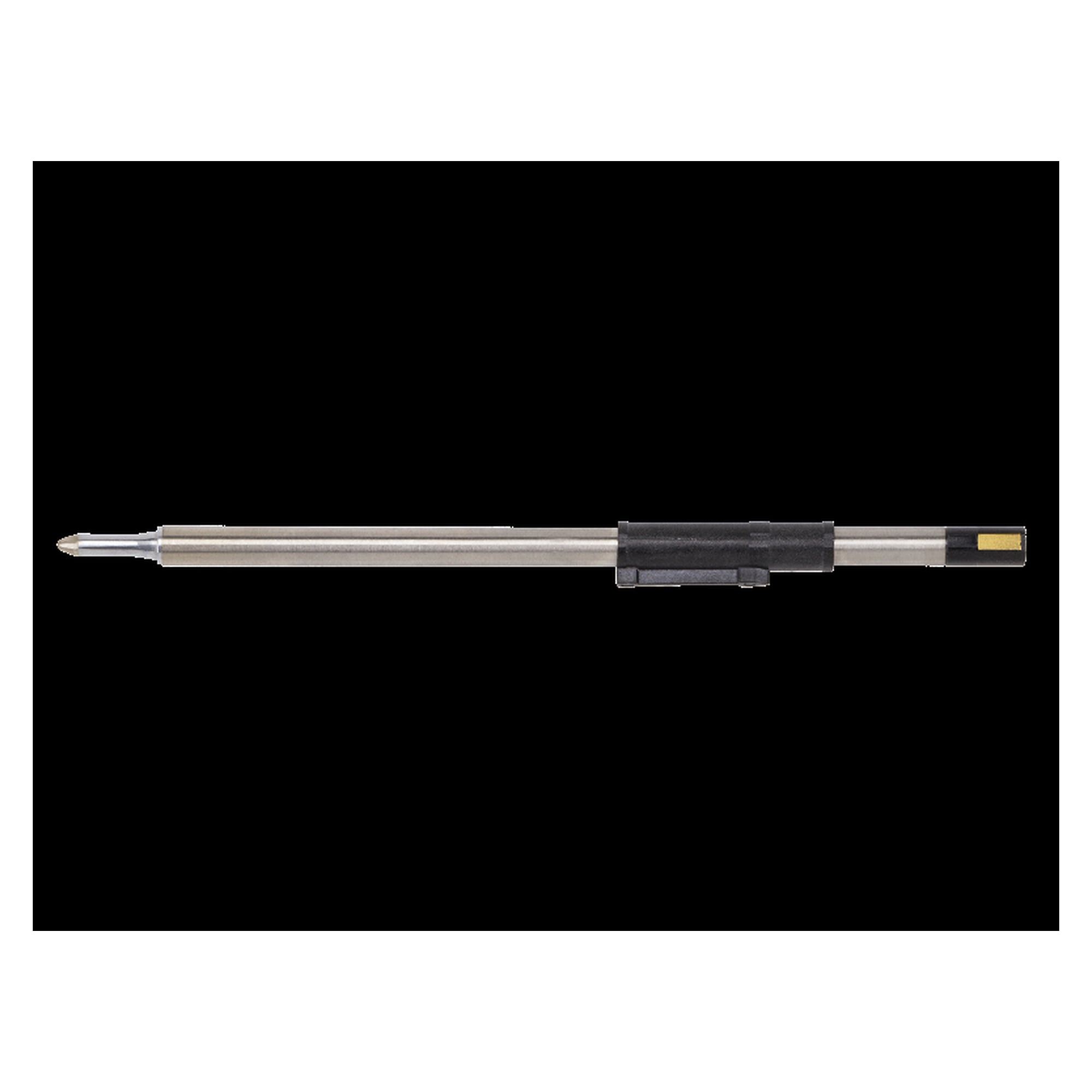

Soldering Tip Conical Sharp Extended 1.6 mm for TD-100 - PACE 1124-0025
