Pressure regulator valve batteries LRB-K
Classic

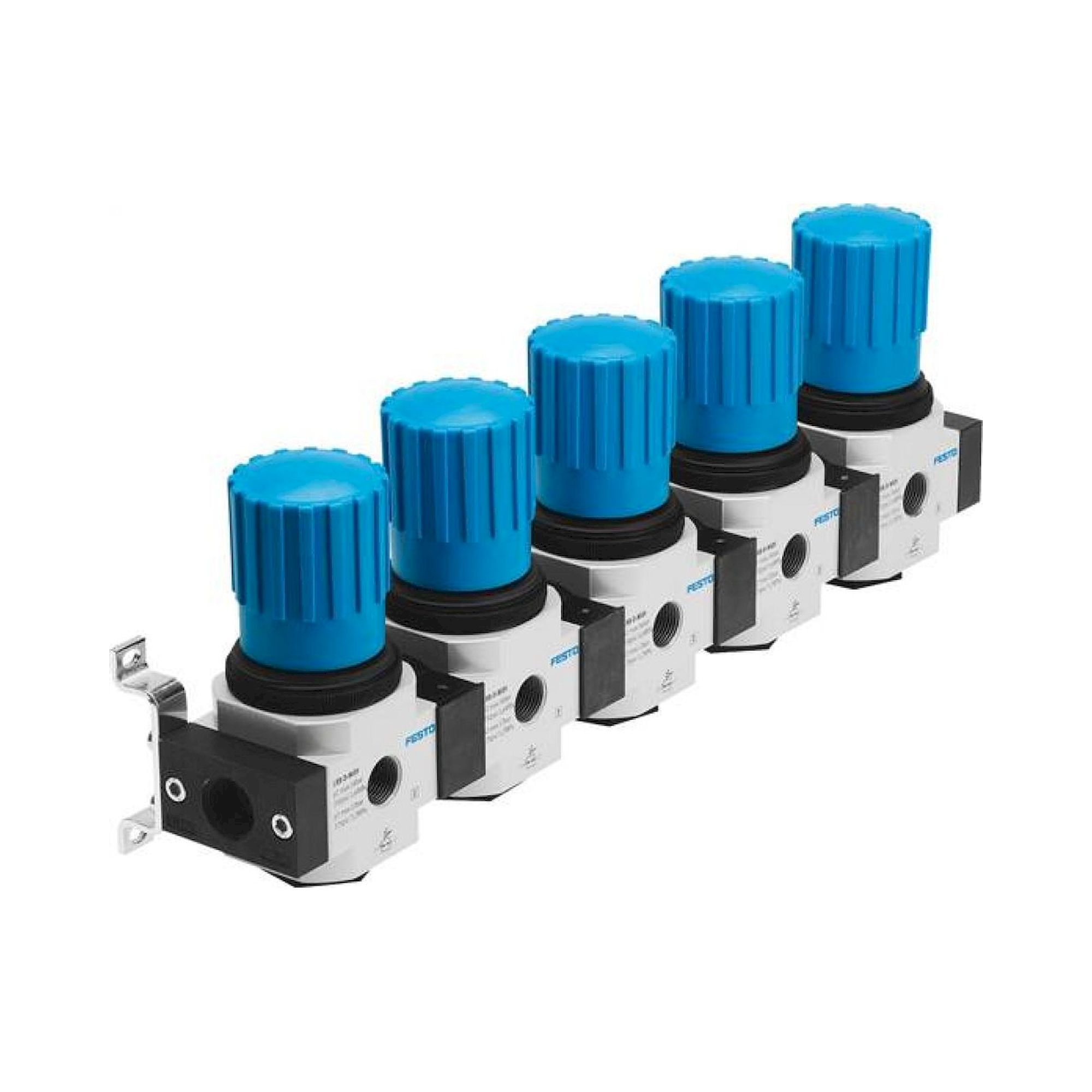

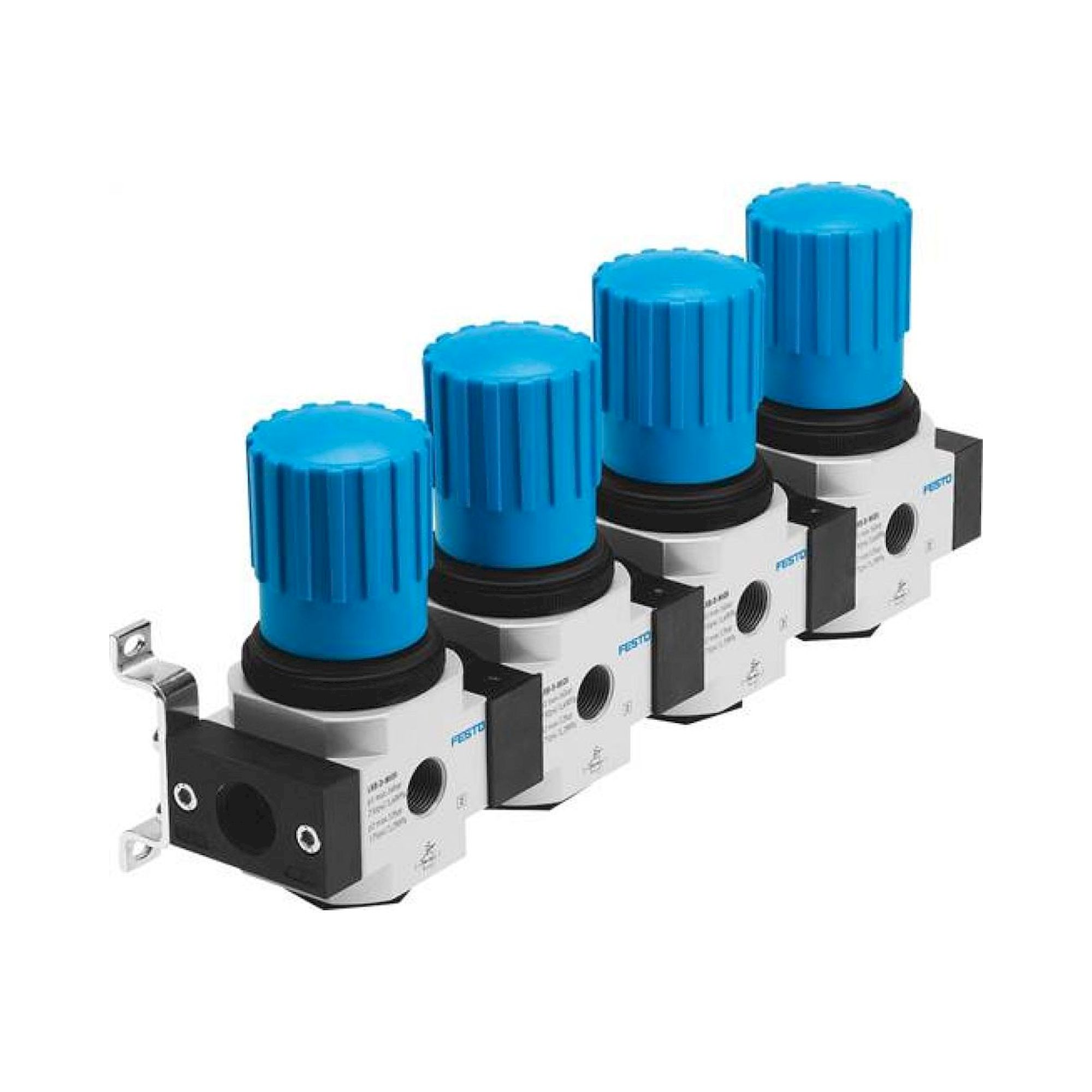

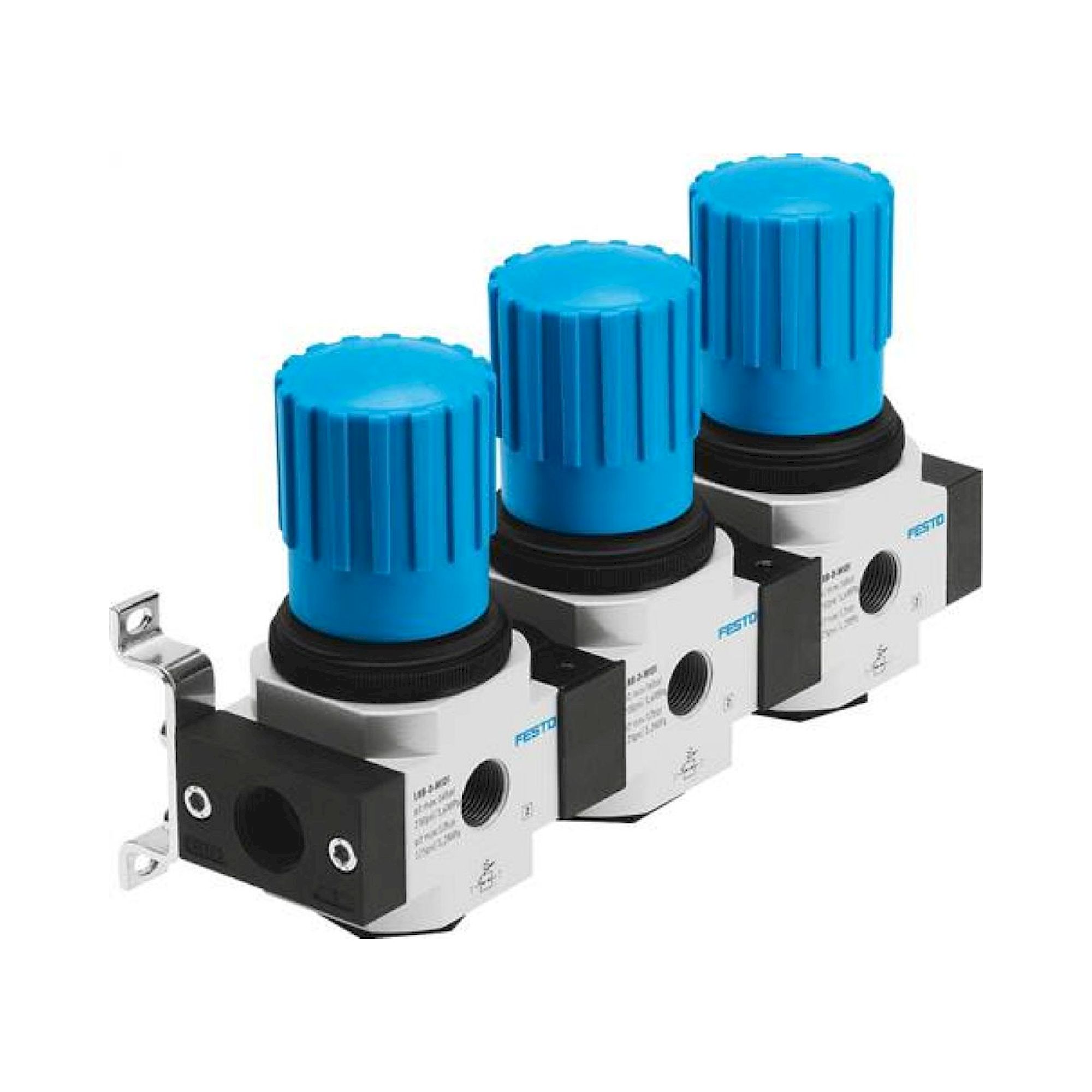

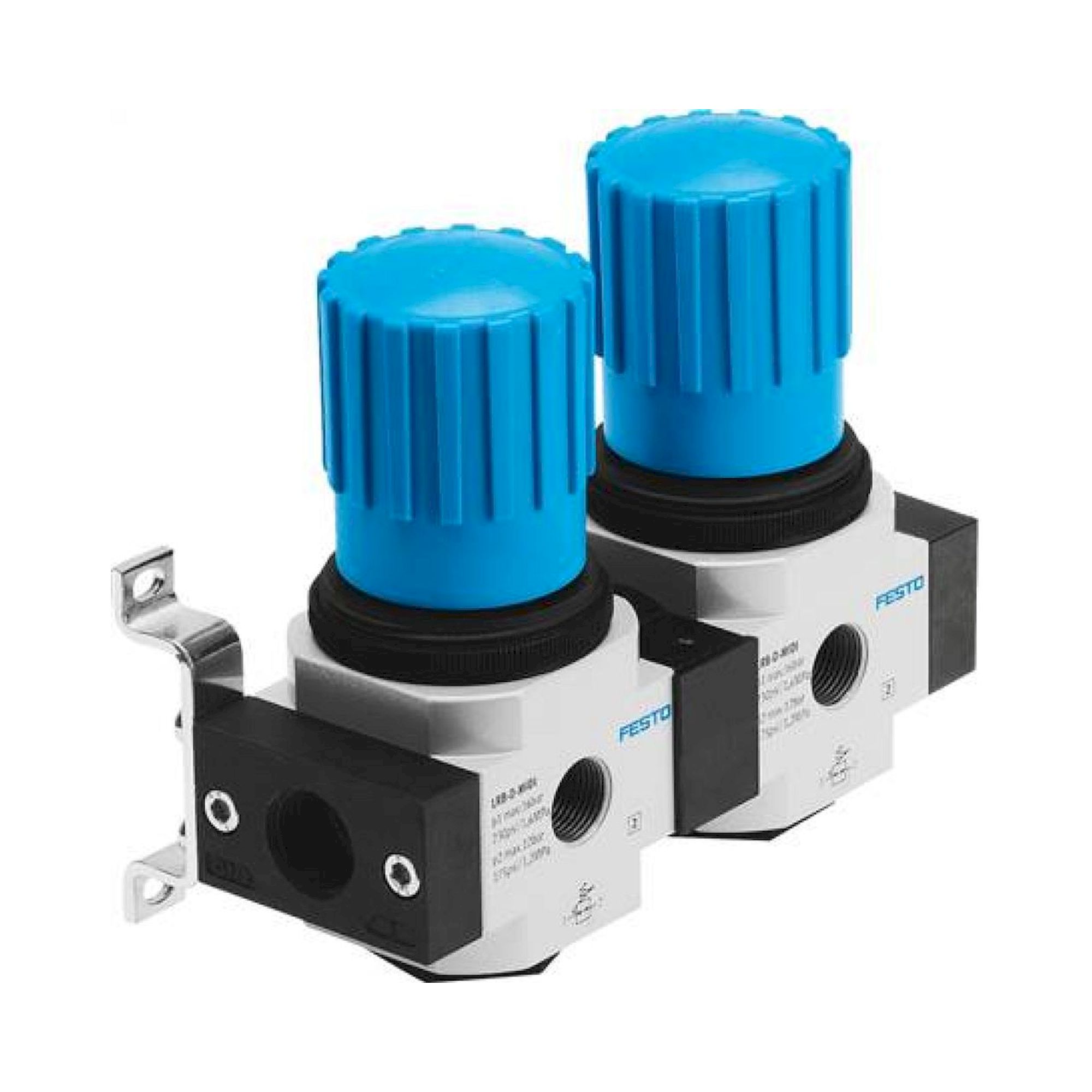

The Festo LRB-K pressure regulator valve batteries are pre-configured multiple pressure regulators with 2 to 5 outlets (K2 to K5) in a common housing. Each outlet can be independently set to a different operating pressure, making this assembly suited to machines that require several different pressure levels. The range comprises 31 versions in port sizes G 1/4 to G 1/2 (MINI, MIDI).
| K suffix | Outlets | Frame size | Type (example) |
|---|---|---|---|
| -K2 | 2 | MINI/MIDI | LRB-1/4-D-7-O-K2-MINI (528952) |
| -K3 | 3 | MINI/MIDI | LRB-1/4-D-7-O-K3-MINI (528968) |
| -K4 | 4 | MINI/MIDI | LRB-1/4-D-7-O-K4-MINI (528984) |
| -K5 | 5 | MINI/MIDI | LRB-1/4-D-7-O-K5-MINI (529000) |
Typical applications: Machines with multiple machining axes requiring different operating pressures, handling systems with grippers and clamping units at different pressure levels, assembly automats with metering and clamping stages at varying pressures, and compressed air distribution centres in special-purpose machines where space for individual regulators is lacking.
