Turn-on valves HE
Classic
The Festo HE series turn-on valves switch the compressed air supply to a system safely and without pressure surges. The range covers 13 variants in port sizes G 1/8 to G 1 (MINI, MIDI, MAXI) and allows manual activation without delay while throttling pressure build-up. This prevents uncontrolled pressure peaks when pneumatic systems start up.
Port sizes G 1/8 to G 1 - MINI (1/8, 1/4, 3/8), MIDI (3/8, 1/2, 3/4), MAXI (3/4, 1, 1/2)
Throttled pressure build-up - protects downstream consumers from pressure peaks on switch-on
Manual handwheel - simple actuation without auxiliary energy, D variant available without cable connection
Classic compatibility - direct mounting to LF filters and LR regulators from the Classic range
| Type | Port size | Frame size |
|---|---|---|
| HE-1/8-D-MINI (162806) | G 1/8 | MINI |
| HE-1/4-D-MINI (162807) | G 1/4 | MINI |

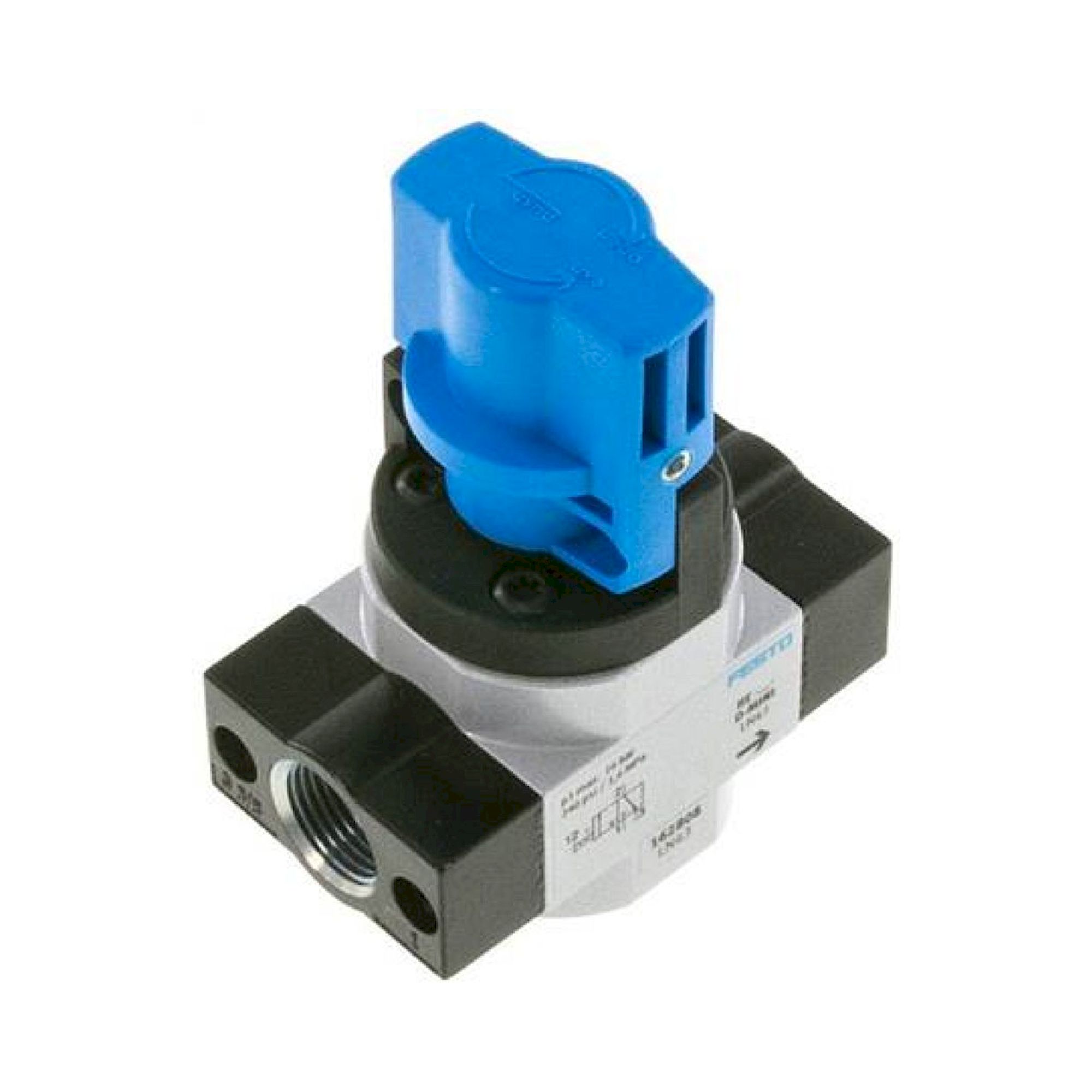

| HE-3/8-D-MINI (162808) | G 3/8 | MINI |
| HE-3/8-D-MIDI (162809) | G 3/8 | MIDI |
| HE-1/2-D-MIDI (162810) | G 1/2 | MIDI |
| HE-3/4-D-MIDI (162811) | G 3/4 | MIDI |

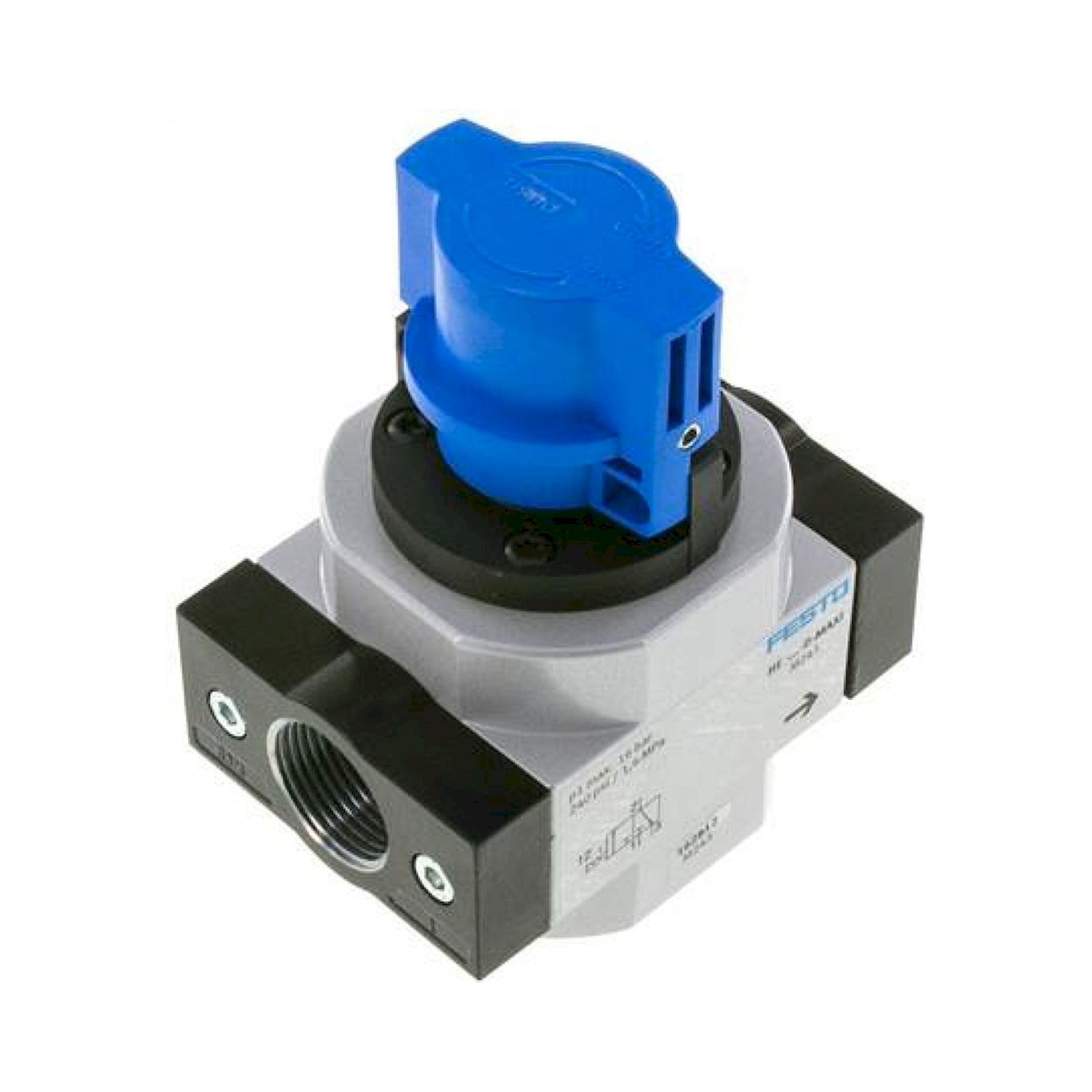

| HE-3/4-D-MAXI (162812) | G 3/4 | MAXI |
| HE-1-D-MAXI (162813) | G 1 | MAXI |
| HE-1/2-D-MAXI (186514) | G 1/2 | MAXI |
Typical applications: Safe activation of compressed air distribution in production plants, protection of cylinders and valve terminals on system start-up, use as main shut-off in modular maintenance units, and as safety shut-off following emergency stops in mechanical engineering applications.
