Pressure regulating valves for battery mounting LRB, LRBS
Classic
The Festo LRB and LRBS pressure regulating valves for battery mounting are individual regulators without their own port connections, assembled into individually configured pressure regulator batteries via junction plates. With just 8 versions in MIDI and MAXI frame sizes, LRB (standard) and LRBS (with blocking function) are intended for applications where a ready-made LRB-K battery does not fit and a custom configuration is required.
| Type | Frame size | 7-bar | Blocking function |
|---|---|---|---|
| LRB-D-O-MINI (197535) | MINI | No | No |
| LRB-D-7-O-MINI (197534) | MINI | Yes | No |
| LRB-D-O-MIDI (197539) | MIDI | No | No |

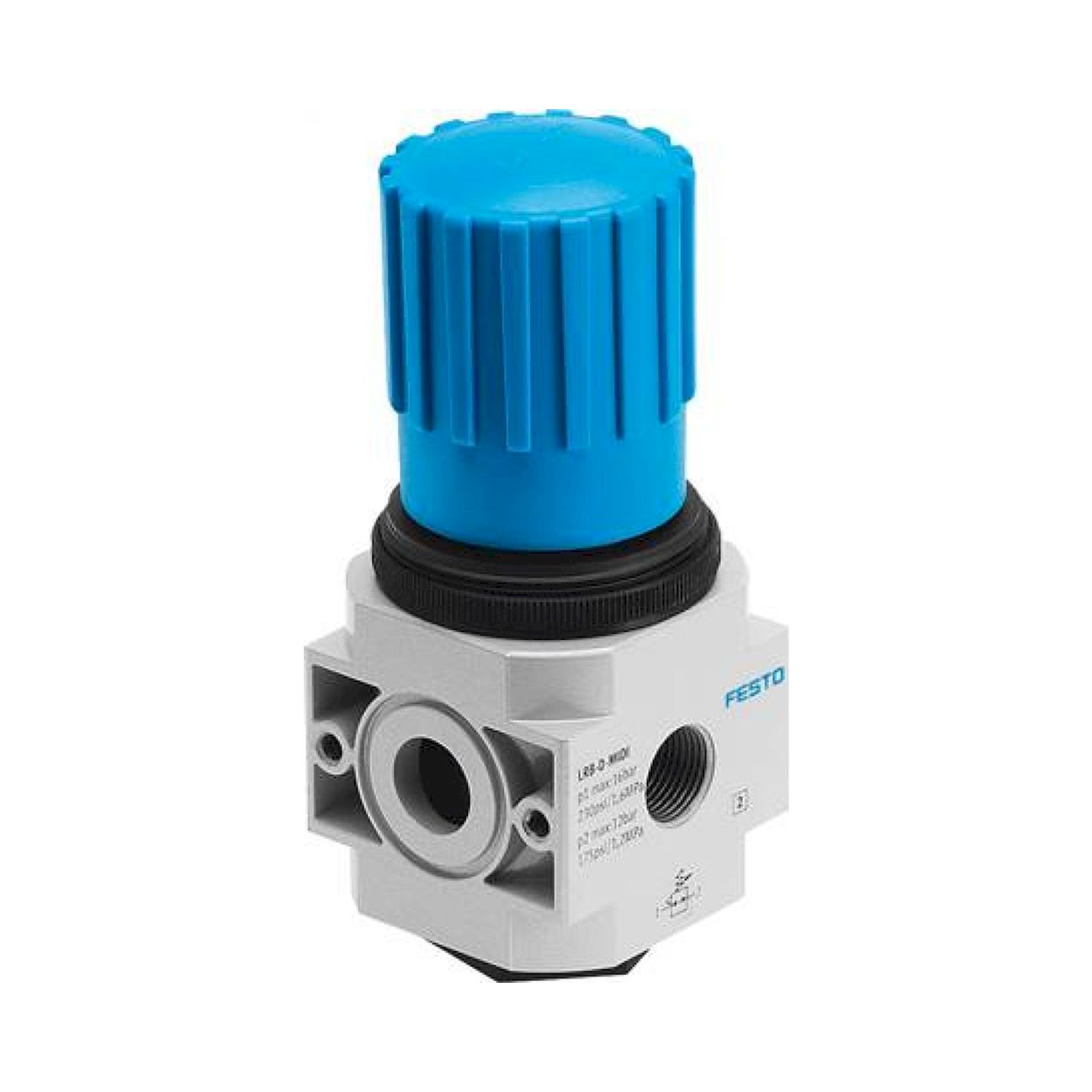

| LRB-D-7-O-MIDI (197538) | MIDI | Yes | No |
| LRBS-D-O-MINI (194682) | MINI | No | Yes |
| LRBS-D-7-O-MINI (194683) | MINI | Yes | Yes |
| LRBS-D-O-MIDI (194686) | MIDI | No | Yes |

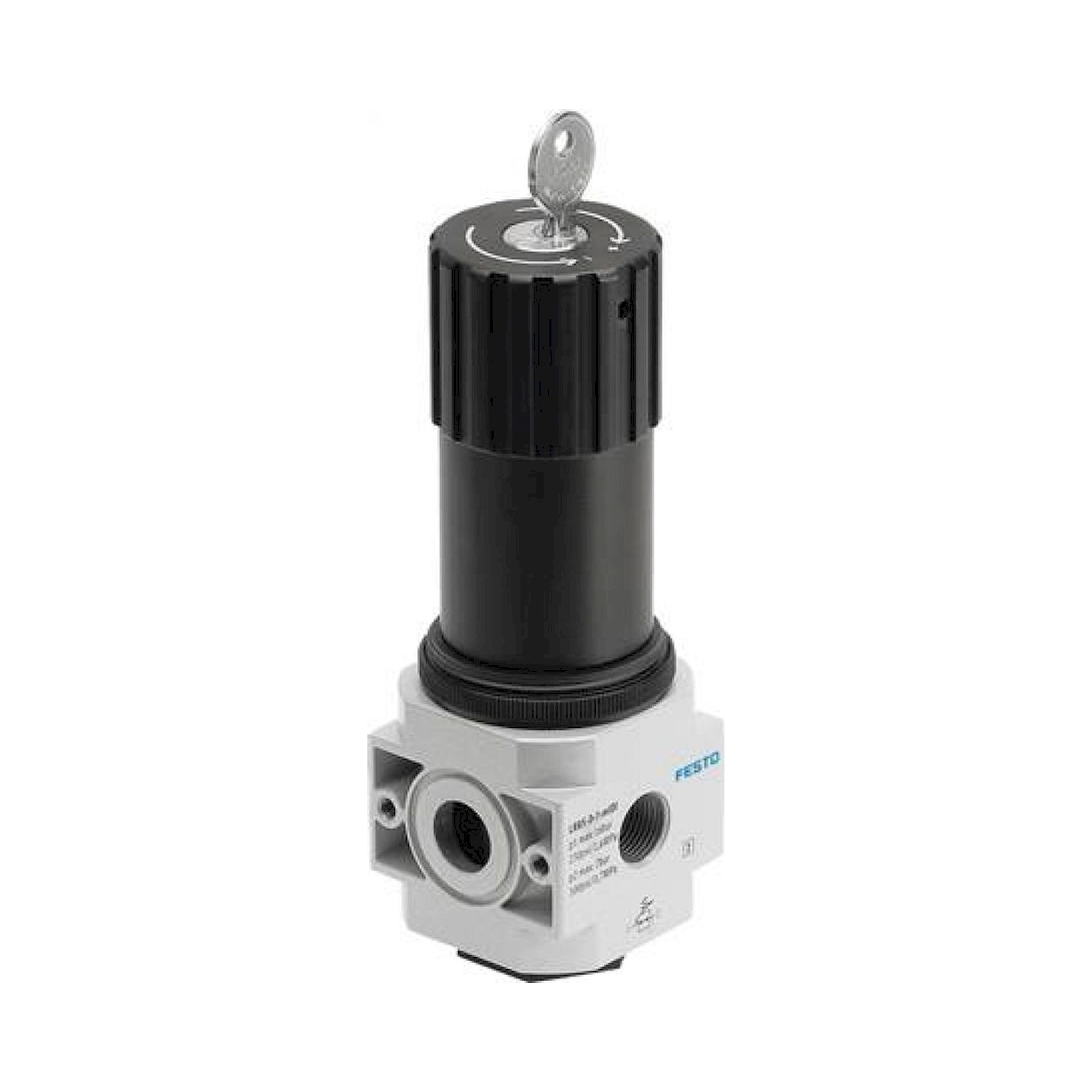

| LRBS-D-7-O-MIDI (194687) | MIDI | Yes | Yes |
Typical applications: Custom pressure regulator batteries with a non-standard number of channels (more than 5), special-purpose machine construction with individually assembled multiple-pressure supplies, applications with mixed LRB and LRBS channels for circuits with and without blocking function, and extension of existing LRB-K batteries by adding individual regulators.
