Filter combinations LFMBA
Classic

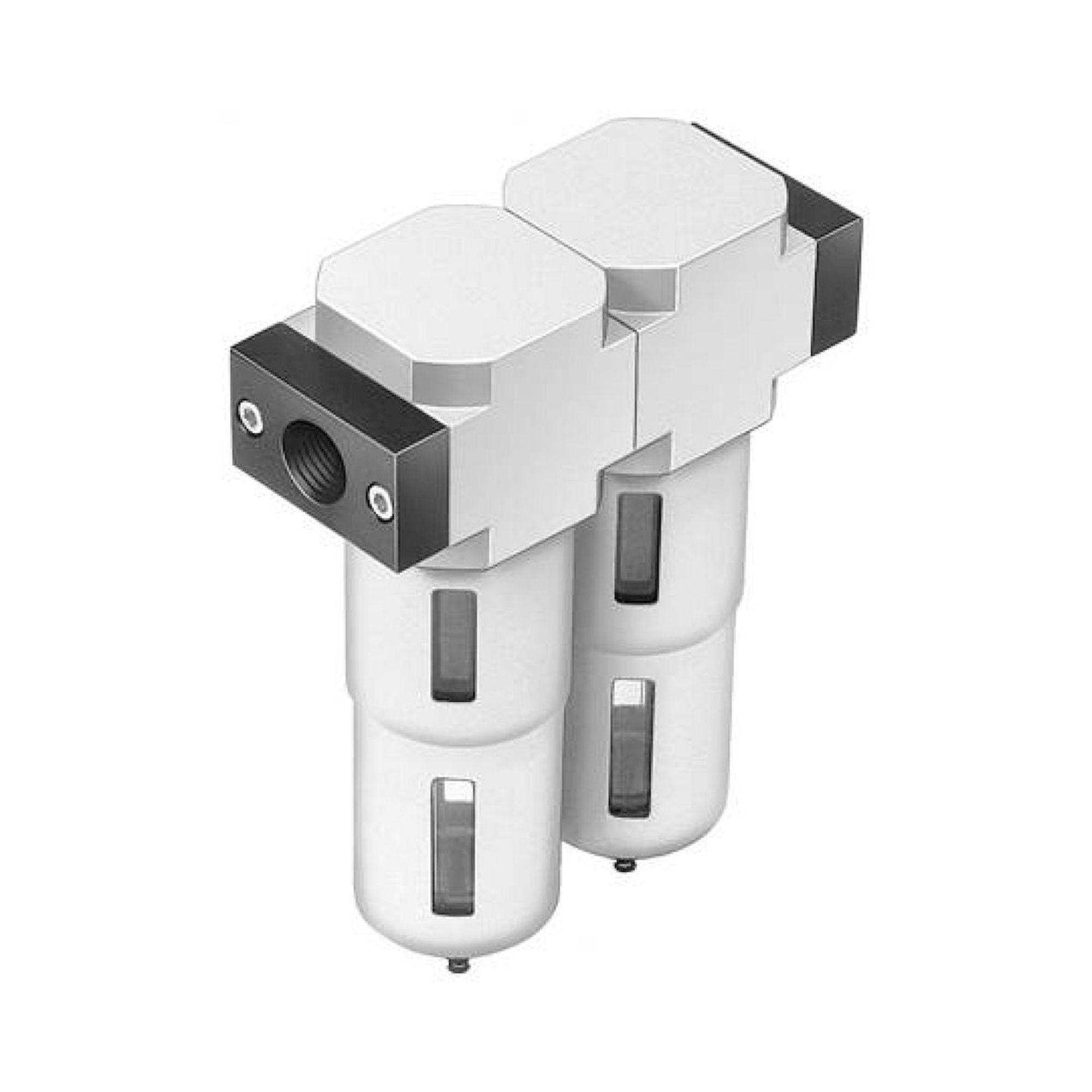

The Festo LFMBA filter combinations unite fine and ultra-fine filtration in a single component. The LFMBA combines the filter performance of the LFMB fine filter with the ultra-fine filtration stage of the LFMA, saving installation space and effort compared to two separate filters. With 39 versions in port sizes G 1/8 to G 1, the range suits all standard Classic compressed air preparation groups.
| Suffix | Condensate drain | Diff. pressure indicator | Use |
|---|---|---|---|
| (none) | Manual | No | Basic version, occasional maintenance |
| -A | Automatic | No | Continuous operation |

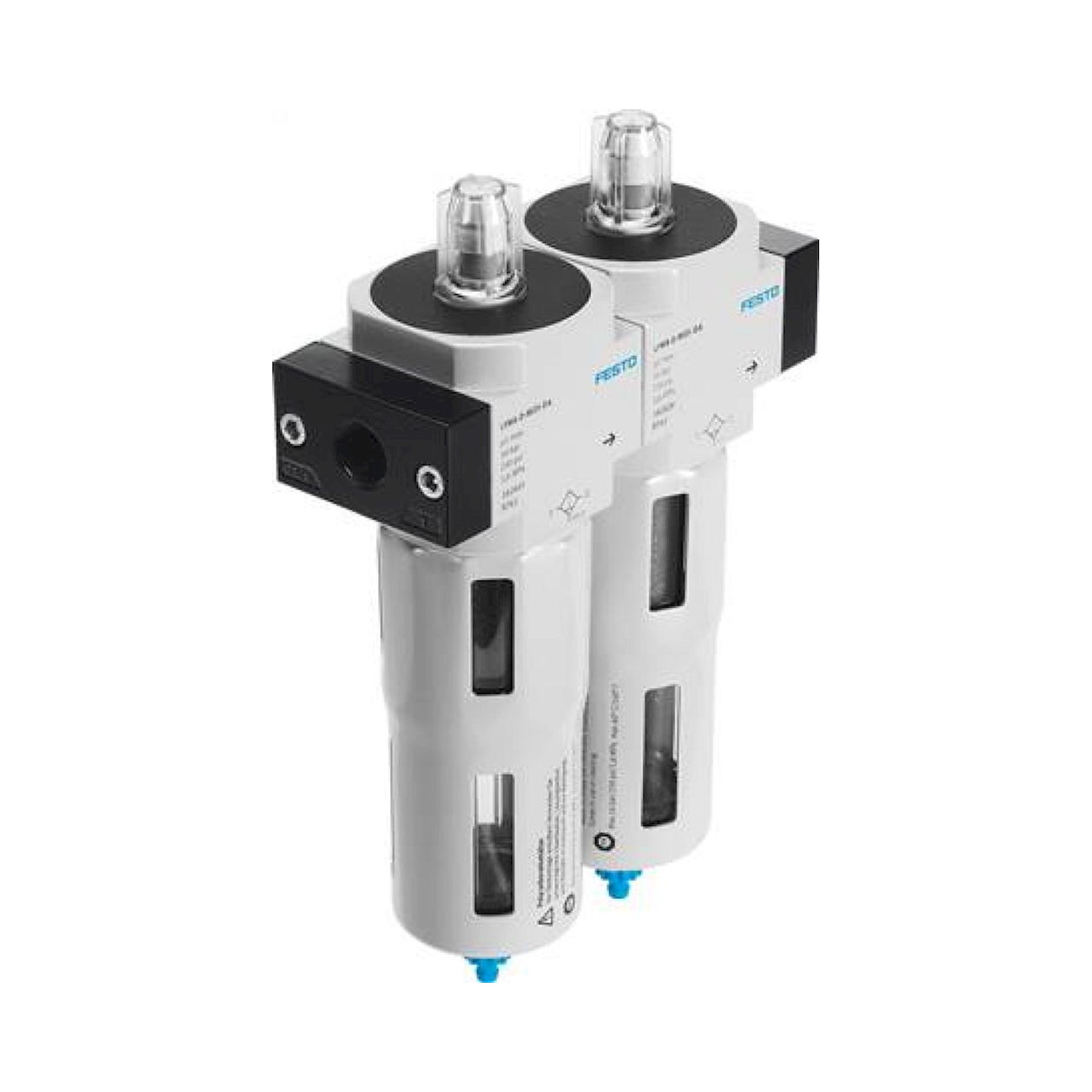

| -DA | Automatic | Yes | Maintenance diagnostics, high process requirements |
| -DA-A | Automatic | Yes | Maximum specification, food/pharma |
Typical applications: Space-saving compressed air preparation in confined installations, two-stage fine filtration for painting, pharmaceutical and food applications, replacement of separate LFMB and LFMA units in existing systems during overhaul projects, and clean air supply for pneumatic measuring instruments and analysers in laboratory and process engineering.
