Interchangeable optical side-view probe (standard size) for the Inspectis BGA inspection systems. The 90-degree prism probe works like an inverted periscope and images solder joints hidden under BGA, CSP and QFN packages. Spare part for tool-free replacement. Standard probe for general-purpose BGA use.

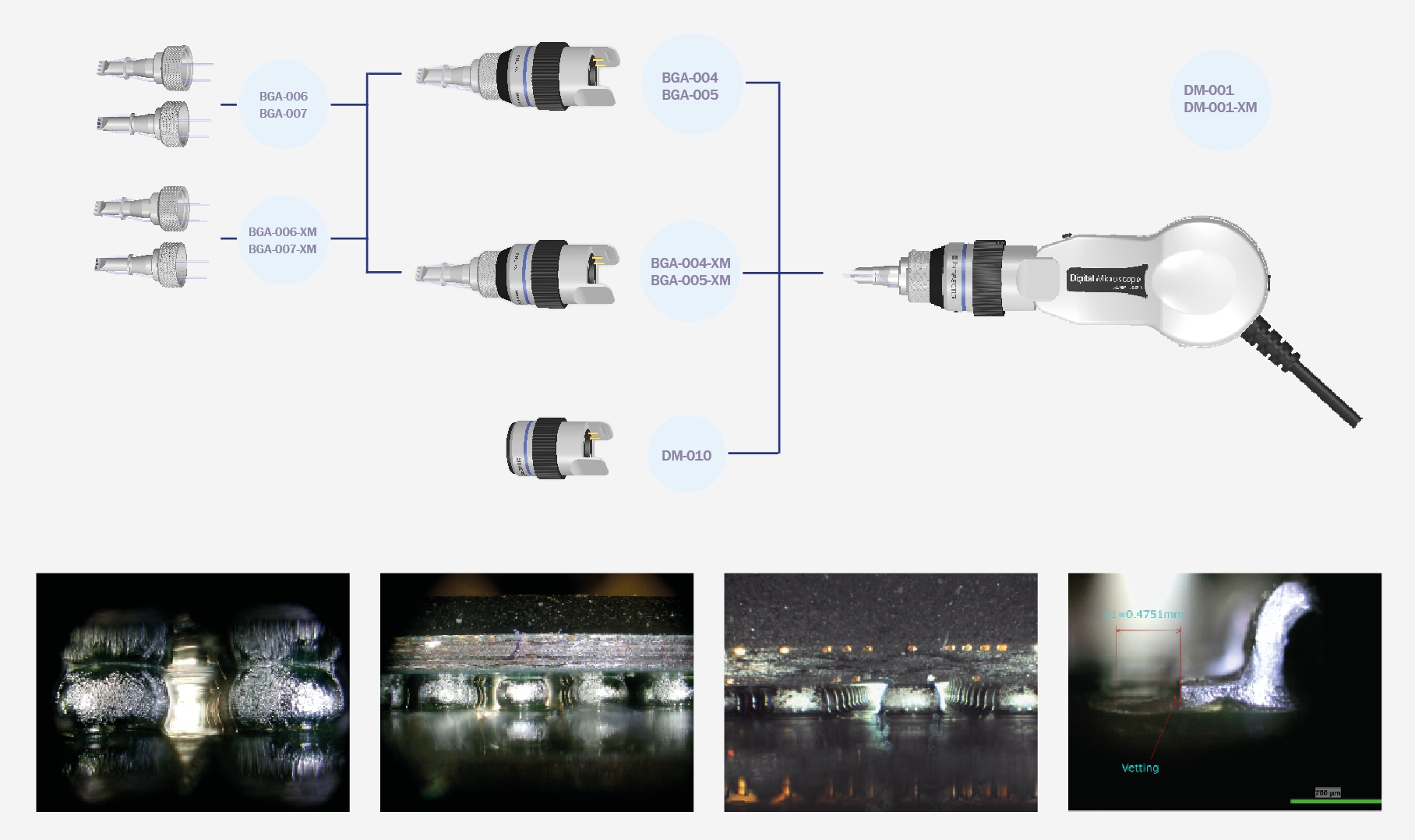

Interchangeable 90-degree side-view probe standard size (spare part) - Inspectis BGA-006
INSPECTIS
Original product
Net price (excl. VAT)
€1,713.80
Item
BGA-006
Manufacturer no.
BGA-006
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.BGA-006
Country of originSweden
Customs tariff number90021900
ConditionNew
Article
BGA-006
Frequently Bought Together
-
This Item:
€1,713.80
-
XY-Tilt Module and Rack-and-Pinion Spigot for Heavy-Duty Double-Arm Boom Stand - Inspectis HD-061-DA
€151.53
-
XY-Travel Stand, In-Line, X 100-750mm, Y 100-550mm - Inspectis HD-170
€2,084.78
Total price
The 90-degree side-view prism probe is the optical core of Inspectis BGA inspection: like an inverted periscope it looks laterally in under the component and reveals solder balls that are concealed from above. This interchangeable probe (standard size) serves as a spare part or to match the component size.
Key benefits
- 90-degree side-view on the periscope principle onto hidden solder joints.
- Suitable for BGA, uBGA, FlipChip, CSP, CGA and SMD.
- Standard probe for general-purpose BGA use.
- Interchangeable as a spare or complementary part of the BGA system.
Technical specifications
| Type | 90-degree side-view prism probe, standard size |
| Principle | Inverted periscope, 90-degree viewing angle |
| Applicable to | BGA, uBGA, FlipChip, CSP, CGA, SMD |
| Weight | 0.05 kg |
| Dimensions | 3.5 x 3.5 x 7.5 cm |
| Country of origin | Sweden |
| HS code | 90021900 |
Typical applications
Replacement of a worn probe or conversion of the BGA system to a different component and clearance size.
Made in Sweden by Inspectis.
| Manufacturer Nr. | BGA-006 |
|---|---|
| Manufacturer | Inspectis |
| Country of Manufacture | Sweden |
| Weight | 0.050000 |
| HS-Code | 90021900 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
