1/4" Deep Socket 5 mm 50 mm long - Proxxon 23768
Deep socket with 5 mm width across flats and 1/4" female square drive. At 50 mm long it reaches nuts on long protruding threaded bolts. Made from tough chrome-vanadium steel.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Deep socket with 5 mm width across flats. The 50 mm total length lets it fit over nuts on long protruding threaded bolts, such as stud bolts.
- Deep design (50 mm) for long protruding threaded bolts
- Six-point profile for a secure fit on bolts and nuts
- CrV steel for high load capacity and long service life
Technical data
| Drive | 1/4" (6.3 mm) female square |
|---|---|
| Width across flats | 5 mm |
| Profile | six-point |
| Material | chrome-vanadium steel (CrV) |
| Total length | 50 mm |
| Weight | 0.025 kg |
| Manufacturer | Proxxon |
| Manufacturer Nr. | 23768 |
| EAN | 4006274237681 |
| HS-Code | 82042000 |
| GPSR manufacturer information | PROXXON S.A. Härebierg 6-10, LU-6868 Wecker, www.proxxon.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Taiwan |
| ESD version | TEC |

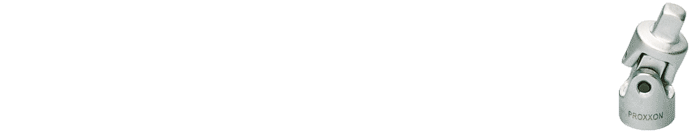

Part of the complete Proxxon 1/4" socket system and combines with extensions, a universal joint or a T-bar.
