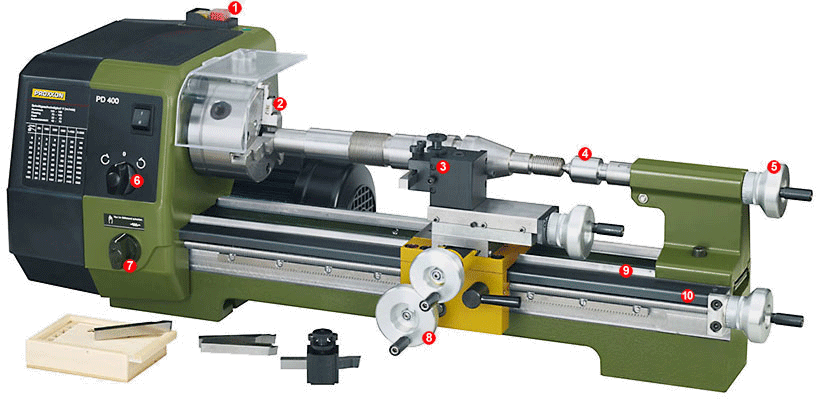

Präzisions-Drehmaschine PD 400 Spitzenweite 400 mm - Proxxon 24400
PD 400 precision lathe with 400 mm centre distance and 85 mm swing for machining steel, brass, aluminium and plastic. With main switch featuring auto-start protection and emergency off, 100 mm DIN 6386 chuck and thread cutting device.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The PD 400 precision lathe is built for machining steel, brass, aluminium and plastic. It performs face, straight and taper turning and thread cutting, and with the extensive system accessories you can also drill, mill and slot.
- Safety: main switch with auto-start protection and emergency off, chuck guard with safety shutdown.
- Stable bed: cross-braced cast iron bed with ground prism slides for vibration-free work.
- Precise chuck: 3-jaw chuck to DIN 6386 Class 1, concentricity tolerance 0.04 mm, capacity through reversing jaws 3 to 100 mm.
- Variable drive: capacitor motor for two speeds plus a three-stage belt drive, spindle speeds 80 to 2,800 rpm.
- Sensitive infeed: handwheels with zero-reset scale ring, cross slide 1 division = 0.025 mm.
- Automatic feed: optionally 0.07 or 0.14 mm per revolution.
Technical data
| Weight | 52.6 kg |
|---|---|
| Manufacturer | Proxxon |
| Manufacturer Nr. | 24400 |
| EAN | 4006274244009 |
| HS-Code | 84581900 |
| GPSR manufacturer information | PROXXON S.A. Härebierg 6-10, LU-6868 Wecker, www.proxxon.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| ESD version | TEC |
- Centre distance 400 mm
- Swing 85 mm
- Height over cross slide 58 mm
- Chuck Ø 100 mm to DIN 6386 Class 1, run-out 0.04 mm
- Capacity reversing jaws 3 to 100 mm
- Main spindle MK 3, spindle bore 20.5 mm, run-out 1/100 mm
- Tailstock sleeve Ø 24 mm, retractable 40 mm, MK 2
- Cross slide travel 85 mm, top slide 52 mm, swivels up to 45°
- Spindle speeds stage 1: 80 / 330 / 1,400 rpm, stage 2: 160 / 660 / 2,800 rpm
- Automatic feed 0.07 and 0.14 mm/rev
- Lead and feed spindle Acme thread 12 x 1.5 mm
Note: the PD 400 is also available as a CNC version (PD 400/CNC).
