Hot Air Rework Station digital 1000W, 230V, 60 L/min., +100 to +500°C with 4-piece accessory set - Quick QU861DWSET1
The Quick 861DW provides 1000 W and up to 60 L/min, with airflow adjustable in 1 L/min steps. That allows a high heat input on large packages and still fine dosing on light components. Supplied with a four-piece nozzle set including a 16 mm mesh nozzle.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Large packages need airflow, light components cannot take it. The Quick 861DW settles that conflict through its control: up to 60 L/min are available, set in 120 steps of 1 L/min each.
Features
- Airflow from 1 to 60 L/min in 1 L/min steps, so light parts stay manageable
- 1000 W of heating power with plus minus 2 °C stability between 100 and 500 °C
- Three working channels CH1 to CH3, each with its own temperature and airflow
- Standby via a magnetic switch in the holder, followed by cooling below 100 °C and airflow shutdown
- Standby time adjustable from 0 to 999 s
- Brushless motor, ESD protection, calibration with password protection
Applications
BGA and QFP rework, removal of large shielding cans and connectors, repair of mobile devices and power assemblies. For small parts on a cramped service table the 580 W station is the more economical answer.
Compatibility
Further nozzle sizes are available separately. Combined with an infrared preheater the bench gains bottom heat, which lowers thermal shock on multilayer boards.
Technical data
| Power | 1000 W |
|---|---|
| Supply | 230 V / 50 Hz |
| Temperature range | 100 to 500 °C |
| Temperature stability | plus minus 2 °C |
| Airflow | 1 to 60 L/min in 120 steps |
| Standby | 0 to 999 s, triggered by magnetic switch |
| Memory channels | 3 (CH1 to CH3) |

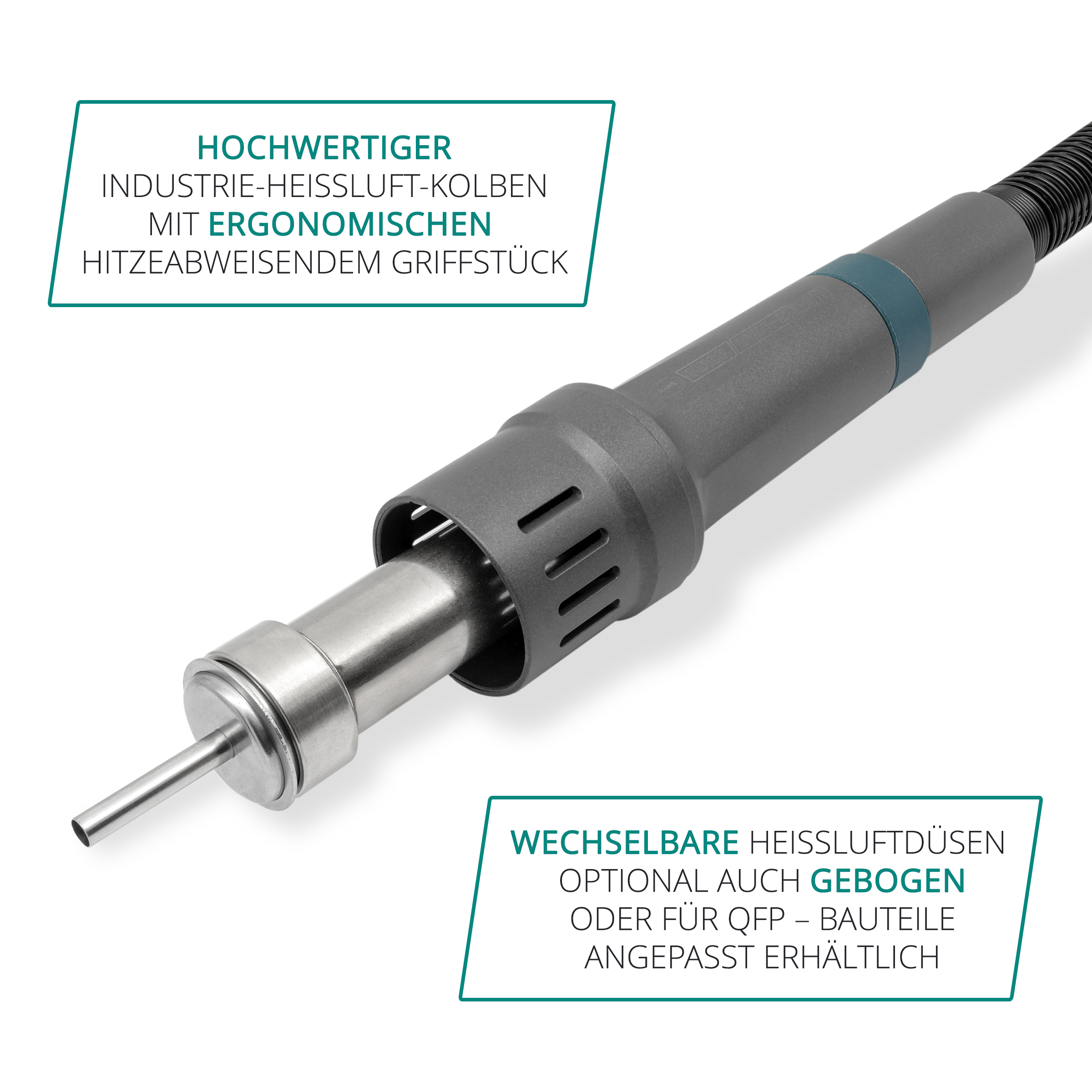

| Hot air pencil | ELK805A, 1000 W |
| Dimensions | 245 x 135 x 188 mm |
| Weight | 3.95 kg |
| Max ambient temperature | 40 °C |
| Manufacturer | Quick |
| Manufacturer Nr. | QU861DWSET1 |
| GPSR manufacturer information | Bräunlich GmbH Am Heideberg 26, DE 06886 Lutherstadt Wittenberg, www.braeunlich-gmbh.com |
| Condition of article | New |
| Article authenticity | Original product |
Scope of delivery

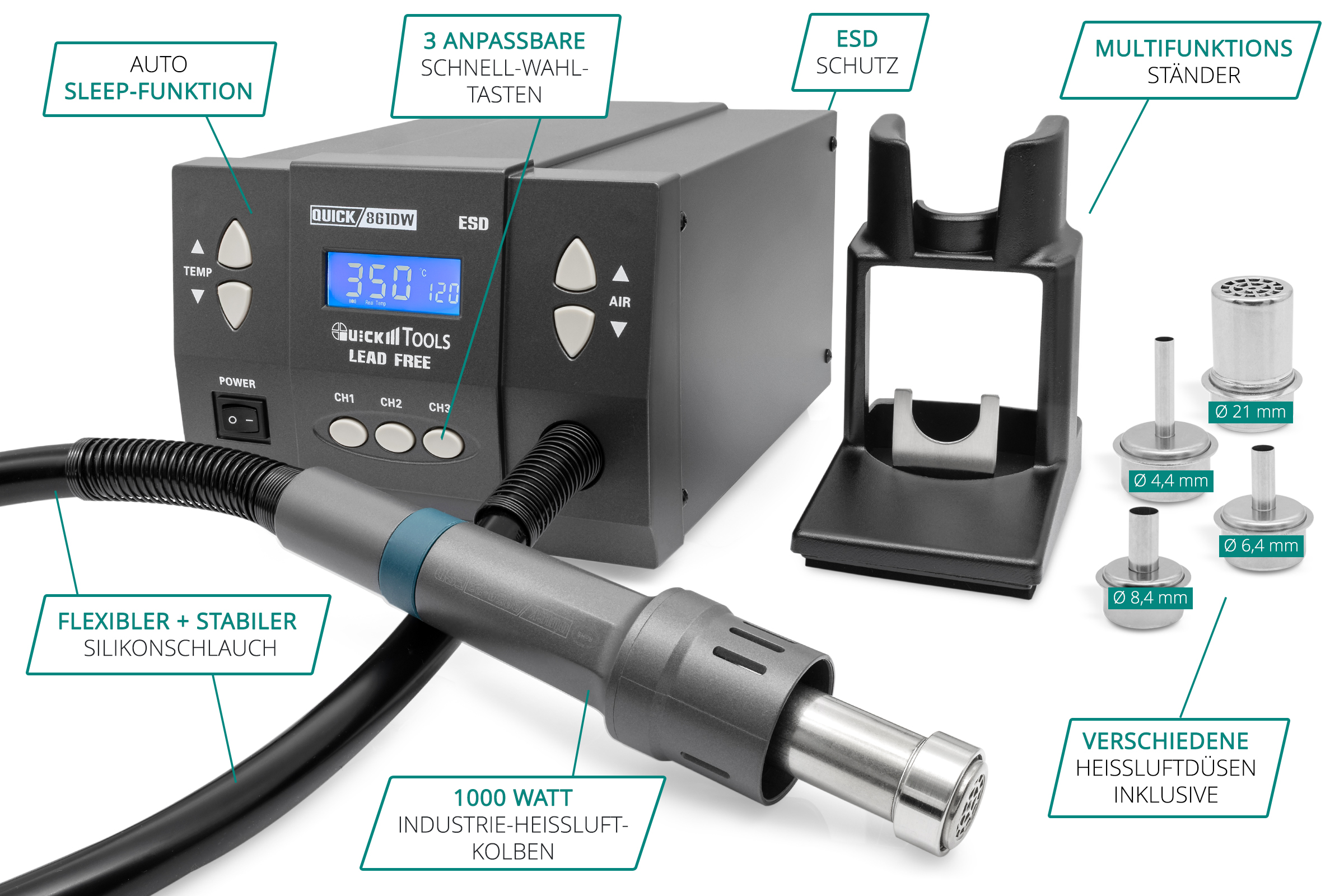

861DW station with ELK805A hot air pencil, holder, grounding cable and four nozzles: 4.4 mm, 6.4 mm, 8.4 mm and a 16 mm mesh nozzle.
