Hauptfilter 01-101 mit Aktivkohle für 6101A - Quick QUKFH01101

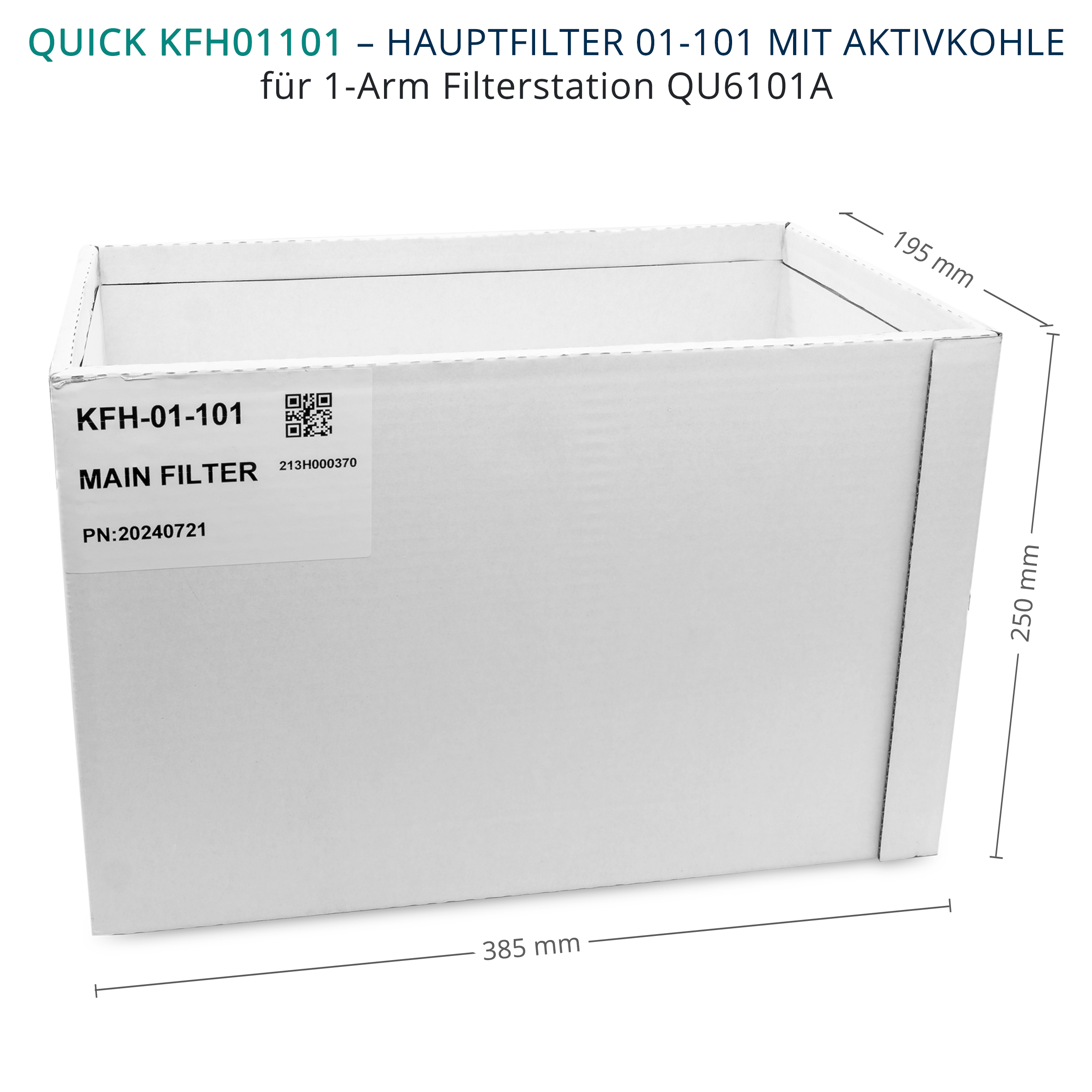

A saturated filter still pulls air but no longer holds anything back. The 01-101 main filter gives the single arm 6101A extraction unit a complete activated carbon stage again, 3.46 kg of filter mass in a block of 385 x 195 x 250 mm.

Features

• Activated carbon as the main stage, aimed at the gaseous and odour forming flux fraction of solder fume.
• Block size 385 mm wide, 195 mm deep and 250 mm high, made for the filter bay of the 6101A.
• 3.46 kg of filter mass, which is the measure of the available holding capacity.
• Genuine Quick part, so sealing faces and frame need no rework.
• Changing it is done at the unit without tools and without touching the extraction arm.

Technical data

Applications

Soldering benches with stationary extraction in production, repair and laboratory use. The change interval follows running hours, flux consumption and perceptible odour rather than the calendar alone.

Scope of delivery and compatibility

One 01-101 main filter with activated carbon. Foreseen for the Quick 6101A extraction station with one arm. Filters for the 6102 and 6211 ranges have other dimensions and do not fit.
