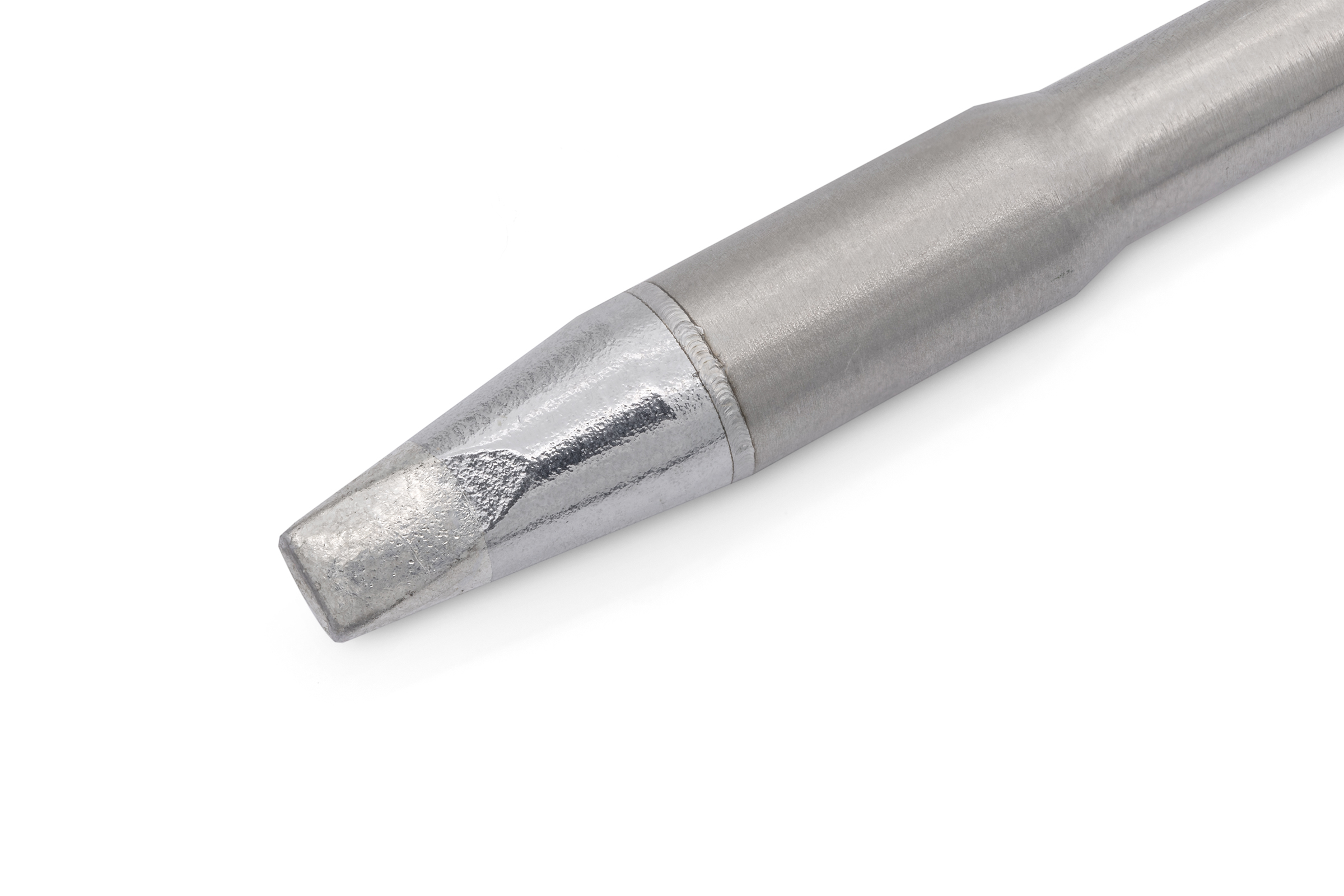

Kartuschenlötspitze für TS8, gerade, kurzer Kegel, meißelförmig stumpf 3,2 mm breit x 0,85 mm, 5 mm Lot-benetzt - Quick TSS08-3.2D

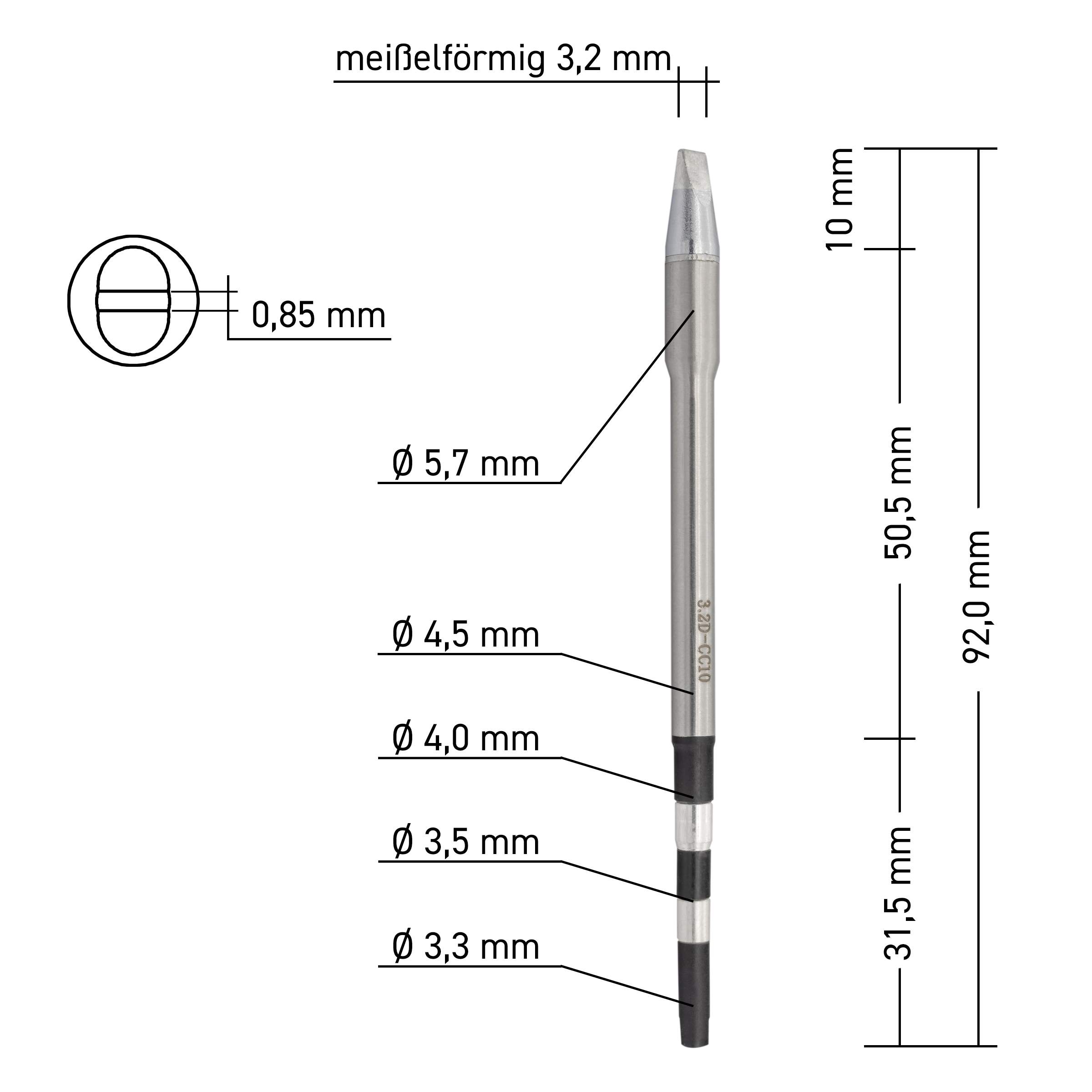

Anyone soldering mixed assemblies all day does not want to change tips for every component. The 3.2 mm chisel face of the TSS08-3.2D lies flat on pad and lead at the same time, while the 0.85 mm blade holds enough mass for joints that pull heat away quickly.

Operating benefits

• A 3.2 mm chisel width covers chip sizes up to 1206, package leads and small through-hole pads without changing geometry.
• Blade thickness of 0.85 mm provides thermal storage yet still enters crowded component fields.
• Short conical body behind the face keeps the path from heater to joint short.
• 5 mm pre-tinned from the factory, so the wetted zone reaches the joint even with the iron held at an angle.
• The thermocouple in the cartridge corrects as soon as the joint draws heat, which keeps dwell time down.
• Calibration chip in the tip, the station takes over the stored value on a change and displays a temperature you can rely on.

Technical data

Application, scope of delivery and compatibility

Meant as the standard geometry at a hand soldering bench in production, test and repair, from chip components through connectors to wire ends. Scope of delivery, one cartridge soldering tip. It fits the QUELKTSS80A handpiece of the Quick TS8 and TS8+ stations and interchanges with every shape of the TSS08R series, so the bench can be converted without a second iron.
