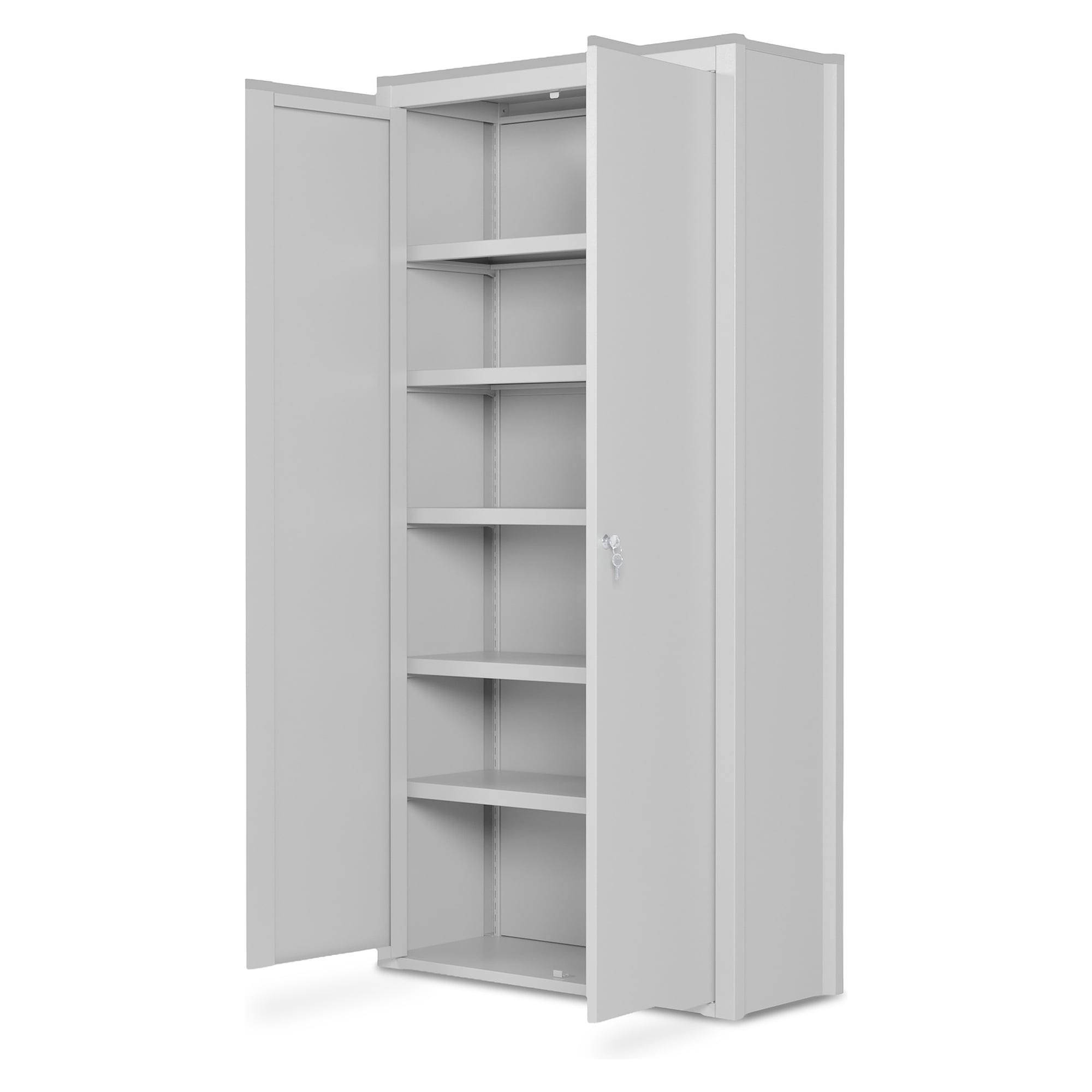

Modular ESD cabinet 1000 x 600 x 2000 mm with 5 shelves - Reeco RF-022-20001000600-5-9003_1

Components in electronics, aerospace and defence lose their value as soon as they sit uncontrolled on a shelf. This cabinet combines a dissipative paint finish with a lockable body and makes storage traceable.

The build is based on a perforated frame into which shelves hook at any height. Internal support rails keep the structure stiff under load. The hinged doors open 135 degrees and are secured with a two-point lock and cylinder. Conductive levelling feet compensate for up to 20 mm of floor unevenness.

Technical features

• Body in 1 mm steel sheet
• Total capacity 600 kg
• Shelf capacity 100 kg
• Hinged doors with a 135 degree opening angle

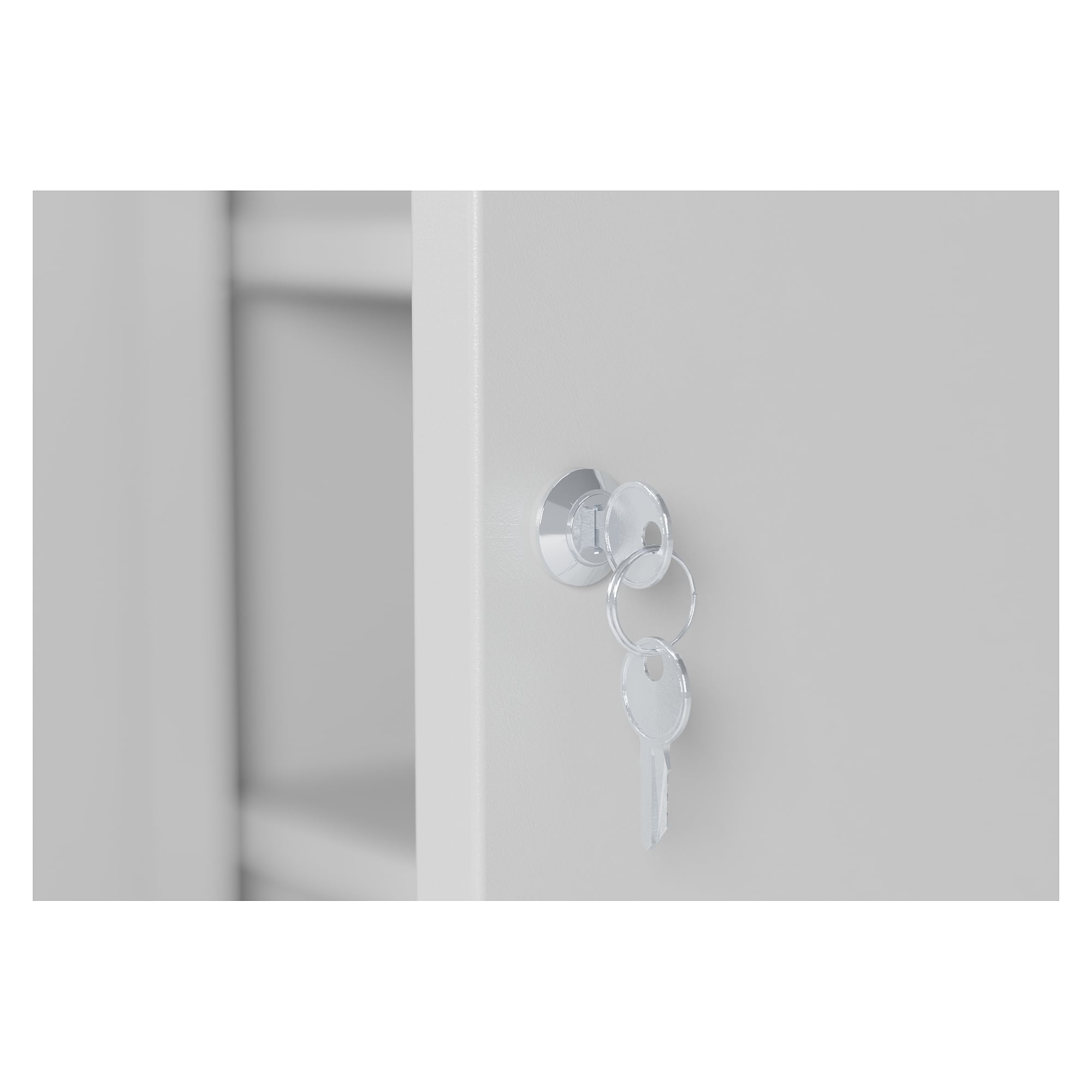

• Two-point lock with cylinder
• Levelling up to 20 mm via conductive feet
• Antistatic powder coating to PN-EN 61340-5-1

Extension

Perforated rear panel, drawers, container holders and suspension rails are available as accessories and can be added at any time.

Technical data
