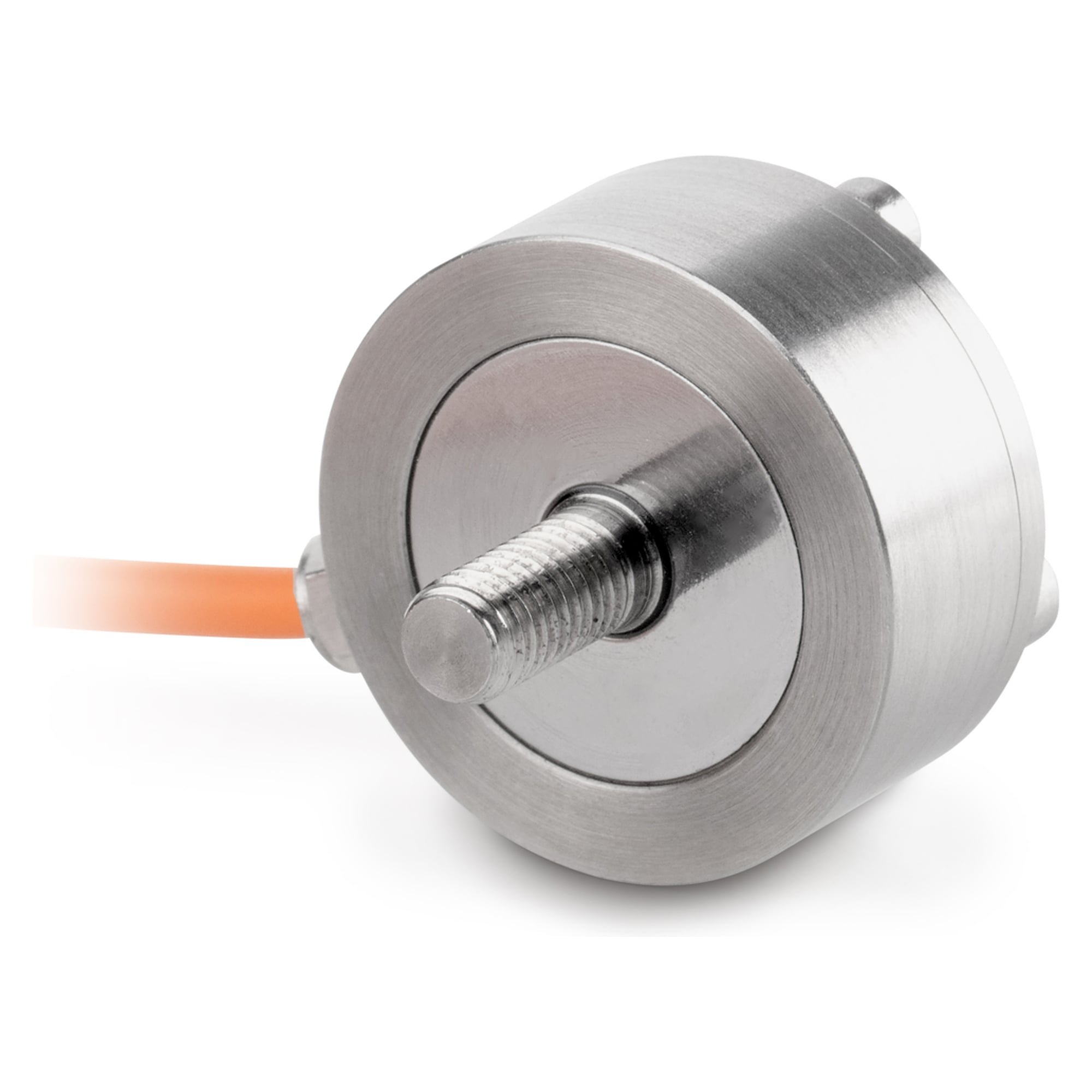

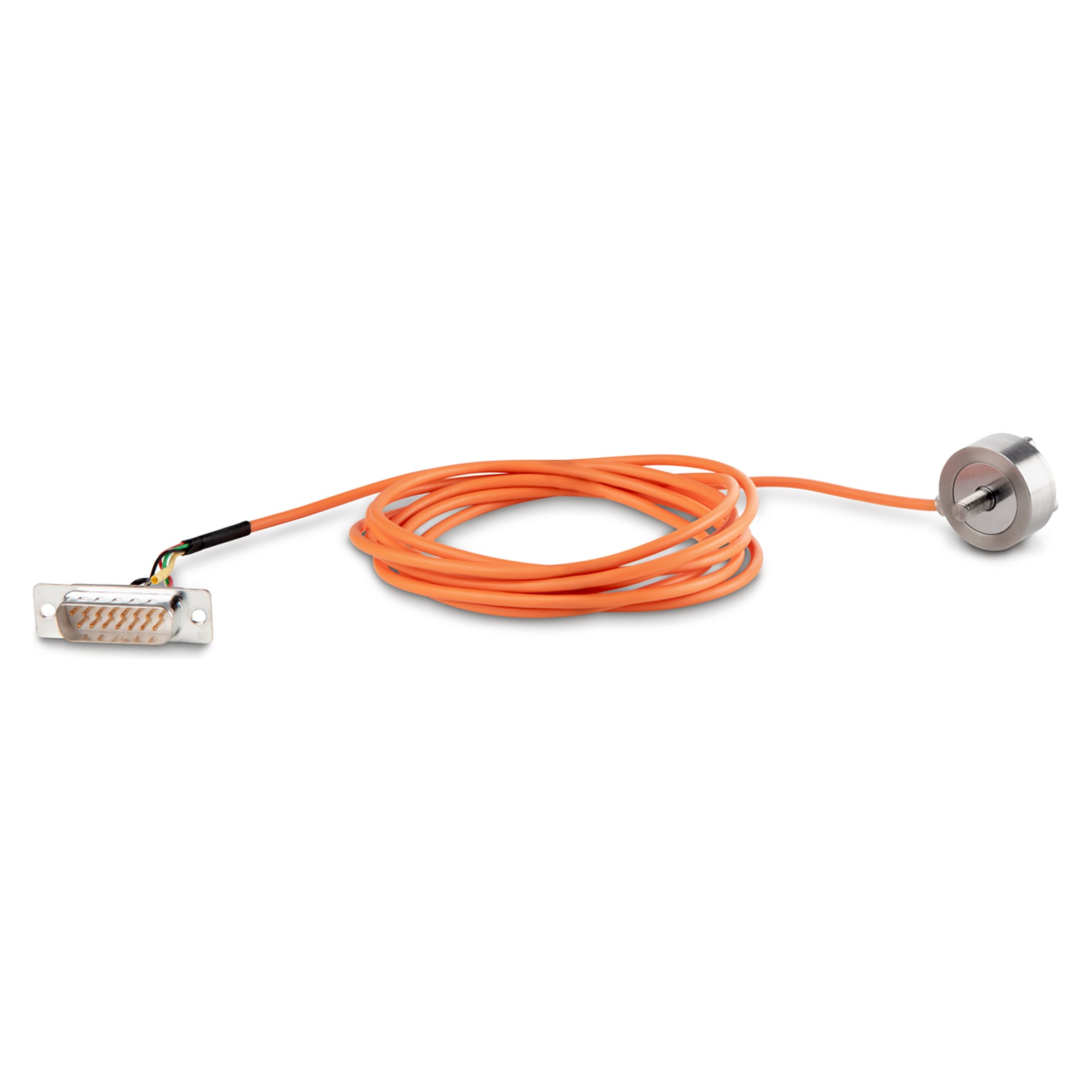

Load Cell 200 kg - SAUTER CO 200-Y2

For capturing tensile and compressive forces up to 2 kN in a small footprint, the SAUTER CO 200-Y2 is the answer. The button load cell in a stainless steel housing (Ø 51 × 70 mm) covers a weighing range up to 200 kg with a combined error of 0.5 % F.S.

Benefits

• Tension and compression in one sensor: force range up to 2 kN in both directions
• Repeatable readings: combined error 0.5 % F.S.
• Corrosion-resistant stainless housing: compact Ø 51 × 70 mm body
• Ready to wire: 4-wire technique with 2 m cable

Technical data

• Weighing range (max): 200 kg
• Force range (max): 2 kN
• Dimensions (Ø×H): 51×70 mm
• OIML class: G5
• Force directions: Tension and compression
• Connection: 4-wire
• Cable length: 2 m
• Net weight approx.: 0,50 kg

Applications

Typical fields of use are research and development, mechanical engineering and testing technology, the automotive and supplier industry, medical technology and biomechanics as well as calibration and test-equipment engineering.

Compliance and origin

EAN 4045761233010, customs tariff number 90249000, country of origin China.
