Load Cell 100 kg - SAUTER CO 100-Y2

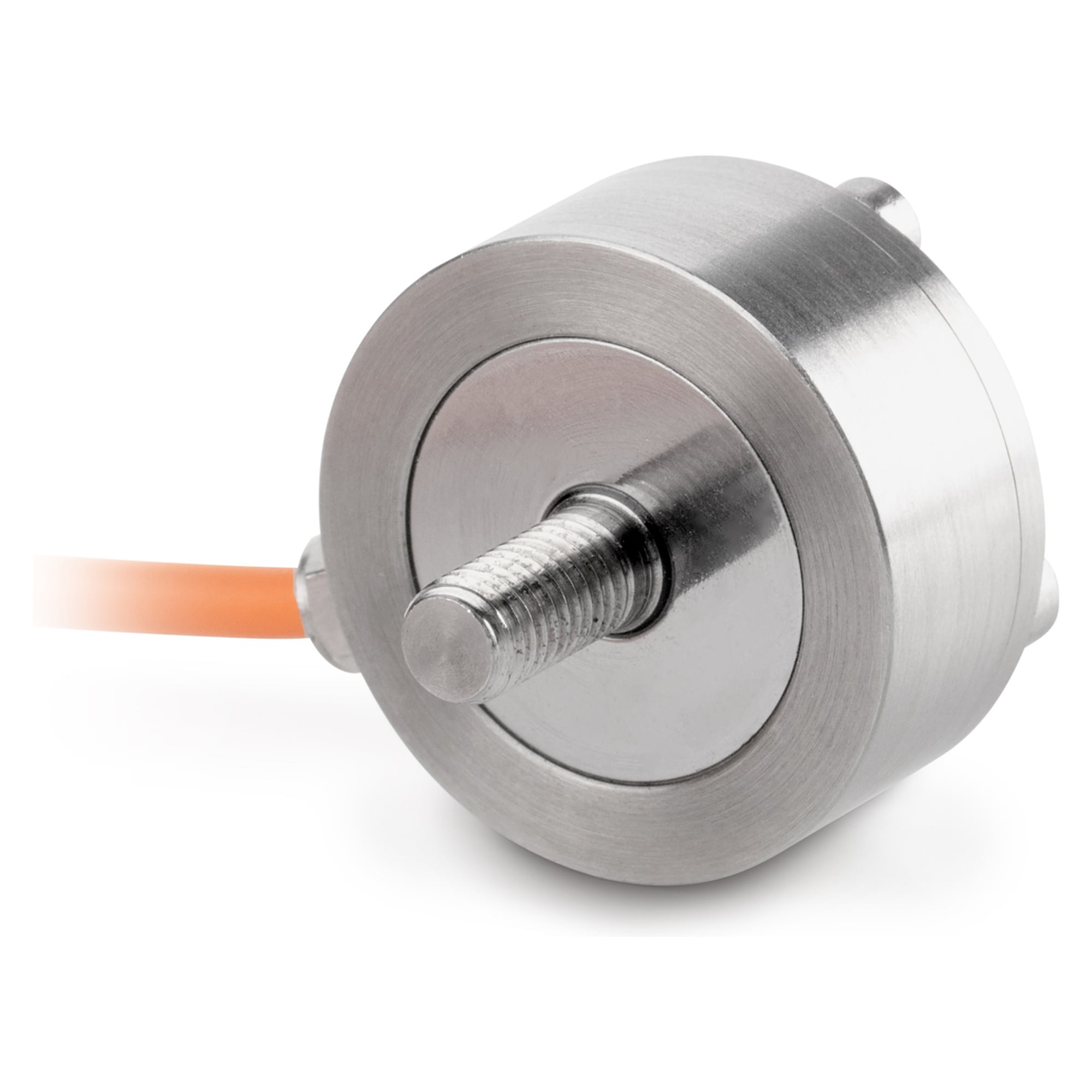

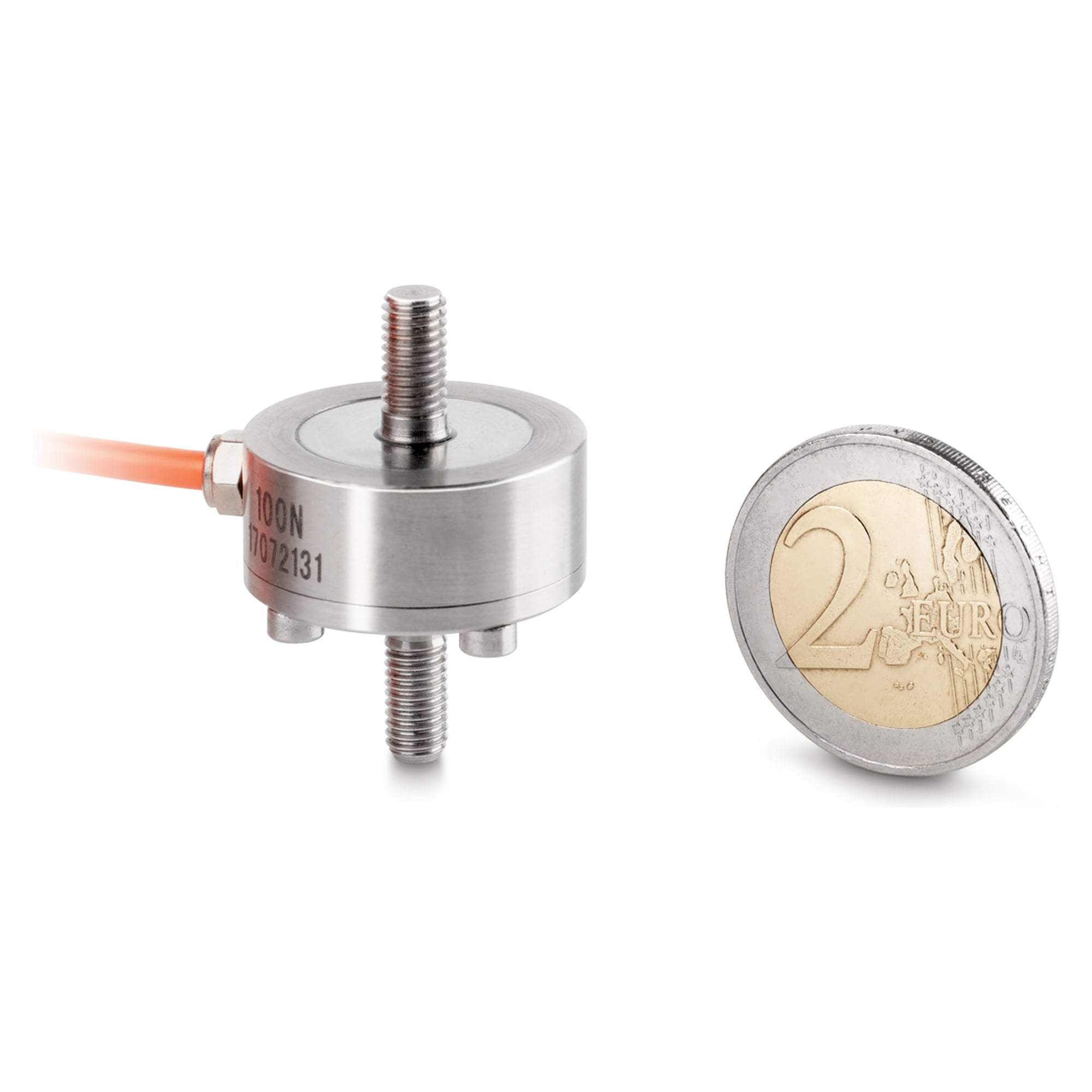

The SAUTER CO 100-Y2 is a stainless steel button load cell rated 100 kg / 1 kN. It measures tension and compression with a combined error of 0,5 % F.S. and fits compact force test rigs at 51×70 mm.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Weight and force measurement in a small footprint calls for a transducer that stays accurate under high load. The SAUTER CO 100-Y2 delivers 100 kg / 1 kN as a stainless steel button cell with a combined error of 0,5 % F.S.
Benefits
- High precision: combined error of 0,5 % F.S. across the range.
- 100 kg / 1 kN rated load: for weight and force measurement and force test rigs.
- Tension and compression: measures in both load directions.
- Compact stainless housing: button design measuring 51×70 mm.

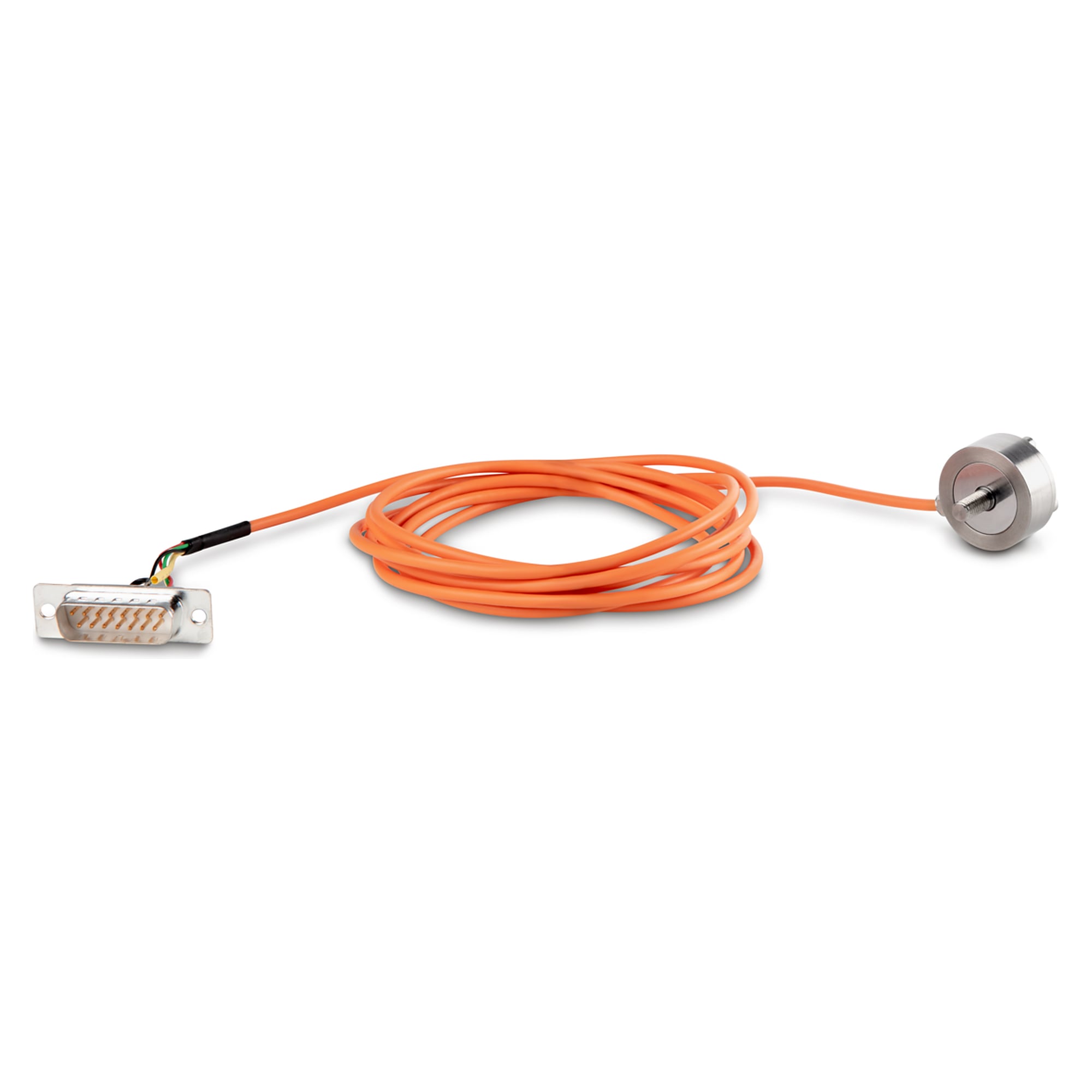

- Ready to connect: 2 m cable in 4-wire wiring.
Applications
Typical fields of use are research and development, mechanical engineering and test technology, the automotive and supplier industry, medical technology and biomechanics, and calibration and test-equipment engineering.
Compliance and origin
EAN 4045761232952, customs tariff number 90249000, country of origin China.
Technical data
| Weighing range (max) | 100 kg |
|---|---|
| Force range (max) | 1 kN |
| Combined error | 0,5 % F.S. |
| OIML class | G5 |
| Load direction | Tension and compression |
| Dimensions (Ø×H) | 51×70 mm |
| Cable length | 2 m |
| Connection | 4-wire |
| Net weight approx. | 0,50 kg |
| Weight | 0.5 kg |
| Manufacturer | Sauter |
| EAN | 4045761232952 |
| HS-Code | 90249000 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
| Wägebereich max (g) | 100000 |
