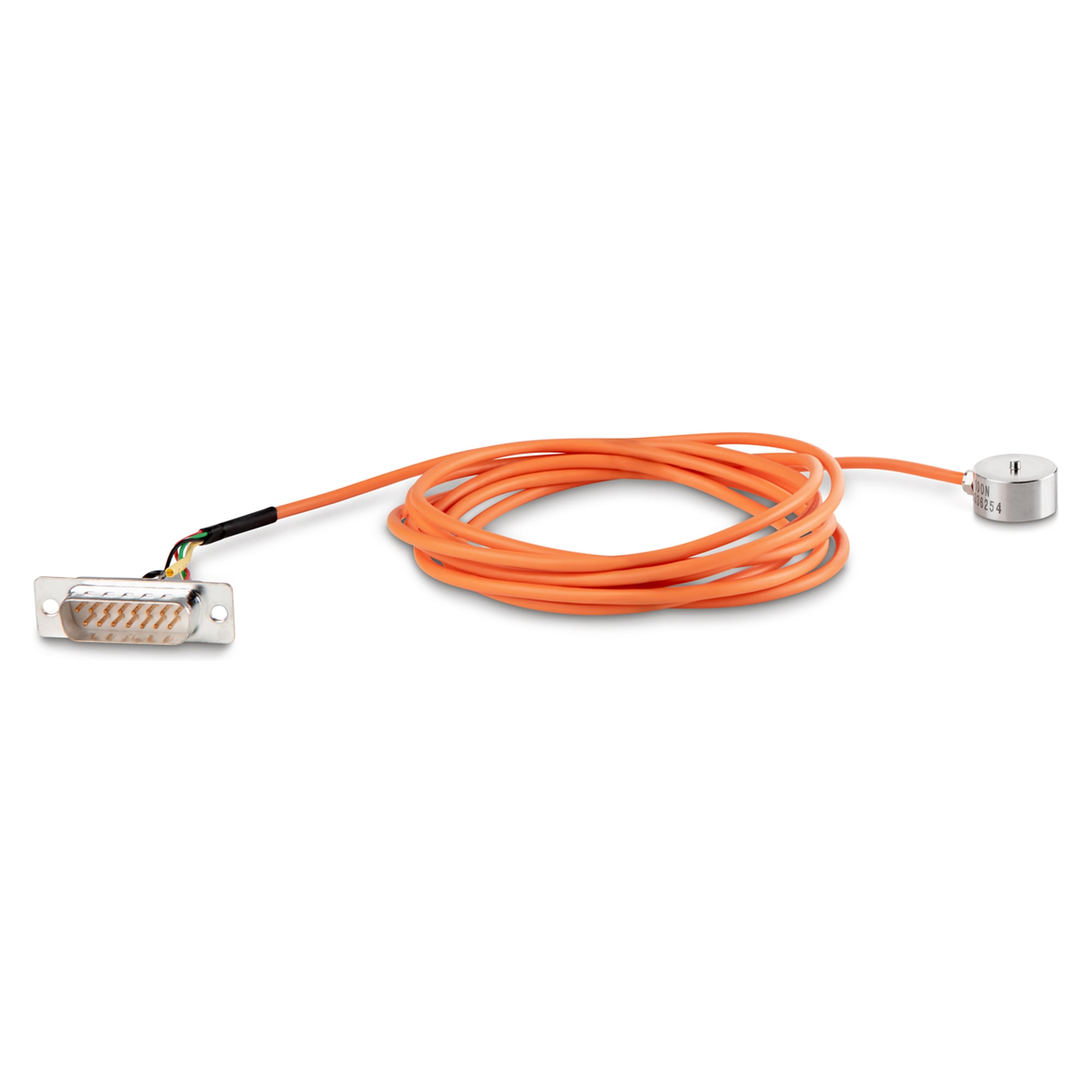

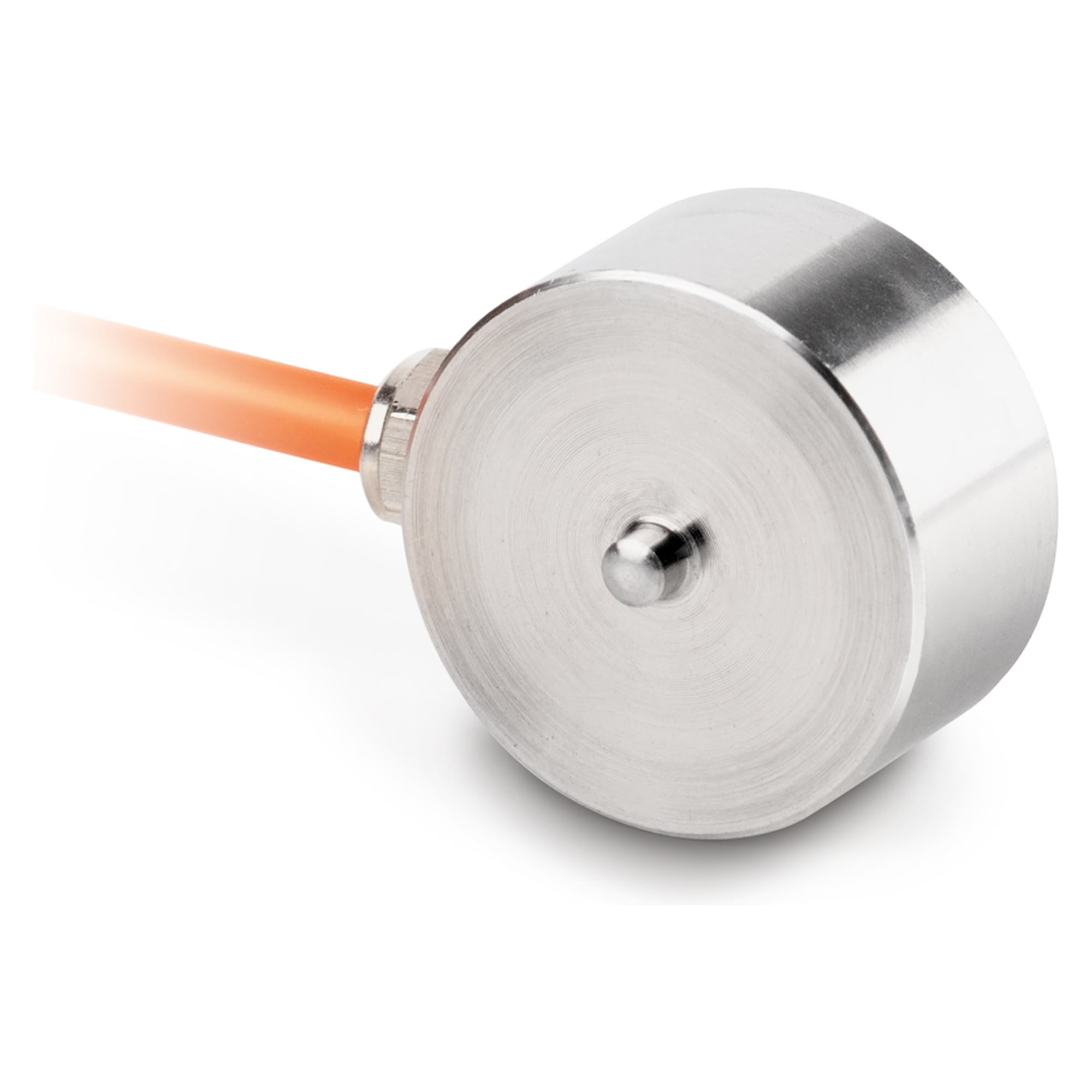

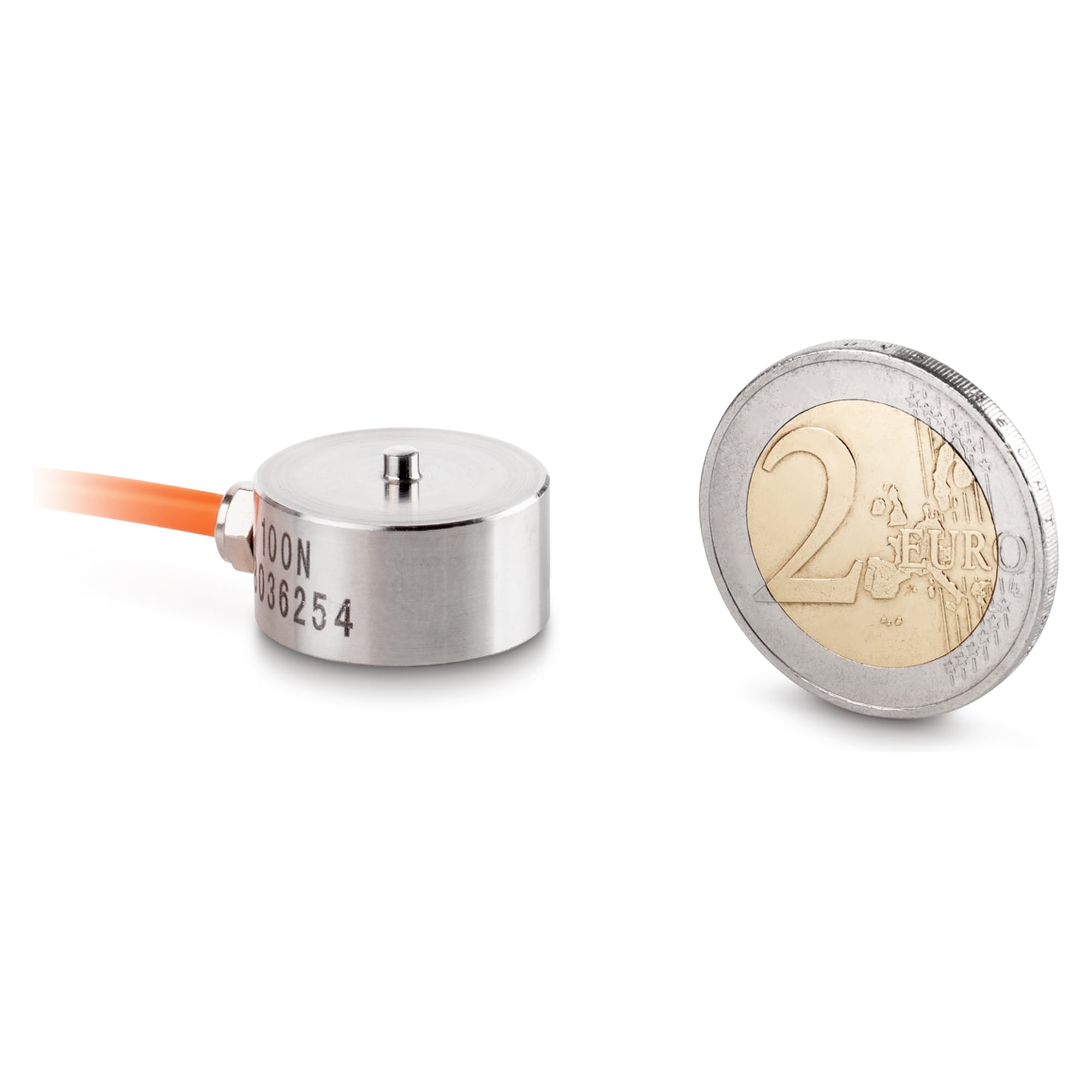

Load Cell 50 kg - SAUTER CO 50-Y1
The SAUTER CO 50-Y1 captures compressive forces up to 500 N or loads up to 50 kg. The compact stainless button cell (Ø 20 × 12 mm) keeps a combined error of 0.5 % F.S.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The SAUTER CO 50-Y1 measures compressive forces up to 500 N in a very small button form (Ø 20 × 12 mm) and covers a weighing range up to 50 kg. Its combined error is 0.5 % F.S.
Benefits
- Compact compression measurement: up to 500 N at only Ø 20 × 12 mm
- Repeatable readings: combined error 0.5 % F.S.
- Corrosion-resistant stainless steel: for continuous compression duty
- Ready to wire: 4-wire technique with 2 m cable
Applications
Typical fields of use are research and development, mechanical engineering and testing technology, the automotive and supplier industry, medical technology and biomechanics as well as calibration and test-equipment engineering.
Compliance and origin
EAN 4045761233065, customs tariff number 90249000, country of origin China.
Technical data
| Weighing range (max) | 50 kg |
|---|---|
| Force range (max) | 500 N |
| Dimensions (Ø×H) | 20×12 mm |
| OIML class | G5 |
| Force directions | Compression |
| Connection | 4-wire |
| Cable length | 2 m |
| Net weight approx. | 0,05 kg |
| Weight | 0.1 kg |
| Manufacturer | Sauter |
| EAN | 4045761233065 |
| HS-Code | 90249000 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
| Wägebereich max (g) | 50000 |
Downloads
Accessories
Plug for FS measuring cells up to 500 N, mounted and adjusted - SAUTER FS 402
Item KER-FS 402
