Load Cell 500 kg - SAUTER CO 500-Y1

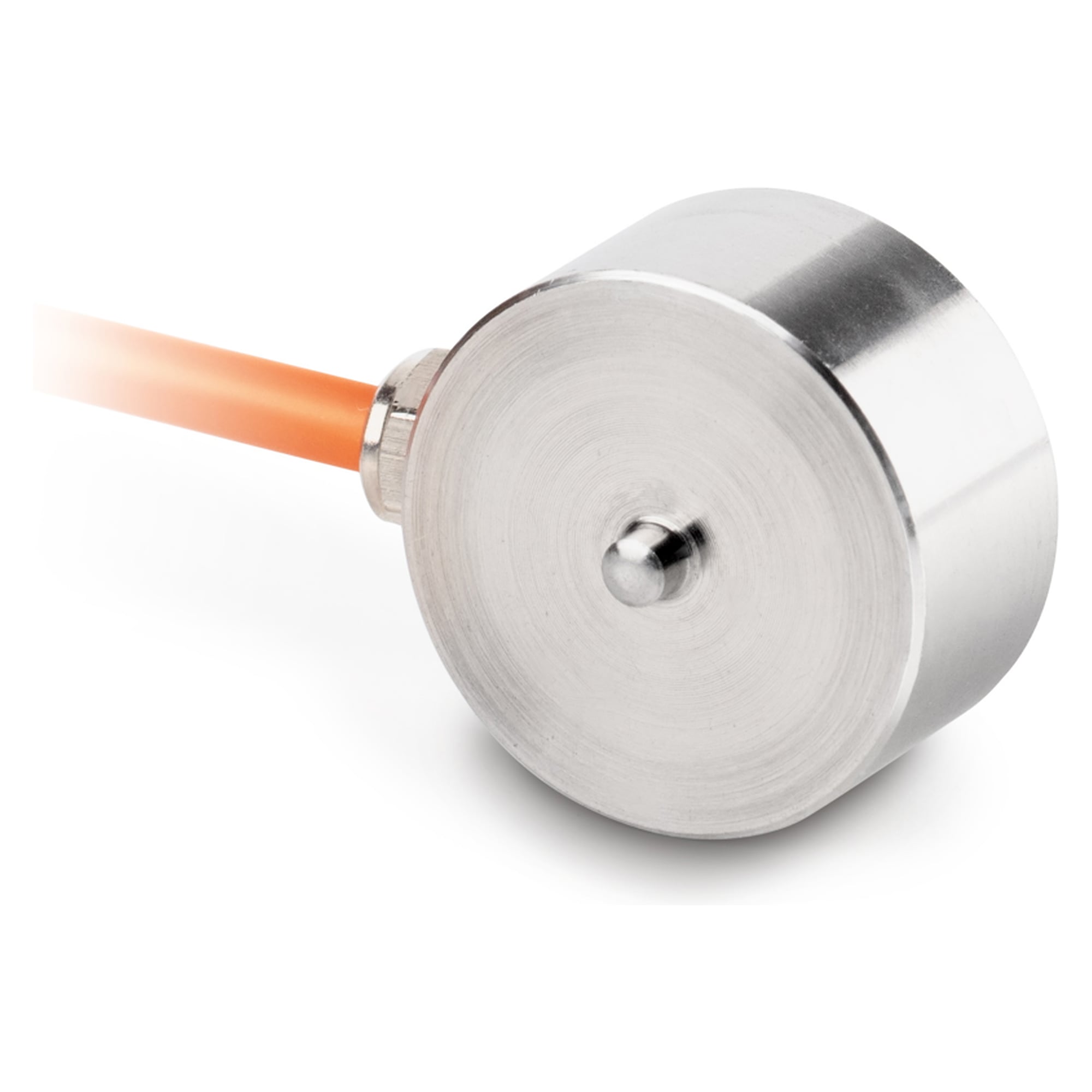

The SAUTER CO 500-Y1 captures compressive forces up to 5 kN or loads up to 500 kg. The low-profile stainless button cell (Ø 26 × 15 mm) keeps a combined error of 0.5 % F.S.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The SAUTER CO 500-Y1 measures compressive forces up to 5 kN at low height: the stainless button load cell measures only Ø 26 × 15 mm and covers a weighing range up to 500 kg. Its combined error is 0.5 % F.S.
Benefits
- High compression, low profile: up to 5 kN at only Ø 26 × 15 mm
- Repeatable readings: combined error 0.5 % F.S.
- Corrosion-resistant stainless steel: for continuous compression duty

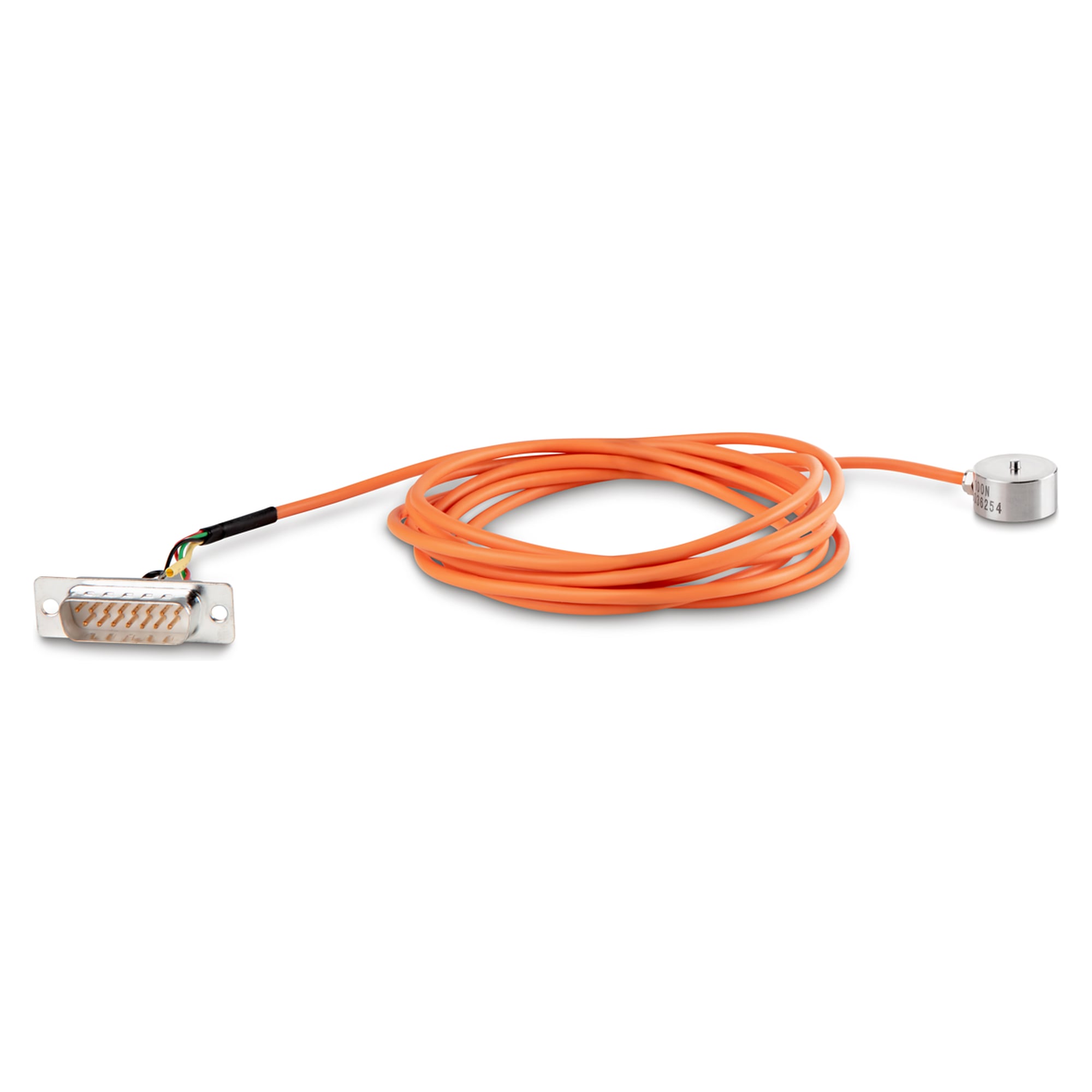

- Ready to wire: 4-wire technique with 2 m cable
Applications
Typical fields of use are research and development, mechanical engineering and testing technology, the automotive and supplier industry, medical technology and biomechanics as well as calibration and test-equipment engineering.
Compliance and origin
EAN 4045761233041, customs tariff number 90249000, country of origin China.
Technical data
| Weighing range (max) | 500 kg |
|---|---|
| Force range (max) | 5 kN |
| Dimensions (Ø×H) | 26×15 mm |
| OIML class | G5 |
| Force directions | Compression |
| Connection | 4-wire |
| Cable length | 2 m |
| Net weight approx. | 0,10 kg |
| Weight | 0.15 kg |
| Manufacturer | Sauter |
| EAN | 4045761233041 |
| HS-Code | 90249000 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
| Wägebereich max (g) | 500000 |
