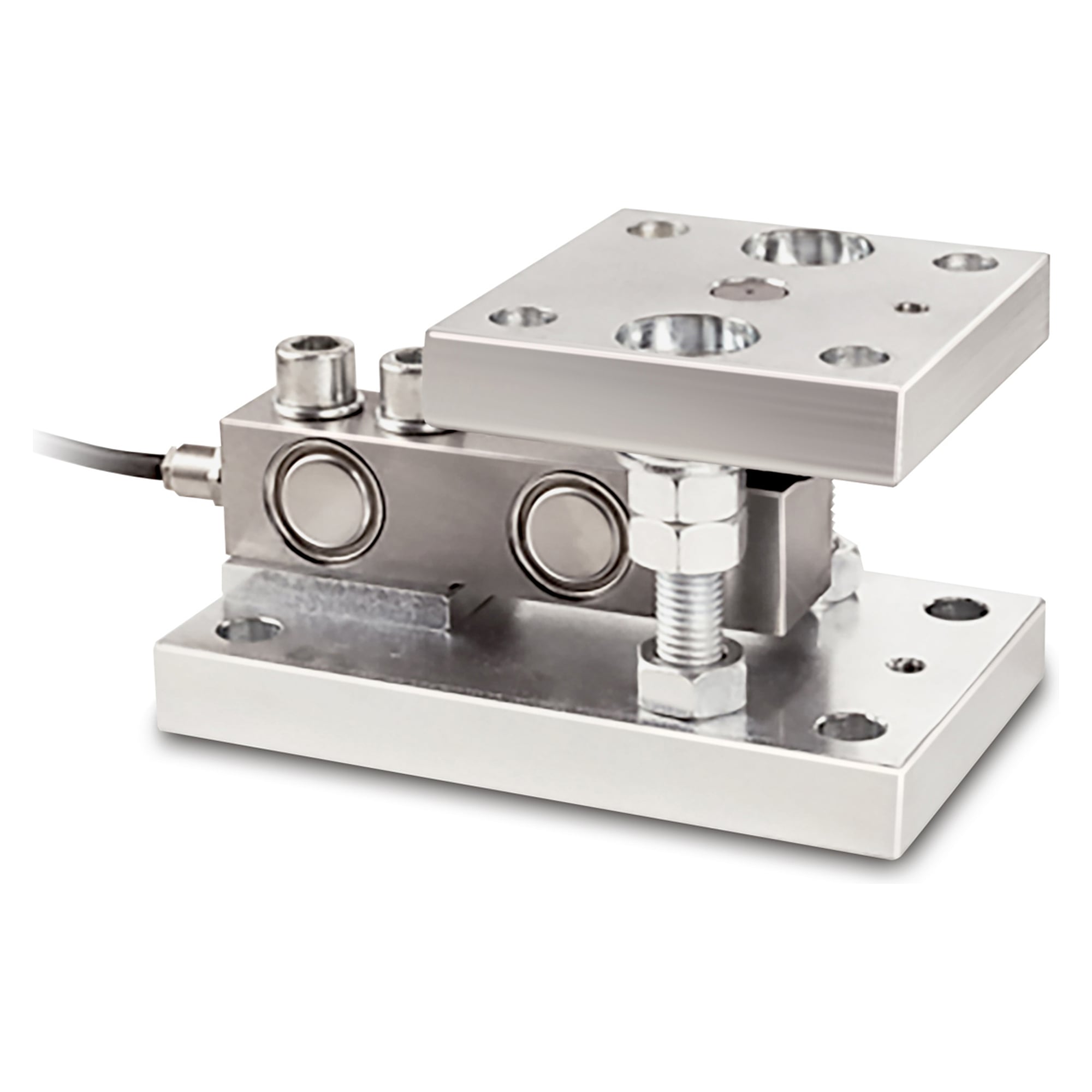

Load Cell 1000 kg - SAUTER CT 1000-3Q1
The SAUTER CT 1000-3Q1 is a stainless steel shear beam load cell for compression forces up to 1000 kg. With OIML class C3 and 3000 e it delivers legally usable readings in platform, hopper and floor scales. A wide operating range of -30 bis 70 °C suits it to demanding industrial environments.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The SAUTER CT 1000-3Q1 picks up compression forces up to 1000 kg directly in platform scales, hopper scales and floor-recessed scales. Its stainless steel shear beam delivers repeatable readings to OIML class C3 with 3000 e, even under harsh operating conditions.
Benefits
- Legal-for-trade resolution (OIML C3, 3000 e): traceable weighing at a Y-value of 10000.
- Stainless steel shear beam: corrosion-resistant sensing body for chemical, food and wet environments.
- Wide temperature range (-30 bis 70 °C): reliable operation from cold zones to warm halls.
- Rated capacity 1000 kg in compression: sized for platform, hopper and floor scales.
- 6-wire sense technology: dedicated sense lines compensate long cable runs and keep accuracy stable over the 5 m lead.
Applications
Typical uses include industry and manufacturing, the chemical industry, food and pharma, the building materials industry as well as logistics and packaging.
Compliance and origin
EAN 4045761222182, customs tariff code 84239010, country of origin Spain.
Technical data
| Capacity (Max) | 1000 kg |
|---|---|
| OIML class | C3 |
| Resolution (verifiable) | 3000 e |
| Y-value | 10000 |
| Force direction | compression |
| Operating temperature | -30 bis 70 °C |
| Cable length | 5 m |
| Load cell connection | 6-wire |
| Net weight | 0,90 kg |
| Gross weight | 1,2 kg |
| Weight | 1.2 kg |
| Manufacturer | Sauter |
| EAN | 4045761222182 |
| HS-Code | 84239010 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Spain |
| Wägebereich max (g) | 1000000 |
