Load Cell 3000 kg - SAUTER CT 3000-3P2

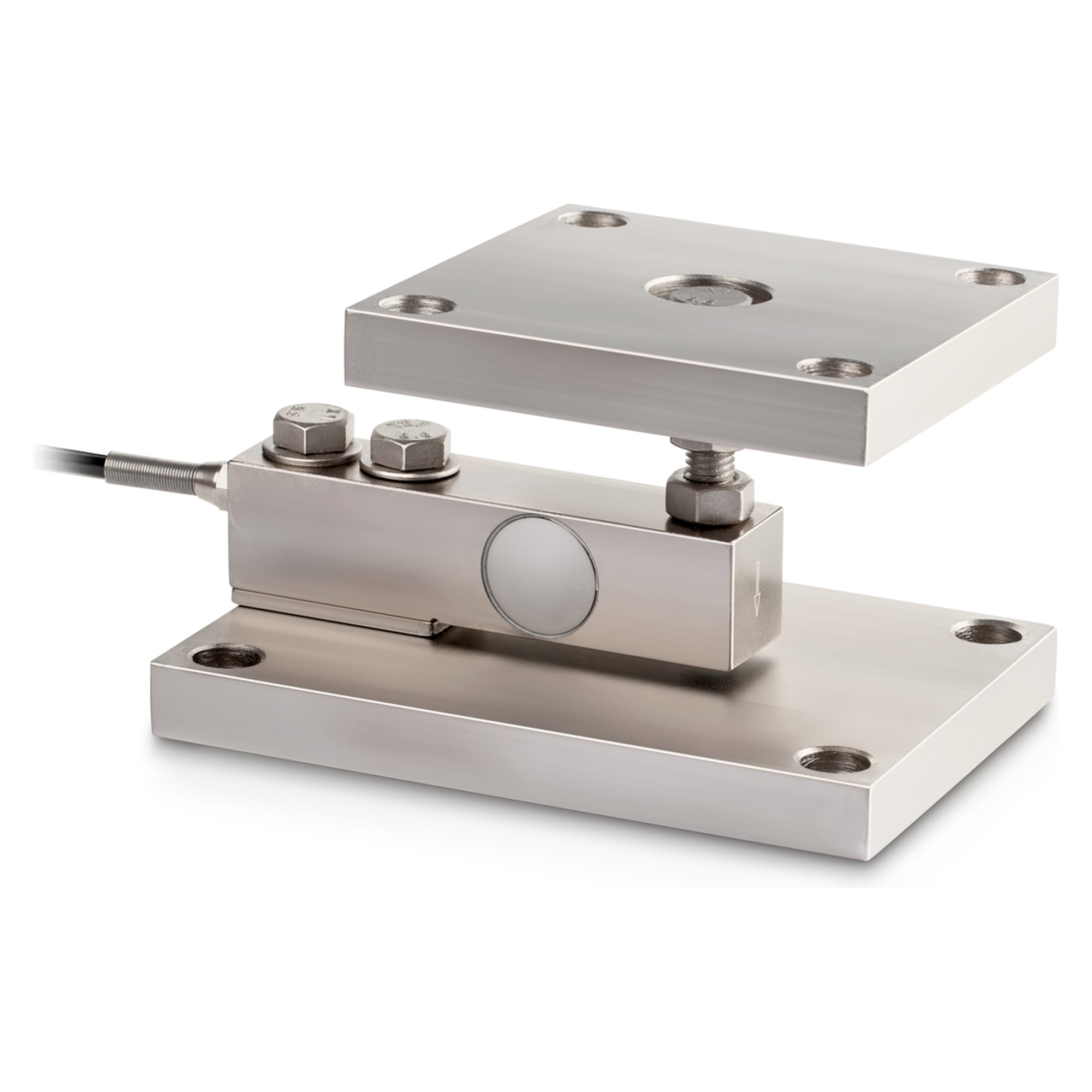

The SAUTER CT 3000-3P2 is a stainless steel shear beam load cell for compression forces up to 3000 kg. With OIML class C3 and 3000 e it delivers legally usable readings in platform, hopper and floor scales. A wide operating range of -35 bis 65 °C suits it to demanding industrial environments.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The SAUTER CT 3000-3P2 picks up compression forces up to 3000 kg directly in platform scales, hopper scales and floor-recessed scales. Its stainless steel shear beam delivers repeatable readings to OIML class C3 with 3000 e, even under harsh operating conditions.
Benefits
- Legal-for-trade resolution (OIML C3, 3000 e): traceable weighing at a Y-value of 10000.
- Stainless steel shear beam: corrosion-resistant sensing body for chemical, food and wet environments.
- Wide temperature range (-35 bis 65 °C): reliable operation from cold zones to warm halls.
- Rated capacity 3000 kg in compression: sized for platform, hopper and floor scales.
- Factory-matched output: when several cells are ordered together the rated output is trimmed, so corner adjustment on the platform is largely unnecessary.
Applications
Typical uses include industry and manufacturing, the chemical industry, food and pharma, the building materials industry as well as logistics and packaging.
Compliance and origin
EAN 4045761222595, customs tariff code 84239010, country of origin China.
Technical data
| Capacity (Max) | 3000 kg |
|---|---|
| OIML class | C3 |
| Resolution (verifiable) | 3000 e |
| Y-value | 10000 |
| Force direction | compression |
| Operating temperature | -35 bis 65 °C |
| Cable length | 6 m |
| Load cell connection | 4-wire |
| Net weight | 0,95 kg |
| Gross weight | 1,8 kg |
| Weight | 1.8 kg |
| Manufacturer | Sauter |
| EAN | 4045761222595 |
| HS-Code | 84239010 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
| Wägebereich max (g) | 3000000 |
