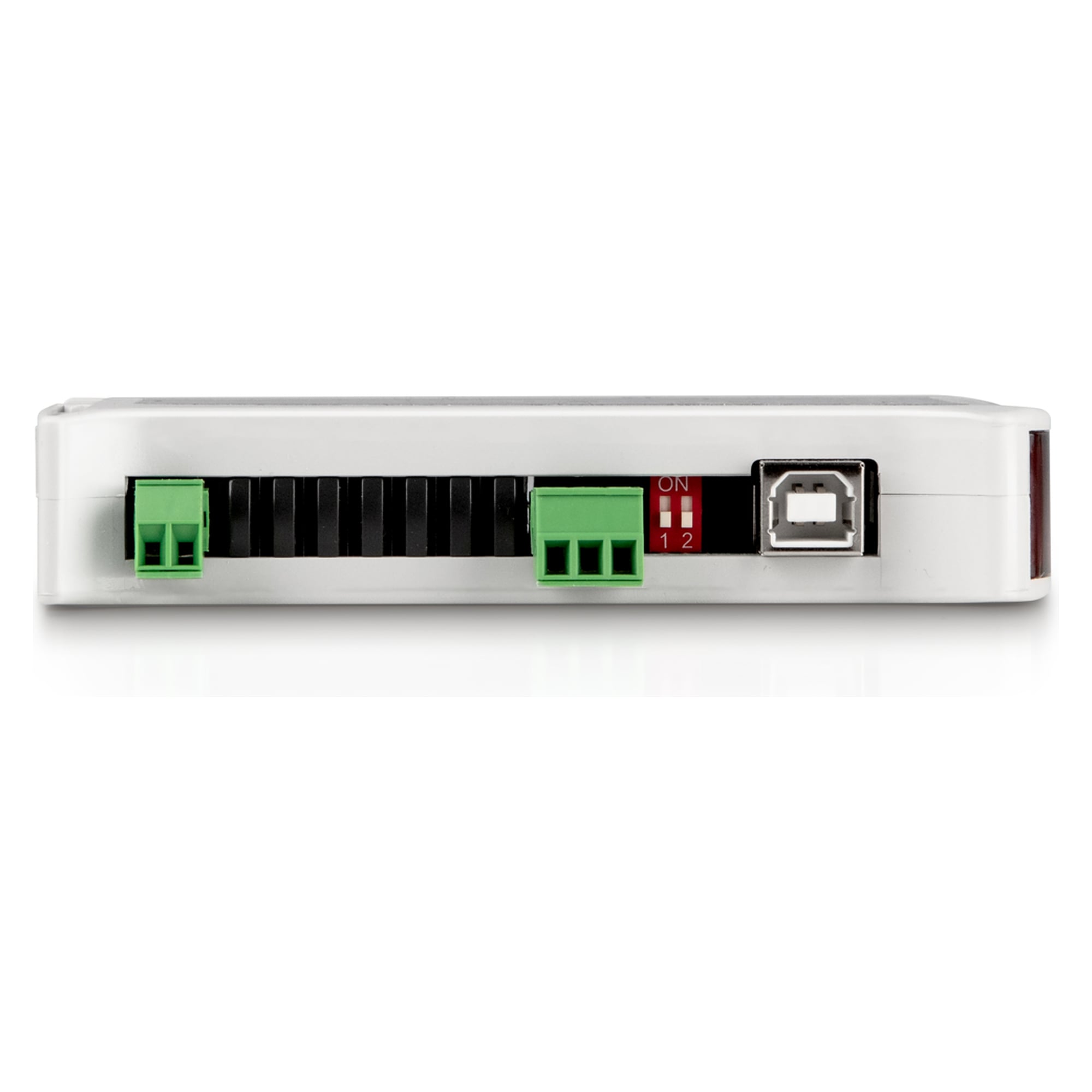

Display Unit - KERN CE HSN
The KERN CE HSN captures weighing data from strain-gauge load cells right inside the control cabinet. This compact DIN-rail module delivers up to 1600 records per second at 24-bit internal resolution and integrates through Digital I/O, RS-485, USB and PROFINET.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
To feed weighing signals from strain-gauge load cells into a controller, the KERN CE HSN clips onto the DIN rail: a compact transmitter with up to 1600 records per second and 24-bit internal resolution.
Benefits

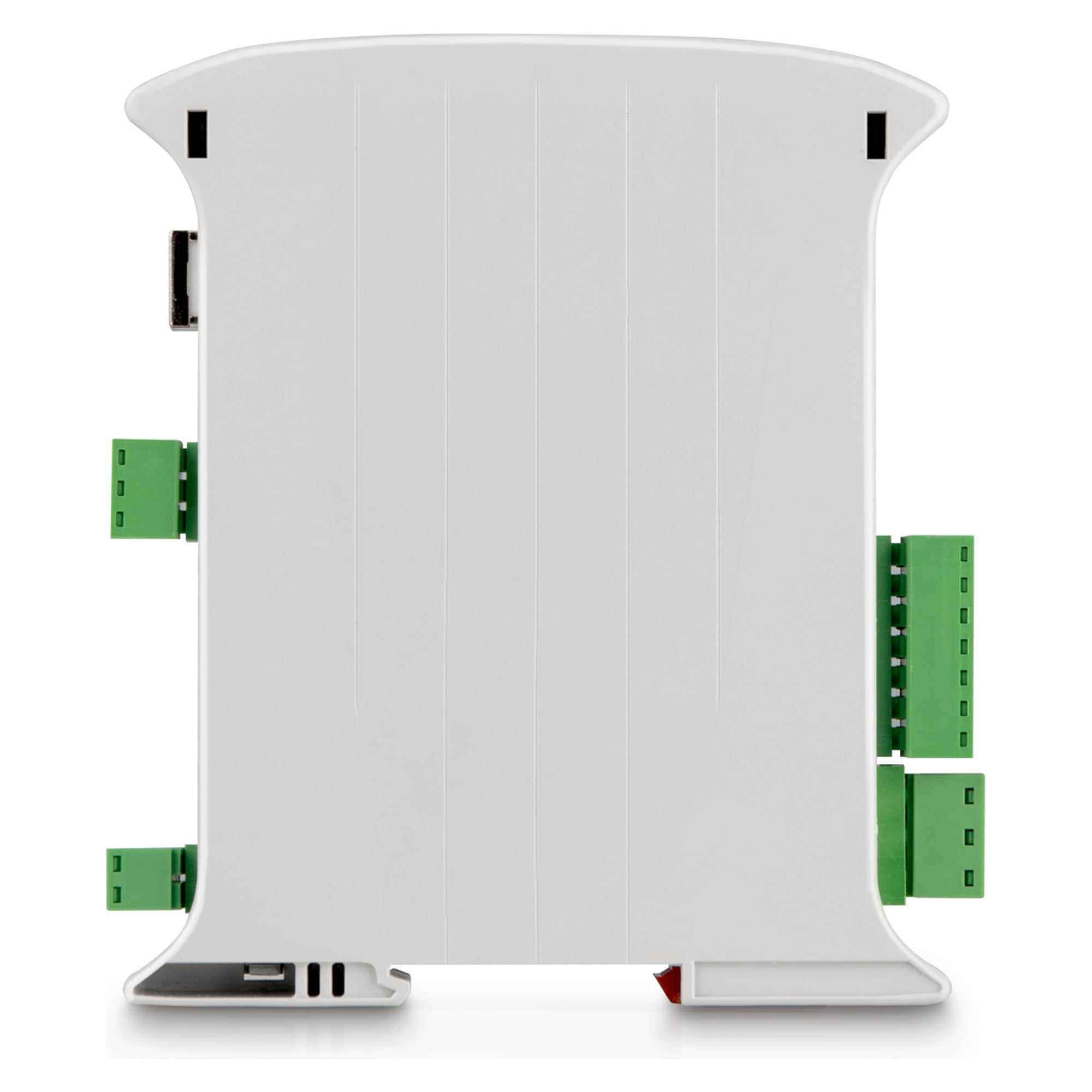

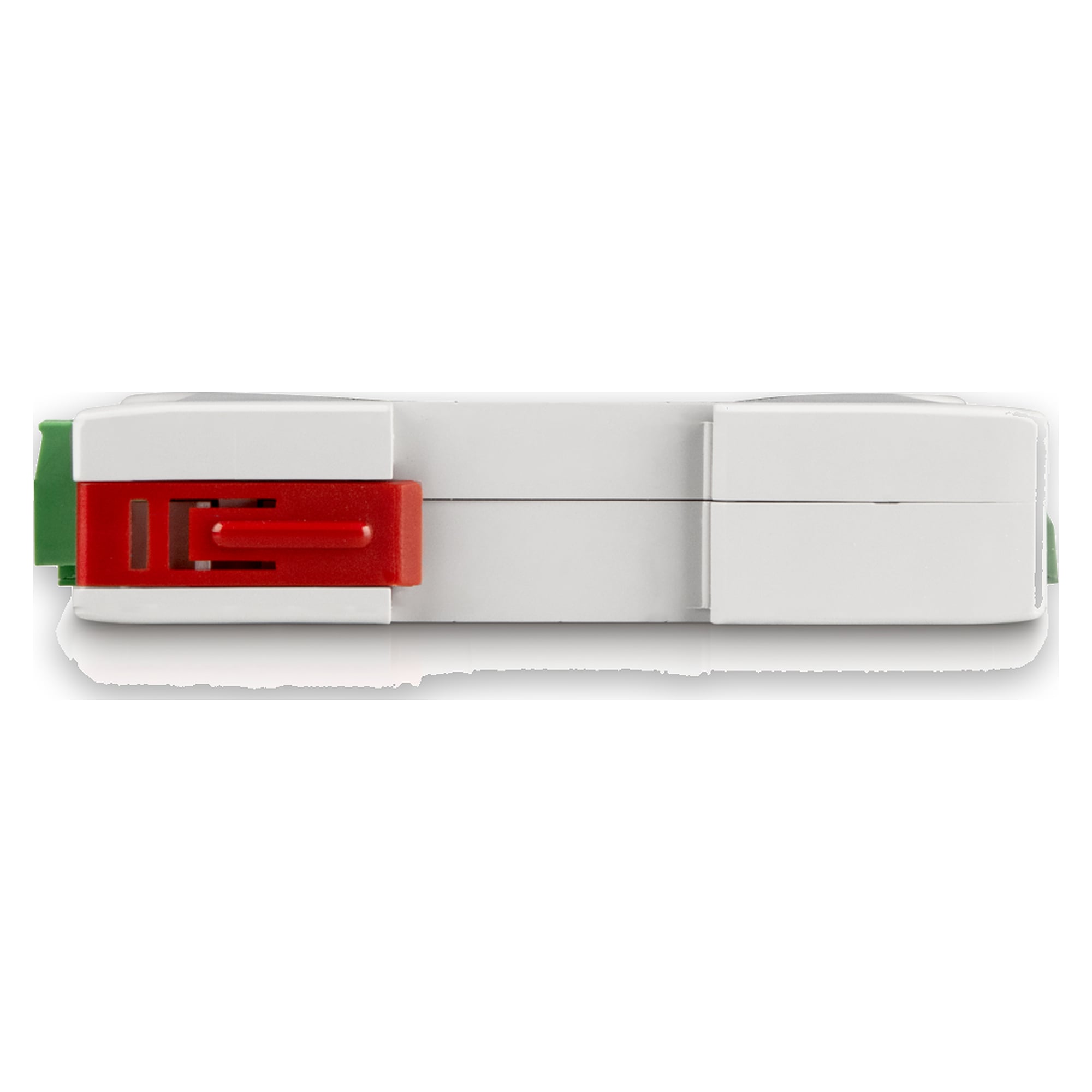

- Space-saving: small form factor for DIN-rail mounting inside the control cabinet
- System integration: Digital I/O, RS-485, USB device and PROFINET interfaces

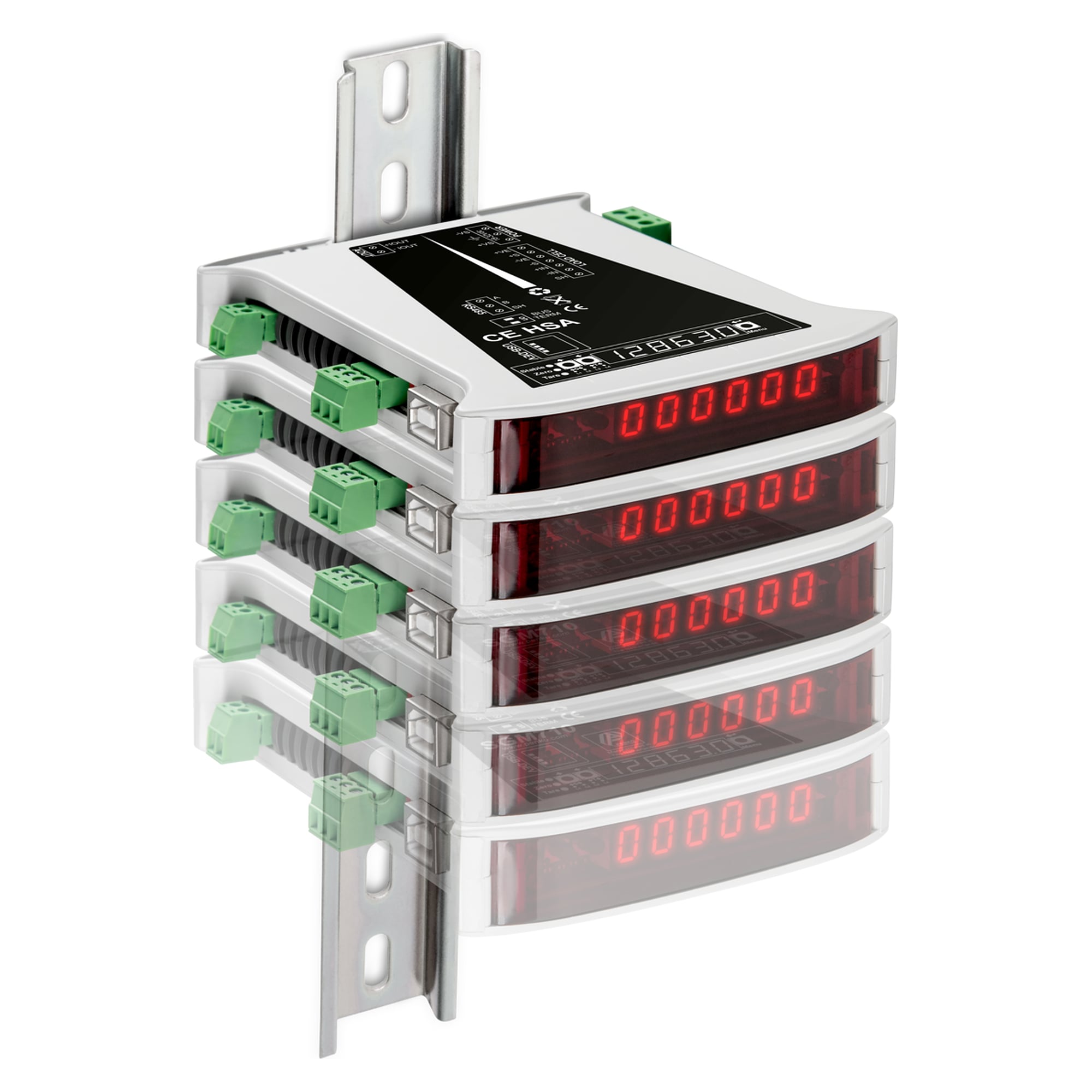

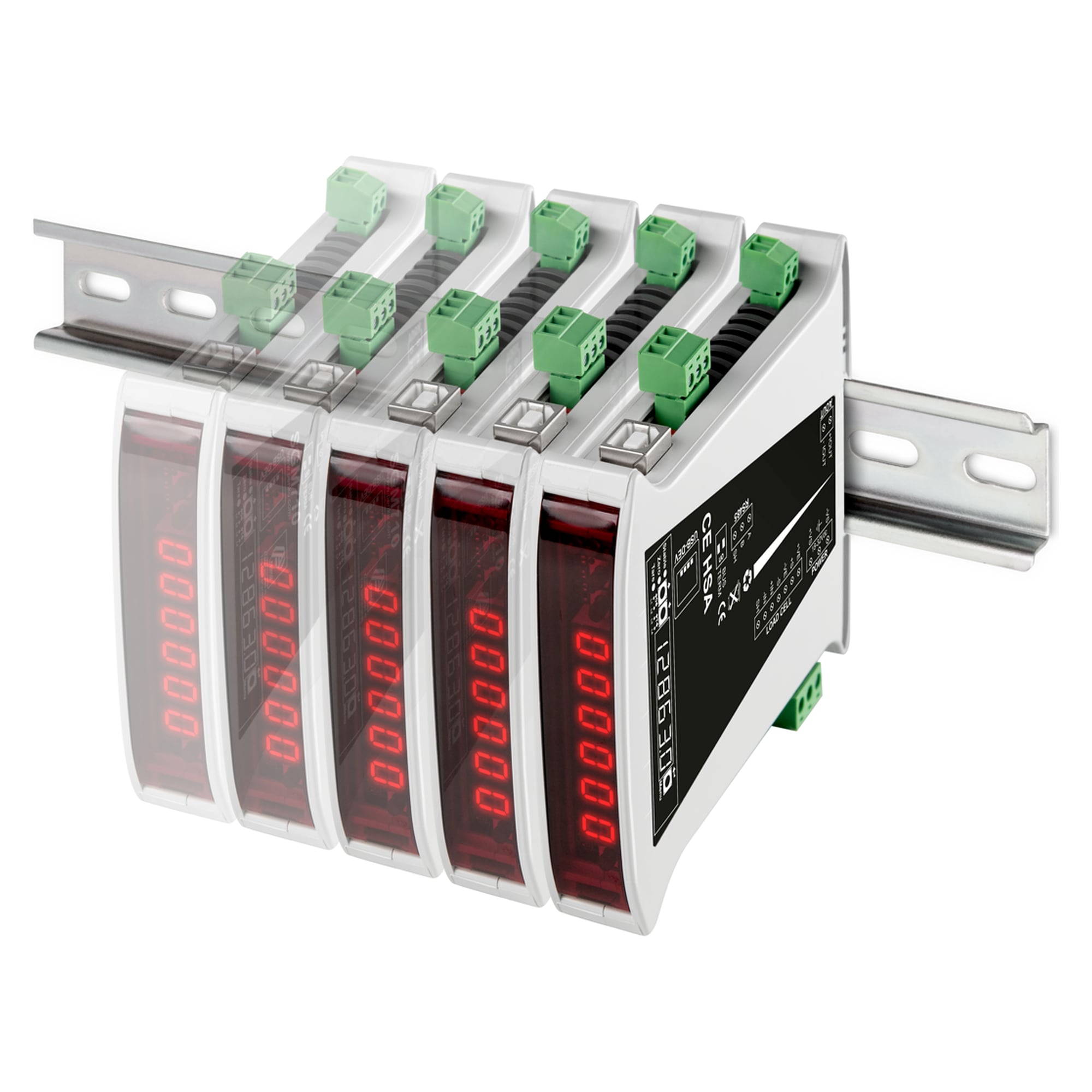

- Scalable: run standalone or as a bus-link system with up to 332 modules
- Fast calibration: G-Cal technology calibrates geographically without weights over network or internet
- High sampling rate: up to 1600 records per second, 24-bit internal resolution

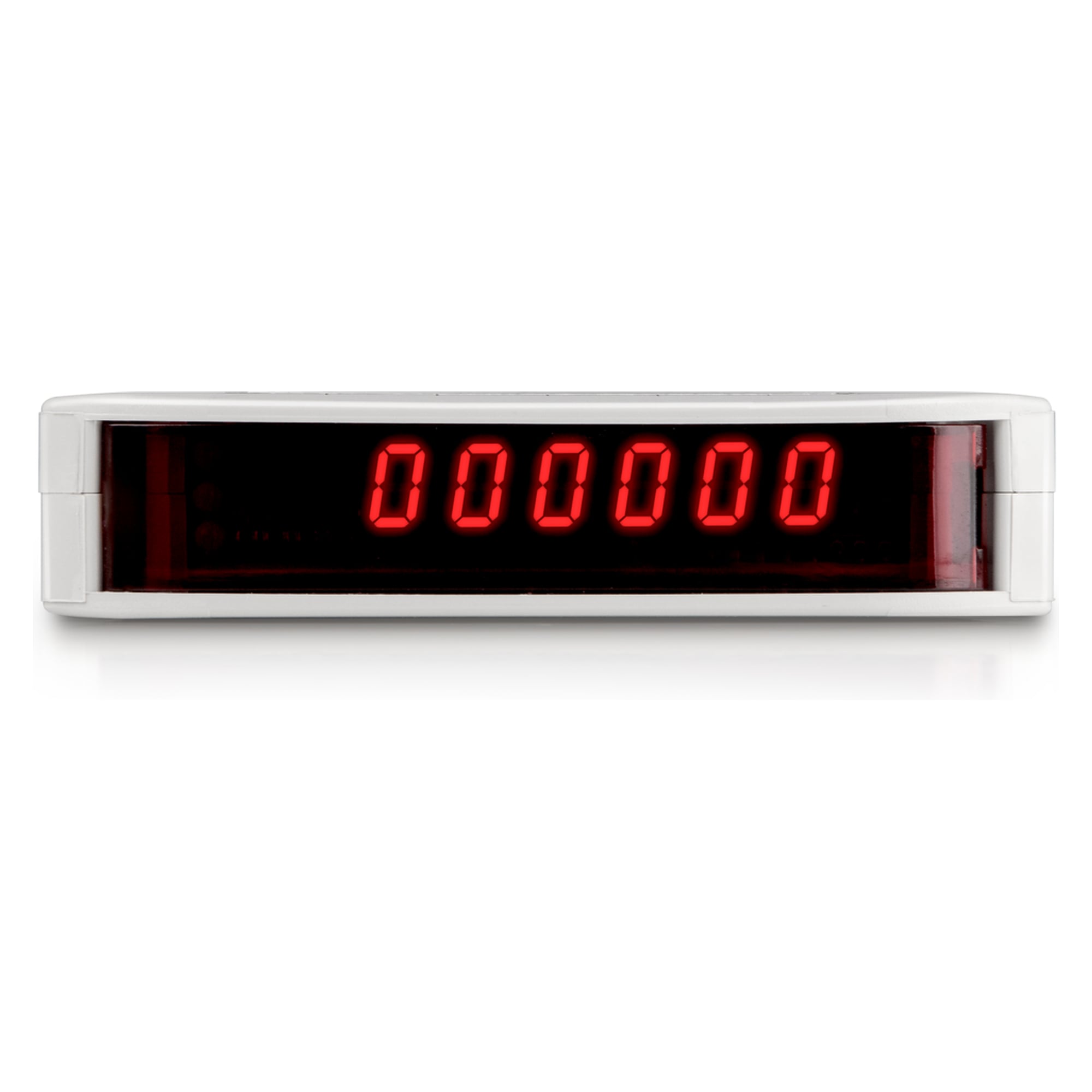

- Data safety: backup and restore over USB, bright LED display
Applications
Suited to industry and manufacturing, the chemical industry, food and pharma, building materials, and logistics and packaging.
Compliance and origin
EAN 4045761246164, customs tariff number 84239010, country of origin Netherlands.
Technical data
| Internal sampling rate | 1600 Hz |
|---|---|
| Internal resolution | 24 bit |

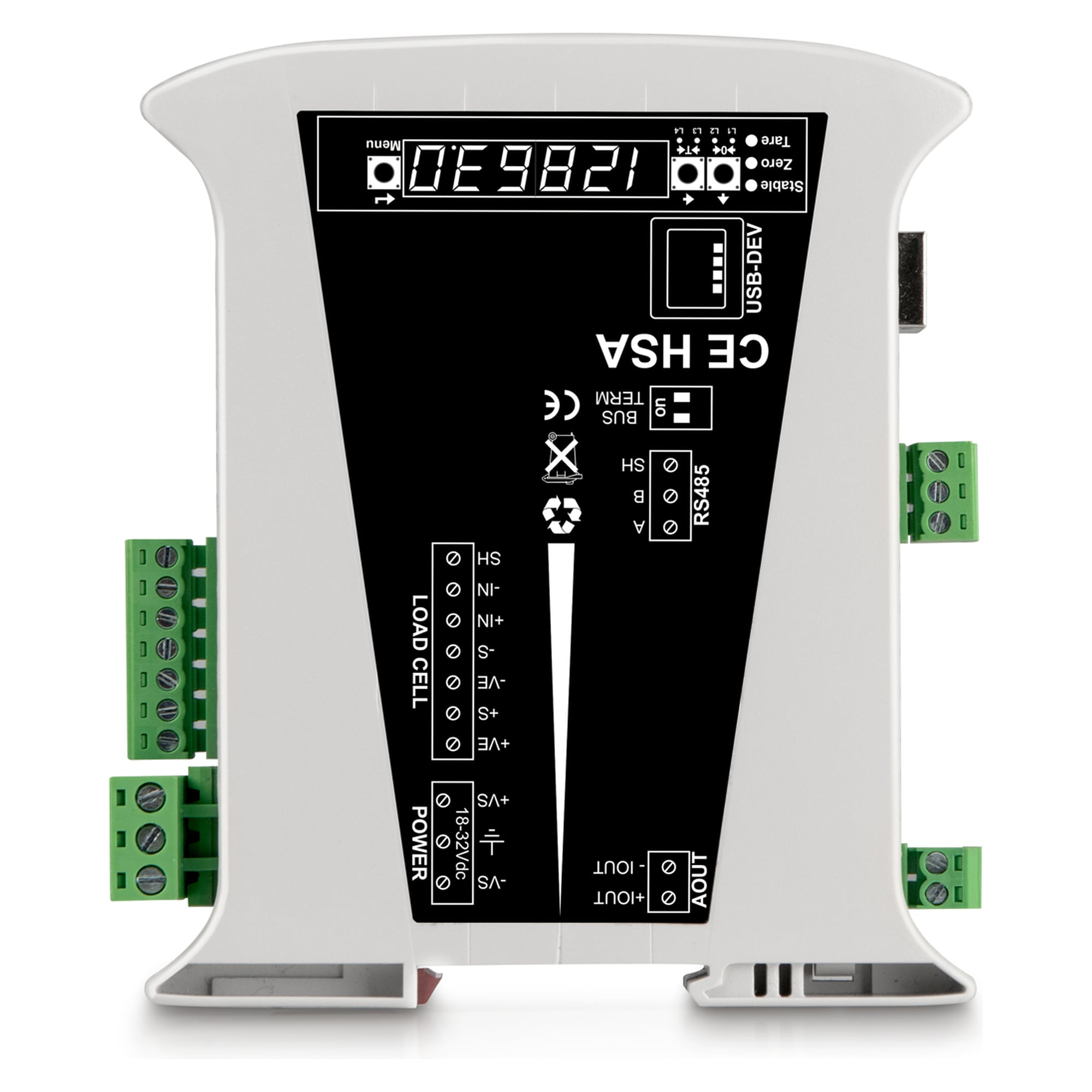

| Interfaces | Digital I/O, RS-485, USB device, PROFINET |

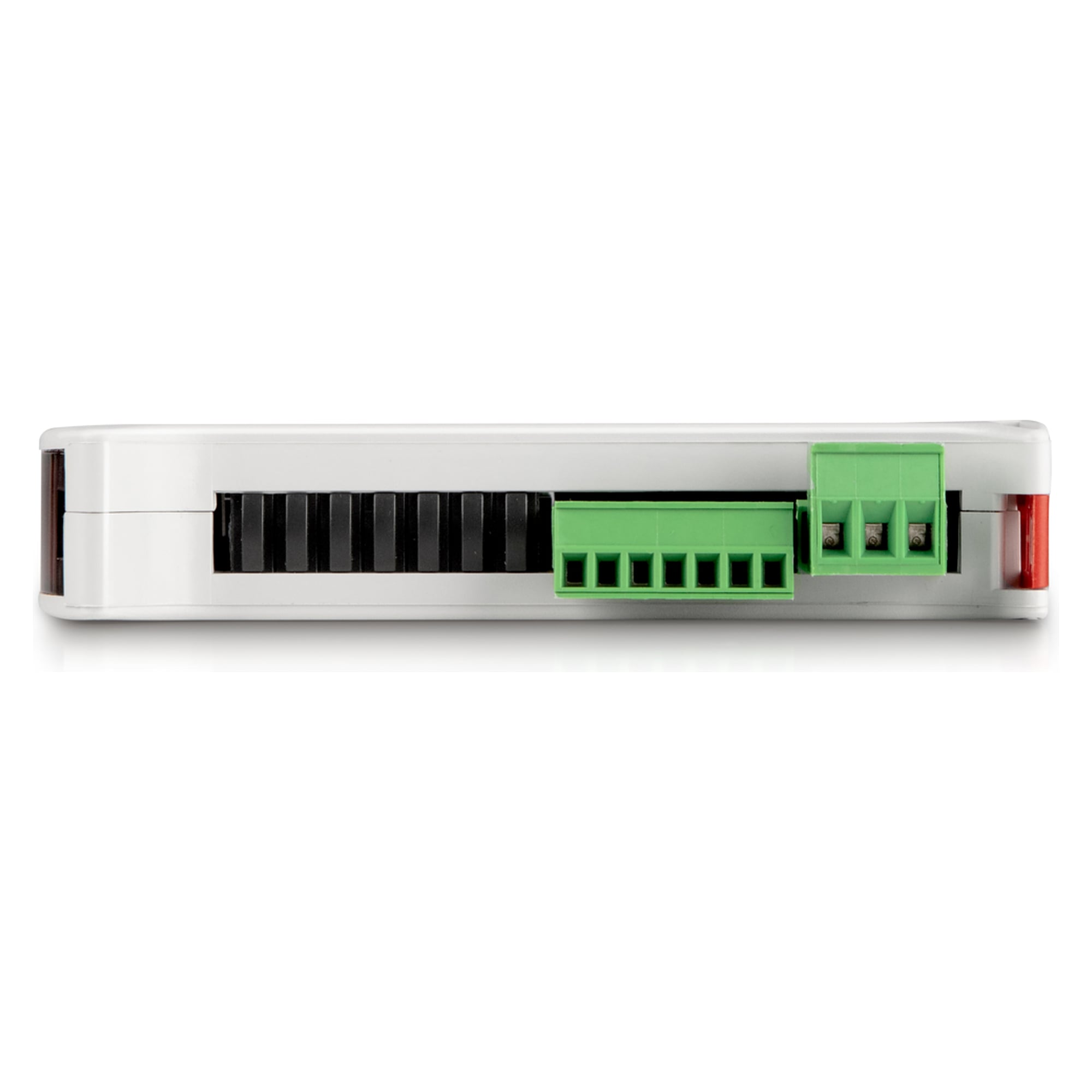

| Load cell connection | 6-wire |
| Display digit height | 7,62 mm |
| Net weight | 0,15 kg |
| Weight | 0.45 kg |
| Manufacturer | Kern |
| EAN | 4045761246164 |
| HS-Code | 84239010 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Netherlands |
| Interface | Digital I/O, Profinet, RS-485, USB device |
Accessories
Show 52 more items
Bending ring load cell 60 kg / 600 N, stainless steel, C3 - SAUTER CR 60-3P1
Item KER-CR 60-3P1
Bending Ring Load Cell 130 kg, 1.3 kN, Stainless Steel - SAUTER CR 130-3P1
Item KER-CR 130-3P1
Bending Ring Load Cell 500 kg, 5 kN, Stainless Steel - SAUTER CR 500-3P1
Item KER-CR 500-3P1
Bending Ring Load Cell 250 kg, 2.5 kN, Stainless Steel - SAUTER CR 250-3P1
Item KER-CR 250-3P1

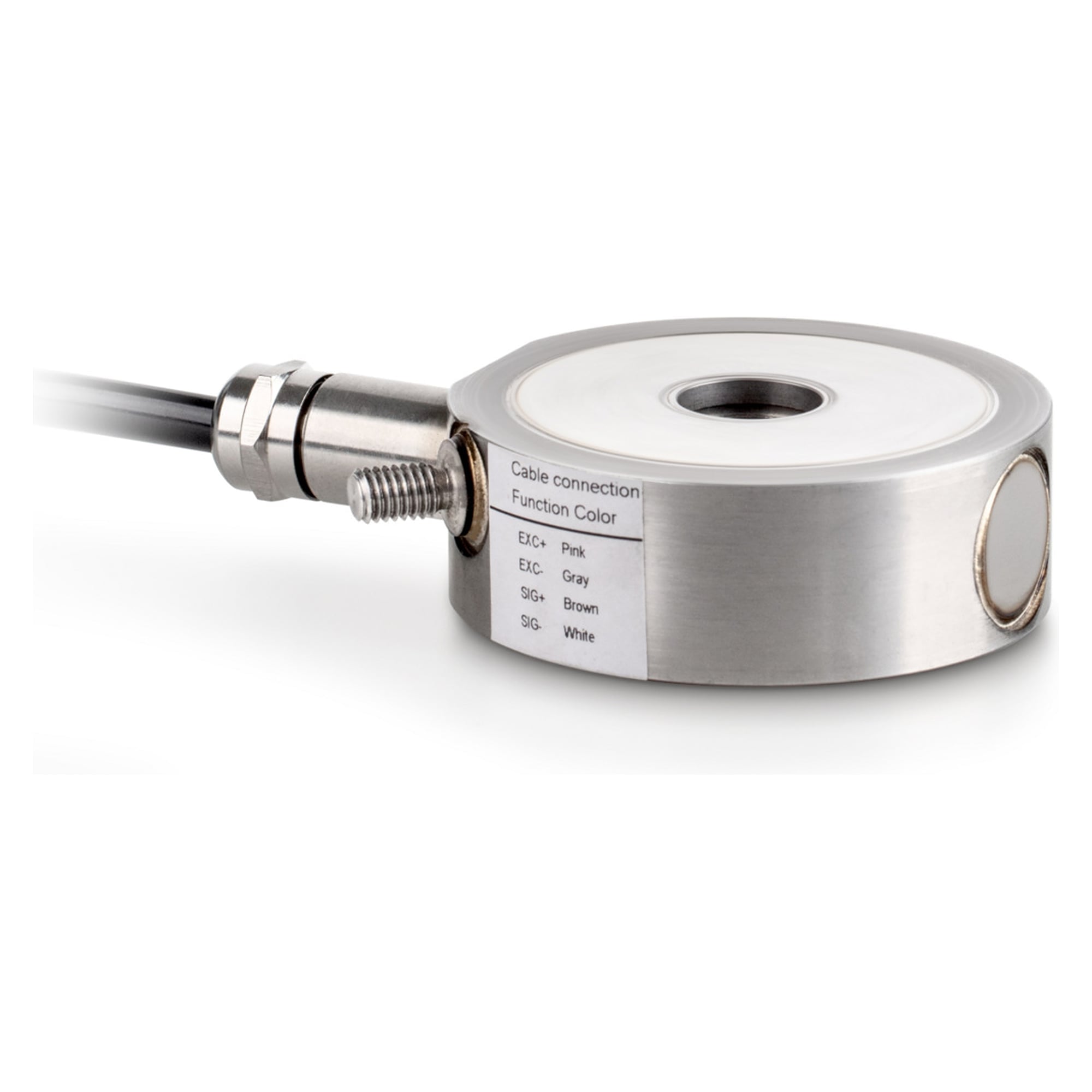

Bending Ring Load Cell 2000 kg, 20 kN, Stainless Steel - SAUTER CR 2000-3P1
