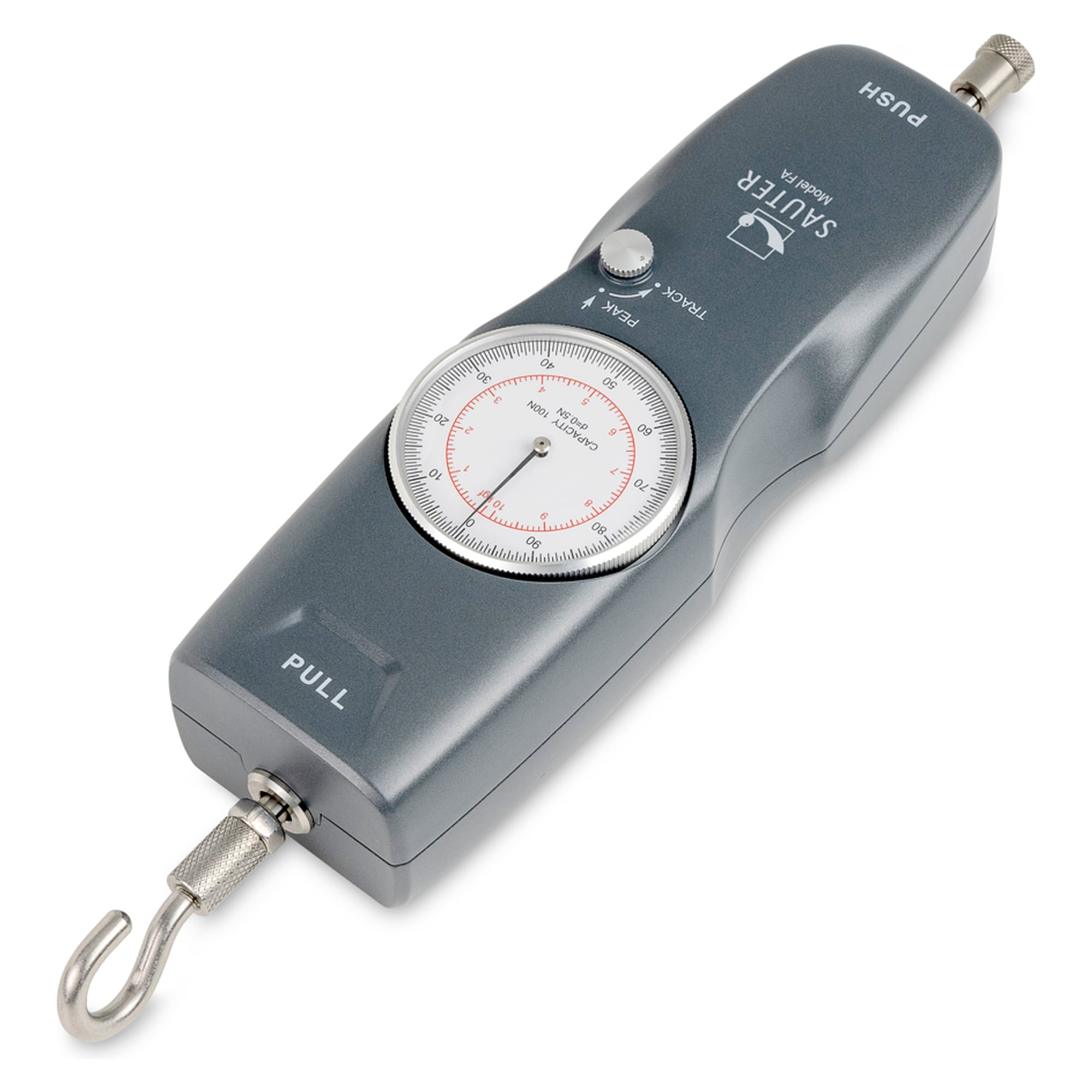

Mechanical Force Gauge - SAUTER FA 100

For tensile and compression measurements without a power supply, the SAUTER FA 100 covers forces up to 100 N at a readability of 0,5 N. The drag pointer provides the peak-hold function and retains the highest measured value.

Benefits

• Tension and compression up to 100 N: mechanical measurement without battery or mains, always ready to use.

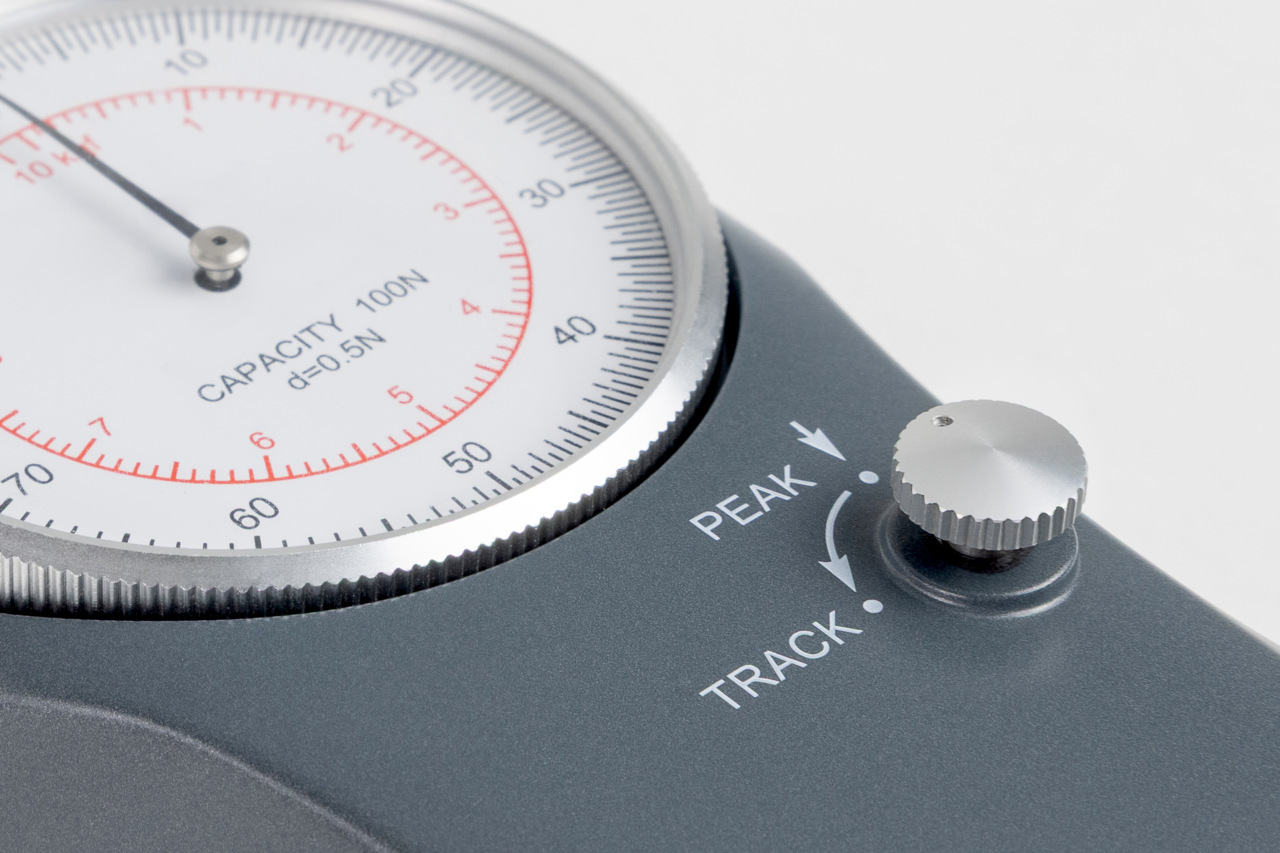

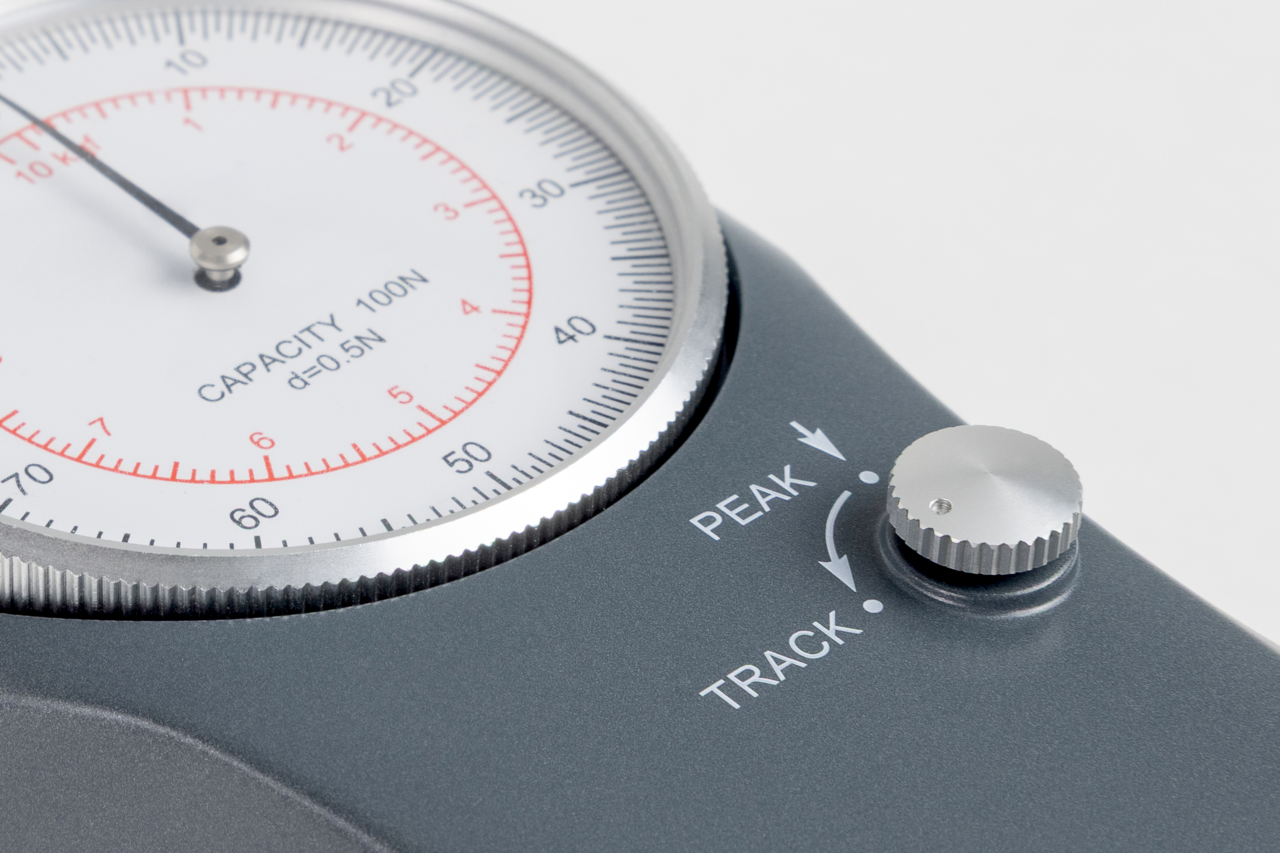

• Peak in view: peak-hold function via drag pointer for the maximum force.
• Dual scale: newtons and kilograms readable in parallel, readability 0,5 N.
• Protected mechanism: sturdy aluminium housing against knocks and drops.
• Fast zeroing: rotating scale disc and zeroing at the press of a button; mounts on all manual test stands.

Technical data

• Force range (Max): 100 N
• Readability (d): 0,5 N
• Force directions: tension and compression
• Overload protection: 150 % of Max
• Tolerance: 1 % of Max
• Housing: aluminium
• Dimensions: 233 x 66 x 53 mm
• Operating temperature: 0 to 40 °C
• Net weight: 0,60 kg

Applications

Quality control, production, mechanical engineering and workshops, teaching and training, and electronics manufacturing.

Compliance and origin

EAN 4045761493995, customs tariff number 90248000, origin China.
