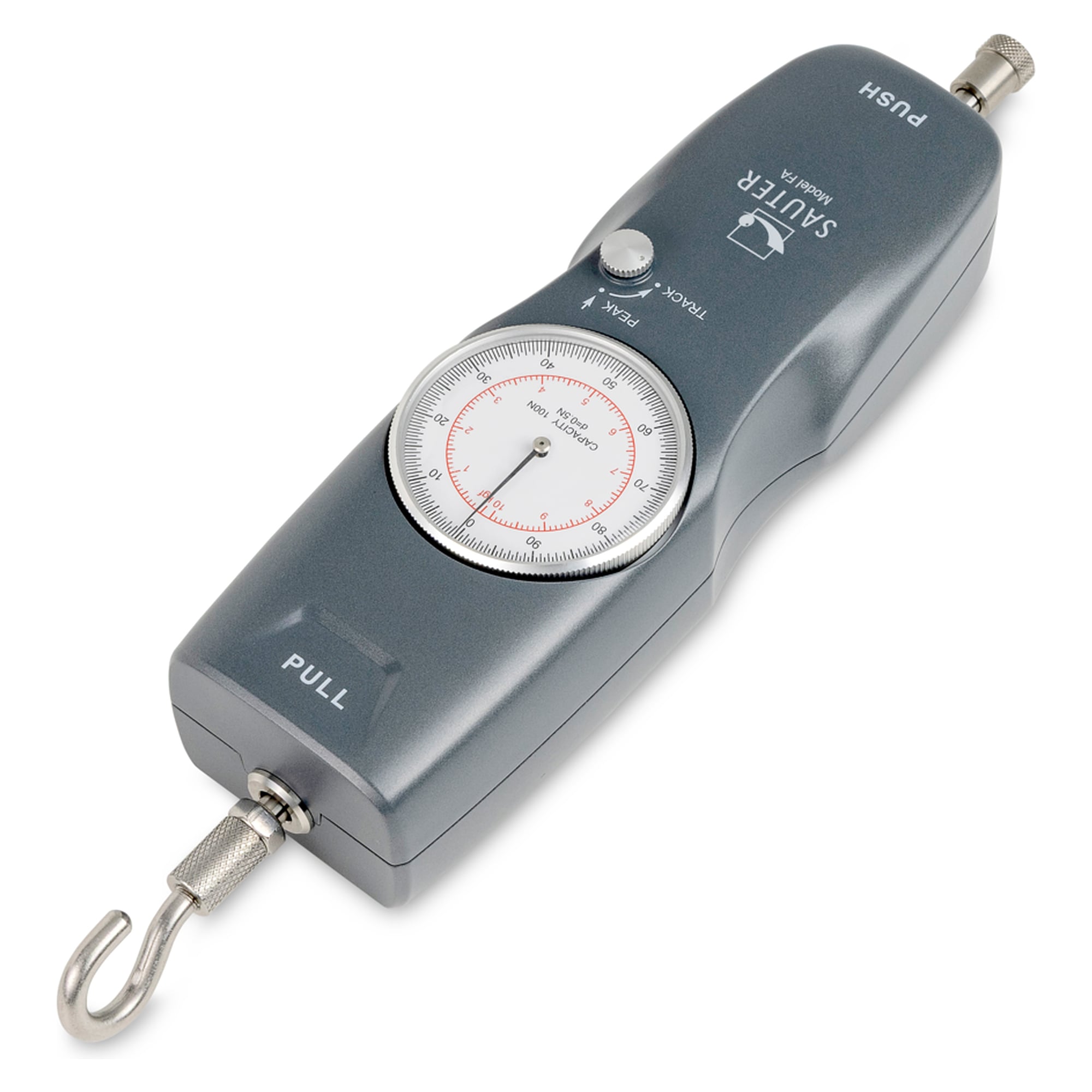

Mechanical Force Gauge - SAUTER FA 500
The SAUTER FA 500 is a mechanical force gauge for tensile and compression forces up to 500 N with a readability of 2,5 N. A drag pointer holds the peak value and the dual scale shows newtons and kilograms in parallel. The sturdy aluminium housing protects the mechanism against knocks and drops.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For tensile and compression measurements without a power supply, the SAUTER FA 500 covers forces up to 500 N at a readability of 2,5 N. The drag pointer provides the peak-hold function and retains the highest measured value.
Benefits
- Tension and compression up to 500 N: mechanical measurement without battery or mains, always ready to use.
- Peak in view: peak-hold function via drag pointer for the maximum force.
- Dual scale: newtons and kilograms readable in parallel, readability 2,5 N.
- Protected mechanism: sturdy aluminium housing against knocks and drops.
- Fast zeroing: rotating scale disc and zeroing at the press of a button; mounts on all manual test stands.
Applications
Quality control, production, mechanical engineering and workshops, teaching and training, and electronics manufacturing.
Compliance and origin
EAN 4045761494039, customs tariff number 90248000, origin China.
Technical data
| Force range (Max) | 500 N |
|---|---|
| Readability (d) | 2,5 N |
| Force directions | tension and compression |
| Overload protection | 150 % of Max |
| Tolerance | 1 % of Max |
| Housing | aluminium |
| Dimensions | 233 x 66 x 53 mm |
| Operating temperature | 0 to 40 °C |
| Net weight | 0,60 kg |
| Weight | 0.95 kg |
| Manufacturer | Sauter |
| EAN | 4045761494039 |
| HS-Code | 90248000 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
| Material | Aluminium |

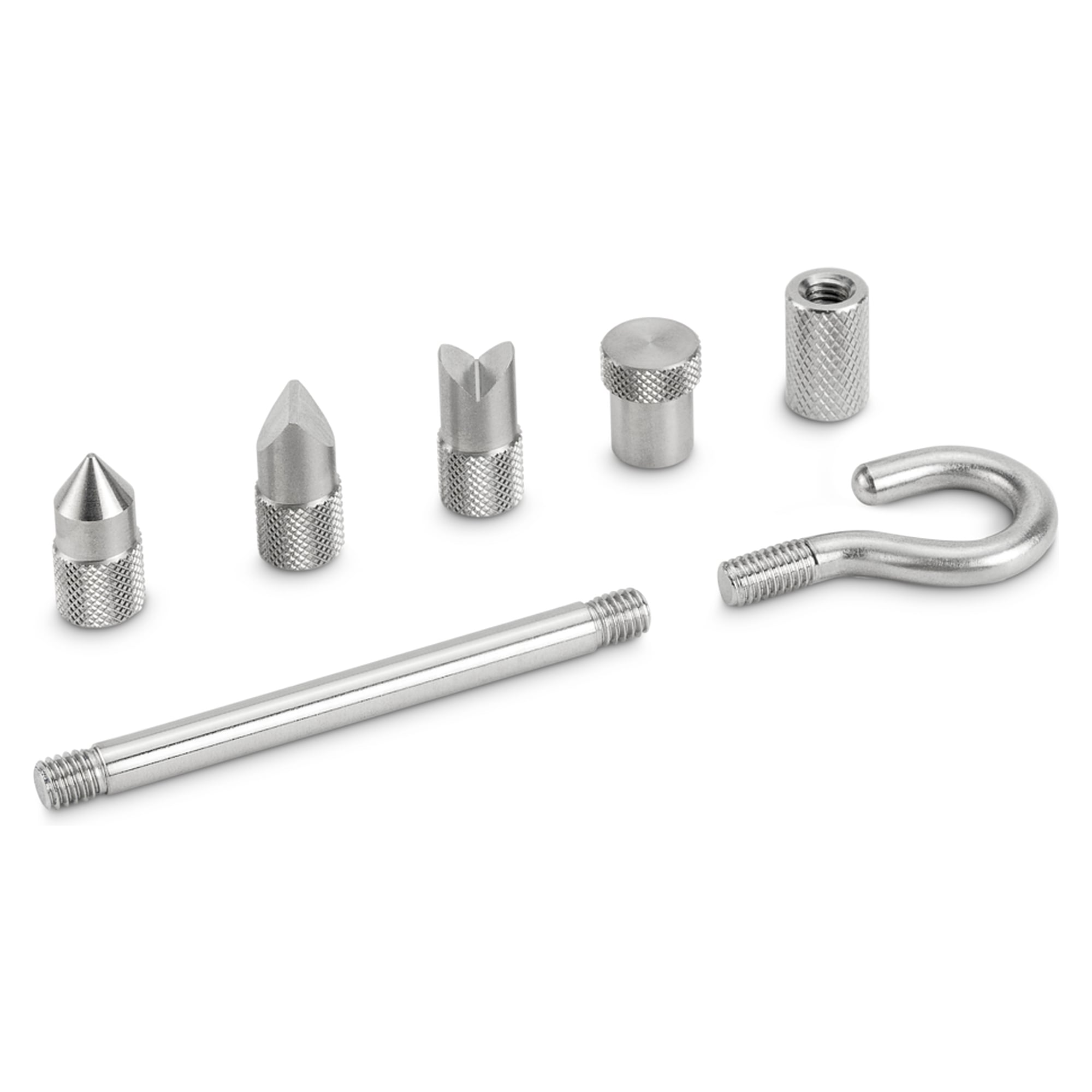

Accessories
Show 6 more items
Questions about this item
Any other question?
Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
