Perforated back panel M500, WxH 478x612 mm, blue RAL 5007 - Treston 861502-07
Perforated back panel in powder-coated steel for the M500 module, 478 x 612 mm, rated for 50 kg. It mounts on the upright tubes and holds tool hooks in a 38 mm hole grid.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The M500 perforated back panel moves tools and small parts off the work surface and onto the rear of the workstation. With a 50 kg load rating and 9 x 9 mm holes at 38 mm pitch, matching Treston tool holders keep even heavier hand tools securely in view.
Key features
- M500 module, panel size 478 x 612 mm, 16 mm deep
- Max load 50 kg
- 9 x 9 mm perforation, 38 mm centre to centre
- Fastens to the upright tubes
- Blue powder coating RAL 5007 to match blue Treston frames
Technical data
| Product code | 861502-07 |
|---|---|
| Dimensions (WxDxH) | 478 x 16 x 612 mm |
| Module | M500 |
| Material | Epoxy powder-coated steel |
| Colour | Blue, RAL 5007 |
| ESD | No |
| Max load | 50 kg |
| Perforation | 9 x 9 mm, 38 mm pitch |
| Mounting | Upright tubes |
| Origin | Finland |
| Warranty | 10 years |
| Weight | 2.74 kg |
| Manufacturer | Treston |
| Manufacturer Nr. | 861502-07 |
| HS-Code | 94039910 |
| GPSR manufacturer information | Treston Deutschland GmbH, Friedrich-Ebert-Damm 143, DE-22047 Hamburg |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Finland |
| Sales unit | 1 |
| Height | 612 |
| Width | 478 |
| Depth | 16 |
| ESD version | TEC |
| Load capacity (kg) | 50 |
Typical uses are assembly, test and workshop stations where tools should hang within reach and the work surface stays clear.
Downloads
Accessories
Treston
Hook set 4, all-inclusive set for hand tools, 100 pieces, ESD - Treston 855004-51
Item TR-855004-51
€247.28
Treston
ESD hook R1, length 50 mm, load capacity 10 kg, 5 pcs - Treston 853208-51
Item TR-853208-51
€6.43
Treston
ESD hook R1, length 80 mm, load capacity 20 kg, 5 pcs - Treston 853209-51
Item TR-853209-51
€7.58
Treston
ESD double hook R2, length 33 mm, gap 17 mm, 15 kg, 5 pcs - Treston 853218-51
Item TR-853218-51
€9.71
Treston
ESD shelf R47, 350x120 mm, load capacity 4 kg, for perforated panels - Treston 831654-49
Item TR-831654-49
€8.69
Treston
ESD holder for 4 pick-up boxes, for perforated panels, 456 x 165 x 48 mm, 5 kg load - Treston 854042-49
Item TR-854042-49
€22.33
Treston
Auxiliary steel shelf 159x210 mm for perforated panel - Treston ASSA5PP
Item TR-ASSA5PP
€54.25
Show 5 more items
Treston
ESD folder compartment for perforated panels, 466 x 90 x 240 mm, 4 kg load, RAL 7035 grey - Treston 854040-49
Item TR-854040-49
€37.62
Treston
Perforated back panel M500, WxH 478x612 mm, light grey RAL 7035, ESD - Treston 861502-49
Item TR-861502-49
€51.16
Treston
Perforated back panel M1000, WxH 968x612 mm, blue RAL 5007 - Treston 861538-07
Item TR-861538-07
€68.27
Treston
Upright tube module ESD 2xM500, height 1359 mm, usable 1046 mm, for Concept - Treston UTM2X500M-49
Item TR-UTM2X500M-49
€232.88
Treston
Upright tube module ESD 2xM500, height 1582 mm, usable 1269 mm, for Concept - Treston UTM2X500L-49
Item TR-UTM2X500L-49
€269.87
Questions about this item
Any other question?
Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day. Ask a question
Customers Who Bought This Item Also Bought
Treston
Tool storage system with 4 perforated panels - Treston 830518-07P
Item TR-830518-07P
€1,547.71
Treston
Perforated back panel M750, 718x389 mm, grey RAL 7035, ESD - Treston 861511-49
Item TR-861511-49
€42.64
Treston
Perforated back panel M1200, 1178 x 389 mm, RAL 7035 grey, ESD - Treston 861533-49
Item TR-861533-49
€79.75
Treston
Longitudinal and cross divider set 3, ESD, cleanroom-suitable - Treston 834509-49
Item TR-834509-49
€72.24
Treston

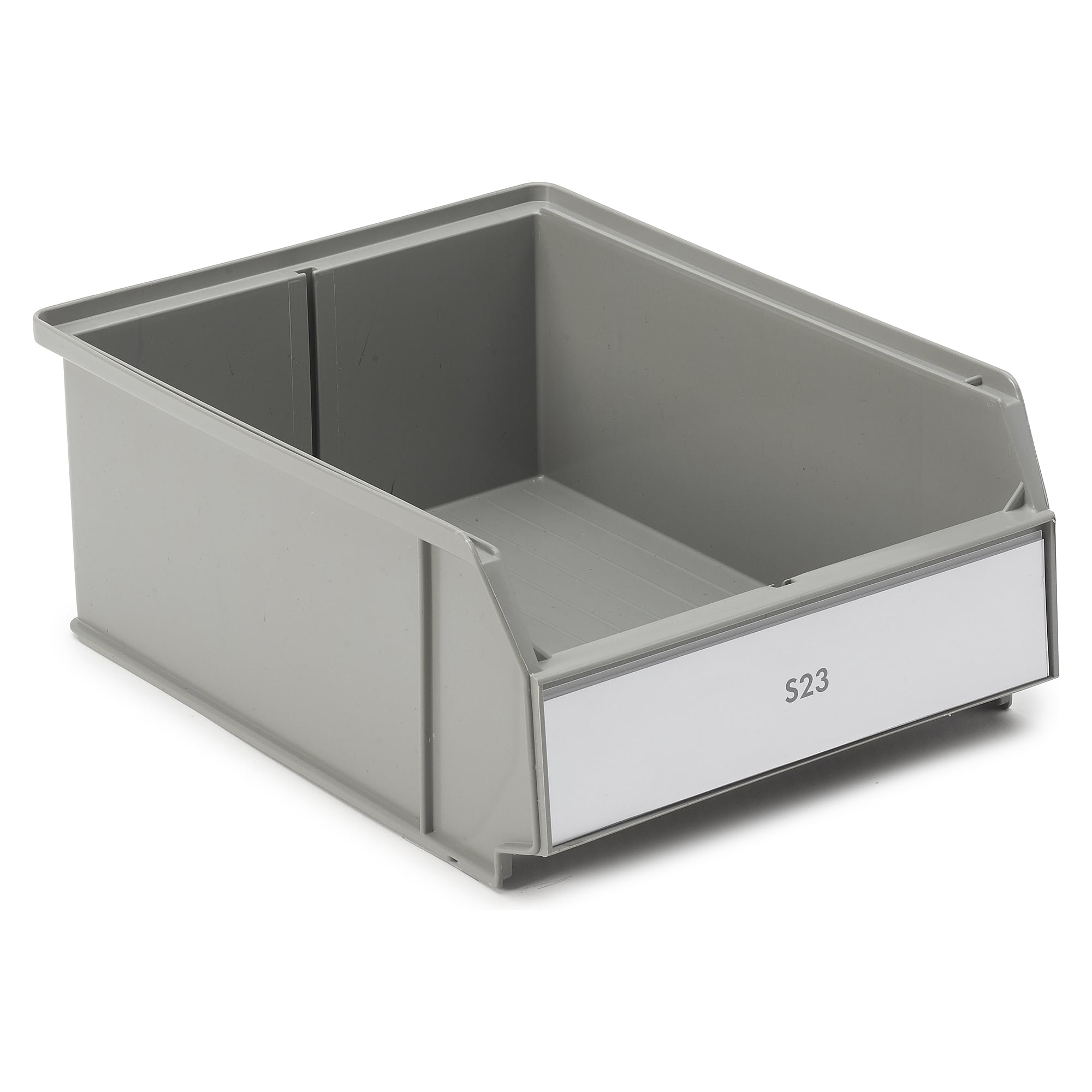

Self-adhesive label shields with card insert for Kennoset 6323-6523-30R, pack of 12 - Treston S23
