Upright Tube Fixing Set ESD for Concept Ergo, Freely Positionable, 100 kg - Treston UFSCE-49
Item TR-UFSCE-49
€30.21
Images are examples, some edited with AI. The technical data are authoritative. AI notice
Upright tube module ESD 2xM500, height 1359 mm, usable 1046 mm, for Concept - Treston UTM2X500M-49
Complete ESD upright tube module 2xM500, 1359 mm high, giving 1046 mm of usable height above the worktop for accessories. It carries 200 kg total, 100 kg per module spacing and comes with 5 cable clips for cable routing. Fits Concept benches 1000 and 1200 mm wide.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The 2xM500 upright tube module extends a Treston workbench upwards in one step, without sourcing individual parts. The set forms two M500 module bays and provides 1046 mm of usable height above the worktop, enough for two levels, for example a bin shelf with lighting above it.
Key features
- Complete module set for mounting accessories, 5 cable clips included
- 1046 mm usable height above the worktop on Concept benches, overall height 1359 mm
- Load capacity 200 kg total, 100 kg per module spacing
- ESD version for electrostatic protected areas (EPA)
- Epoxy powder-coated steel in light grey RAL 7035, matching Treston bench frames
Technical data
| Module | 2xM500 |
|---|---|
| Height | 1359 mm |
| Usable height | 1046 mm above worktop (Concept) |
| Max. load | 200 kg total, 100 kg per module spacing |
| ESD | Yes |
| Material | Steel, epoxy powder-coated |
| Colour | Light grey, RAL 7035 |
| Scope of delivery | Upright tube module, 5 cable clips |
| Compatible with | Concept benches 1000 and 1200 mm wide |
| Product families | Concept Ergo, QuatreX electric workbench |
| Net weight | 11.5 kg |
| Warranty | 10 years |
| Weight | 12 kg |
| Manufacturer | Treston |
| Manufacturer Nr. | UTM2X500M-49 |
| EAN | 6416763095346 |
| HS-Code | 94039910 |
| GPSR manufacturer information | Treston Deutschland GmbH, Friedrich-Ebert-Damm 143, DE-22047 Hamburg |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Finland |
| Sales unit | 1 |
| ESD version | ESD (antistatic) |
| Load capacity (kg) | 200 |
The module mounts directly on the bench. Shelves, monitor arms, lights and bin rails from the Treston accessory range attach to it. The cable clips hold cables against the tube and keep them off the work surface.
Downloads
Accessories
Treston
Adjustable shelf ESD M500 with ESD mat, 470x505 mm, 100 kg - Treston 92049001P
Item TR-92049001P
€142.13
Treston
Adjustable shelf ESD M500 with ESD mat, 470x650 mm, 100 kg - Treston 92049002P
Item TR-92049002P
€164.99
Treston
ESD steel shelf M500, 490x300 mm, fits at 0 or 20° - Treston 860804-49
Item TR-860804-49
€37.14
Treston
Perforated back panel M500, 478x389 mm, grey RAL 7035, ESD - Treston 861501-49
Item TR-861501-49
€41.89
Treston
NaturLite LED Wing 500 work light, 1750 lm, 430 mm - Treston TNL500W
Item TR-TNL500W
€454.08
Treston
Fixing plug set for upright tubes, 2 pcs, for Concept Ergo, QuatreX and TP - Treston FPSET
Item TR-FPSET
€30.48
Show 4 more items
Treston
Upright tube module ESD 2xM500, height 1582 mm, usable 1269 mm, for Concept - Treston UTM2X500L-49
Item TR-UTM2X500L-49
€269.87
Treston

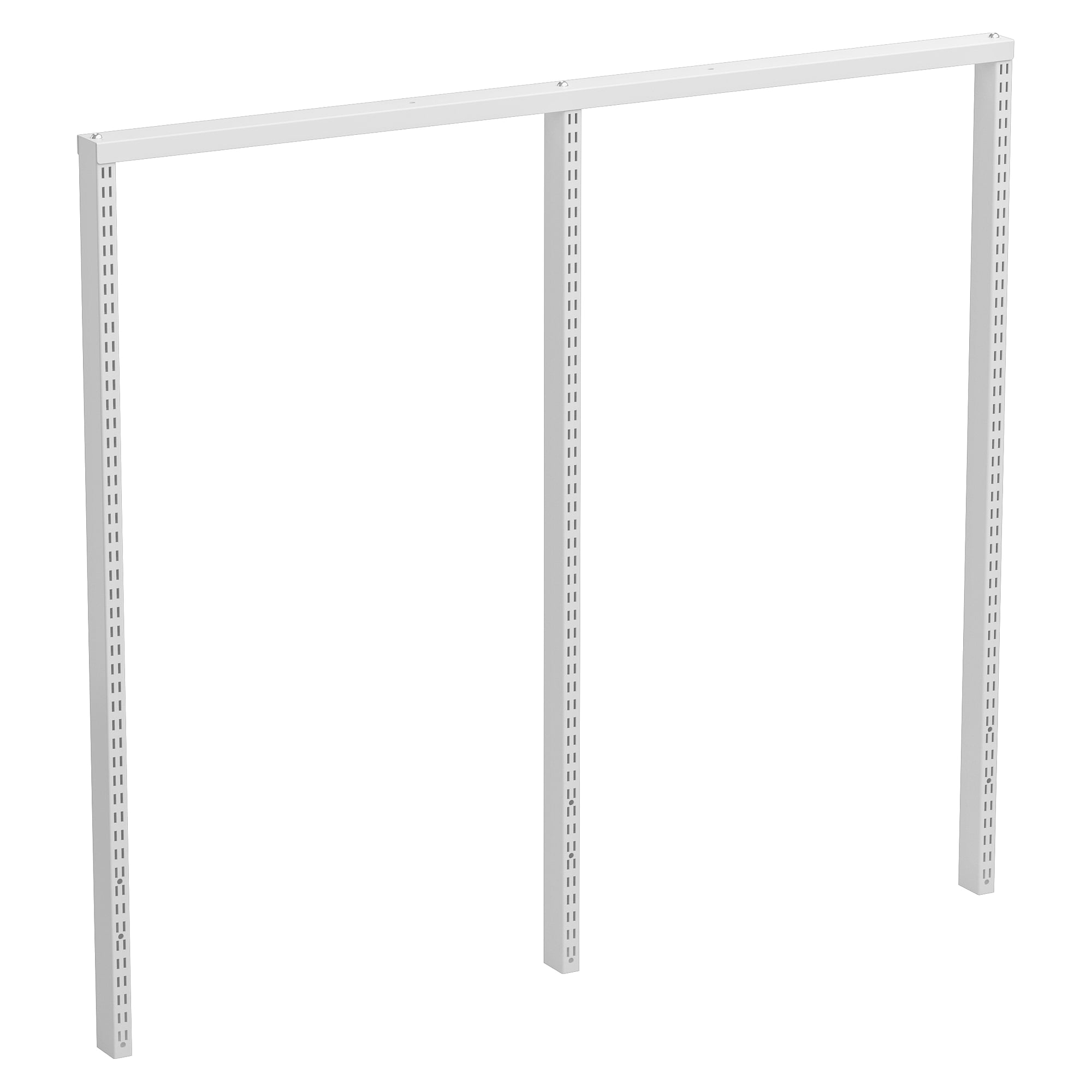

Upright tube module ESD 2xM500, height 996 mm, usable 683 mm, for Concept - Treston UTM2X500S-49
Item TR-UTM2X500S-49
€230.70
Treston
Concept frame ESD, hand-crank height-adjustable 675-1025 mm, 1000x600 mm, 200 kg - Treston 10149015
Item TR-10149015
€1,266.20
Treston
Concept frame ESD, hand-crank height-adjustable 675-1025 mm, 1200x600 mm, 200 kg - Treston 10149016
Item TR-10149016
€1,289.42
Questions about this item
Any other question?
Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day. Ask a question
Customers Who Bought This Item Also Bought
Treston
Aluminium upright profile set ESD for QuatreX, WxH 1489x1200 mm, 1530 mm frame - Treston AL2X150QX
Item TR-AL2X150QX
€250.65
Treston
Upright Profile Set AL2X, ESD, WxH 1489x900 mm, 100 kg Load - Treston AL2X150W
Item TR-AL2X150W
€229.52
Treston
Upright Tube Pair ESD, Height 997 mm, with Flange 70x100 mm, 80 kg, for TED/PowerX TED - Treston TTP990-49
Item TR-TTP990-49
€229.79
Treston

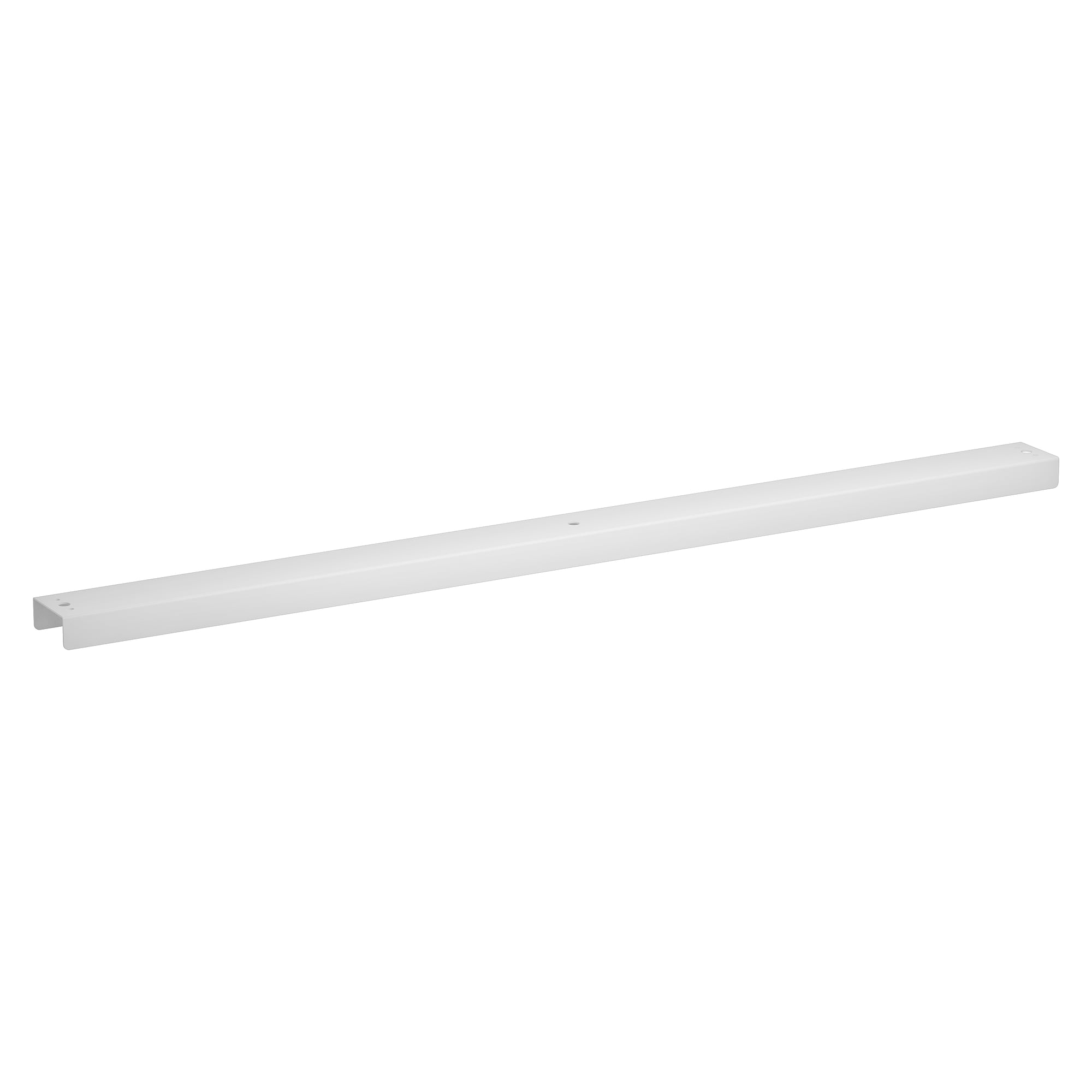

Horizontal profile M1200 ESD, steel RAL 7035, for upright tube modules - Treston HPM1200-49
