Industrial multi trolley M500 low, 2 steel shelves, 540 x 760 x 1150 mm - Treston TMTL5-001-41
Mobile multi trolley with a low frame in the M500 module size and 2 steel shelves that adjust in height in 30 mm steps and tilt from 0 to 25° in 5 steps. Angled shelves present bins and parts at the right height, with a total load of up to 300 kg. For order picking, line feeding and transport between stores and assembly.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Treston industrial multi trolley TMTL5-001-41 brings parts and bins to the workstation in order. Its 2 steel shelves adjust in 30 mm steps to the height you need. Set at an angle, bins slide forward and their contents stay visible, which noticeably speeds up picking.
Key features
- Low frame, 1150 mm high: compact trolley, 540 mm wide, for narrow aisles
- 2 steel shelves, height adjustable on a 30 mm pitch
- Tilt 0 to 25°: in 5 set positions for storage bins and containers
- Load capacity up to 300 kg on an epoxy powder-coated steel frame
- 4 swivel castors, 2 with brakes: easy to steer, stays put when parked
- Ergonomic handle makes manoeuvring easy, even fully loaded
Technical data
| Product code | TMTL5-001-41 |
|---|---|
| Module size | M500 |
| Frame | Low frame |
| Dimensions (W x D x H) | 540 x 760 x 1150 mm |
| Shelves | 2 steel shelves, height adjustable in 30 mm steps |
| Shelf tilt | 0 to 25°, 5 steps |
| Max. load | 300 kg |
| Castors | 4 swivel castors, 2 with brakes |
| Frame material | Steel, epoxy powder-coated |
| Colour | Light grey RAL 7035 |
| ESD | No |
| Warranty | 10 years |
| Weight | 26 kg |
| Manufacturer | Treston |
| Manufacturer Nr. | TMTL5-001-41 |
| EAN | 6416763093830 |
| HS-Code | 94032080 |
| GPSR manufacturer information | Treston Deutschland GmbH, Friedrich-Ebert-Damm 143, DE-22047 Hamburg |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Finland |
| Sales unit | 1 |
| Height | 1150 |
| Width | 540 |
| Depth | 760 |
| ESD version | TEC |
| Load capacity (kg) | 300 |
Use it as a picking trolley, as a material buffer next to assembly lines or for moving parts between goods-in, stores and production. The M500 module size matches the grid of Treston workstation and storage systems.
Downloads
Accessories
Treston
ESD bottom steel shelf M500 for Multi trolley, 460x728 mm, 100 kg - Treston TMTLS5-49
Item TR-TMTLS5-49
€74.90
Treston
Rubber mat for steel shelf TMTS5-49, WxD 463x645 mm, black - Treston 725738-00
Item TR-725738-00
€18.69
Treston
Rubber mat for lower shelf TMTLS5-49, WxD 455x723 mm, black - Treston 725742-00
Item TR-725742-00
€18.69
Treston
Bin rail for storage bins M500, 492 x 100 mm, light grey - Treston 859150-41
Item TR-859150-41
€23.31
Treston
Industrial Multi Trolley M750 Low, 2 Steel Shelves with 5-step tilting, 790 x 760 mm - Treston TMTL7-001-41
Item TR-TMTL7-001-41
€495.77
Treston
Industrial Multi Trolley M900 Low, 2 Steel Shelves with 5-step tilting, 943 x 760 mm - Treston TMTL9-001-41
Item TR-TMTL9-001-41
€513.81
Show 5 more items
Treston
Industrial Multi Trolley M500, low frame, 540 x 760 x 1150 mm, up to 300 kg - Treston TMTFL5-41
Item TR-TMTFL5-41
€321.81
Treston
Industrial multi trolley M500, high frame, 540x760x1790 mm, 300 kg - Treston TMTFH5-41
Item TR-TMTFH5-41
€354.97
Treston
Industrial Multi Trolley M500 Low, 2 Steel Shelves with stepless tilting, 540 x 760 mm - Treston TMTL5-002-41
Item TR-TMTL5-002-41
€549.10
Treston
Industrial multi trolley high M500, 4 steel shelves, 540x760x1790 mm - Treston TMTH5-001-41
Item TR-TMTH5-001-41
€654.02
Treston
Industrial multi trolley high M500, 4 adjustable steel shelves, 540x760x1790 mm - Treston TMTH5-002-41
Item TR-TMTH5-002-41
€777.77
Questions about this item
Any other question?
Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day. Ask a question
Customers Who Bought This Item Also Bought
Treston
ESD industrial multi trolley high M500, 4 adjustable steel shelves, 540x760x1790 mm - Treston TMTH5-002-49
Item TR-TMTH5-002-49
€843.02
Treston
Industrial Multi Trolley M900 Low, 2 Steel Shelves with 5-step tilting, 943 x 760 mm - Treston TMTL9-001-41
Item TR-TMTL9-001-41
€513.81
Treston

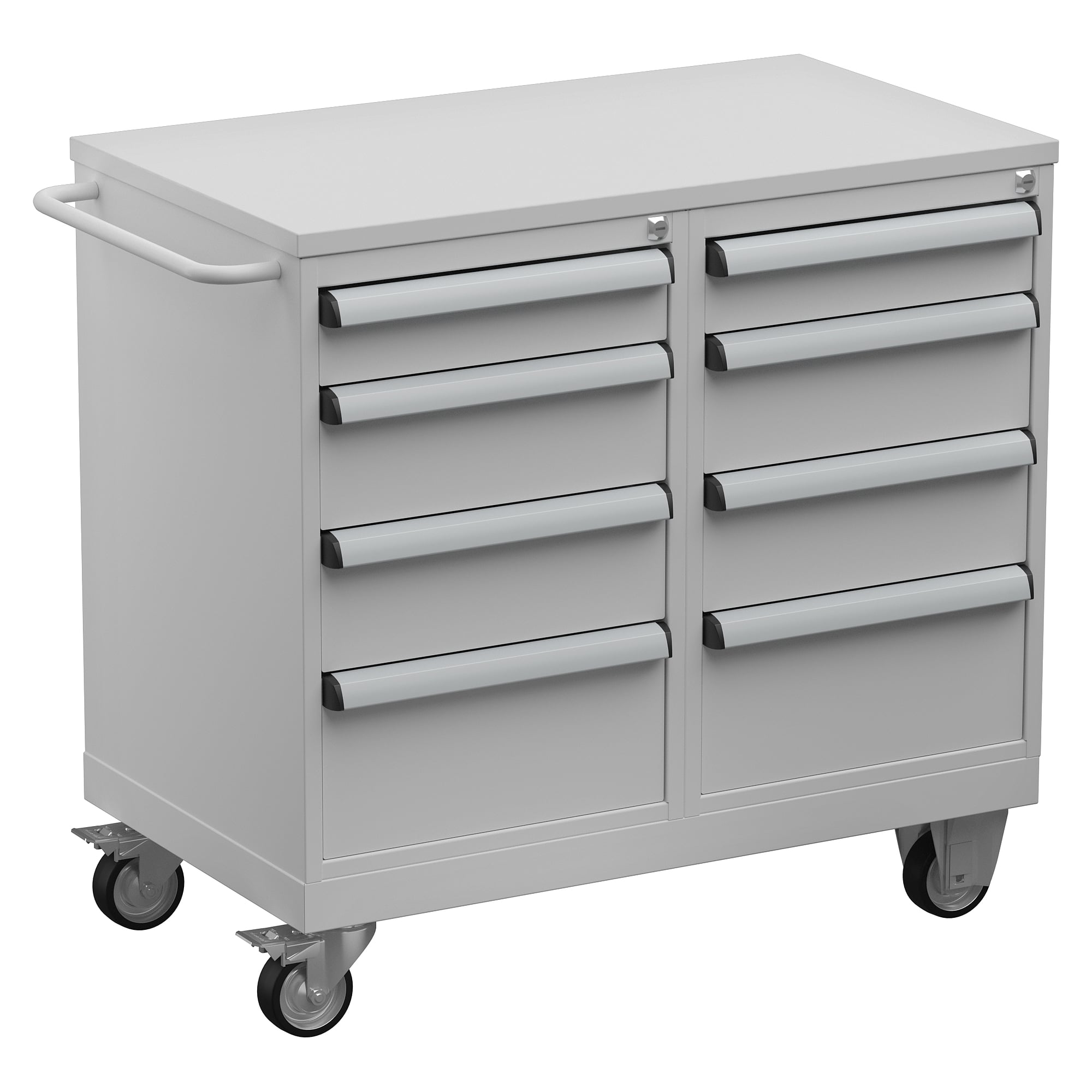

ESD Tool Trolley 3 with Steel Top, 8 Drawers, 910x525 mm - Treston TWIN45-203-49
