ESD Upright Tube Module 1xM1500, Height 1359 mm, Usable 1046 mm, for Concept/TP/QuatreX - Treston UTM1X1500M-49
Complete ESD upright tube module 1xM1500 in light grey RAL 7035 for mounting accessories on Treston Concept, TP and QuatreX benches. With an overall height of 1359 mm it gives 1046 mm of usable height above the worktop and carries 100 kg per module spacing. Fits Concept benches 1500, 1800 and 2000 mm wide and TP benches 1500 mm wide, 5 cable clips included.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The 1xM1500 upright tube module adds an accessory level above a Treston workbench for shelves, lights, monitor arms and other add-ons. It comes as a complete set and carries 100 kg per module spacing. Measured from the top of the worktop, 1046 mm of usable height is available.
Key features
- ESD version for electrostatic protected areas (EPA)
- 1xM1500 module for Concept benches 1500, 1800 and 2000 mm wide and TP benches 1500 mm wide and QuatreX
- Overall height 1359 mm, usable height 1046 mm above the worktop
- Load capacity 100 kg per module spacing
- 5 cable clips included for tidy cable routing along the uprights
- Frame in epoxy powder-coated steel, light grey RAL 7035
Technical data
| Module | 1xM1500 |
|---|---|
| Overall height | 1359 mm |
| Usable height above worktop | 1046 mm |
| Load capacity | 100 kg per module spacing |
| ESD | Yes |
| Material | Epoxy powder-coated steel |
| Colour | Light grey, RAL 7035 |
| Scope of delivery | Upright tube module, 5 cable clips |
| Compatible with | Concept benches 1500, 1800 and 2000 mm wide and TP benches 1500 mm wide, QuatreX |
| Net weight | 8.5 kg |
| Warranty | 10 years |
| Weight | 9 kg |
| Manufacturer | Treston |
| Manufacturer Nr. | UTM1X1500M-49 |
| EAN | 6416763095742 |
| HS-Code | 94039910 |
| GPSR manufacturer information | Treston Deutschland GmbH, Friedrich-Ebert-Damm 143, DE-22047 Hamburg |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Finland |
| Sales unit | 1 |
| Height | 1359 |
| ESD version | ESD (antistatic) |
| Load capacity (kg) | 100 |
Use it in electronics assembly, test stations and repair workplaces where tools, lighting and component bins should hang within reach above the work surface. Individual upright tubes in other lengths extend the setup. It is also listed for the Treston QuatreX electric four-leg workbench.
Downloads
Accessories
Treston
Perforated back panel M1500, 1478 x 389 mm, RAL 7035 grey, ESD - Treston 861526-49
Item TR-861526-49
€91.43
Treston
Fixing plug set for upright tubes, 2 pcs, for Concept Ergo, QuatreX and TP - Treston FPSET
Item TR-FPSET
€30.48
Treston
Concept frame ESD, hand-crank height-adjustable 675-1025 mm, 1500x600 mm, 200 kg - Treston 10149017
Item TR-10149017
€1,336.80
Treston
Concept frame ESD, hand-crank height-adjustable 675-1025 mm, 1800x600 mm, 200 kg - Treston 10149018
Item TR-10149018
€1,369.88
Show 2 more items
Treston
TP workbench ESD, height-adjustable 650-900 mm, 1500x700 mm, max. 300 kg - Treston TP715 ESD
Item TR-TP715 ESD
€623.76
Questions about this item
Any other question?
Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day. Ask a question
Customers Who Bought This Item Also Bought
Treston
Upright Profile Set AL2X, ESD, WxH 1063x900 mm, 100 kg Load - Treston AL2X110W
Item TR-AL2X110W
€224.22
Treston
Upright tube module ESD 2xM750, height 1359 mm, usable 1046 mm, for Concept/TP - Treston UTM2X750M-49
Item TR-UTM2X750M-49
€247.54
Treston

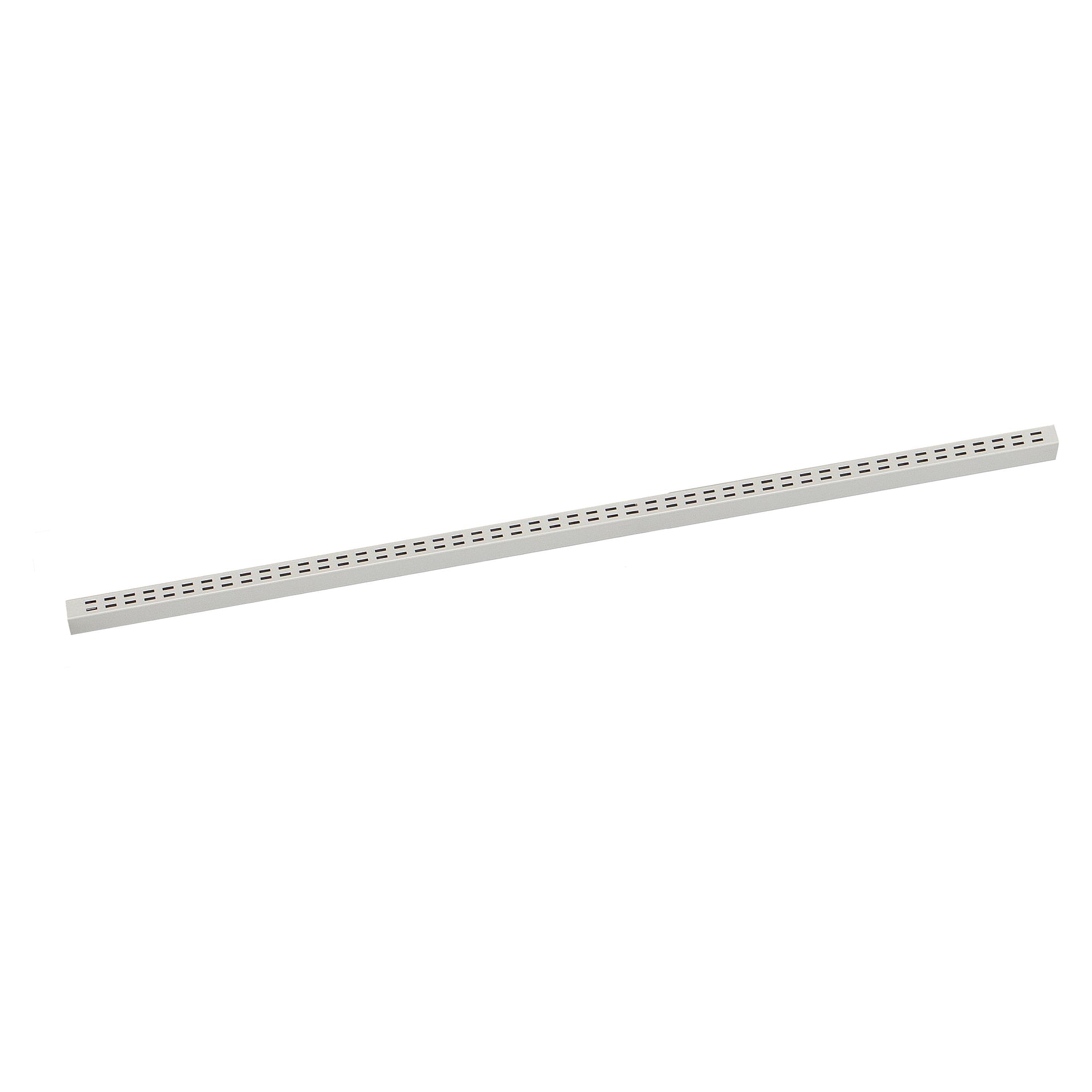

Upright tube ESD, length 500 mm, WxD 30x60 mm, for Concept/TP - Treston 860991-49
