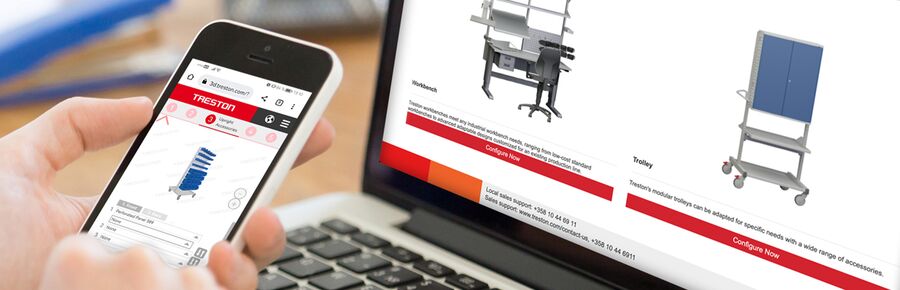

3D Configurator
Body profiles and louvre tubes
Accessories
Treston body profiles and louvre tubes form the structural backbone of Concept, TP, and TPH workbench superstructures. Louvre tubes with a 30x60 mm cross-section are available in lengths 500 mm (860991-49), 790 mm (860142-49), 1359 mm (860024-49), and 1582 mm (860025-49), all in ESD finish. AKK frames (AKK70, AKK150, AKK180) and aluminium profile sets (AL2X110W, AL2X150W, AL2X180W) create multi-sided superstructure surfaces with integrated cable retention and a load capacity of up to 100 kg.
Louvre tube pairs with flange (TTP400-49, TTP790-49) in heights 400 and 790 mm allow quick mounting on bench tops. AL2X... profile sets consist of two uprights and one horizontal profile with three cable clips (CC8) each, covering widths 1063, 1489, and 1789 mm (WxH approx. 900 mm).
| Article | Dimensions | ESD | Note |
|---|---|---|---|
| 860991-49 Louvre tube | 500 mm length, 30x60 mm | Yes | Short profile for compact superstructures |
| 860142-49 Louvre tube | 790 mm length, 30x60 mm | Yes | Standard height M750 |
| 860024-49 Louvre tube | 1359 mm length, 30x60 mm | Yes | Tall superstructure |
| 860025-49 Louvre tube | 1582 mm length, 30x60 mm | Yes | Extra-tall superstructure |
| TTP400-49 tube pair | Height 400 mm, with flange | Yes | Low superstructure height |
| TTP790-49 tube pair | Height 790 mm, with flange | Yes | Standard superstructure height |
| AKK70 | 730x540 mm | Yes | Single frame for narrow benches |
| AKK150 | 690x500 + 690x500 mm | Yes | Double frame for M1500 |
| AKK180 | 690x500 + 990x500 mm | Yes | Double frame for M1800 |
| AL2X110W | WxH 1063x900 mm | Yes | 100 kg capacity, 3x CC8 |
| AL2X150W | WxH 1489x900 mm | Yes | 100 kg capacity, 3x CC8 |
| AL2X180W | WxH 1789x900 mm | Yes | 100 kg capacity, 3x CC8 |
| HKCP147 | Height 1470 mm | No | Extra-tall profile pair |
Typical applications: Building new workstation superstructures for Concept and TPH benches, extending existing superstructures in height or width, erecting AKK double frames for wide 1800 mm workstations with central support, and installing AL2X profile sets for workstations requiring integrated cable management and high load capacity.
