ESD Upright Tube Module 2xM900, Height 996 mm, Usable 683 mm, for Concept 1800/2000, TP 1800 - Treston UTM2X900S-49
Complete ESD upright tube module 2xM900, 996 mm high, for mounting accessories above the work surface. It carries 100 kg per module spacing, 200 kg in total, and gives 683 mm of usable height on Concept benches. Fits Concept benches 1800 and 2000 mm wide and TP bench 1800 mm wide and comes with 5 cable clips.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The 2xM900 upright tube module gives your Treston workbench a load-bearing frame for shelves, lights, perforated panels and other overhead accessories. At 996 mm high it provides 683 mm of usable height on Concept benches, and each module spacing takes 100 kg, so up to 200 kg overall.
Key features
- Complete kit ready to fit to the bench, no need to source tubes and cross members separately
- 2xM900 module pitch matching Concept benches 1800 and 2000 mm wide and TP bench 1800 mm wide
- Load capacity 100 kg per module spacing, 200 kg maximum
- ESD safe for use at static-protected workstations
- 5 cable clips included to route cables neatly along the tubes
- Epoxy powder-coated steel in light grey RAL 7035
Technical data
| Module pitch | 2xM900 |
|---|---|
| Height | 996 mm |
| Usable height (Concept bench) | 683 mm |
| Load capacity | 100 kg per module spacing, max. 200 kg |
| Material | Epoxy powder-coated steel |
| Colour | Light grey, RAL 7035 |
| ESD | Yes |
| Fits | Concept benches 1800 and 2000 mm wide and TP bench 1800 mm wide |
| Product families | Treston Concept, TP and QuatreX |
| Scope of delivery | Upright tube module, 5 cable clips |
| Net weight | 10.5 kg |
| Origin | Finland |
| Warranty | 10 years |
| Weight | 11 kg |
| Manufacturer | Treston |
| Manufacturer Nr. | UTM2X900S-49 |
| EAN | 6416763095414 |
| HS-Code | 94039910 |
| GPSR manufacturer information | Treston Deutschland GmbH, Friedrich-Ebert-Damm 143, DE-22047 Hamburg |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Finland |
| Sales unit | 1 |
| ESD version | ESD (antistatic) |
| Load capacity (kg) | 200 |
Use it as the starting point when an electronics assembly, production or test workstation needs overhead accessories added later. Single upright tubes in other lengths can extend the setup where required.
Downloads
Accessories
Treston
Adjustable ESD shelf M900, 870x505 mm, 100 kg, with ESD mat - Treston 92049009P
Item TR-92049009P
€202.02
Treston
Adjustable ESD shelf M900, 870x650 mm, 100 kg, with ESD mat - Treston 92049010P
Item TR-92049010P
€237.07
Treston
Perforated back panel M900, 878x389 mm, RAL 7035 grey, ESD - Treston 861516-49
Item TR-861516-49
€47.14
Treston
ESD Light and Balancer Rail 2xM900/B1800, Load Capacity 15 kg - Treston 91849008P
Item TR-91849008P
€209.50
Show 6 more items
Treston
Fixing plug set for upright tubes, 2 pcs, for Concept Ergo, QuatreX and TP - Treston FPSET
Item TR-FPSET
€30.48
Treston
Upright tube module ESD 2xM900, height 1582 mm, usable 1269 mm, for Concept/TP - Treston UTM2X900L-49
Item TR-UTM2X900L-49
€286.81
Treston

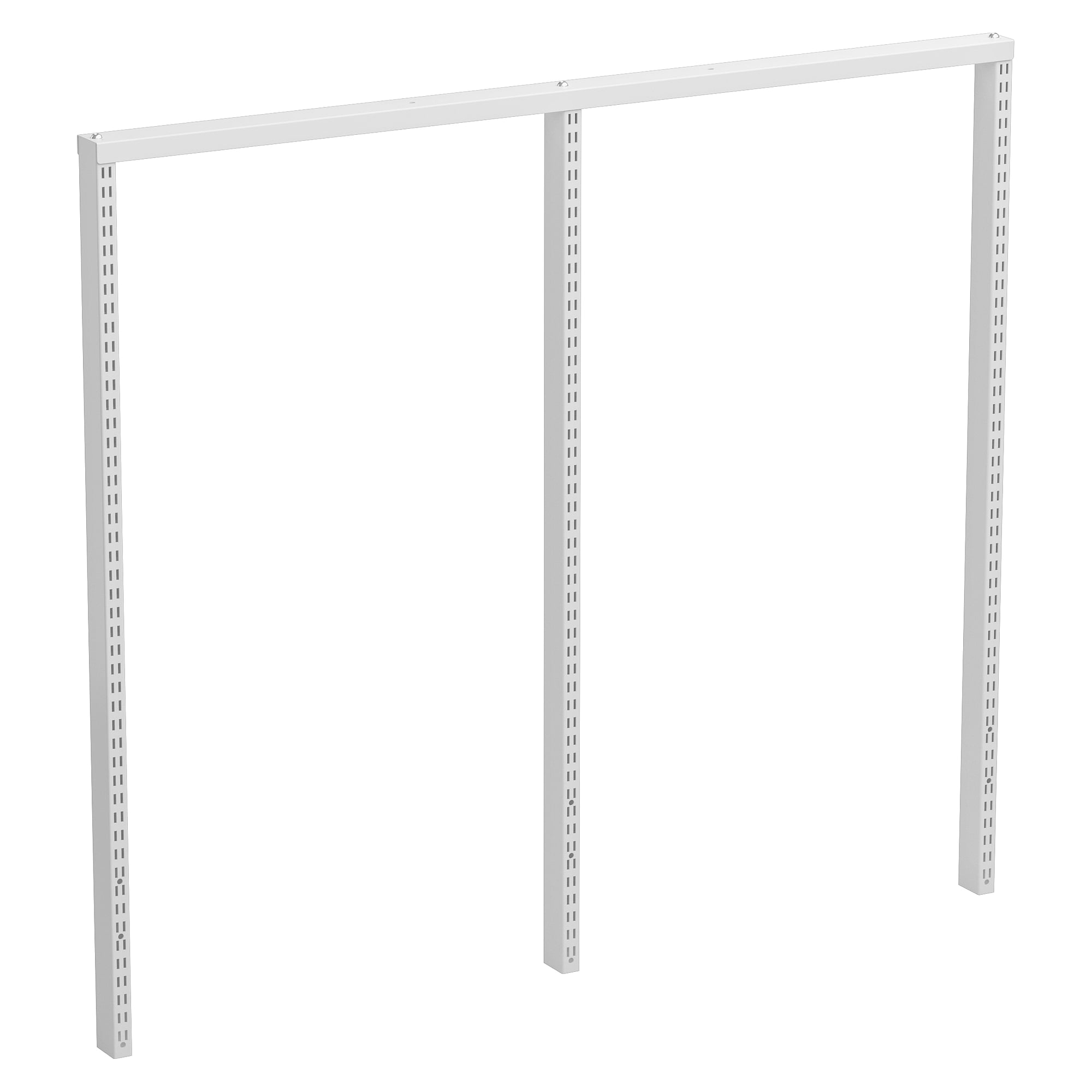

ESD Upright Tube Module 2xM900, Height 1359 mm, Usable 1046 mm, for Concept 1800/2000, TP 1800 - Treston UTM2X900M-49
Item TR-UTM2X900M-49
€255.01
Treston
Concept frame ESD, hand-crank height-adjustable 675-1025 mm, 1800x600 mm, 200 kg - Treston 10149018
Item TR-10149018
€1,369.88
Treston
TP workbench ESD, height-adjustable 650-900 mm, 1800x700 mm, max. 300 kg - Treston TP718 ESD
Item TR-TP718 ESD
€727.33
Questions about this item
Any other question?
Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day. Ask a question
Customers Who Bought This Item Also Bought
Treston

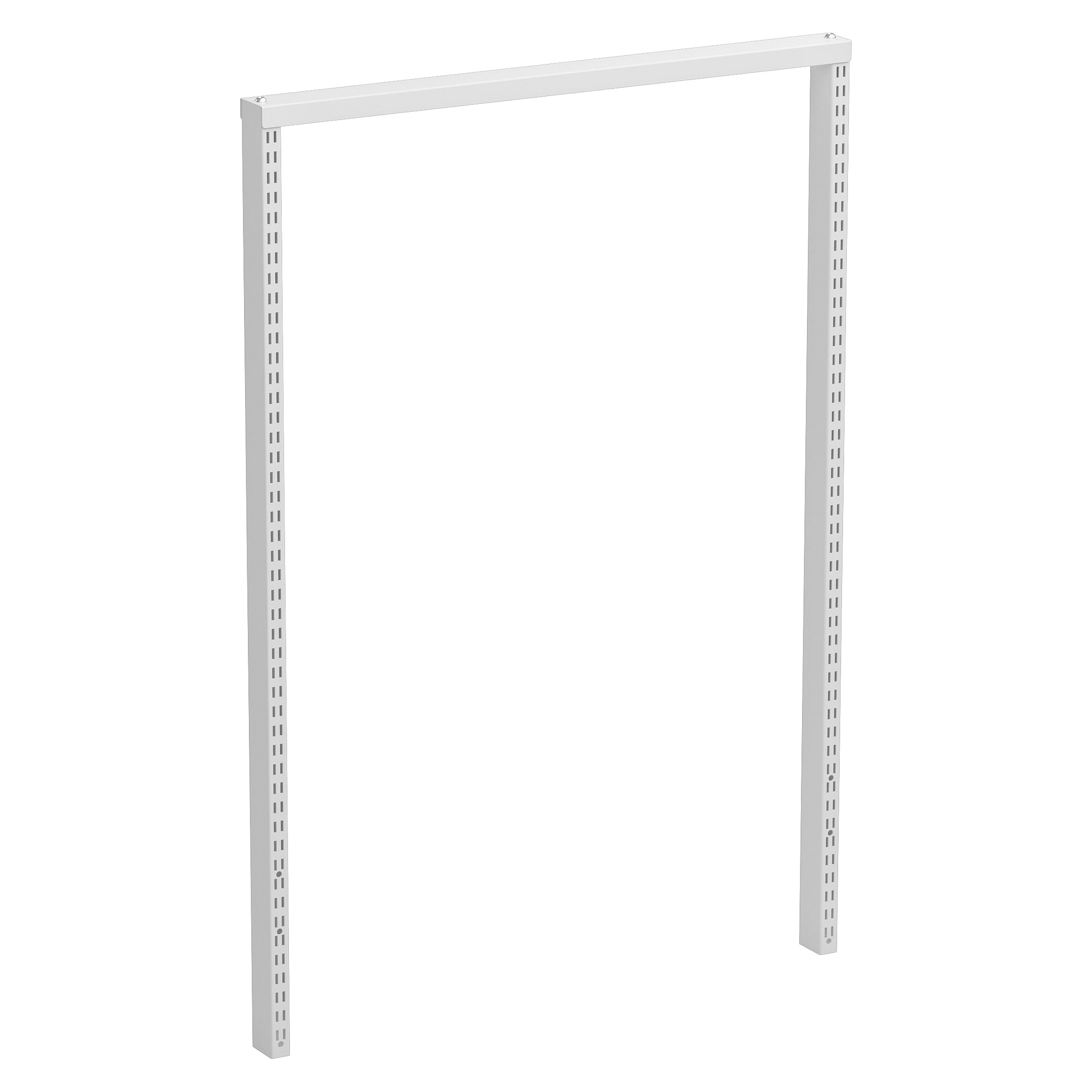

ESD Upright Tube Module 1xM900, Height 1359 mm, Usable 1046 mm, for Concept/TP - Treston UTM1X900M-49
Item TR-UTM1X900M-49
€158.38
Treston
Upright tube ESD, length 800 mm, WxD 30x60 mm, for Concept/TP - Treston 860142-49
Item TR-860142-49
€45.48
Treston
ESD Upright Tube Module 4xM500, Height 1582 mm, Usable 1269 mm, for Concept 2000 - Treston UTM4X500L-49
Item TR-UTM4X500L-49
€465.97
Treston
Upright tube module ESD 2xM500, height 1359 mm, usable 1046 mm, for Concept - Treston UTM2X500M-49
Item TR-UTM2X500M-49
€232.88
Treston
Upright tube module ESD 2xM750, height 996 mm, usable 683 mm, for Concept/TP - Treston UTM2X750S-49
Item TR-UTM2X750S-49
€245.35
Treston
Aluminium upright profile set ESD for QuatreX, WxH 1789x1200 mm, 1836 mm frame - Treston AL2X180QX
Item TR-AL2X180QX
€265.84
Treston
ESD Upright Tube Module 1xM1200, Height 1359 mm, Usable 1046 mm, for Concept/TP/QuatreX - Treston UTM1X1200M-49
Item TR-UTM1X1200M-49
€162.15
Treston

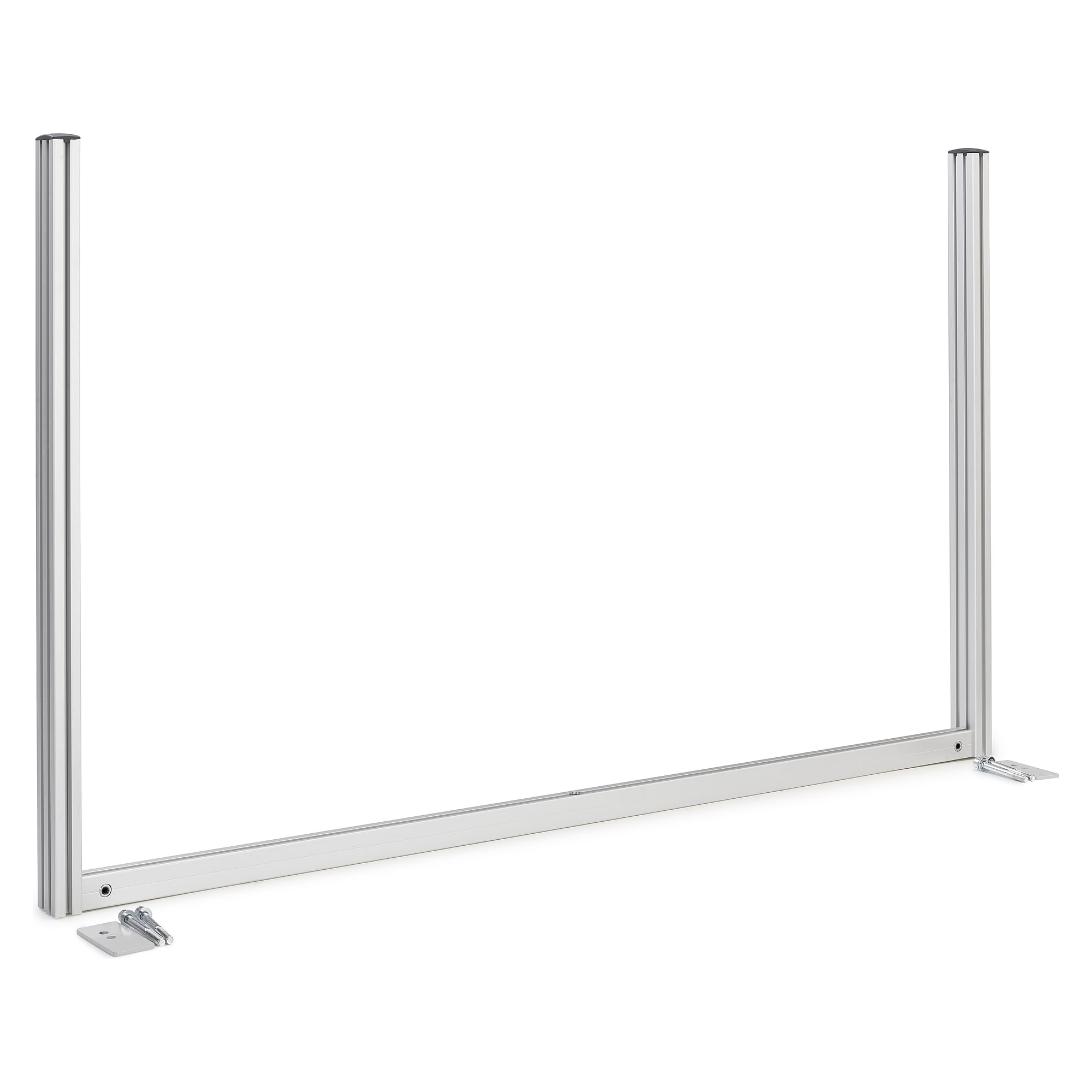

Upright Profile Set AL2X, ESD, WxH 1489x900 mm, 100 kg Load - Treston AL2X150W
