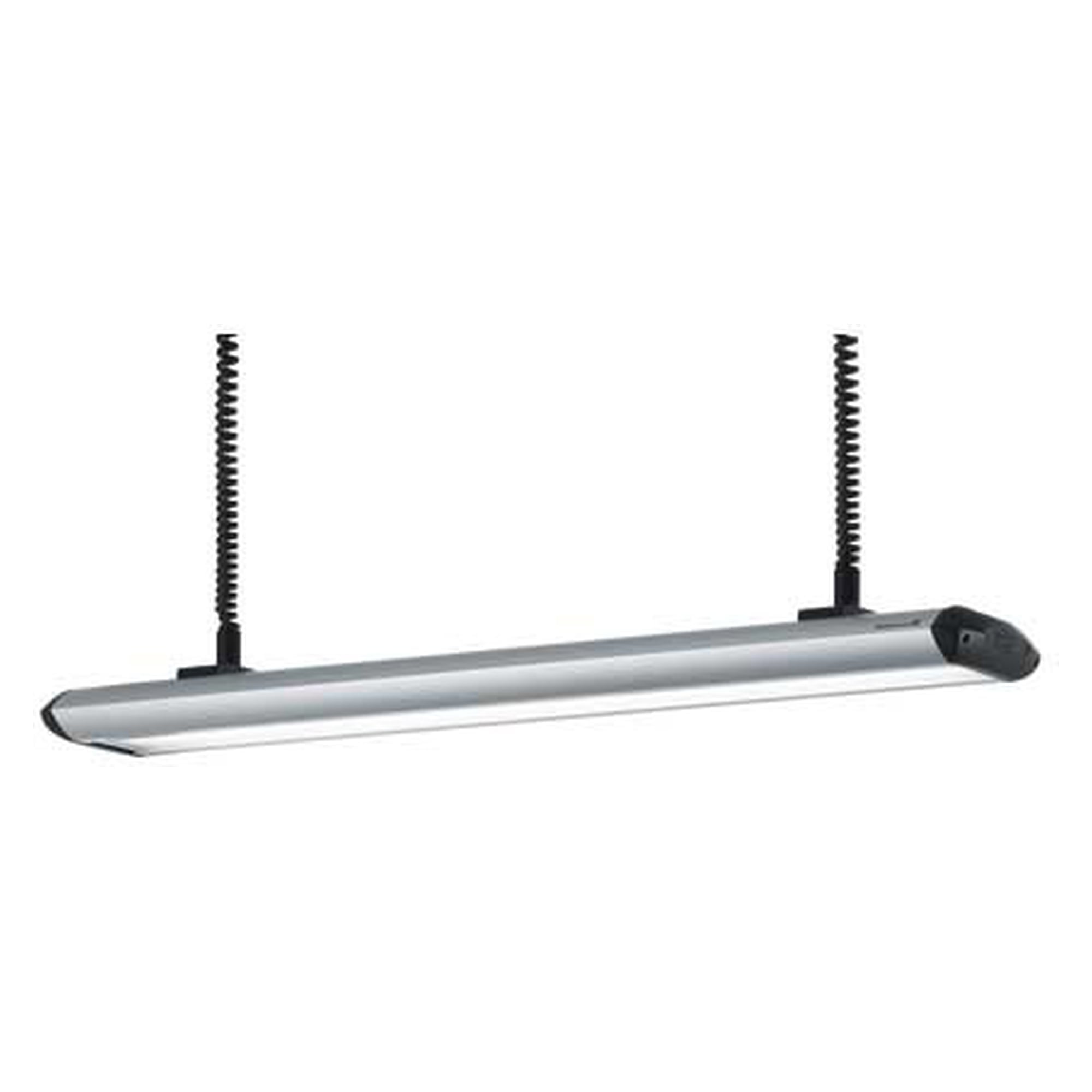

LED system luminaire TAMETO SAHZQ 66, 956 mm, 2300 lm, 4000 K, rocker switch - Waldmann 112983000-00551373

Compact workstations and narrower benches call for a shorter luminaire with targeted direct light. TAMETO SAHZQ 66 is 956 mm long, hangs on rise-and-fall pendants with 0.3-1.3 m extension above the bench and delivers approx. 2300 lm at 26 W (approx. 88 lm/W) with a 75° beam angle. The rocker switch on the luminaire turns it on and off without additional control equipment, the light colour is fixed at neutral white.

Benefits

• CRI ≥ 90 and R9 ≥ 50: reliably distinguish colours, markings and components
• Prism aperture, UGR ≤ 22 and luminance L65 ≤ 3800 cd/m²: low-glare direct light on the work surface
• Simple operation via rocker switch, neutral white 4000 K, approx. 88 lm/W
• Light emitted along the entire luminaire length without dark zones, chromaticity tolerance < 3 SDCM for uniform light across several luminaires
• Clear anodised aluminium housing with black side parts, sealed against dirt when closed and easy to clean
• 20-year Waldmann manufacturer's warranty, including LED light source and driver (Waldmann general warranty terms, purchase in the EEA)

Applications

• Workbenches in workstation systems
• Assembly workstations
• Electronics manufacturing
• Inspection workstations and quality control

Installation and accessories

• Suspended on rise-and-fall pendants with 0.3-1.3 m extension range
• Connection in the canopy via connector (lead approx. 0.08 m), 220-240 V AC, 50/60 Hz, IP20, protection class I
• Through-wiring for electrically linking several luminaires, with the matching connecting cable
• Two T-slots on the back for further attachment options on the workstation system
