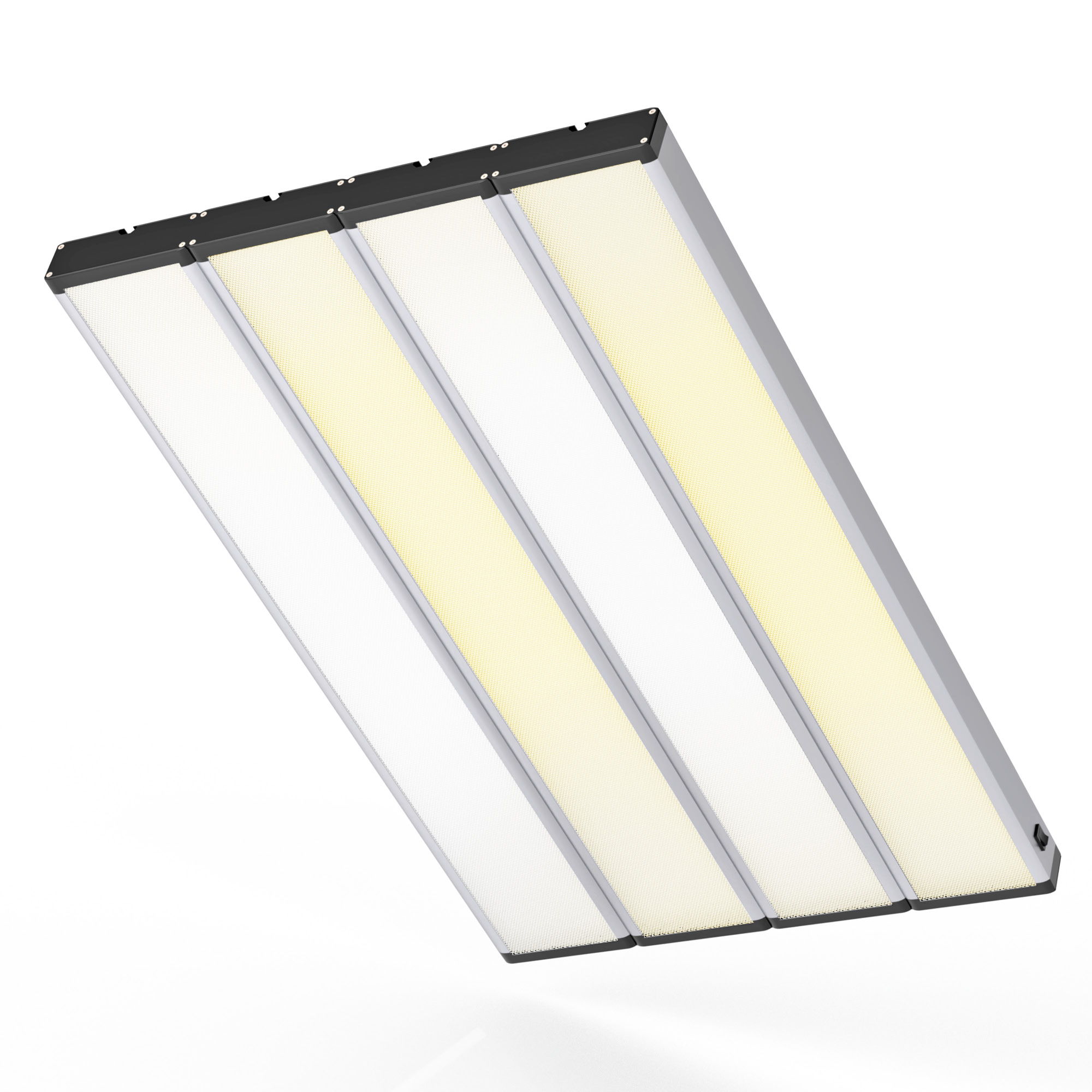

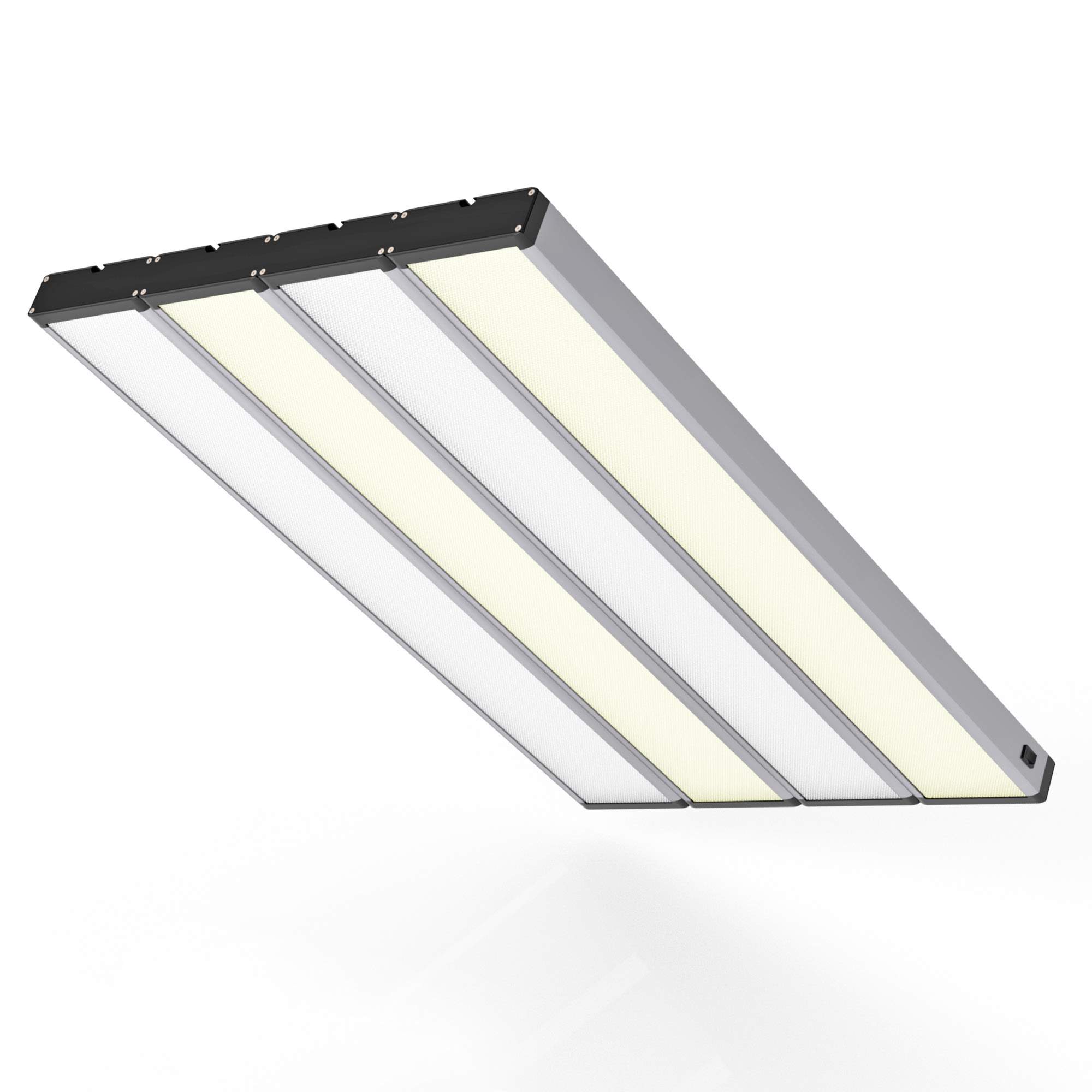

SYSTEMLED SurfaceOne inspection light 898 mm, 4-row, 15640 lm - LED2WORK 155670-02

For reproducible visual and final inspection of larger parts, the four-row SYSTEMLED SurfaceOne in an 898 mm length delivers 15640 lm with a colour rendering of typ. Ra 95. The supplied controller lets you set and store both light colours separately, for identical conditions at every inspection station.

Key benefits

• Two switchable light colours, 4000K and 6500K (3-step MacAdam), for confident assessment of paint and metal surfaces
• High colour fidelity with Ra typ. 95 and R9 = 90, so fine defects stand out clearly
• 15640 lm luminous flux at 169 lm/W efficacy
• Low glare thanks to microprisms and UGR < 22

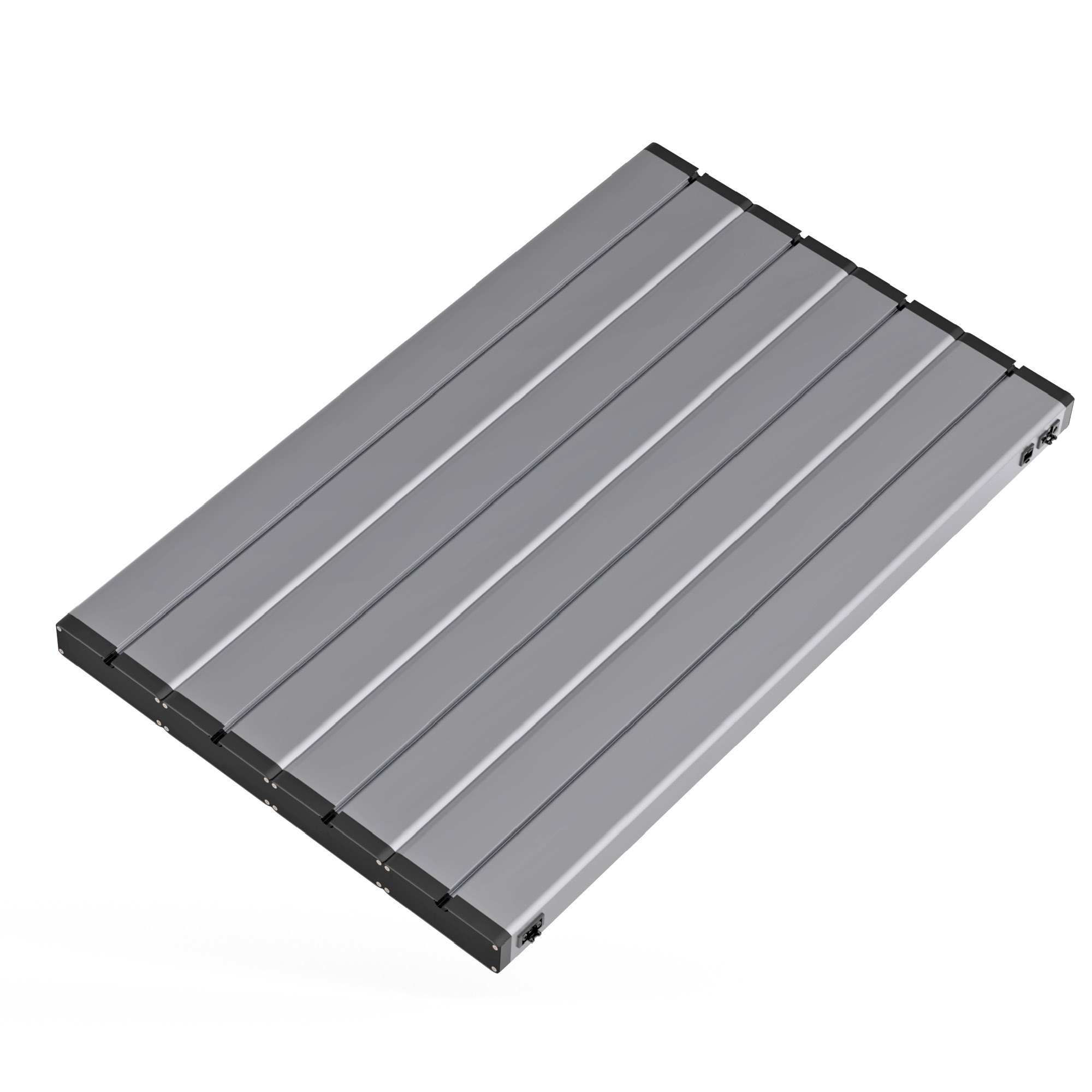

• Rear T-slots (slot 8) for fast, flexible mounting on the test stand

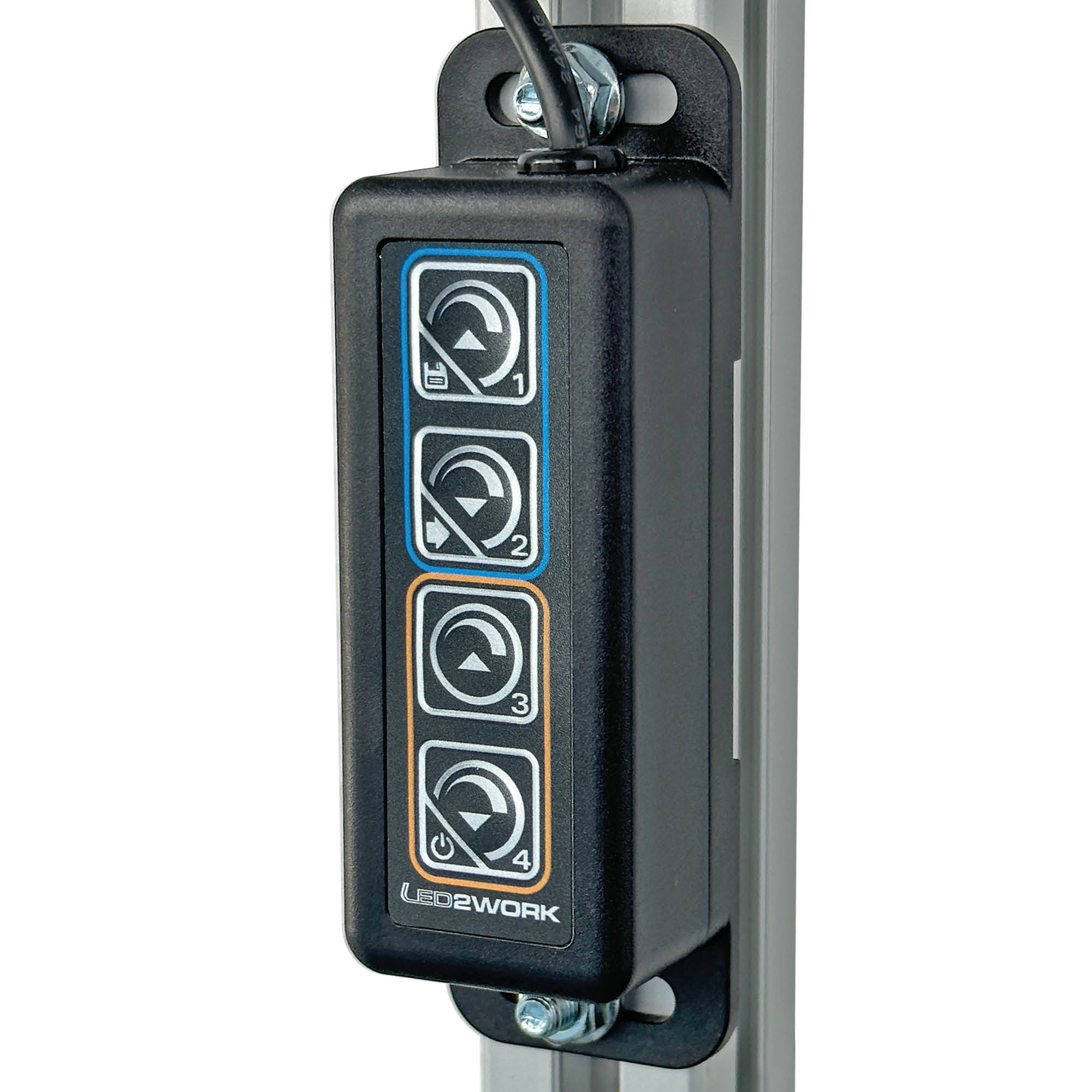

• Light colours externally dimmable and switchable via the included controller

Technical data

• Model: SYSTEMLED SurfaceOne - 6.5-4-6.5-4
• Light source: SMD LED
• Total power incl. driver: ~100 W
• Power: ~92 W
• Luminous flux: 15640 lm
• Luminous efficacy: 169 lm/W
• Light colour: 4000K + 6500K, 3-step MacAdam
• Colour rendering: Ra > 90 (typ. 95), R9 = 90
• UGR: < 22
• Beam angle: 90°
• Supply voltage: 120-277V AC ± 10 %, 50-60 Hz
• Connection: Wieland GST18, integrated driver
• Protection rating: IP40, protection class I
• Operating temperature: -10 °C to +45 °C
• Service life: > 100,000 h (L80/B10)
• Housing material: aluminium and PMMA

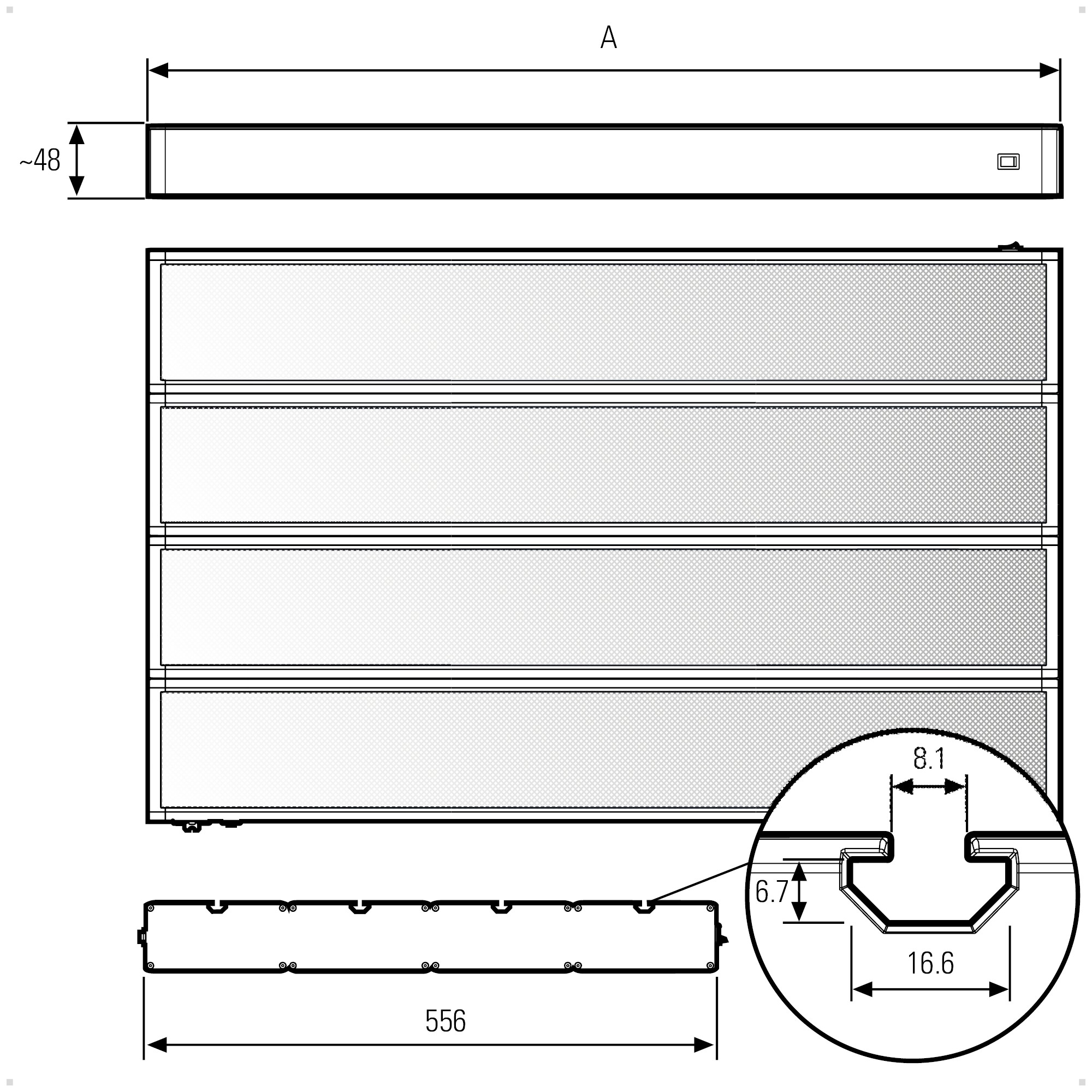

• Dimensions: length 898 mm, height 48 mm x width 556 mm
• Weight: 10566 g
• Risk group (DIN EN 62471): exempt group
• Certifications: CE, UKCA
• Made in: Germany

Applications

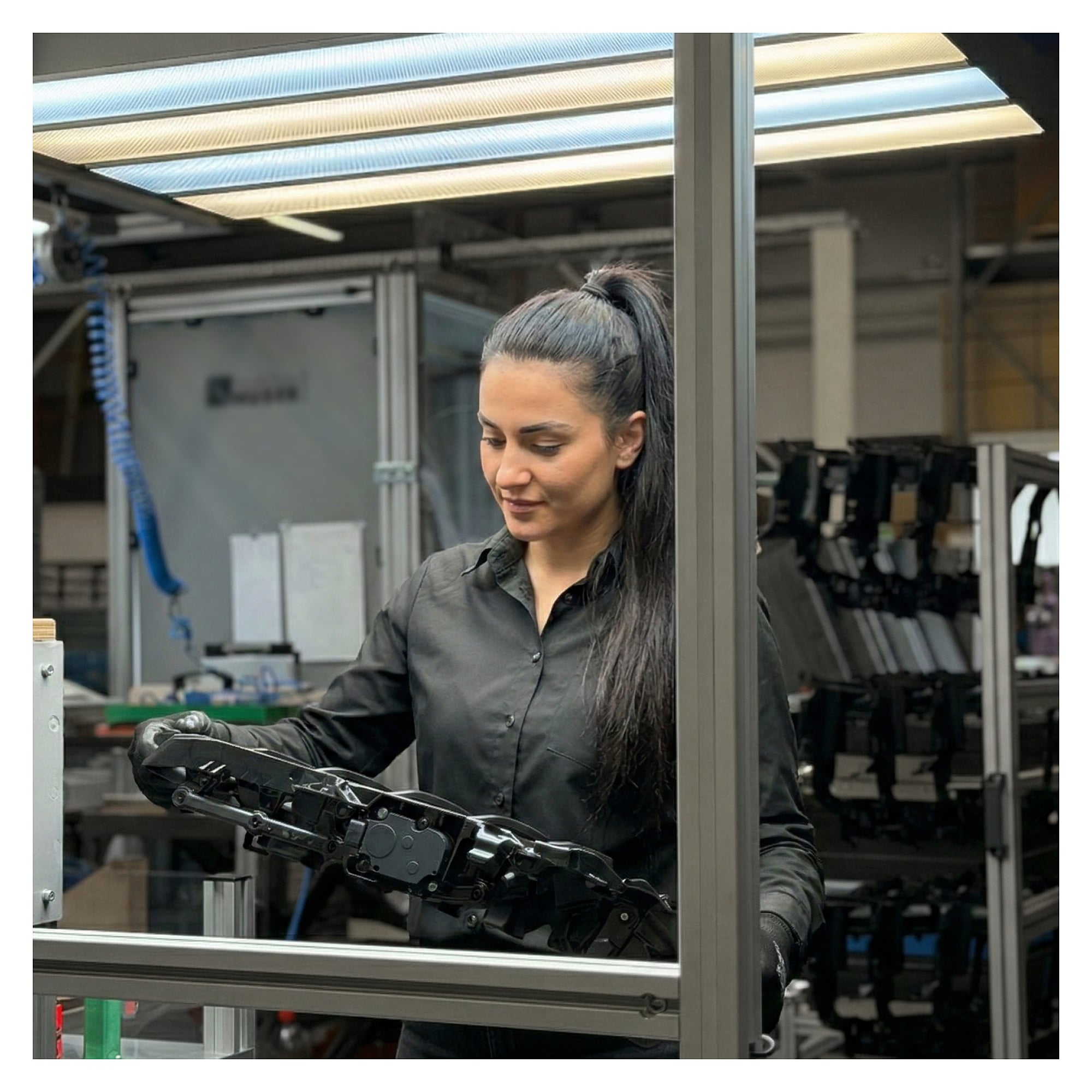

Ideal for in-process and final inspection in high-end consumer goods manufacturing and the automotive industry, for example checking painted, metal and plastic surfaces under reproducible inspection conditions.
